elephant nose coiler steel wire drawing machine
- Category: >>>
- Supplier: Wuxi Wandeshun Machine Co. Ltd.
Share on (62214600200):
Product Overview
Description
Wuxi Wandeshun Machine Co., Ltd (we are factory)
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Product Details

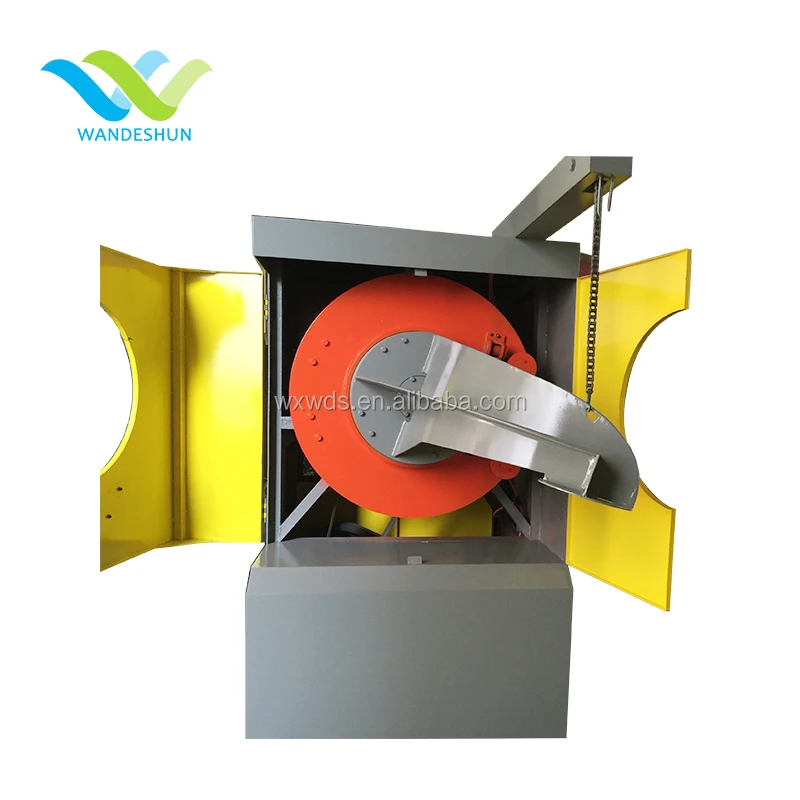

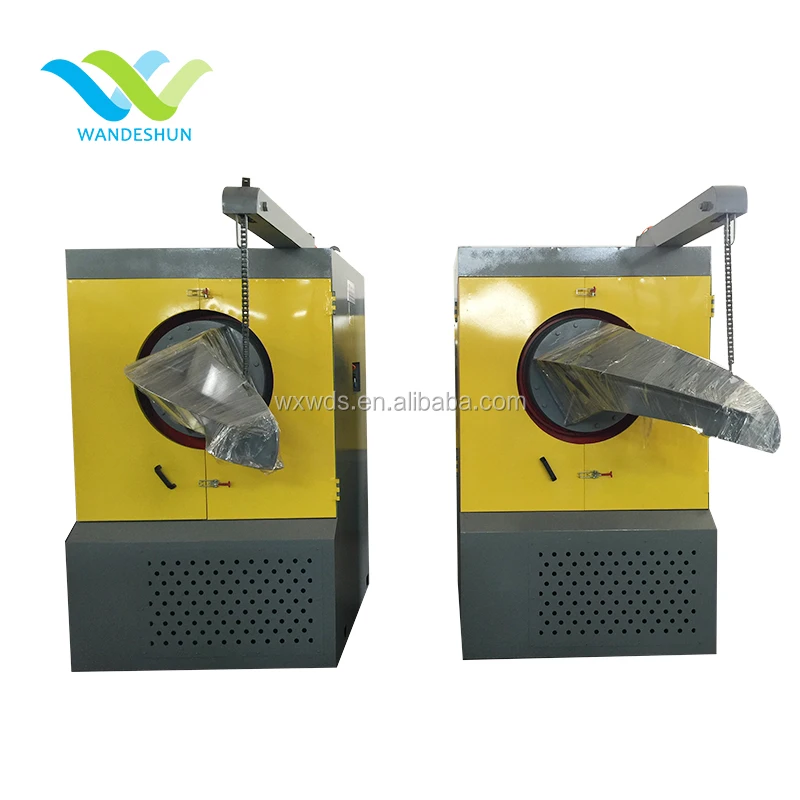

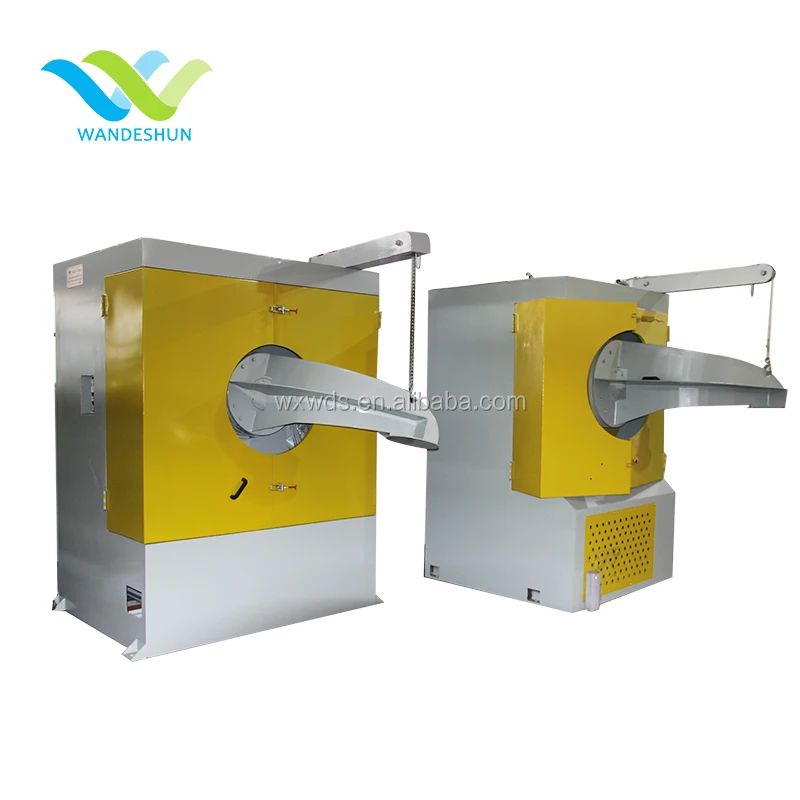

elephant nose coiler steel wire drawing machine
Detailed Description:
The trunk-type take-up machine improved by our company is used for the heavy wet wire drawing machine and straight line wire drawing machine in order to discharge wires with a big weight of coll.It is suitable to discharge the big weight of coll which high-strength spring steel wires has a high request in flatness . The machine can discharge any weight wires in 1000kg at any time without stopping.Because we add the correction mold and the air & water cooling system,the quality of steel wires is improved.
The machine is also suitable for the fine drawing after the heat treatment,which meets users’ requirement of discharging wires in a big weight of coll.
Main Technical Parameters
Model | ZX350 | ZX450 | ZX600 | ZX760 |
Capstan diameter | Φ350mm | Φ450mm | Φ600mm | Φ760mm |
Applicable dia of wires | Φ0.8-1.2mm | Φ1.4-1.7mm | Φ1.8-3.5mm | Φ3.8-5.5mm |
Take-up speed | Optional by the user m/min | |||
Motor power | 7.5-11KW | 11-15KW | 15-30KW | 30-45KW |
Note | The mechanical speed ratio and the drum diameter are optional via the user | |||
Trunk wire take-up Machine/ Coiler XB 600/450/330
Model | Wire Diameter | Speed | Wire rack diameter | Motor Power | Weight |
(mm) | (m/s) | (mm) | (kw) | (kg) | |
SB600 | 1.5~4.5 | 10 | 600 | 22,30,45kw | 5850 |
SB700 | 2~5.5 | 8 | 700 | 55 | 6750 |
SB800 | 2.2~6.5 | 8 | 800 | 90 | 8200 |
