High elevation 20KW water pump set

Product Overview

Description

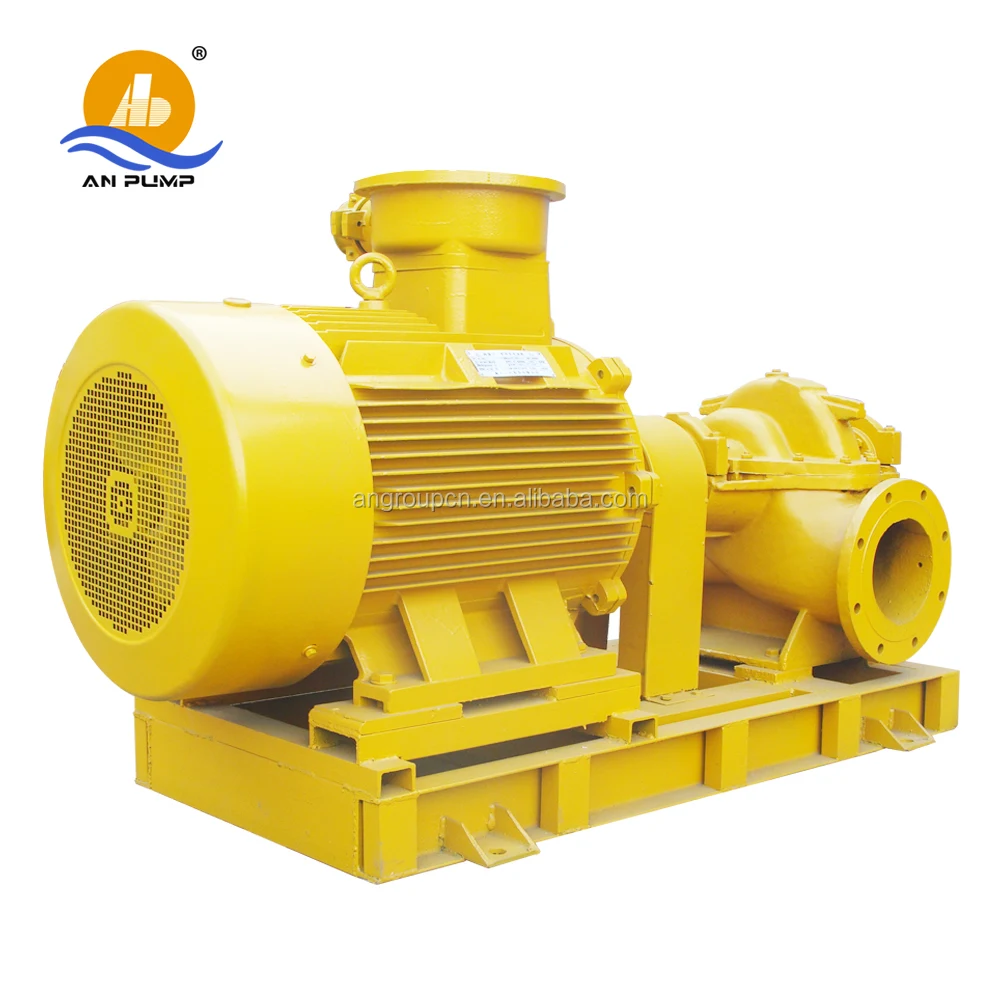

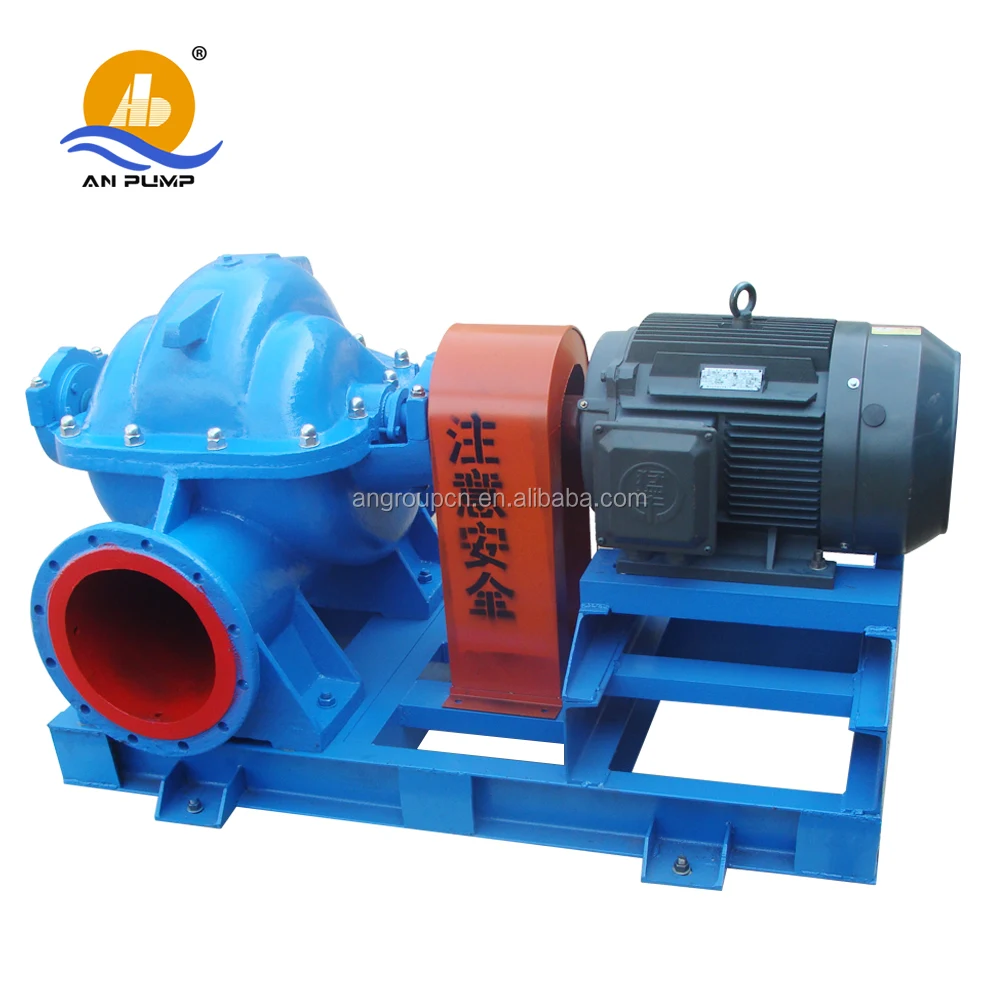

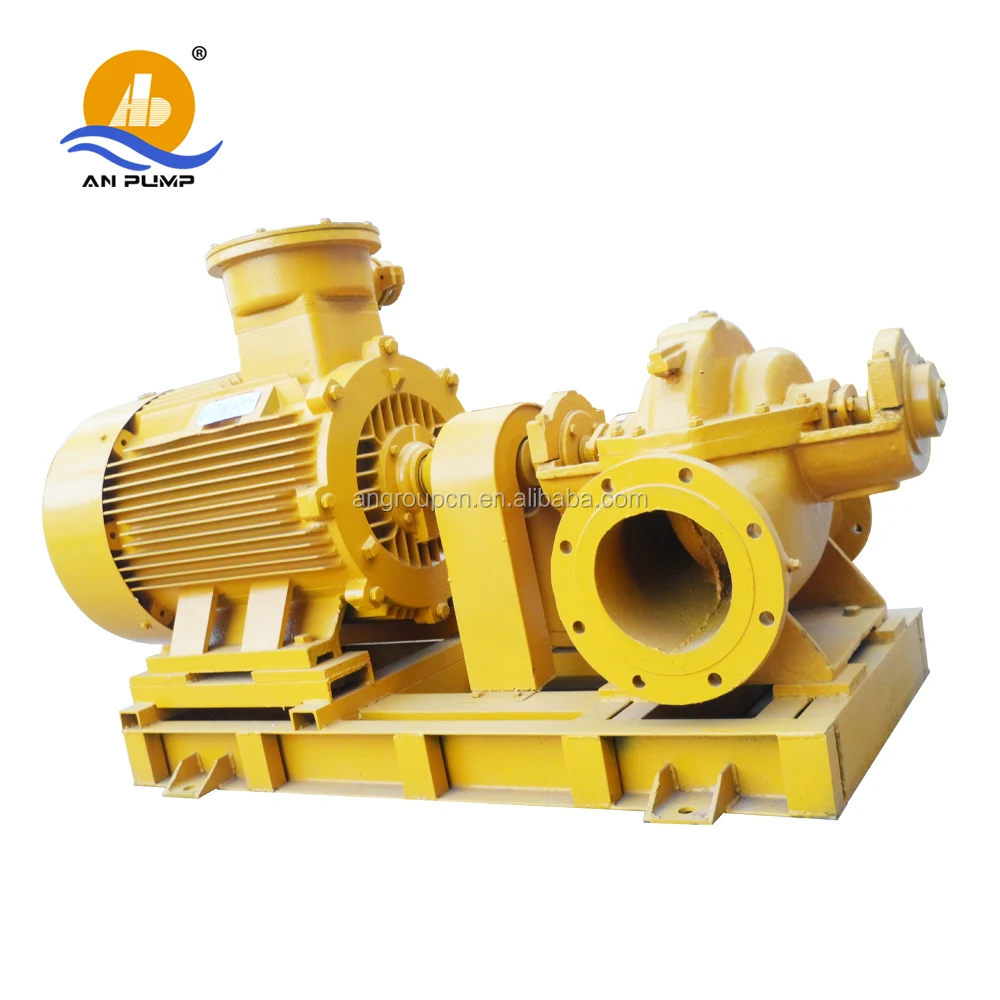

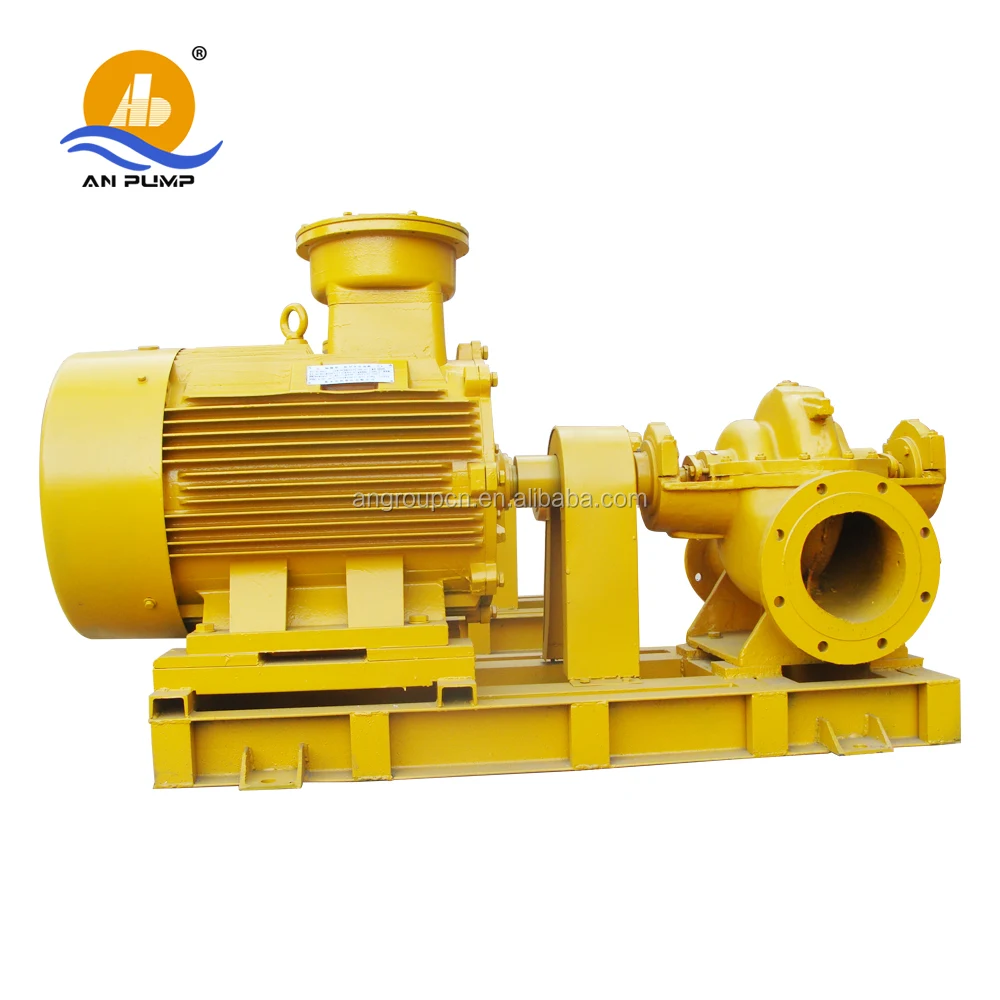

High elevation 20KW water pump set

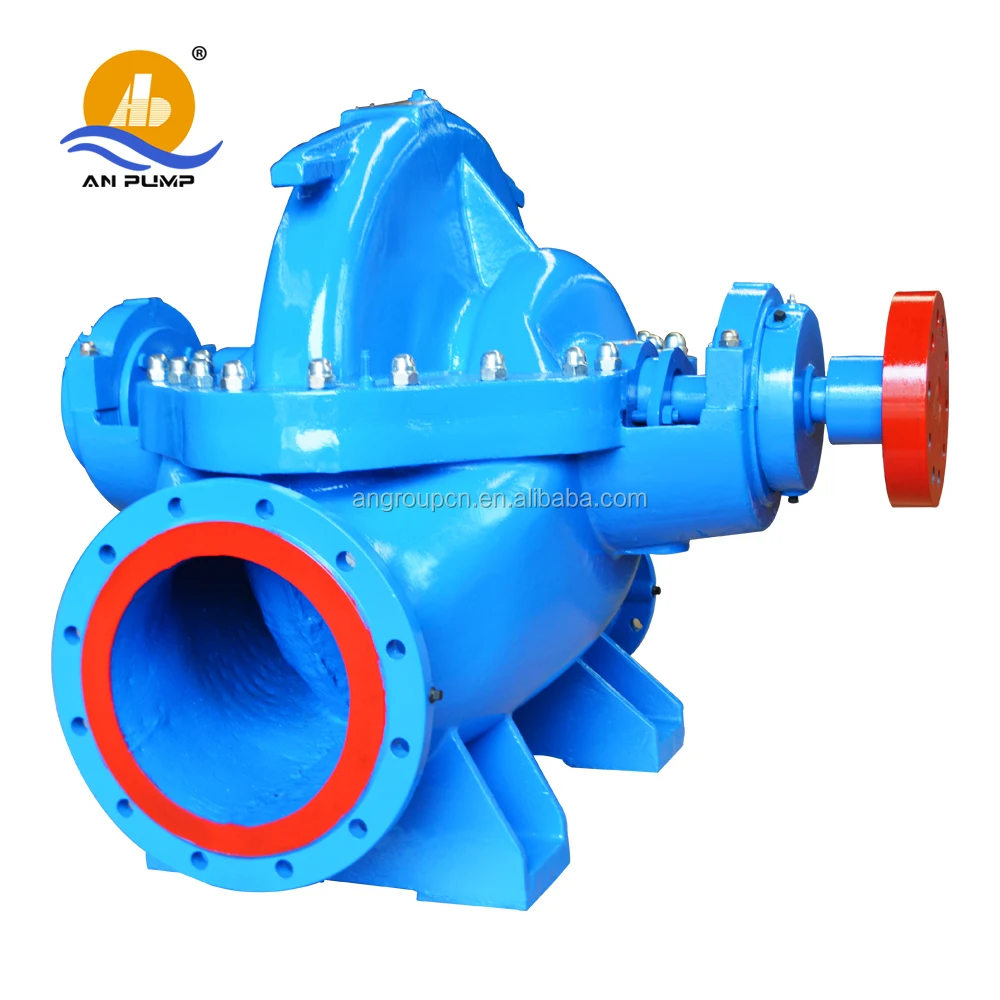

Double Suction Split Case Pump Introduction
Model QS water pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water
suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.



Construction









Model	Capacity		Head	Speed(rpm)	Power		Efficiency(%)	NPSH(m)	Weight(kg)
	(m3/h)	(L/s)			Shaft	Motor
15QS-78	112-200	31-55	55-84	2900	30-51	45-55	68-75	5	150
150QS-50	120-220	31-61.2	35-52	2900	18.5-31.3	30-37	70-80	5	145
200QS-95	160-288	44.5-80	70.2-100	2900	60.8-88.6	90-110	62	5.5	245
200QS-63	180-351	50-97.5	37.5-69	2900	41-67.8	55-75	65-80	4.7-6.2	265
200QS-42	198-342	55-95	31-48	2900	30.5-40.2	37-45	76-82	4.8-8.2	219
250QS-65	342-612	95-170	50-71	1450	76.7-129.6	110-132	72-79	4	565
250QS-39	324-612	90-170	25-42.5	1450	40.2-67.7	55-75	75-86	4	428
250QS-24	342-576	95-160	17.4-27	1450	25.8-36.4	37-45	80-86	4	420
250QS-14	320-576	89-160	8.6-17.5	1450	15.4-22.1	22-30	75-85	4	405
300QS-90	540-936	150-260	57-98	1450	151-279	220-260	71-80	4.5-6.5	847
300QS-58	504-972	140-255	37-65	1450	99.2-168	180	78-84	5.5	572
300QS-19	504-935	140-260	11-23	1450	34.8-49.8	45-55	75-84	5.5	660
300QS-12	522-900	145-250	8-14.5	1450	22.4-33.1	30	75-80	5.5	660
350QS-125	740-1663	207-461	77-140	1470	313-620	500-680	70-81	6.5	1580
350QS-75	900-1440	250-400	54-80	1450	175-319	250-400	78-84	6.5	1200
350QS-44	864-1480	240-410	30-50	1470	121-188	160-220	79-84	6.5	1105
350QS-26	864-1440	240-400	16.5-32	1450	76.5-102	110-132	73-88	6.5	880
350QS-16	864-1440	240-400	10-20	1450	47.6-70	55-75	71-85	6.5	760
500QS-59	1150-2450	430-680	42-66	970	273-433	315-500	72-82	6	2750
500QS-35	1550-2410	430-670	31-40	970	137-247	240-280	80-88	6	2340
500QS-22	1296-2340	360-650	14-27	970	101-148	130-180	70-82	6	2010
500QS-20	2500-3800	694.4-1055	16-22	745	215-238.3	280-340	70-83	4.5-5.6	3030
500QS-13	1620-2325	450-646	10.6-15.2	970	70-79	110	85-89	6	2000
600QS-75	2300-3930	630-1092	49-80	960	442-730	550-900	85-90	7.5-8.7	4300
600QS-47	2502-3600	695-1000	32-56	970	392-460	450-550	80-88	7.5	3200
600QS-32	2304-3960	640-1100	20-37	970	228-310	280-380	84-89	7.5	2550
600QS-22	2340-3420	650-950	13-23.5	970	145-207	185-250	77-84	7.5	2500
800QS-76	4160-6600	1156-1722	63-82	740	976-1384	1400-1500	86-91	7.5-8	8000
800QS-32	4170-6460	1050-1795	23-33	730	391-580	450-630	78-84	6.5	5100



















How can I make order online?
Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.



Can you produce the pump with my own brand?
Yes, we have been offering OEM service for 30 years.



Could we pay a visit to your factory?
Yes, you are always welcome to visit our factory.



Is there any after-sales service?
Yes, we can arrange our engineer to go to your application site for assembly or maintenance.



Can you produce goods with special specification?

First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
