2mm 2.5mm 3mm Polymethymethacrylate plastic illumination bare fiber optic cable spool for star drooping fiber optic lighting

Product Overview

Description

illumination bare fiber optic cable



Technical parameter list

Item No.	Outer diameter	Inner diameter	Length /roll	Attenuation	Bending	Working temperature	Weight
HJ - 0.25mm	0.25mm	0.25mm	12000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.3mm	0.3mm	0.3mm	8000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.5mm	0.5mm	0.5mm	6000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.75mm	0.75mm	0.75mm	2700m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 1.0mm	1.0mm	1.0mm	1500m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 1.5mm	1.5mm	1.5mm	700m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 2.0mm	2.0mm	2.0mm	350m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 2.5mm	2.5mm	2.5mm	250m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 3.0mm	3.0mm	3.0mm	150m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll

 Specification:

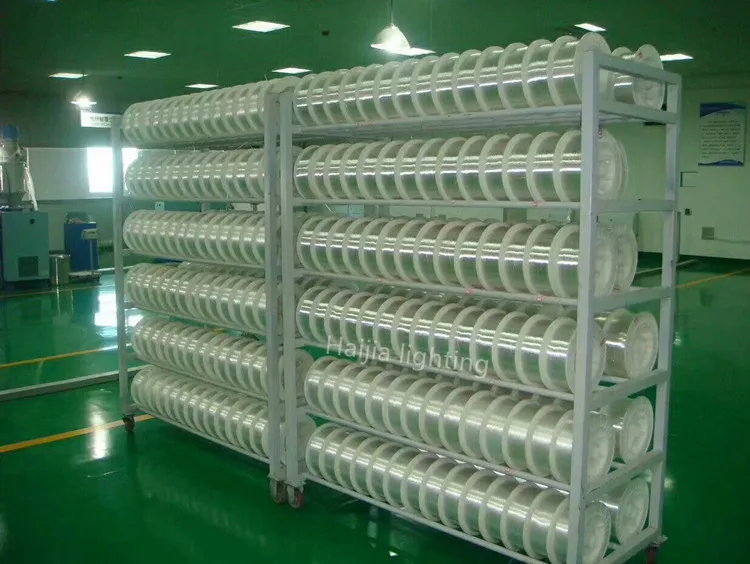

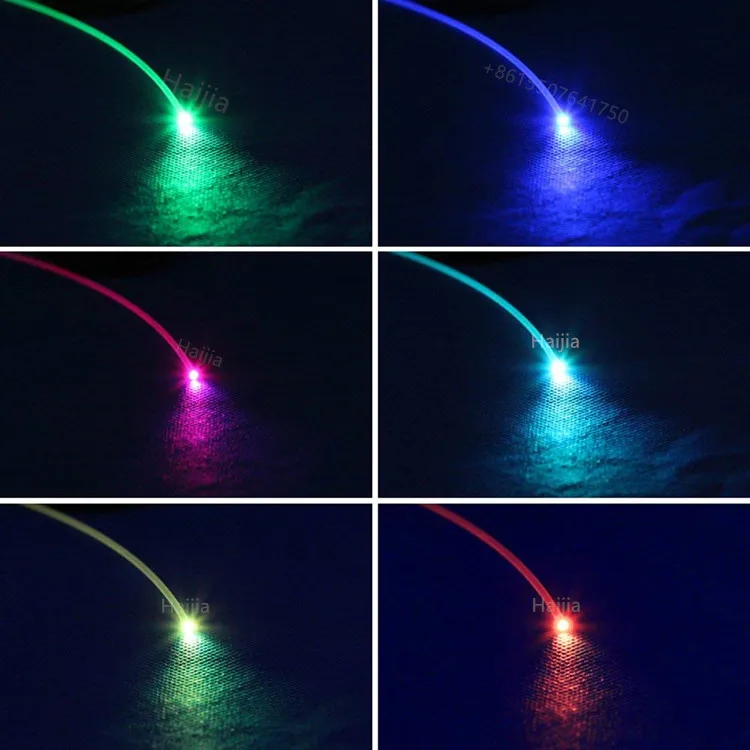

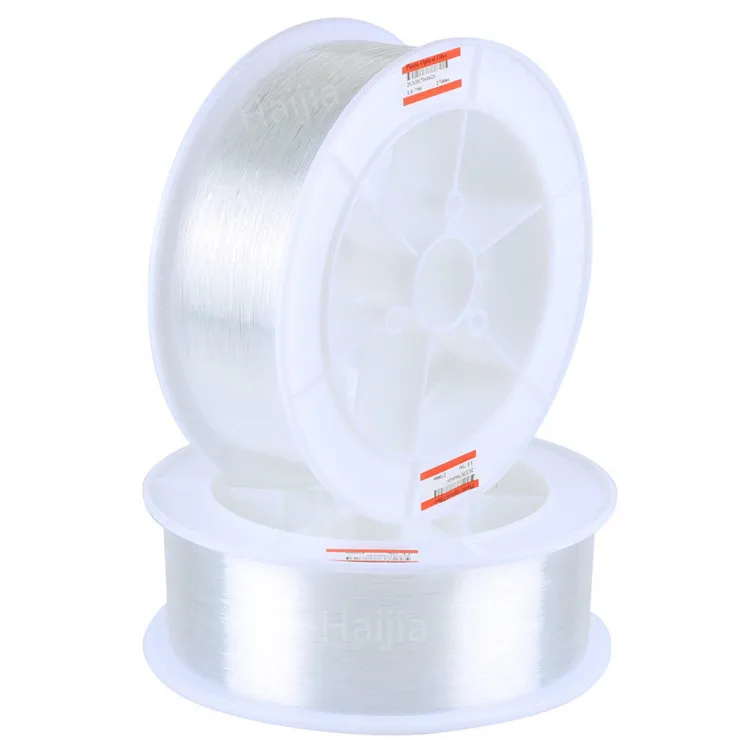

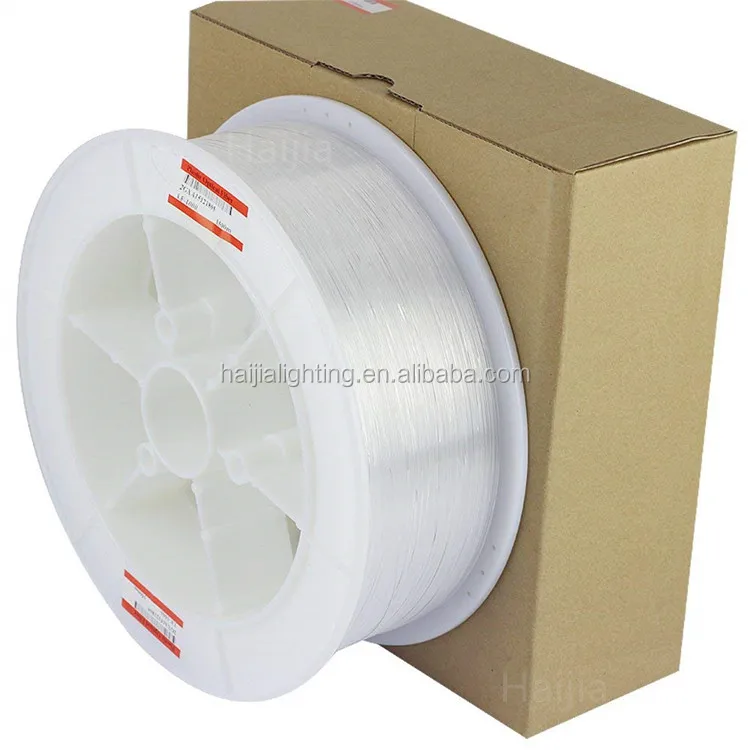

illumination bare fiber optic cable 's photos :

Black jacket illumination bare fiber optic cable

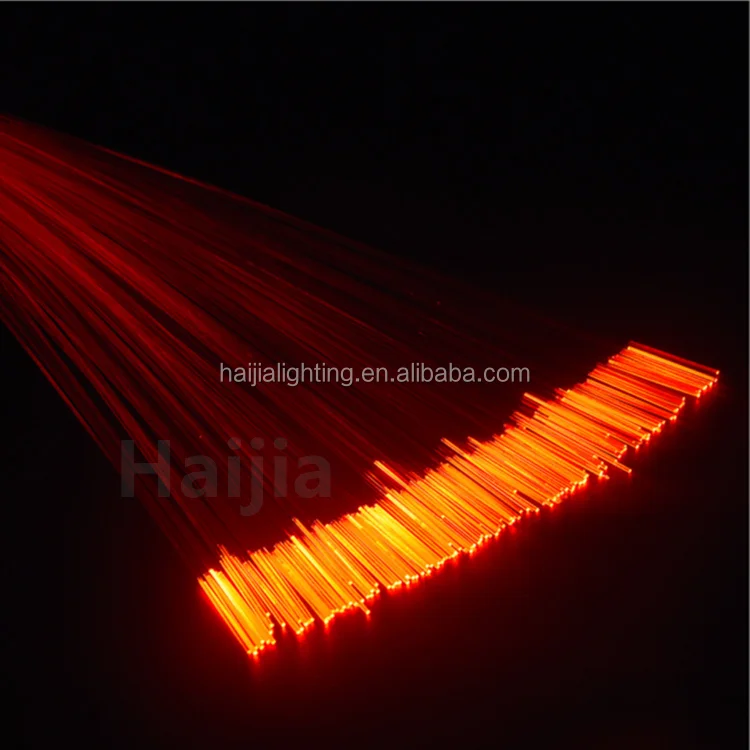

straight illumination bare fiber optic cable

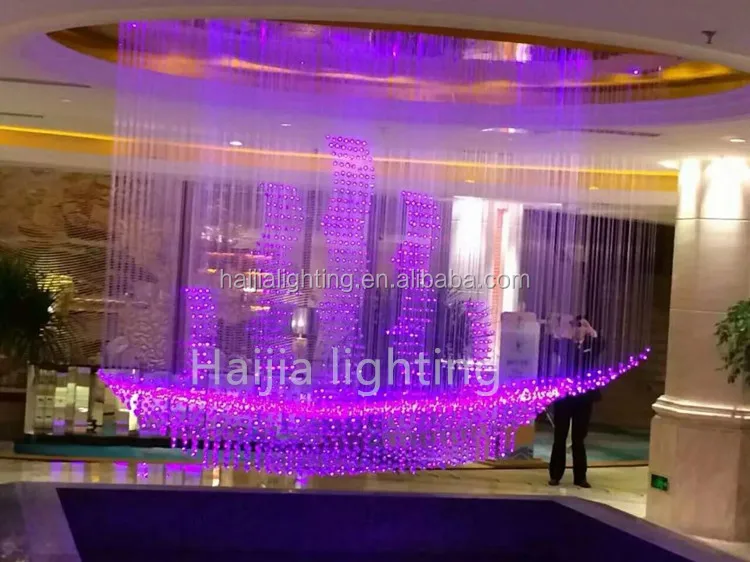

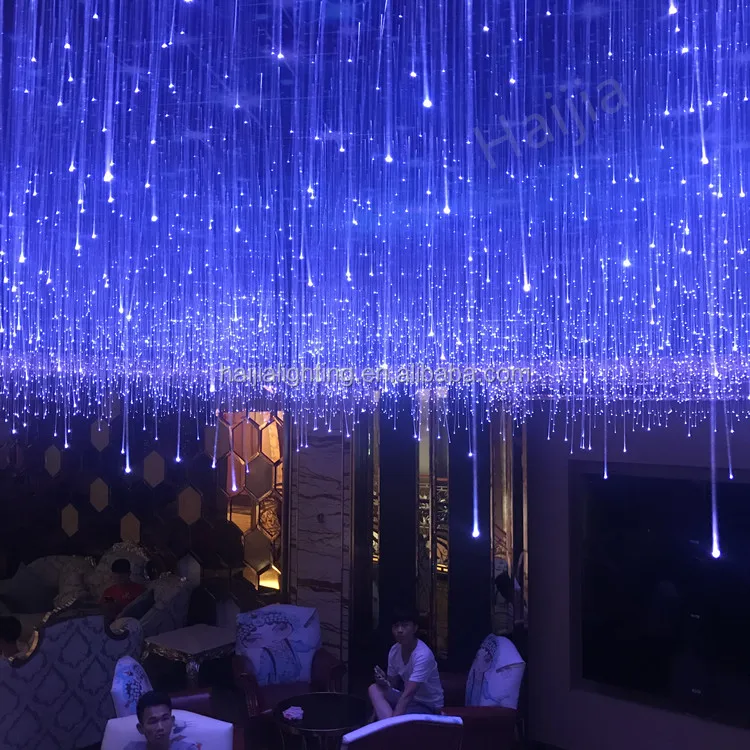

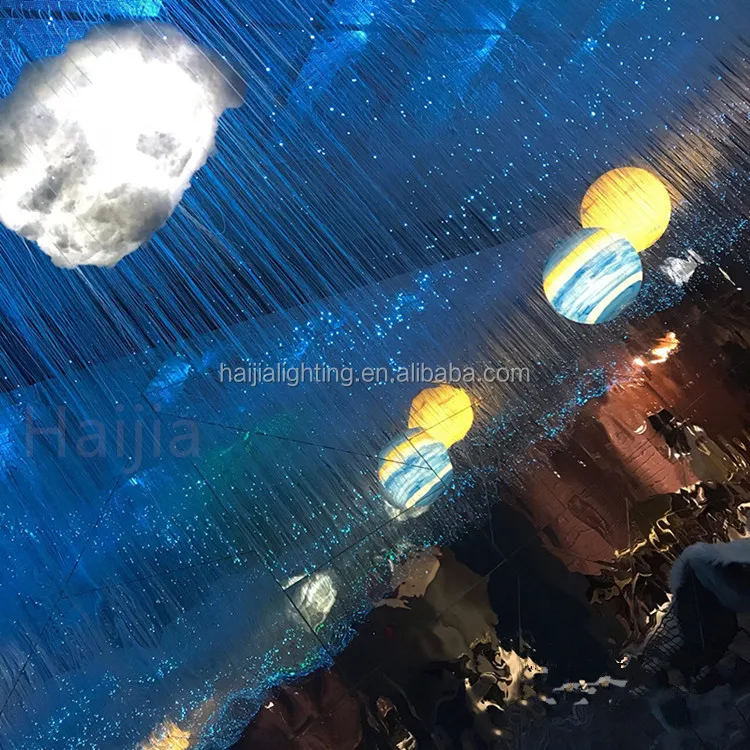

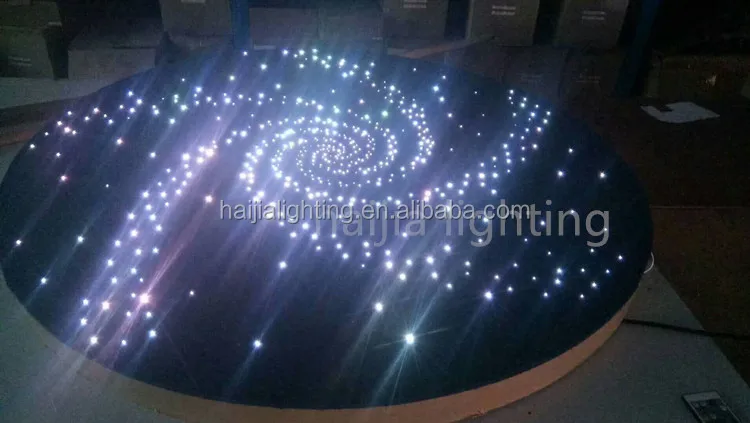

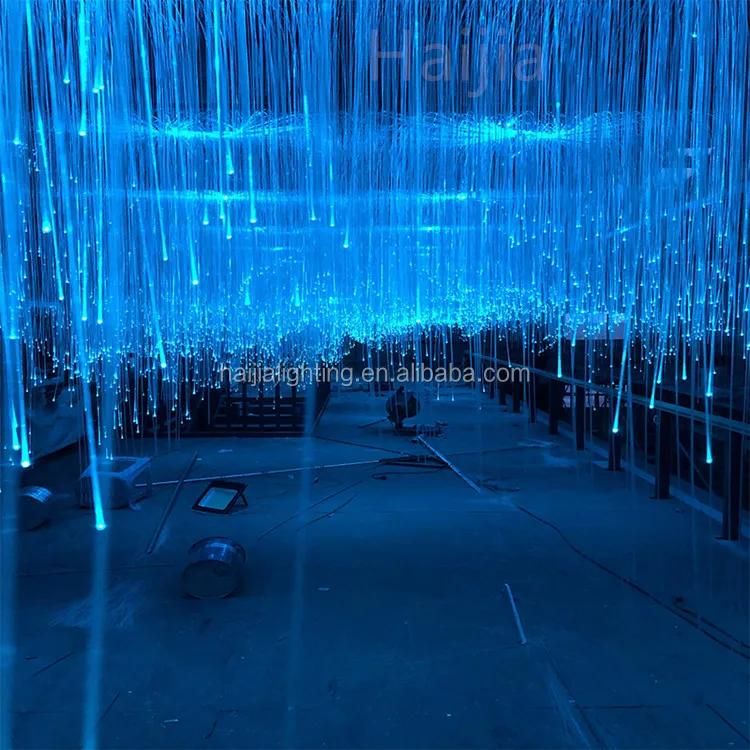

illumination bare fiber optic cable  - end product (application)



Can i have customized size , such as 0.35mm or 0.6mm etc

Answer : Yes . we make customized fiber optic , but the MOQ is more than 5 rolls .

Can you cut it in my side and make it straight ?

Answer : Yes , we can make it straight and cut it in your sizes .

Can i get 1-5m for testing ?

Answer : Yes , we can send you 1-5m for your testing .

What is your MOQ ?

Answer : MOQ : 1 roll

Do you have in stock  ?

Answer : Yes , within 1000 rolls can delivery in one day .
