90T aluminum cold chamber die casting machine
- Category: >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (62214689587):
Product Overview
Description

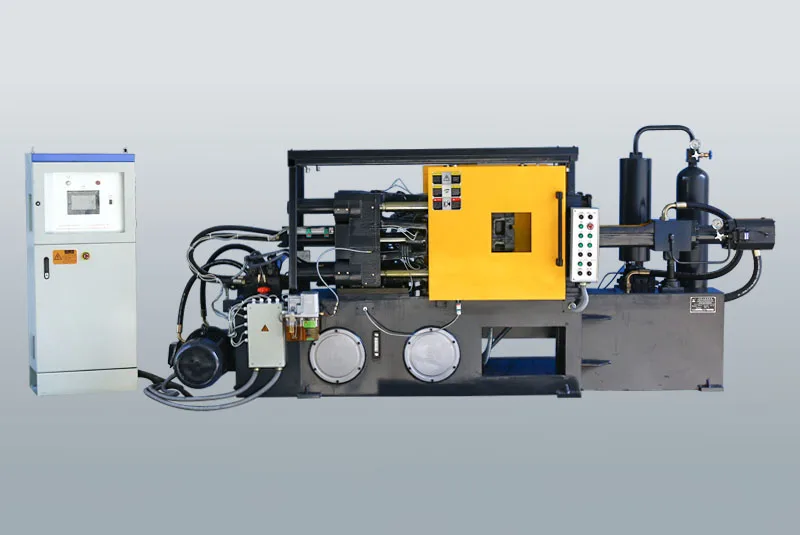

Features and applications of J118A 80ton cold chamber die casting machine
Faucet making machine
- Suitable for aluminum, zinc and copper alloy
- Computer-programmed
- 4-rod pilot elastic framework for excellent rigidity

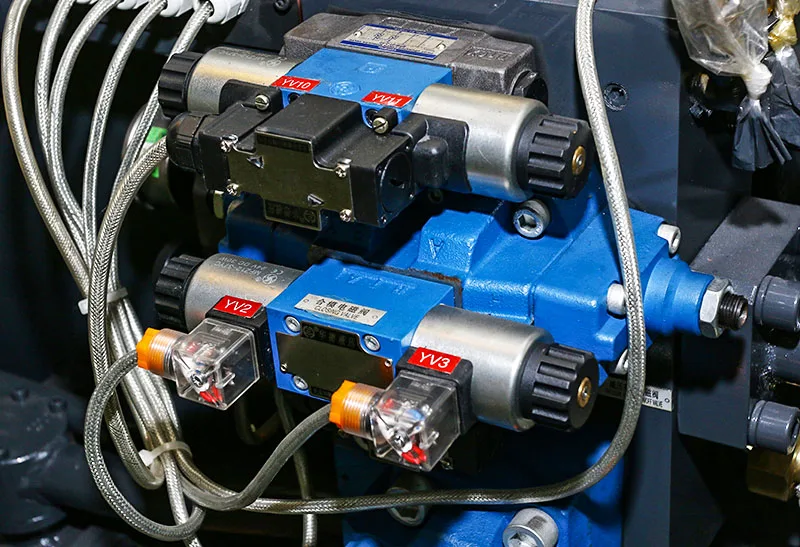

- 3-step hydraulic boosting and injection system
- Efficiency: maximum injection rate over 4m/s
- minimum boosting time less than 30ms
- the die locking force of the aluminum machine is 900Kn
This die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.

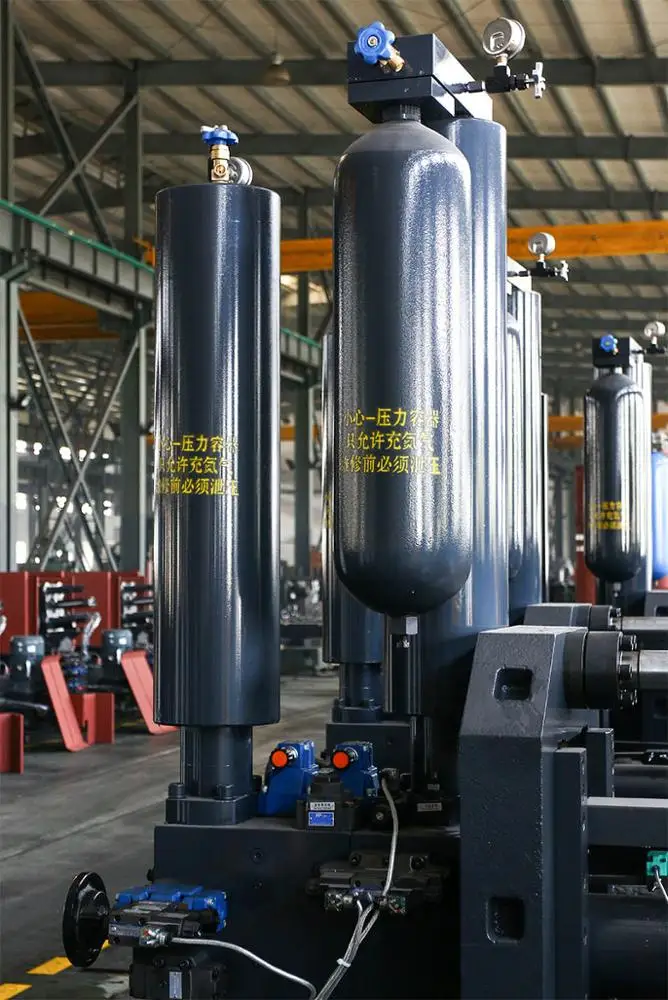

computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection rate over 4M/s, and minimum boosting time less than 30ms.
The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.
- Specifications and Parameters
|
SUBJECT |
UNIT |
J118A |
||
|
Die lock force |
kN |
900 |
||
|
Size of moving platen (HXV) |
mm |
560X600 |
||
|
Inner space between bars(HXV) |
mm |
360X360 |
||
|
Thickness of die block(Min./Max.) |
mm |
160/360 |
||
|
Stroke of moving platen |
mm |
260 |
||
|
Ejection stroke |
mm |
60 |
||
|
Ejection force |
kN |
60 |
||
|
Injection force |
kN |
100 |
||
|
Injection stroke |
mm |
282 |
||
|
Diameter of shot sleeve |
mm |
35 |
40 |
/ |
|
Fluid metal dosage per shot(AL) |
kg |
0.6 |
||
|
Injection pressure (Min.~Max.) |
MPa |
87~114 |
||
|
projecting area of casting |
cm2 |
77~101 |
||
|
Dry cycle |
s |
6 |
||
|
Pipe line pressure |
MPa |
10.5 |
||
|

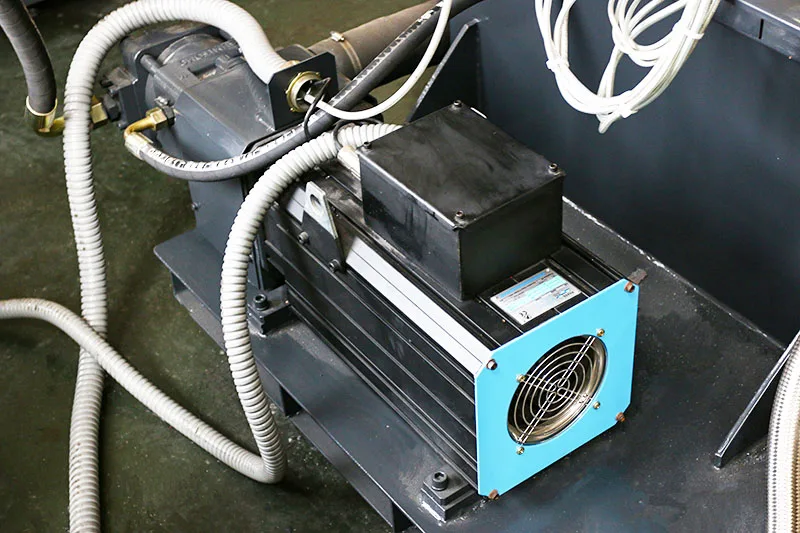

Motor power |
kW |
11 |
||
|
Machine weight |
kg |
3700 |
||
|
Overall dimensions(LXWXH) |
mm |
4100X1350X1800 |
||
After-Sales Services
Overseas available Free training
