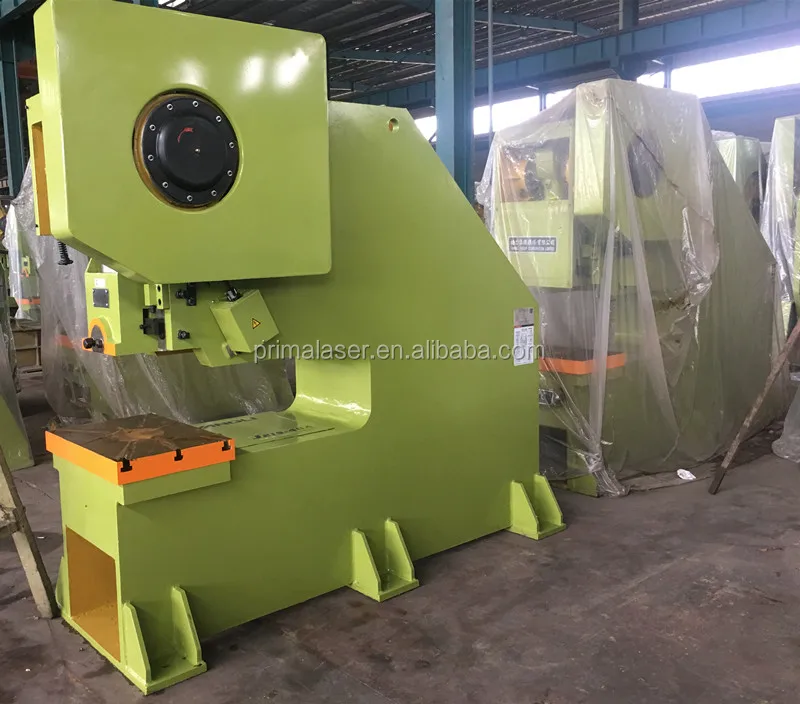

C frame Aluminum Circle deep throat 80 ton Punching Press machine

Main Features:

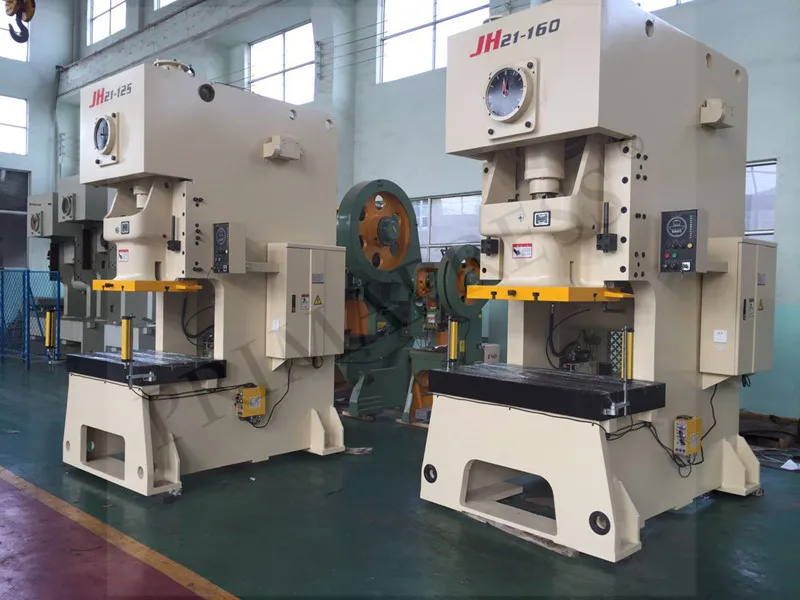

JH21series open back press with dry clutch and hydraulic overload protector

1,   Welded body with steel plate and high intensity.

2,   Main motor is made by Siemens.

3,   Adopts combined pneumatic friction clutch and brake.

4,    Cluster gear adopts the flooding oil lubrication.

5,    Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.

6,    Equipped with hydraulic overload protecting device.

7,   JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.

8,    JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.

9,   JH21-25B, JH21-45 and above type equipped with balance cylinder.

10,    Duplex valves imported.

11,    Electric compelling grease lubrication system.

12,    Balancing cylinder adopts manual lubrication system.

13,  One set of blowing device. JH21 series electric sheet metal punching press machine and power press

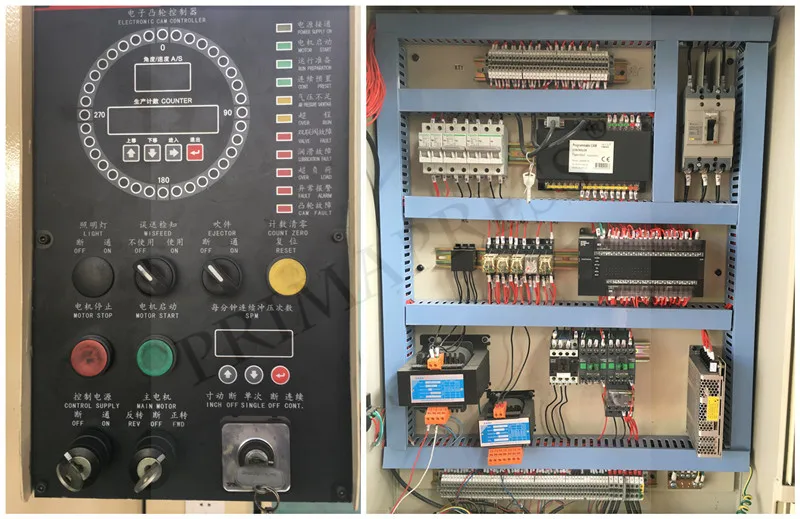

14,    Controlled by PLC with international brand.

15,   Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

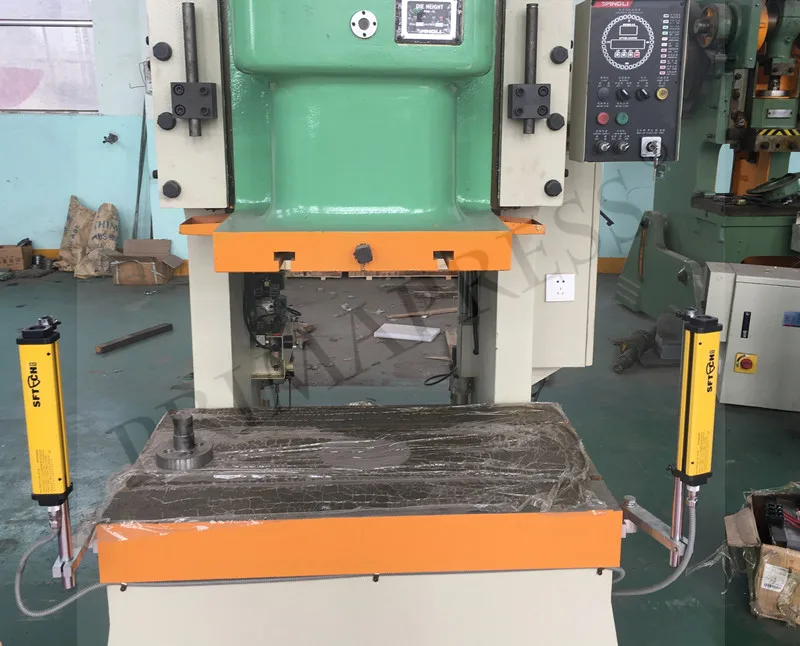

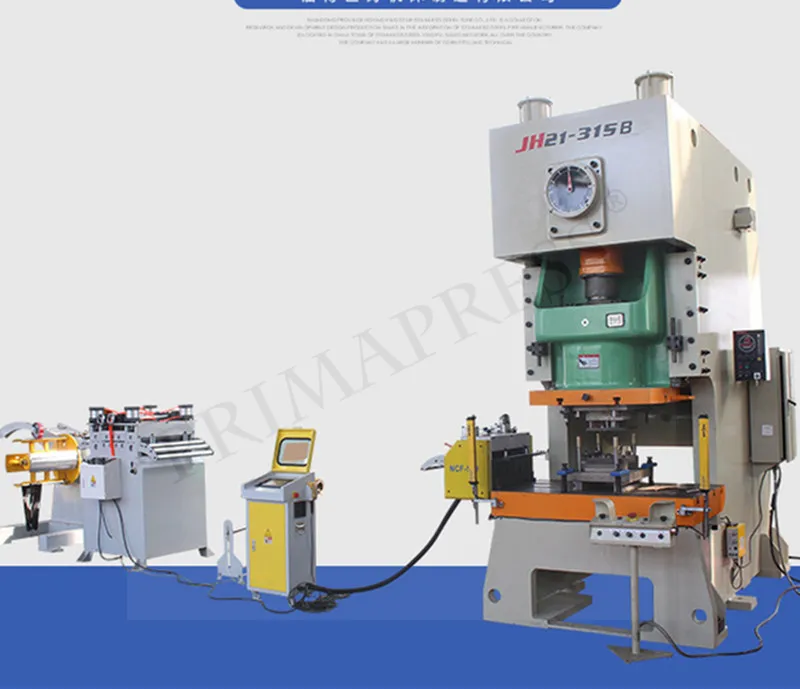

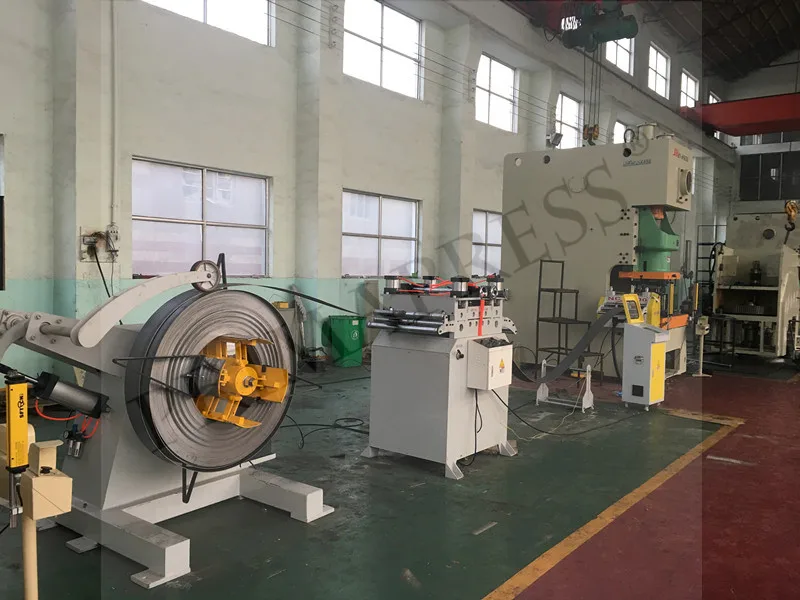

16,   Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments. 80 ton high speed pneumatic power press machine for sale make pot or cook equipment punching machine JH21 production line Automatic coin production line with punching machine feeder and dies

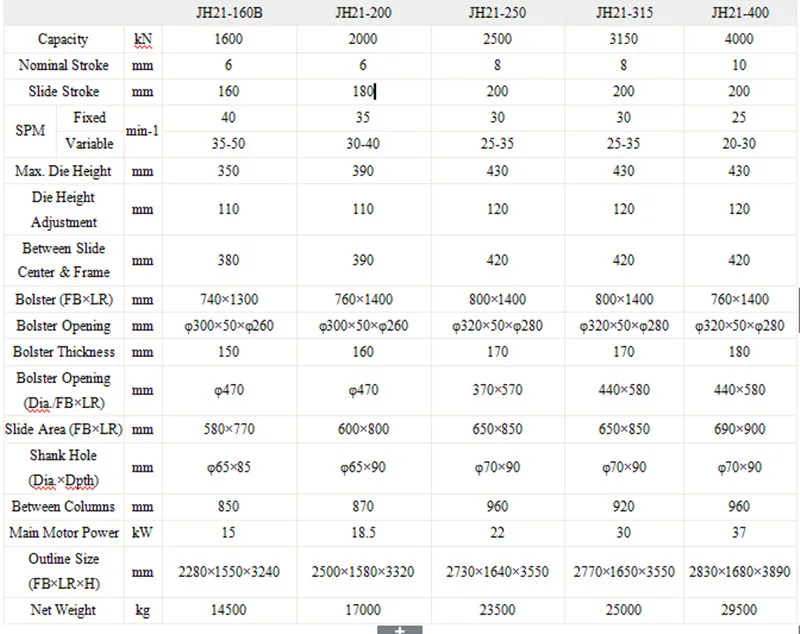

Technical specifications:
