Product Overview
Description
Product Description
Long service life, convenient replacement, stable performance
Features

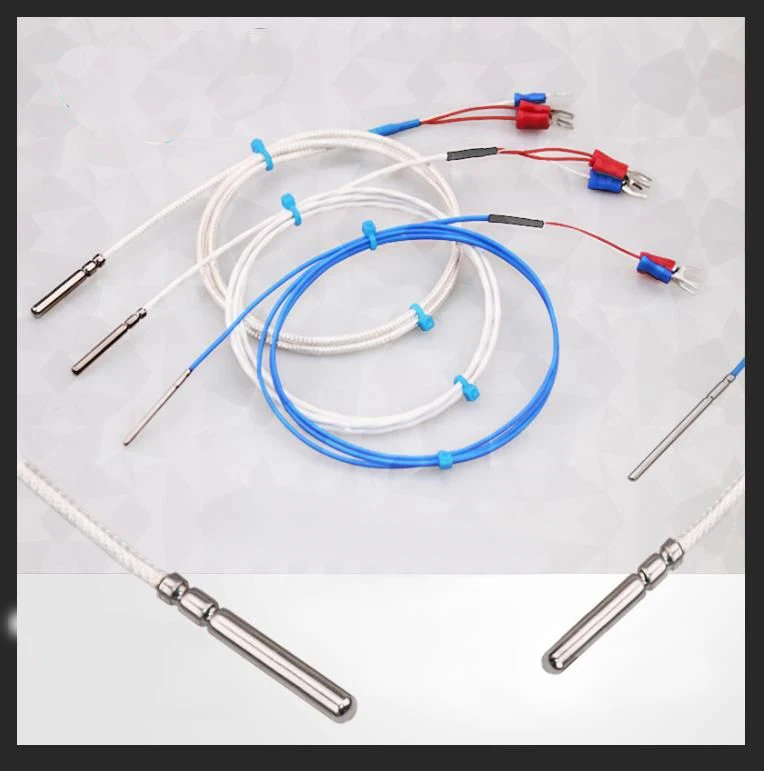

Platinum temperature sensor
Vibration resistance, good reliability, high accuracy
PT100, (PT1000 selectable)
Temperature range | |
Temperature range | -50℃ to 150℃ |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) |
Resistance value R0 (at 0℃) | Class A: 100±0.06Ω |
Allowable deviation value ℃ | Class A: ±(0.15+0.002|t|) |
Heat response time | <30S |
Minimum insertion length | ≥30mm |
Insertion diameter | Φ5mm (others please specify) |
Insulation | 100MΩ/100VDC |
Current | ≤5mA |
Protection | IP65 |
Electrical connection | Cable |
2 Wires
Wire | Connection |
red | Pt100 |
white | Another side of Pt100 |
3 Wires
Wire | Connection |
red | Pt100 |
white | Another side of Pt100 |
white | Compensation wire |
