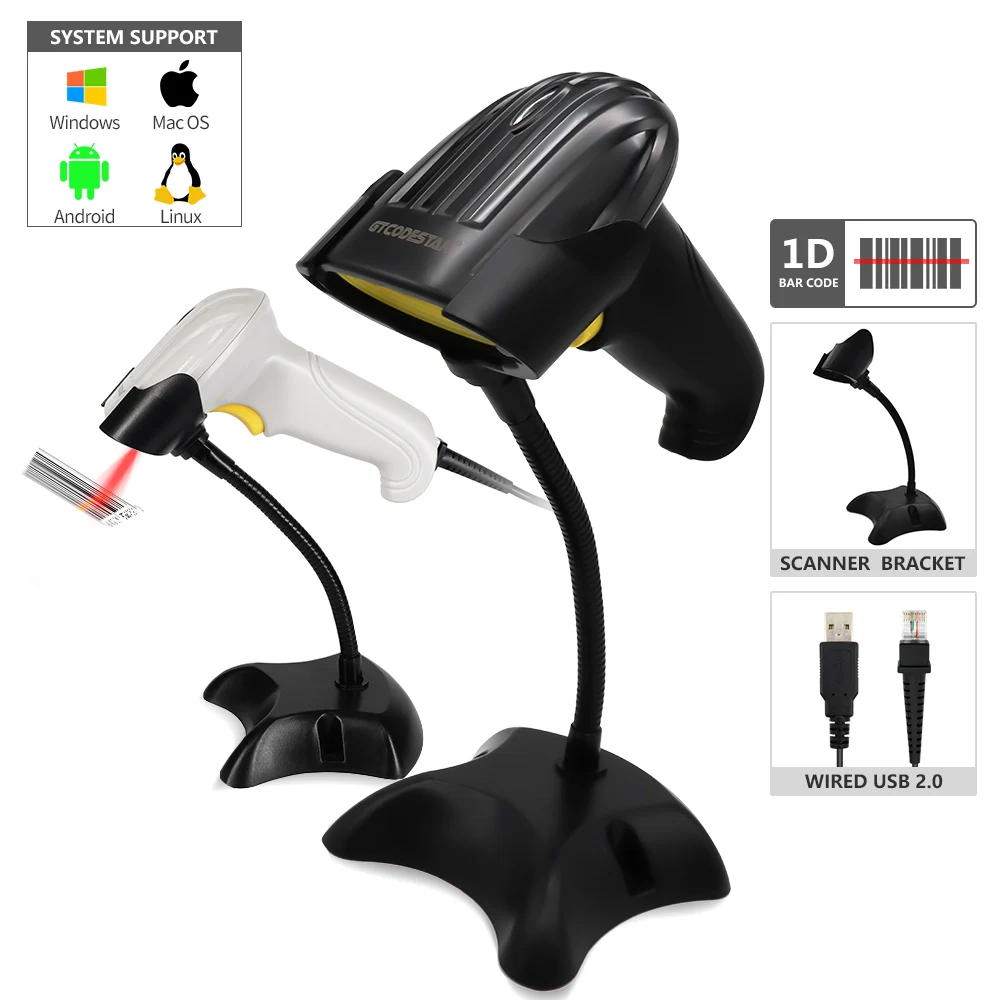

M 3100AT Supermarket AUTO scanning 1D Laser Barcode Scanner Handheld USB Wired AUTOMOTRIZ Bar Code Reader With Stand
- Category: Scanners >>>
- Supplier: Foshan,Xincode,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Technical Parameters
Model | M-3100a |
| Item | Wired Laser Barcode Scanner |
| Material | ABS+PVC+PC |
| Power Supply | DC 5V ±5% |
| Current | 50mA(working);30mA(standby);100mA(maximum) |
| Weight | 131±5g(With cable) |
| Size | L*W*H:161.5 * 88.0 * 77.0(unit:mm) |
| Color | Black;Grayish white |
| Button Lifespan | >100000times |
| Interface | USB cable;(RS232 can be customized) |
| System Supported | Linux,Android,Windows XP,7,8,10,MAC |
| Language Supported | English; French; German (Language can be customized) |
| Light Source | Visable laser 650nm |
| Resolution | 4mil |
| Bit Error Rate | 1/5000000 |
| Scanning speed | 200scans/sec |
| Reading Mode | laser |
| Trigger Mode | Manual ;Continuous scanning |
| Scanning Distance | 10mm-600mm |
| Prompt Mode | Buzzer, Indicator Light(LED) |
| Print Contrast | 30% |
| Scanning Angle | Roll30°,Pitch75°,Yew75° |
| Scanning Depth | Code39(4mil):4 - 6 cm Code39(10mil):6 - 16 cm |
| IP Grade | IP52 |
| Operating Temp. | 0 to 50℃ / 32 to 122℉ |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ |
| Operating Humidity | 20% to 85%(No Condensation) |
| Storage Humidity | 20% to 85%(No Condensation) |
| ESD Protection | 15KV air discharge |
| Shock Resistance | Buzzer, Indicator Light(LED) |
| Shock Resistance | 1.5~2m free fall on concrete surface1.5m free fall on concrete surface |
Hot-selling Products
Company Information
FAQ
1. How about the quality? Professional QC team and testing machine(Engine age testing,wire bending machine, switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH, etc. |
2. Why so competitive? With almost 10 years experience,we owned a large domestic market in China. We are the best seller in China.So large quantity will reduce our raw material cost directly. What's more,we have mature technology to save cost. |
3. How to control the performance stable? We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery. |
4. Is OEM or ODM available? Yes.We are the factory directly.We can make it as your requirement. 5. Why customer choose us? ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service. 6. How about the factory? We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields. |
Packing Details
| Carton Size (CM) | G.W.(KG) | PCS/CTN | Box Size(CM) | Item No. |
| 49X31.5X46CM | 9.6~13.8 | 40 | 14X11.4X8.3 | GT-799/GT-770/GT-725 |
| 50x26.5x45CM | 8.8~12.6 | 20 | 21X12.5X9.2 | X-1200/X-1901B/X-6301C/X-1901C/x-6301B/GT-9208 |
| 54.5X30X59CM | 12.55 | 30 | 17.5X14X11.3 | GT-790 |
| 60x45x38.5CM | 14.2~17.5 | 50 | 18X11.5X8.5 | M-3100/X-530/X-760B/X-9700/X-9701/X-9201/GT-1900/X-600/X-660/X-620 |
| 60x45x38.5CM | 14.2~19.4 | 100 | 15X9X5 | X-9700M/X-7200/GT-780 |
