Алюминиевый быстро складывающийся экран 300 дюйма с тканью для задней и передней панели

Product Overview

Description

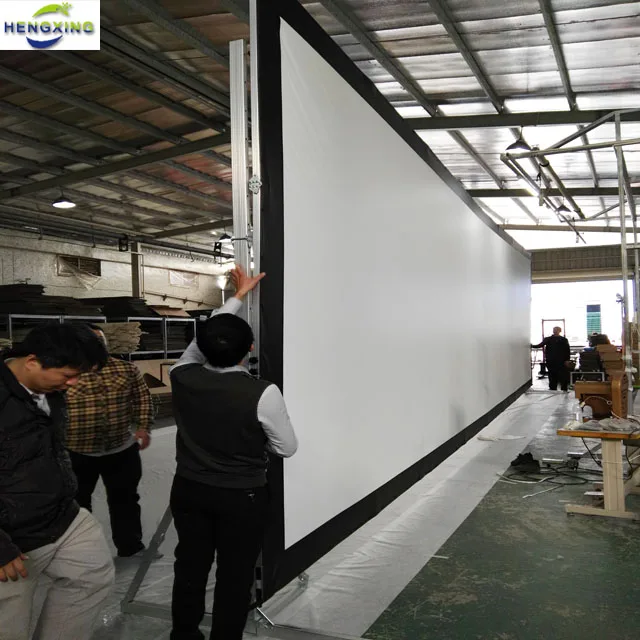

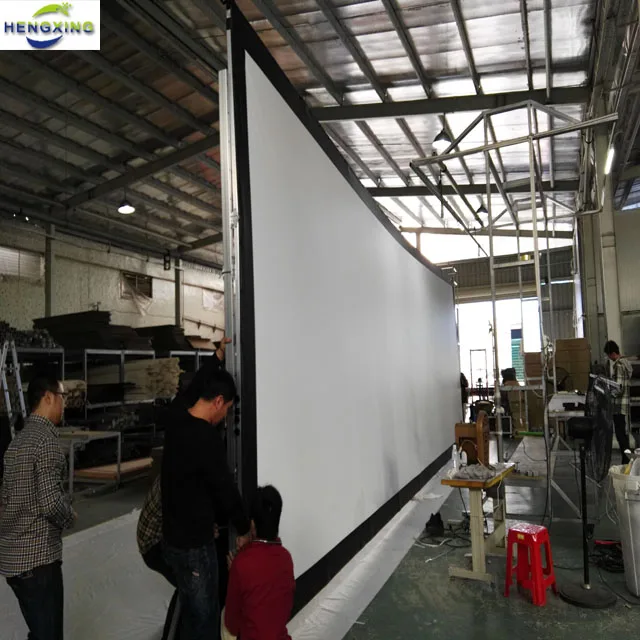

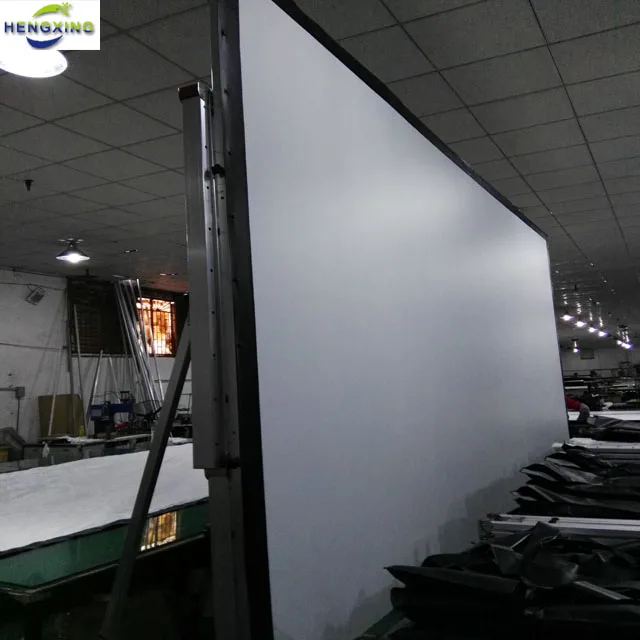

300" aluminum  fast fold screen with rear and front screen fabric

     We can make extra large fast fold screen according to your design and size requirements. The largest size is to be 4.5m*7.5m without joints in rear fabric projection, and 5.0m*100m or longer in front fabric projection. If we use joints, then any size in front projection.

Specifications:
Fast Fold portable screen is an ideal for projection in anywhere, which can be easily set and dismantle in a few minutes, can be very convenient for transport and storage, as it is packed into an air box with wheel.
Application:
Fast Fold portable screen can be used in the following:

Vocal concert; Exhibition; Outdoor Party; Rehearsal Event; Outdoor Entertainment; Road movie; Open air cinema; Backyard theater; Presentation

Display component; Road Show; Award dinners; Fashion show; Product launch

Conference; Awards event; Live events; Digital media; Web events; Trade show; Advertising event; Theme event; Event management; Banquet; Congress centers; Lecture halls, Football and basketball stadiums and so on.
Fabric Options:

Front projection screen soft fabric: white/white fabric, white/black fabric, grey/black fabric, silver/silver metallic fabric for 3D, silver/silver metallic perforated fabric for 3D, white/black perforated fabric, white/white perforated fabric

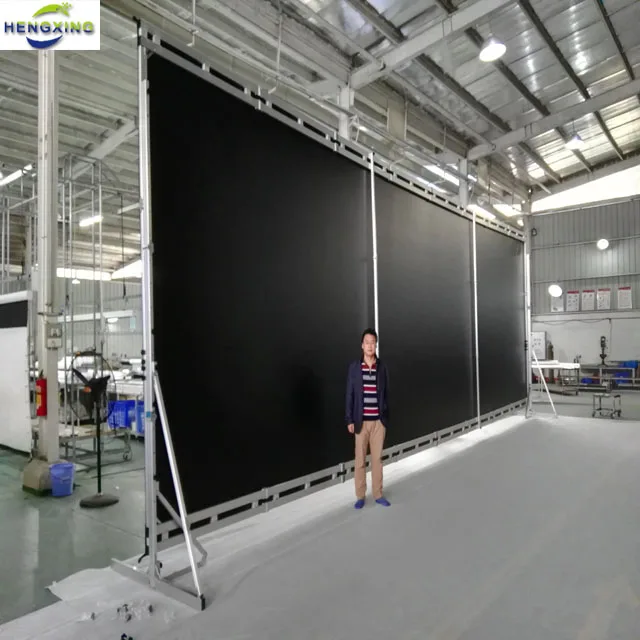

Rear/back projection screen soft fabric.

Features:
*Can be 4.0m, 4.5m, 5.0m wide without joints.

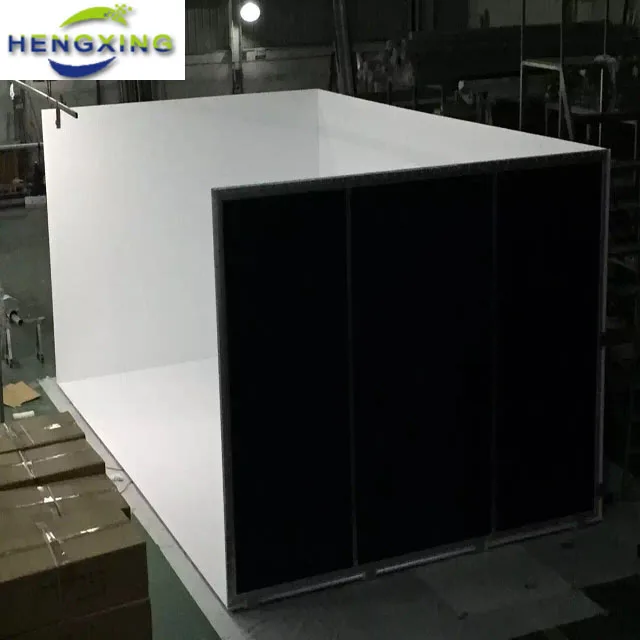

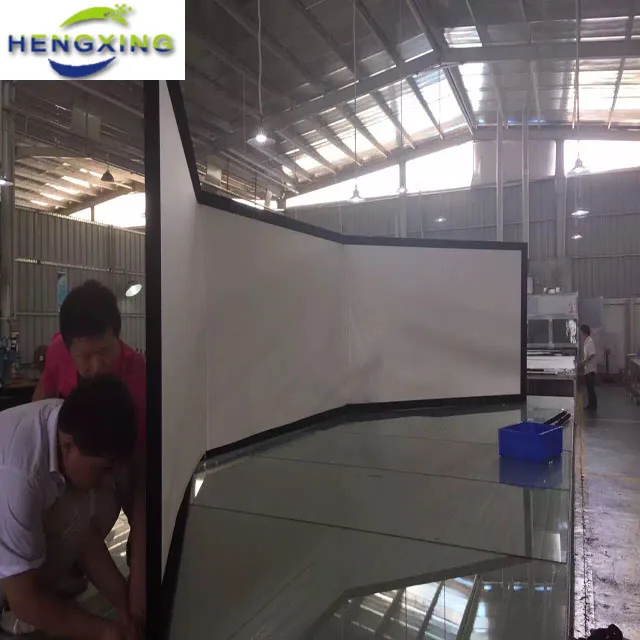

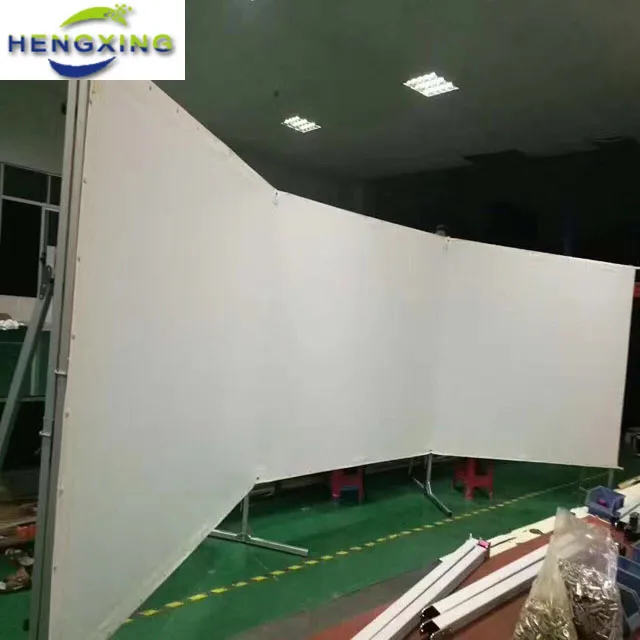

*Can be any size and shape and degree, can meet different needs for different customers.
*Professional frame-folding system in well-design allows easy and quick set up and dismantle without tools.
*Screen surface is attached to the frame using snap fasteners.

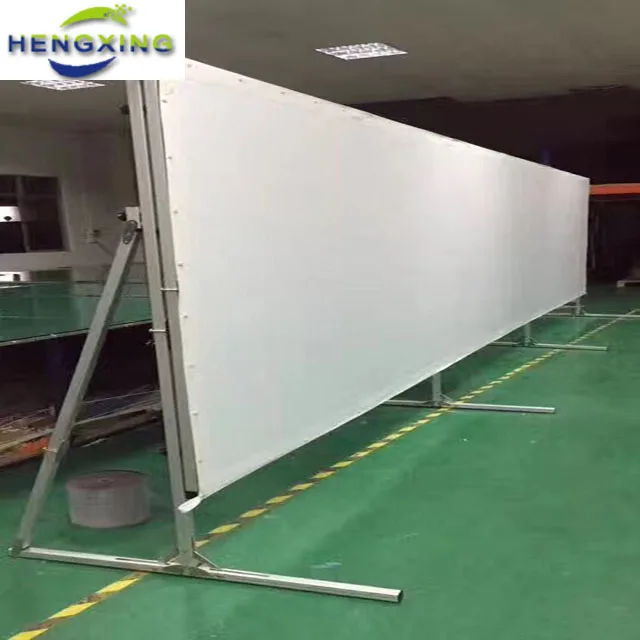

*Foldable legs in human-friendly design, can be easily adjust in the length according to site and position.
*Premium high resolution fabric keep your image as clear and vivid as it could be, flexible front or rear projection fabric are optional, which can be stretched and folded.
*Fabric is UV protective, anti-static, cleanable, mildew resistant and flame retardant.
*Black binding use PVC material, highly flexible, black border and fabric with double needle, both fabric and black binding all are have a corresponding contraction space, not changed by temperature and humidity.

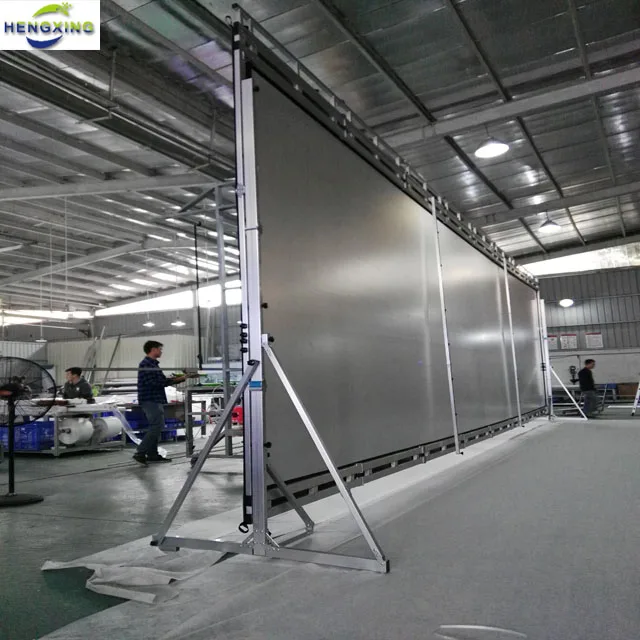

* Use 32*32mm or 32*64mm high strength aluminum alloy, can support extra large and long screen.
* 4:3, 16:9, 1:1 or 1.25:1 are available.
* Simple screen with eyelets and black binding with frame is available.

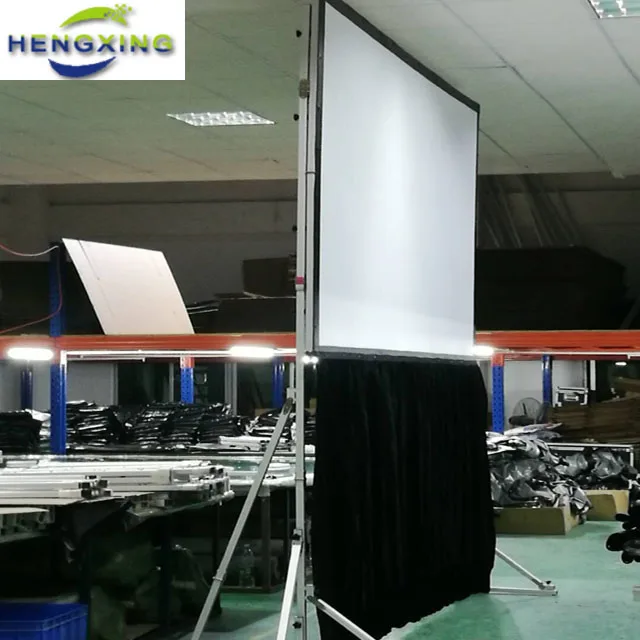

* Black velvet dress kit or polyknit material is available in 4 sides of screen to give professional stage front appearance.

 Specifications:

Ratio	Size  (inches)	Projection area W(inches)	Projection area H(inches)	Projection area W(mm)±5mm	Projection area H(mm)±5mm	B      (mm)	Aluminium frame size	G.W.	N.W.
72	4:3	57.6	43.2	1463	1097	75	32x32	23.00 KGS	22.00 KGS
84	4:3	67.2	50.4	1707	1280	75	32x32	25.00 KGS	24.00 KGS
100	4:3	80	60	2032	1524	75	32x32	28.00 KGS	27.00 KGS
120	4:3	96	72	2438	1829	75	32x32	32.00 KGS	31.00 KGS
150	4:3	120	90	3048	2286	75	32x32	36.00 KGS	35.00 KGS
180	4:3	144	108	3658	2743	75	32x32	42.00 KGS	41.00 KGS
200	4:3	160	120	4064	3048	75	32x32	48.00 KGS	47.00 KGS
250	4:3	200	150	5080	3810	100	36x64	90.00 KGS	88.00 KGS
300	4:3	240	180	6096	4572	100	36x65	106.00 KGS	104.00 KGS
350	4:3	280	210	7112	5334	100	36x66	120.00 KGS	119.00 KGS
72	16:9	62.7	35.3	1593	896	75	32x32	25.00 KGS	24.00 KGS
84	16:9	73.2	41.2	1858	1045	75	32x32	27.00 KGS	26.00 KGS
100	16:9	87.1	49	2212	1245	75	32x32	30.00 KGS	29.00 KGS
120	16:9	104.5	58.8	2655	1494	75	32x32	34.00 KGS	33.00 KGS
150	16:9	130.7	73.5	3319	1867	75	32x32	38.00 KGS	37.00 KGS
180	16:9	156.8	88.2	3982	2240	75	32x32	44.00 KGS	43.00 KGS
200	16:9	174.2	98	4425	2489	75	32x32	50.00 KGS	49.00 KGS
250	16:9	217.8	122.5	5531	3112	100	36x64	93.00 KGS	92.00 KGS
300	16:9	261.3	147	6637	3734	100	36x64	110.00 KGS	109.00 KGS
