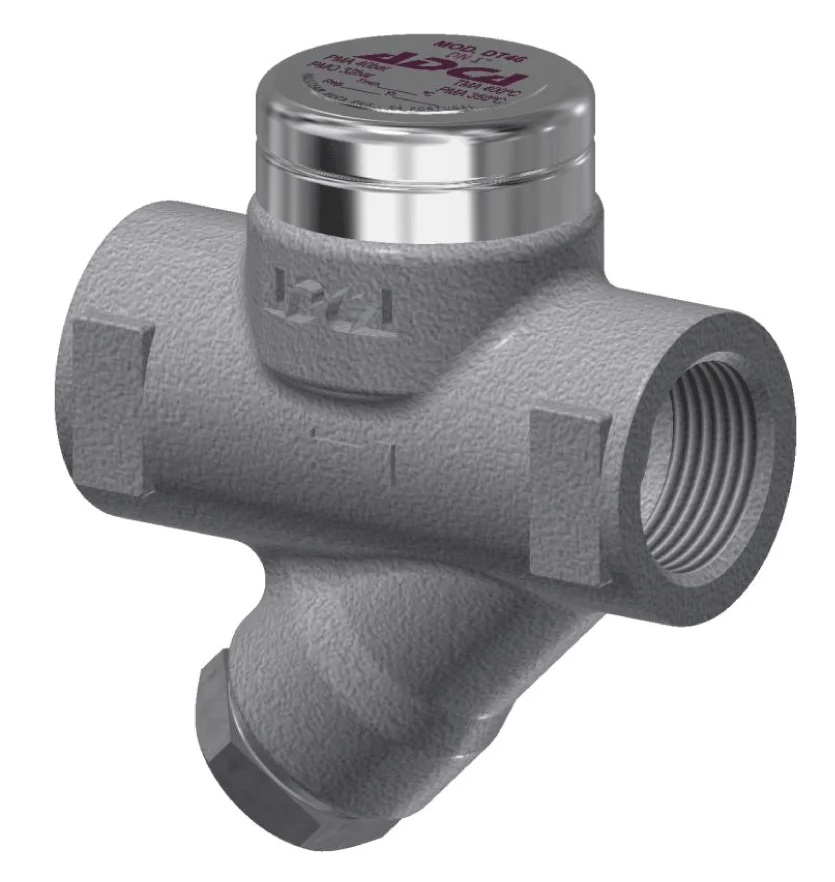

DIN Standard TD42L 1/2" Thermo Dynamic steam trap with blowdown valve 1/2" FNPT

Product Overview

Description

DIN Standard TD42L 1/2" Thermo-Dynamic steam trap with blowdown valve 1/2" FNPT



Includes strainer for added protection from dirt and scale.

Typical applications:

• Steam main drainage
• Tracer lines
• Process equipment
• Outdoor installations subject to freezing

Features

Integral strainer.
Free-floating stainless mechanism auto-discharge orifice at the top of trap.
With continuous air venting at steam temperature.
Continuing or interrupt drain characteristic.
Maximum allowable working pressure:
PN16: working pressure 16barg.
PN25: working pressure 25barg.
Maximum allowable working temperature:
PN16: working temperature 250°C
PN25: working temperature 350°C
Test shell:
PN16: working pressure 24barg.
PN25: working pressure 37.5barg.
Fluid application: vapor, condensation.
Media minimum temperature: 25°C
End Thread: NPT, BSP, BSPT, DIN.

Safety/Quality Approvals

ISO 9001; PED 2014/68/EU

For more details and varieties please feel free to contact us.We sincerely welcome your enquiries.
