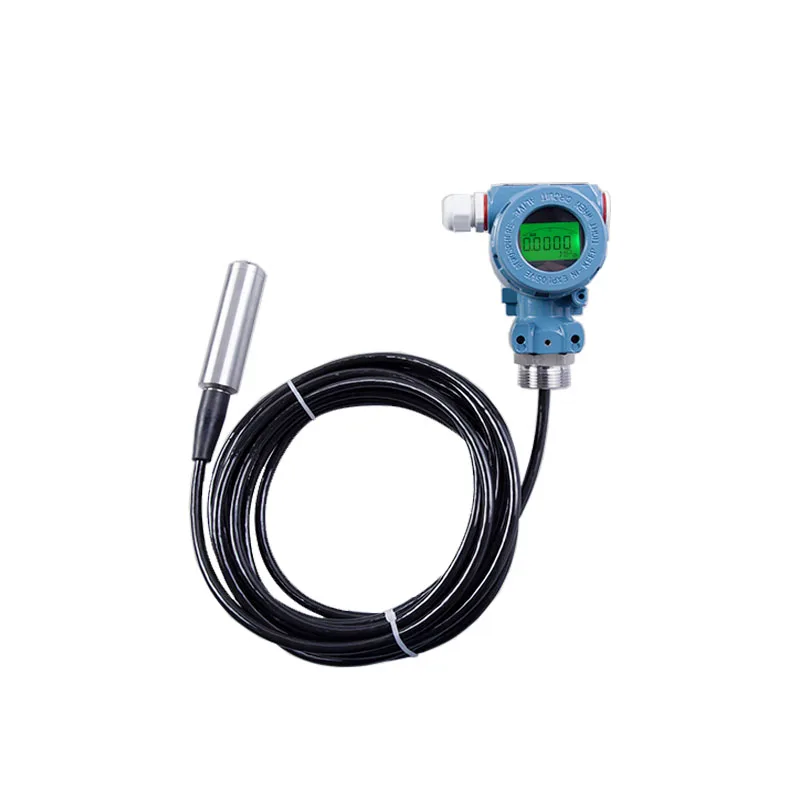

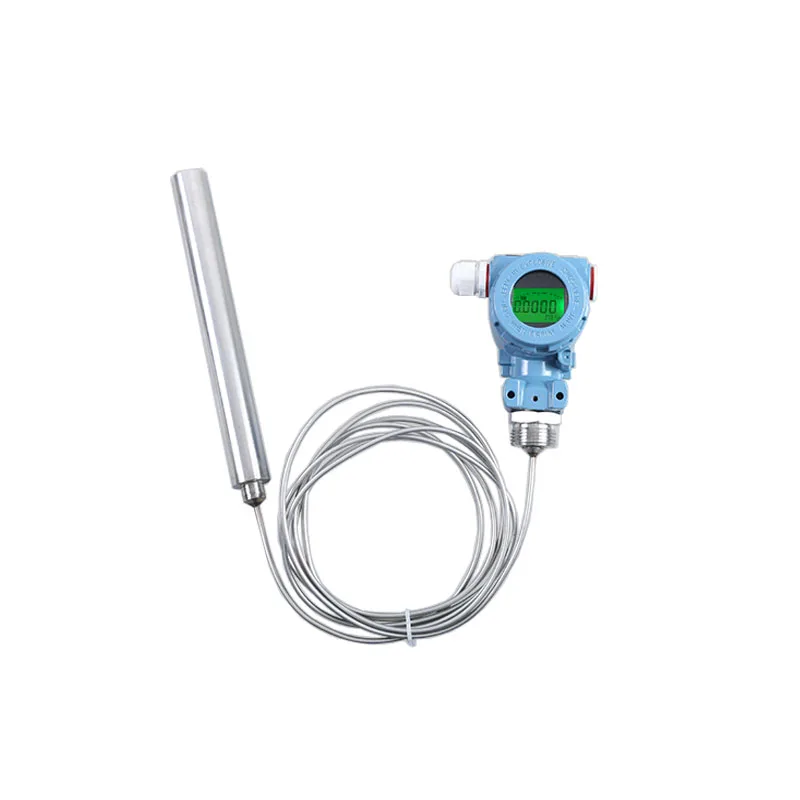

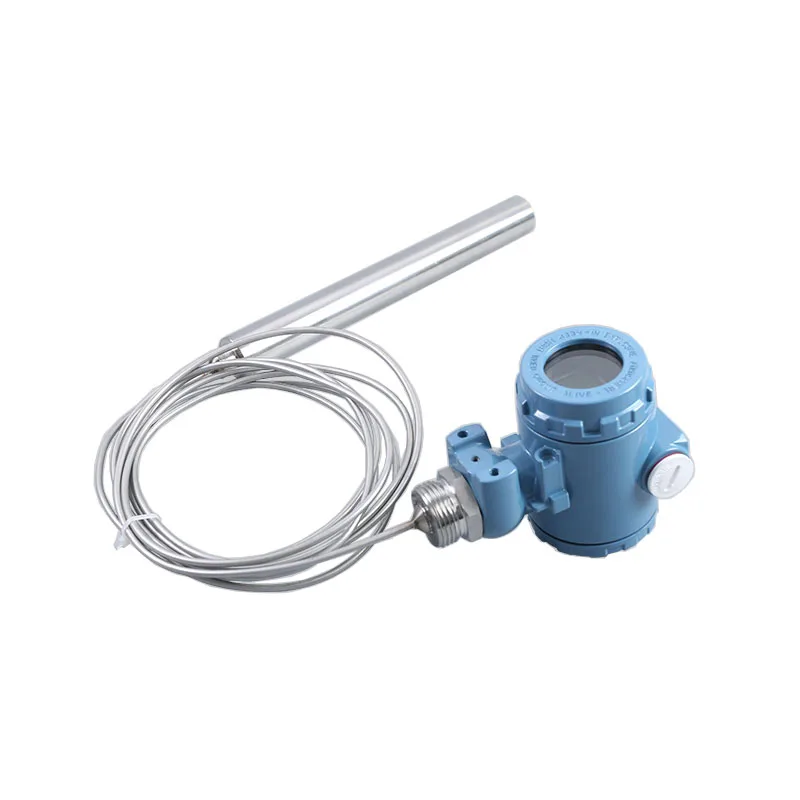

Product overview

WPM-26 Submersible Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive diffused silicon pressure sensor as the measuring element. The result is converted to standard current or voltage signal output through signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to complete the measurement of the liquid depth. The product has advantages of high precision and small volume. Submerse it directly into liquid, the height between the end of the transmitter to the liquid surface is measured easily. The product is applicable to the measurement and control of the liquid level in the petroleum, chemical industry, power plant, urban water supply and hydrological exploration fields. WPM-26 has passed long-term aging and stability screening with stable and reliable performance and can be used in harsh outdoor environment. Meanwhile, it can display liquid level on site. Zero shift and full scale span shift available.

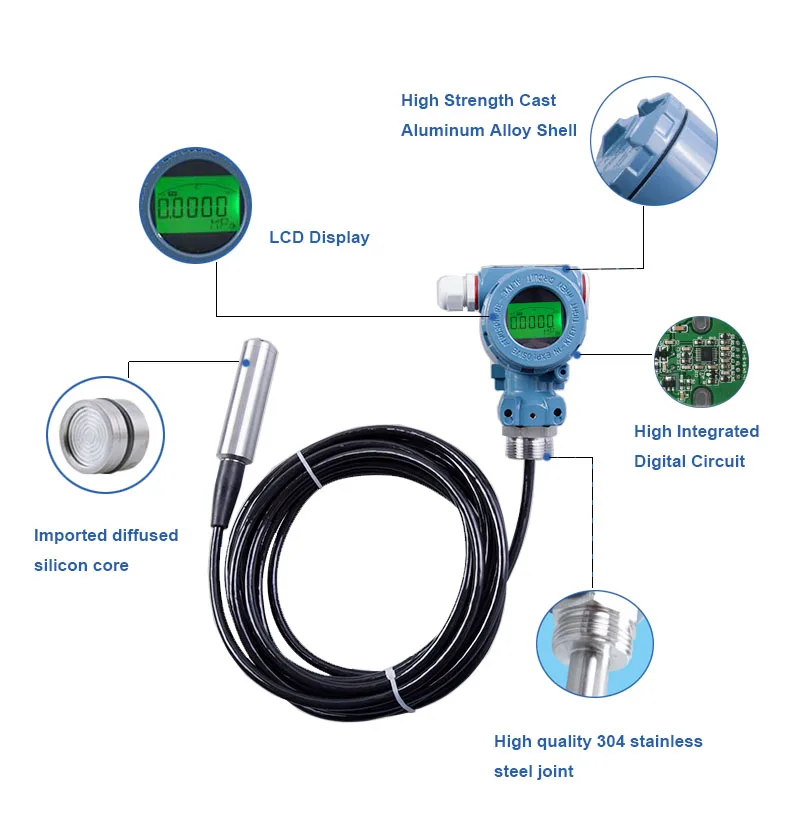

Features

Piezoresistive diffused silicon pressure sensor

Probe insertion measurement method, easy to install

For level measurement

Multiple protective structure design, high protection ability

LCD option

Variety of styles, suitable for various industrial applications

Anti-corrosion stainless steel material adopted, suitable for many occasions

Applications

Static pressure level

Liquid tanks

Sewage

Industrial water

Pools

Wells

Rivers

Seawater Lakes
