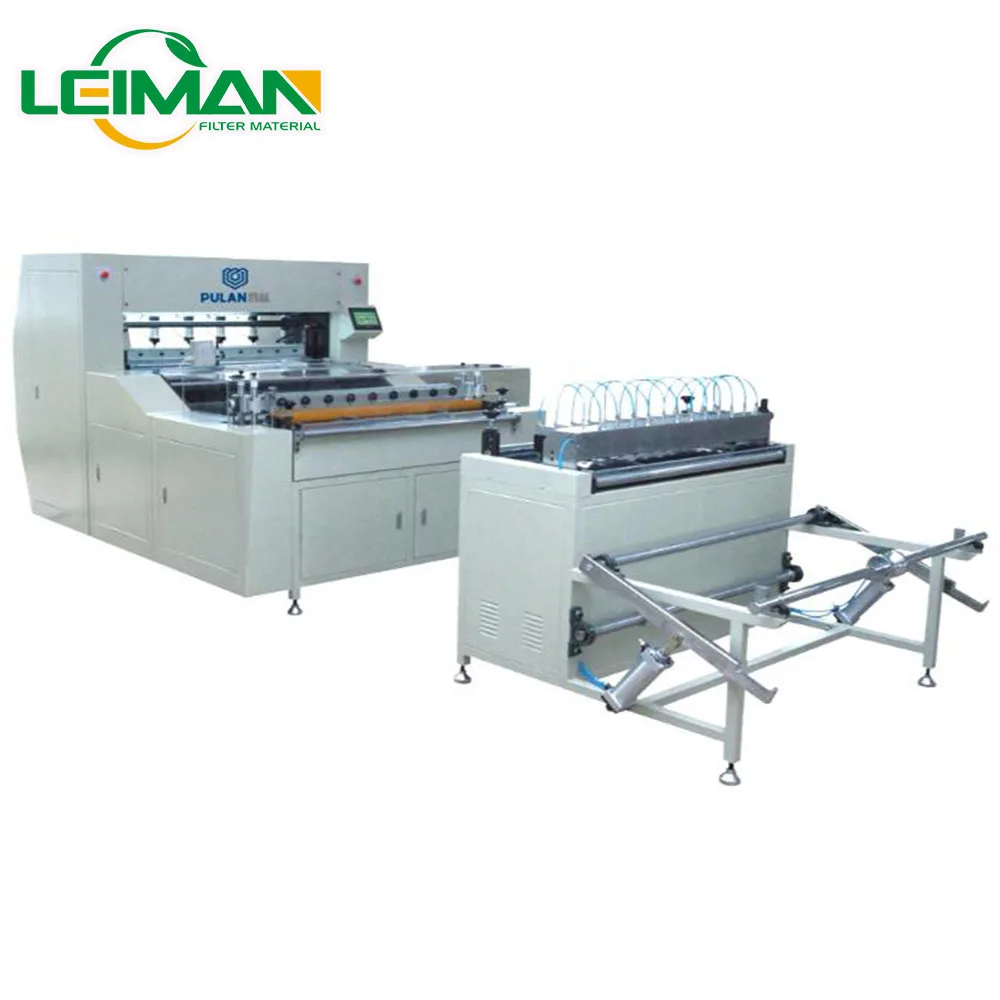

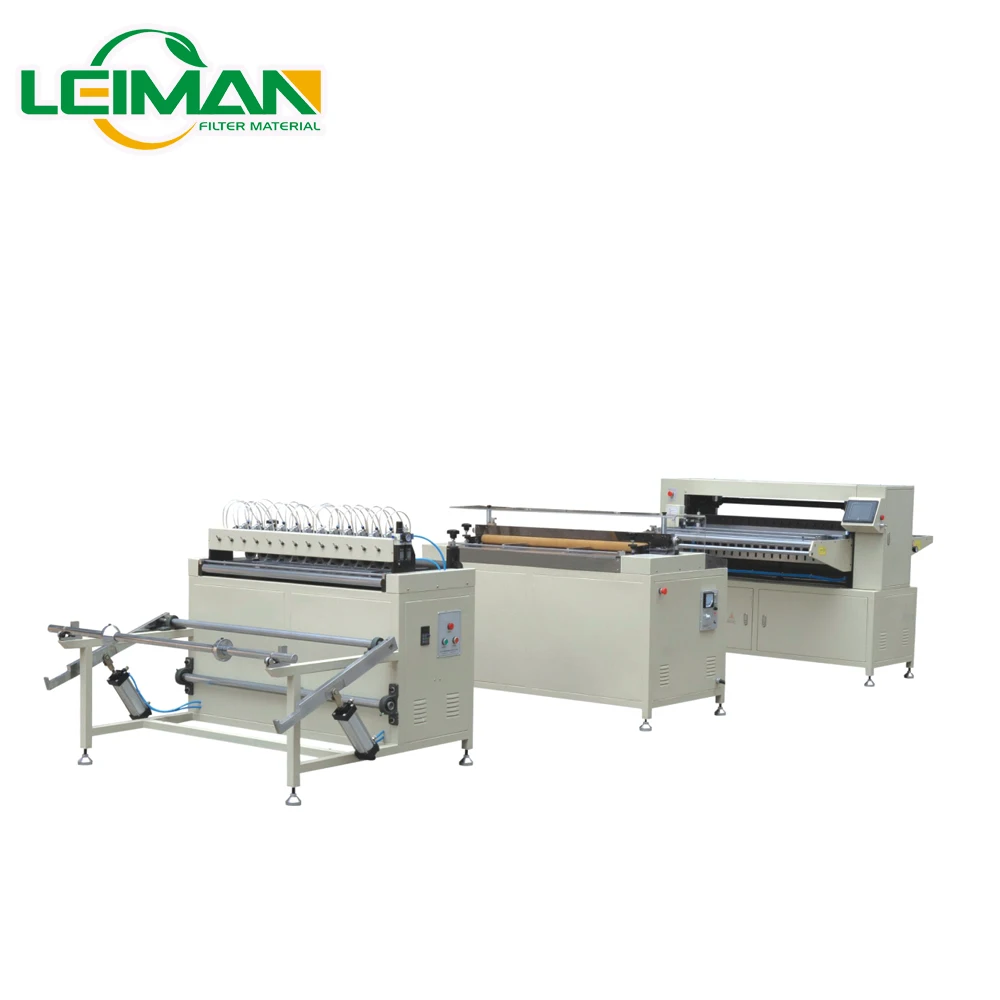

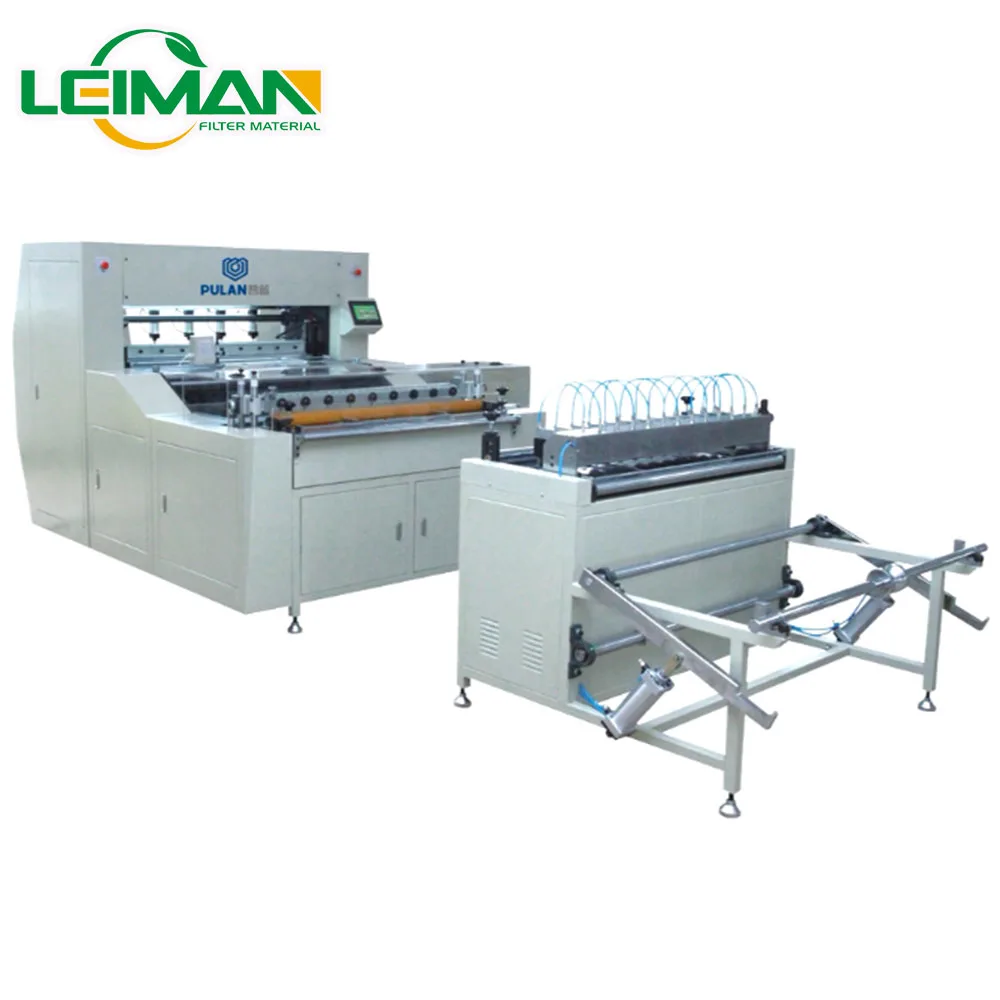

Filter production line knife folding machine bending machine

The major component of the equipment

1, paper planes automatically
2, to lose paper cut
3, printer
4, automatic counters
5, paper folding machine

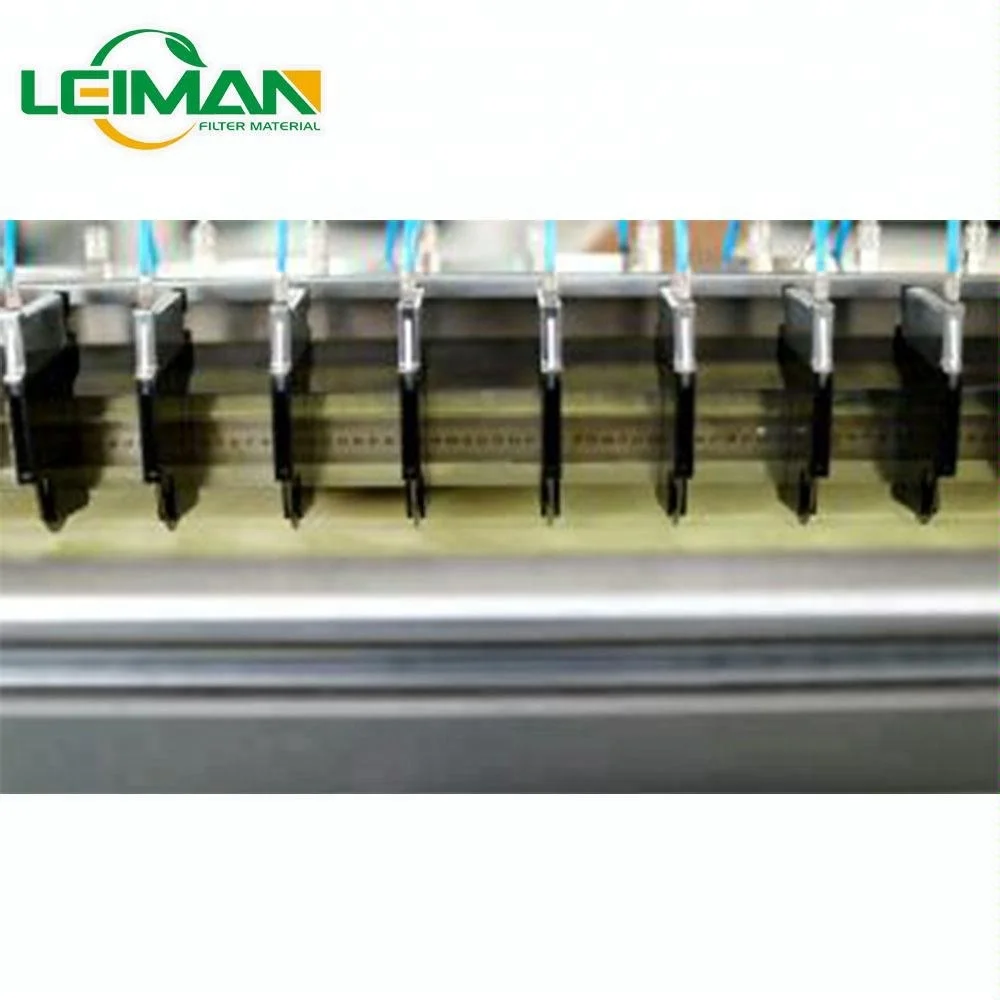

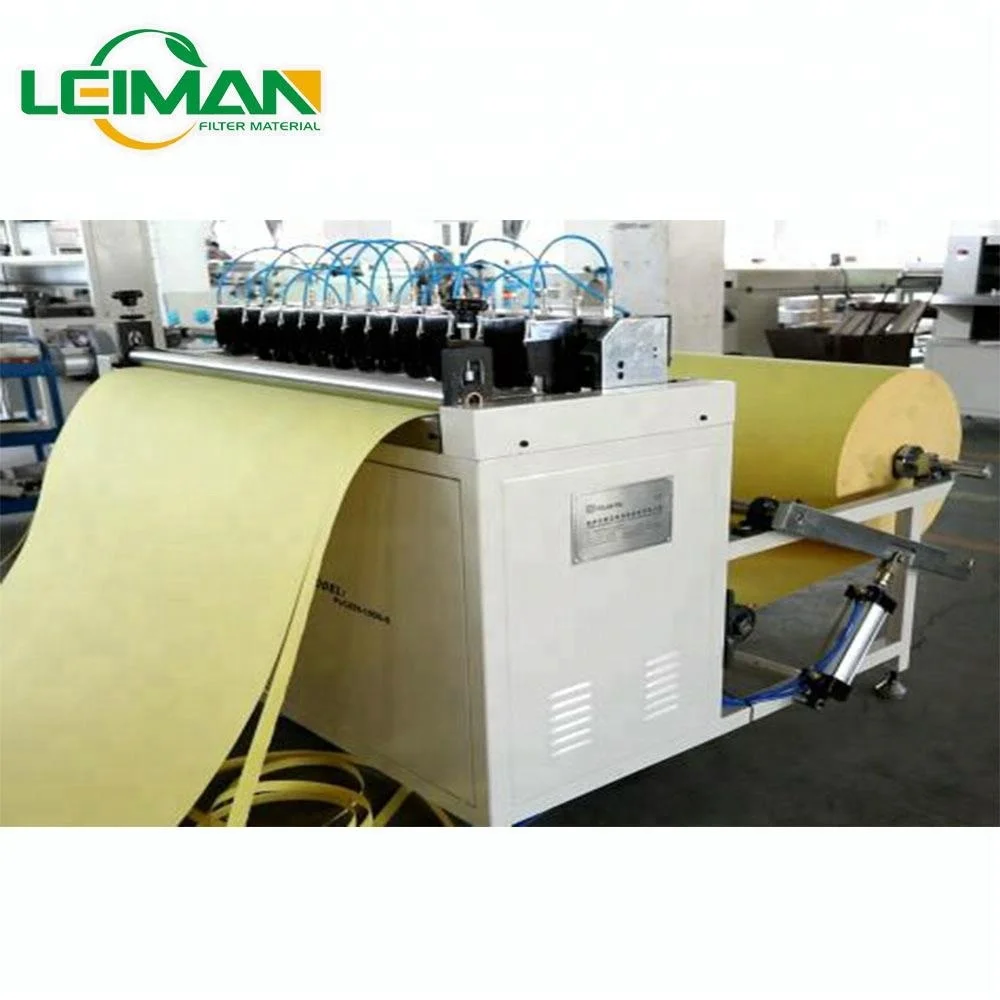

1, to cut lose paper: LMCZ55-1050-Ⅱ

(1) feeding speed: 0.5m/min ~ 12m/min adjustable
(2) Adjustable Paper Width: 32 ~ 1100mm
(3) supply voltage: 220V/50HZ
(4) Motor Power: 0.75kw
(5) Working pressure: 0.6MPa
(6) Machine Weight: 350kg
(7) Overall dimension: 1500 × 1300 × 1100mm (L × W × H)

2, printer: LMCZ55-1050-Ⅱ

(1) Print width: 1050mm
(2) printed from the adjustable range: 8 ~ 55mm
(3) supply voltage: 220V/50Hz
(4) motor power: 1.5kw
(5) Machine Weight: 300kg
(6) Overall dimension: 1550 × 520 × 1100mm (L × W × H)

3, folding machine: LMCZ55-1050-Ⅱ

(1) product maximum width: 1050mm
(2) adjustable folding high range: 8 ~ 55mm
(3) Folding speed: 0 ~ 200 packs / min stepless adjustable
(4) Supply Voltage: 380V/50HZ
(5) Motor Power: 1.1kw
(6) warm-up power: 4kw
(7) Temperature range: room temperature ~ 200 ℃
(8) Working pressure: 0.6MPa
(9) Machine Weight: 650kg
(10) Overall dimension: 1670 × 1720 × 1240mm (L × W × H)

The main characteristics of the equipment

1, cut to different specifications may lose filter paper size, frequency converter stepless speed regulation and through the cylinder knife, cut accurately to adjust the size, easy to operate, the effect of the formation of sub-cut, there are infra-red surveillance systems to lose printer paper speed and filter paper to maintain the same speed.
2, the printer can print high different filter paper folded, can be printed from any computer settings, stepper motor from the feed to make India more precise, easy adjustment and is conducive to origami folding machine. This machine can also play in the convex hull of paper, especially suitable for the production of special large air filter.
3, folding machine, the way the turn of the next folding knife work, knife through the computer automatically adjusts the distance can be folded to achieve a variety of different demands, the size is accurate, if formed.
4, filter paper folding machines in the automatic completion of RBI in mind the number of pre-processing and folding processes of stereotyping.
5, this machine is also used for hydraulic filter the iron and non-woven cloth folding, and suitable for multi-fold.

The production line for the three filter auto industry, hydraulic industry, purification industry, water treatment and other industries.
