Product Overview

Description

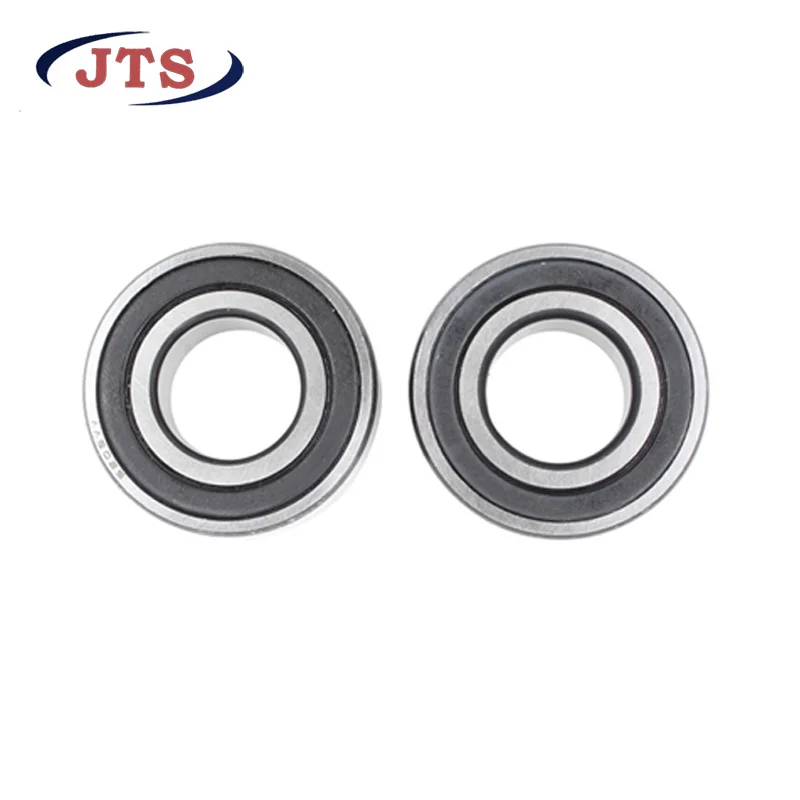

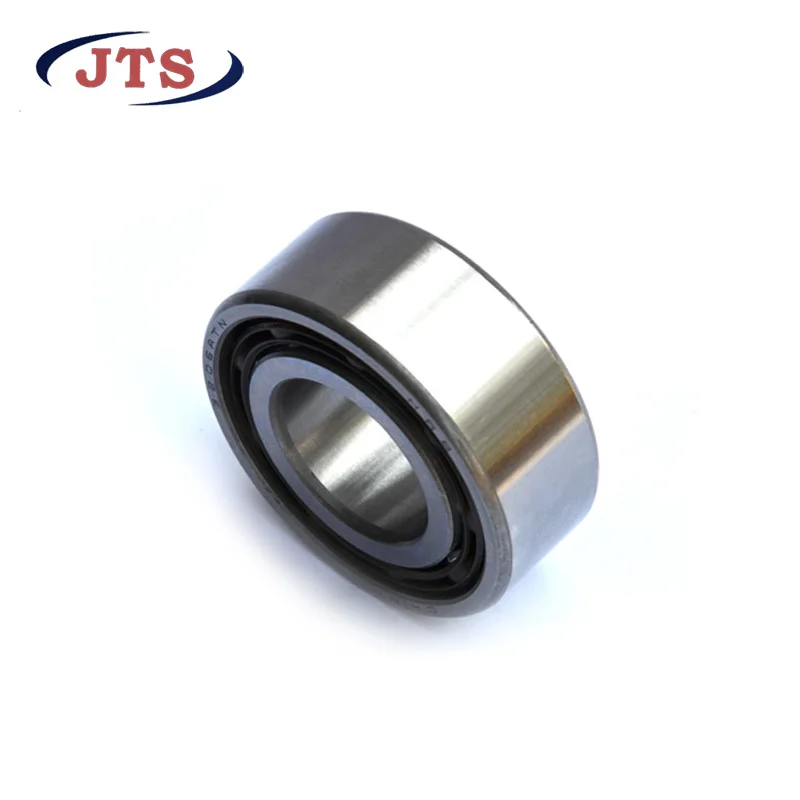

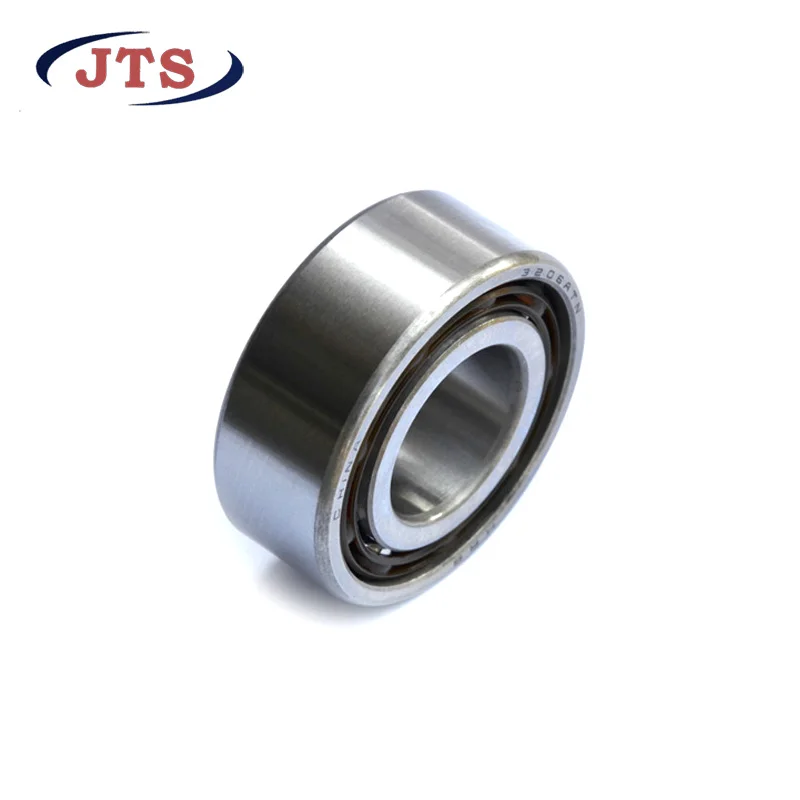

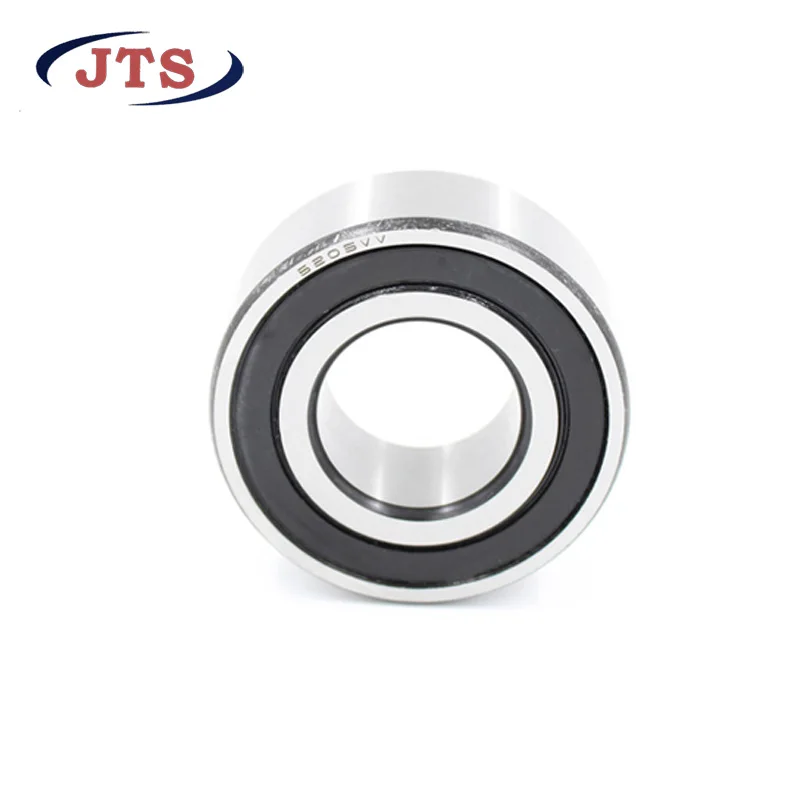

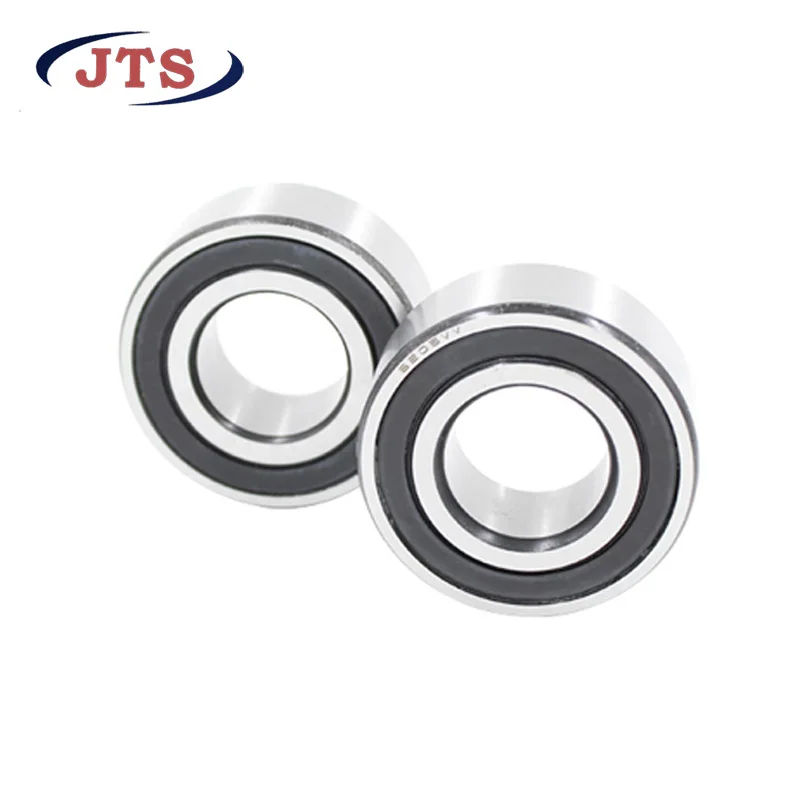

Double Row Angular Contact Ball Bearing 5204 ZZ 2RS

Brand	JTS or OEM
Company Type	Manufacturer and Trader
Material	Chrome Steel GCR15
Certificate	ISO9001:2015
MOQ	1PCS
Package	Tube or Single Box





Angular Contact Ball Bearings:

Angular Contact Ball Bearings can bear radial load and axial load at the same time.Able to work at high speed.The higher the contact Angle, the higher the axial bearing capacity.The contact Angle is the Angle between the contact line of the ball and raceway in the radial plane and the vertical line of the bearing axis.High precision and high speed bearings are usually 15 degrees of contact.The contact Angle will increase under axial force.

Application:

(1)The single row:

machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft

(2) double row:

oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery



Please click here to contact us for more details

More Model Number We can Supply

New Model	Old Model	ID(mm)	OD(mm)	Width(mm)	Weight(KG)
5200	3200	10	30	14.3	0.049
5201	3201	12	32	15.9	0.057
5202	3202	15	35	15.9	0.064
5203	3203	17	40	17.5	0.096
5204	3204	20	47	20.6	0.153
5205	3205	25	52	20.6	0.175
5206	3206	30	60	23.8	0.286
5207	3207	35	72	27	0.436
5208	3208	40	80	30.2	0.59
5209	3209	45	85	30.2	0.64
5210	3210	50	90	30.2	0.689
5211	3211	55	100	33.3	0.986
5212	3212	60	110	38.1	1.27
5213	3213	65	120	39.7	1.57
5214	3214	70	125	41.3	1.8
5215	3215	75	130	44.4	1.9
