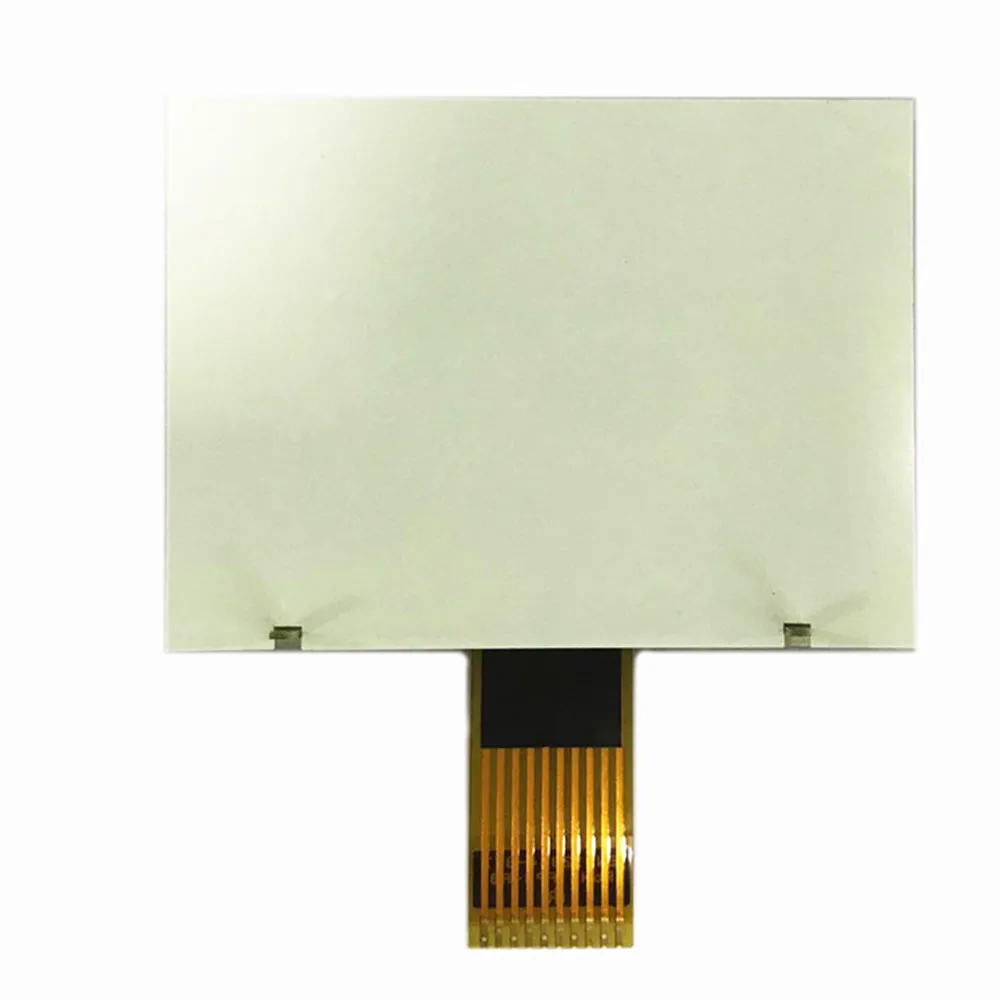

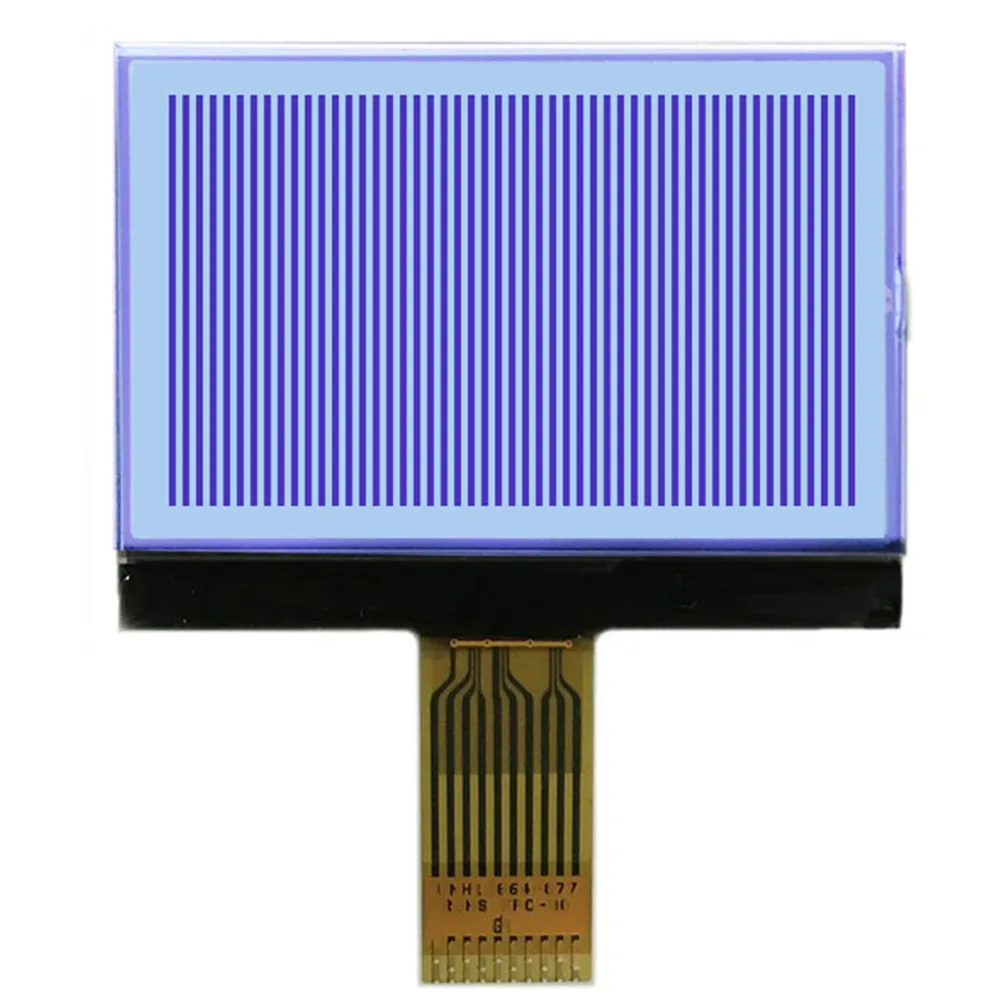

Shenzhen LCD Manufacturer 128x64 Graphic Display 10 PIN LCD For Sale
- Category: Graphic Display >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (62215505084):
Product Overview
Description
Product Description

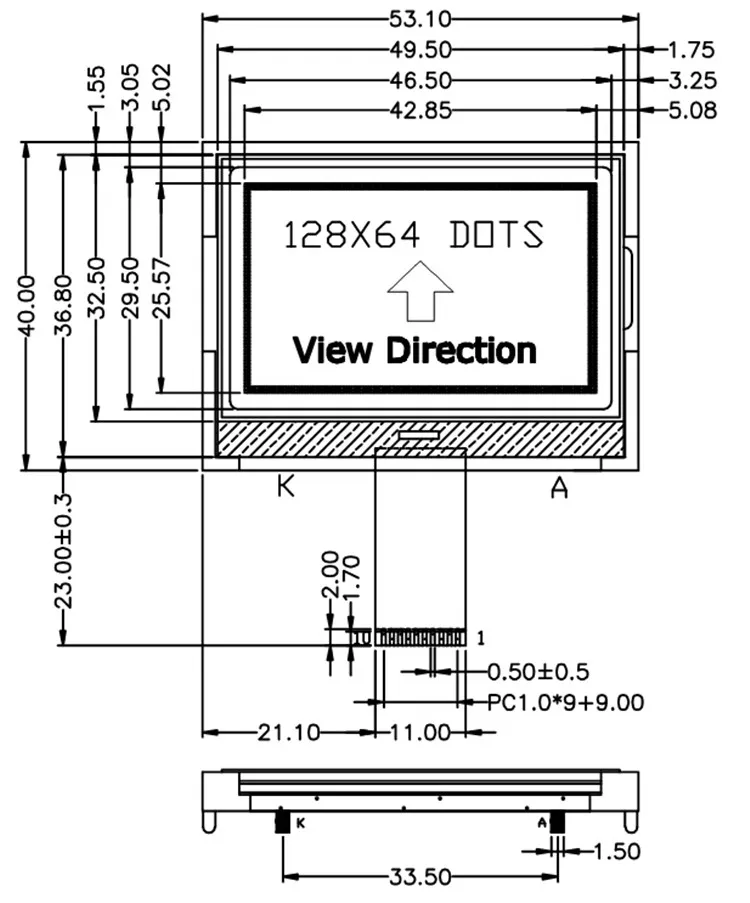

PRODUCT PARAMETERS
| 1.Product name : | ENH-DG128064-149 |
| 2.Module Size: | 53.10x40.0mm |
| 3.LCD Size: | 49.50x36.80mm |
| 3.Viewing Area : | 46.50x29.50mm |
| 5.Resolution: | 128x64 |
| 6.Display Type : | FSTN/Transflective/Positive |
| 7.Viewing Angle: | 6 O'clock |
| 8.Drive Method : | 1/65 Duty, 1/9 Bias |
| 9.Working Temp : | -30℃ TO +80℃ |
| 10.Storage Temp : | -30℃ TO +80℃ |
| 11.Connector: | FPC+COG |
| 12.Drive IC : | ST7567 |
| 13.Backlight : | White |
PIN ASSIGNMENT
SIMILAR PRODUCTS YOU MAY LIKE

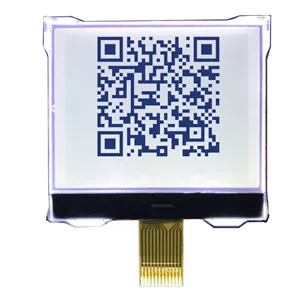

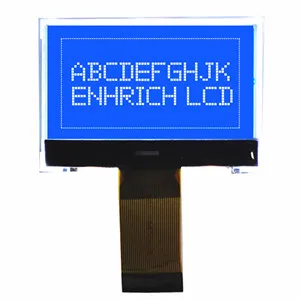

ENH-DG128064-88 ENH-DG128064-05
Company Introduction
CUSTOM PROCESS
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
