Granite Mobile Crusher Plant Portable Mobile Jaw Stone Crusher Price

Share on (62215714119):


Price:RUB 379,090.00 - RUB 10,523,538.40

Quantity:


Product Overview

Description

Granite Mobile Crusher Plant Portable Mobile Jaw Stone Crusher Price

mobile stone crusher.jpg

Granite Mobile Crusher Plant Portable Mobile Jaw Stone Crusher Price Introduction:

The Mobile Jaw Stone Crusher was designed by ourselves, utilizing the very latest European technology, including finite element techniques to minimize stress levels within the frame itself. Mobile crusher plant is a kind of new rock broken equipment, mainly used in metallurgy, chemical industry, building materials, water and electricity engineering, to process material often needed to move, especially for liquidity stone processing used in the highway, railway, water and electricity engineering. Mobile Jaw stone crusher greatly expands the crushing operation concept fields. Mobile jaw stone crusher design purpose is standing in customer's position, to eliminate broken processing barriers given to customers by the broken site, environment as your primary settle solution, and to provide efficient, low cost of the project operation hardware facilities.

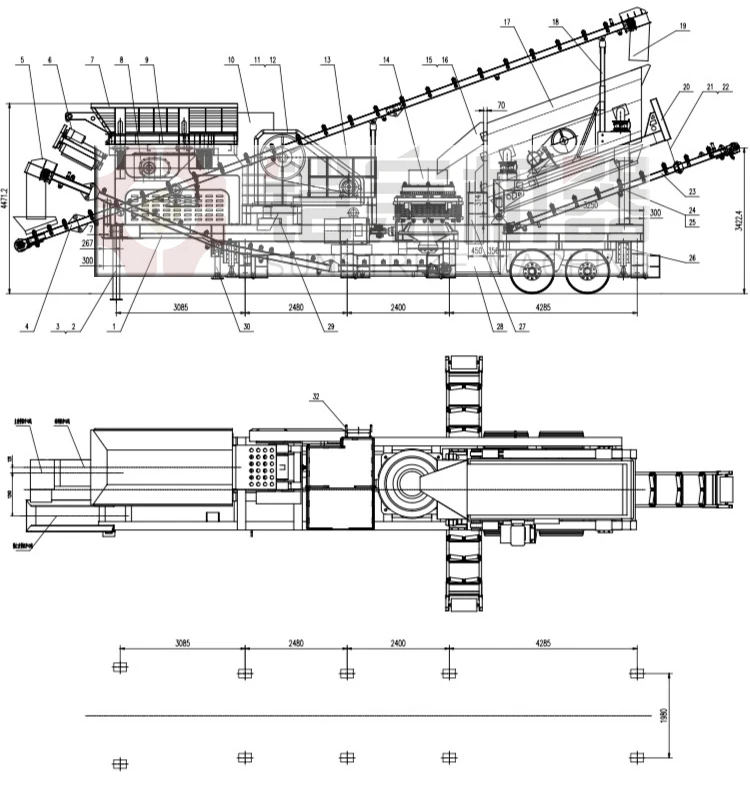

mobile_crusher_plant_

Granite Mobile Crusher Plant Portable Mobile Jaw Stone Crusher Price Features:

1.Integration of a complete set of the equipment installation forms, eliminate the fission of infrastructure components installed homework, reduce the material consumption, working hours.

2.Mobility flexible.The vehicle-mounted chassis is high, the width of frame is less than operations trailer, the turning radius is small, convenient for ordinary highway, more convenient for driving in the crushing field of the rugged bad road environment.

3.Reduce the material transportation cost.

4.Direct and effective work role integration of jaw crusher mobile crushing stand, can be used independently.

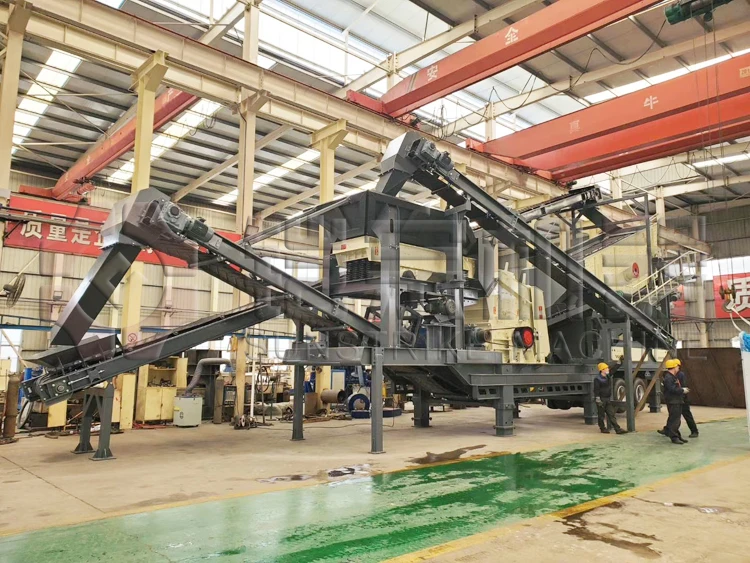

mobile stone crusher price



Granite Mobile Crusher Plant Portable Mobile Jaw Stone Crusher Price Technical Parameter:

Model

Transport length (mm)

Transport height (mm)

Transport width (mm)

Max. height (mm)

Max. width (mm)

Belt conveyor height (mm)

Total weight (ton)

KZYG938E57

11000

3900

2450

4700

2900

2600

36

KZYG938E69

11200

3900

2450

4700

2900

2600

42

KZYG1149E710

13000

4400

2450

5100

3100

2600

55

Mobile Jaw Stone Crusher Price Configuration:

Model

Vibrating Feeder

Jaw crusher

Belt conveyor

Extended belt conveyor

Generator

Capacity (t/h)

Power (kw)

KZYG938E57

GZD900x3800

PE500x750

B650X7M

Optional

Optional

40-90

68.5

KZYG938E69

GZD-960x3800

PE600x900

B650X7M

Optional

Optional

70-150

88.5

KZYG1149E710

GZD1100x4900

PE750x1060

B800X9M

Optional

Optional

120-250

132
