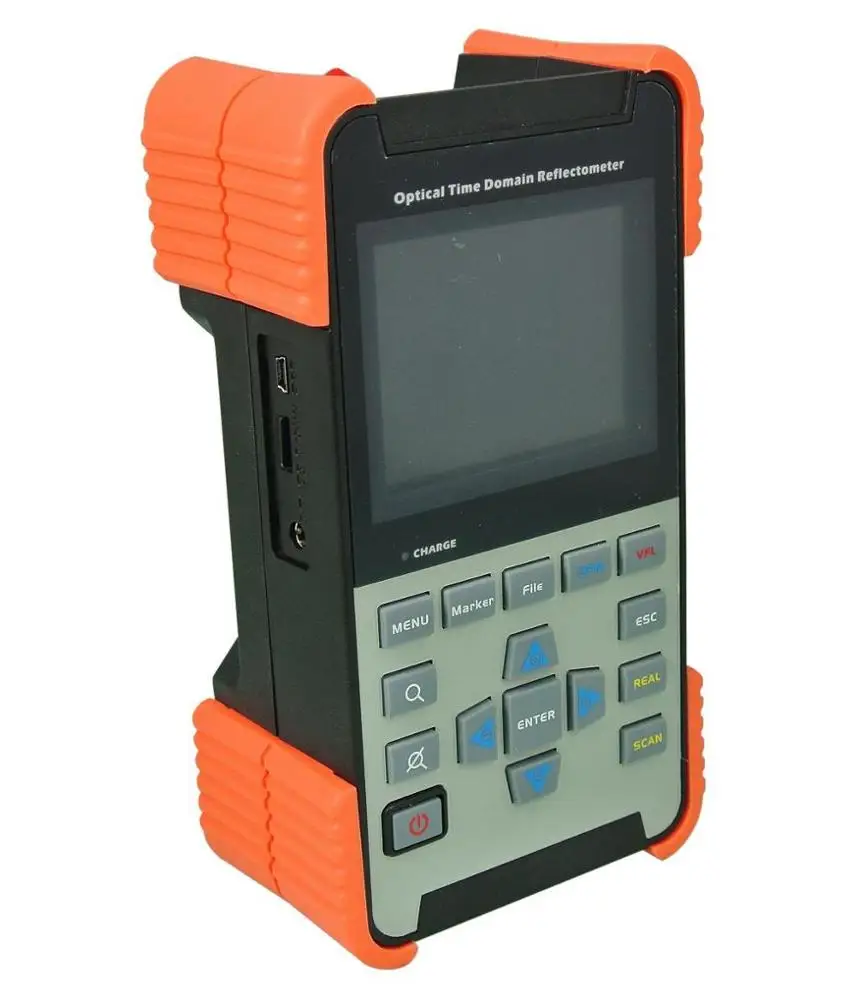

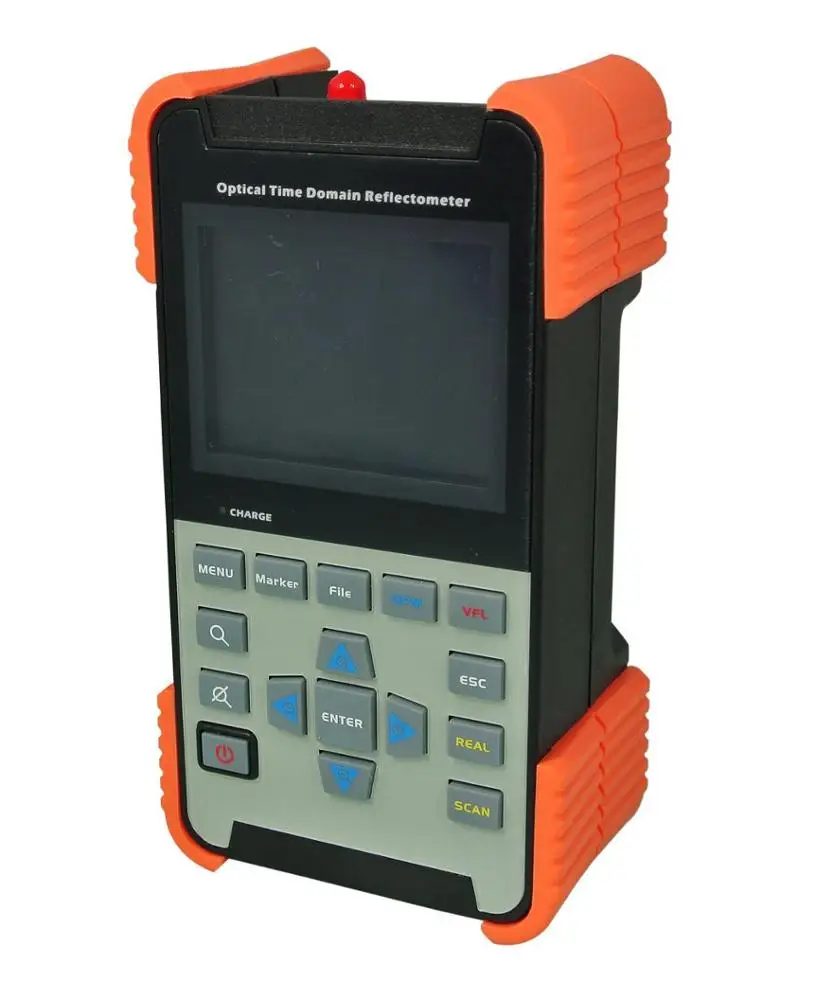

High quality handheld optical time domain reflectometer testing machine AOR500 manufacturers OTDR Precio


contact_Alice




Product Description


OTDR Precio, Brands OTDR, OTDR Manufacturers


Features:



  1. Automatic one-button testing.

  2. Easy to operate for beginners and experts.

  3. Input laser signal auto detection and self-protection.

  4. Integrated PALM design, small,  light, easy to carry.

  5. High contrast color TFT LCD.

  6. USB port for PC connection.

  7. Built-in VFL.

  8. High speed signal processing, short test time and fast analysis.

  9. User-friendly OTDR simulation software shows details of events.














Specifications

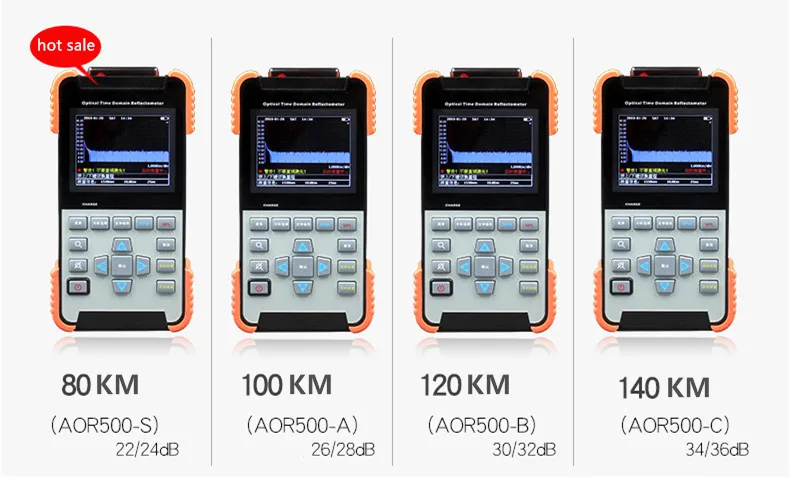

 Model AOR500-S AOR500-A AOR500-B AOR500-C
 Dynamic Range*  24dB / 22dB 28dB / 26dB 32dB / 30dB 36dB / 34dB
 Max.Distance** 80km 100km 120km 140km
 Wavelength 1550/1310nm 1550/1310nm 1550/1310nm 1550/1310nm
 Event Dead Zone ***  1.5m
 Attenuation Dead Zone 8.0m
 Pulse Width 10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1us, 2.5us, 5us, 10us
 Distance uncertainty ±(0.8m ± 0.001% * testing distance ± resolution)
 Loss Resolution    0.001dB
 Min.Distance Resolution 1m
 Connector  FC interchangeable adapter (optional: SC,ST,LC interchangeable adapters)
 VFL

 1mW


 Data Storage

 > 10000 traces (standard 1GB SD card)


 Display

 3.5 inch TFT color LCD


 Interface

 USB


 Battery

 Built-in rechargeable battery


 Working Time

 >10 hrs (Bellcore TR-NWT-001138)




























Size(H*W*D)    197mm * 107mm * 67mm
 Weight About 750g
 Storage Temperature -20 -- +60 ℃, < 90%RH
 Operating Temperature  -10 -- +50 ℃, < 90%RH

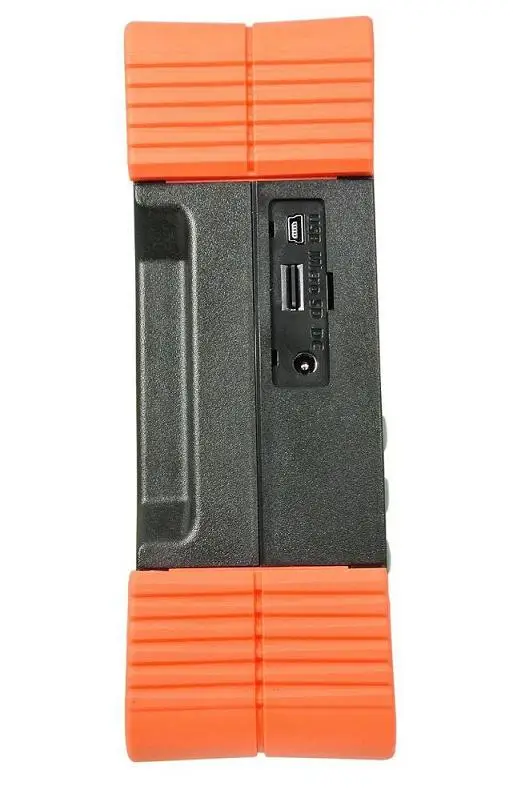

Detailed Images

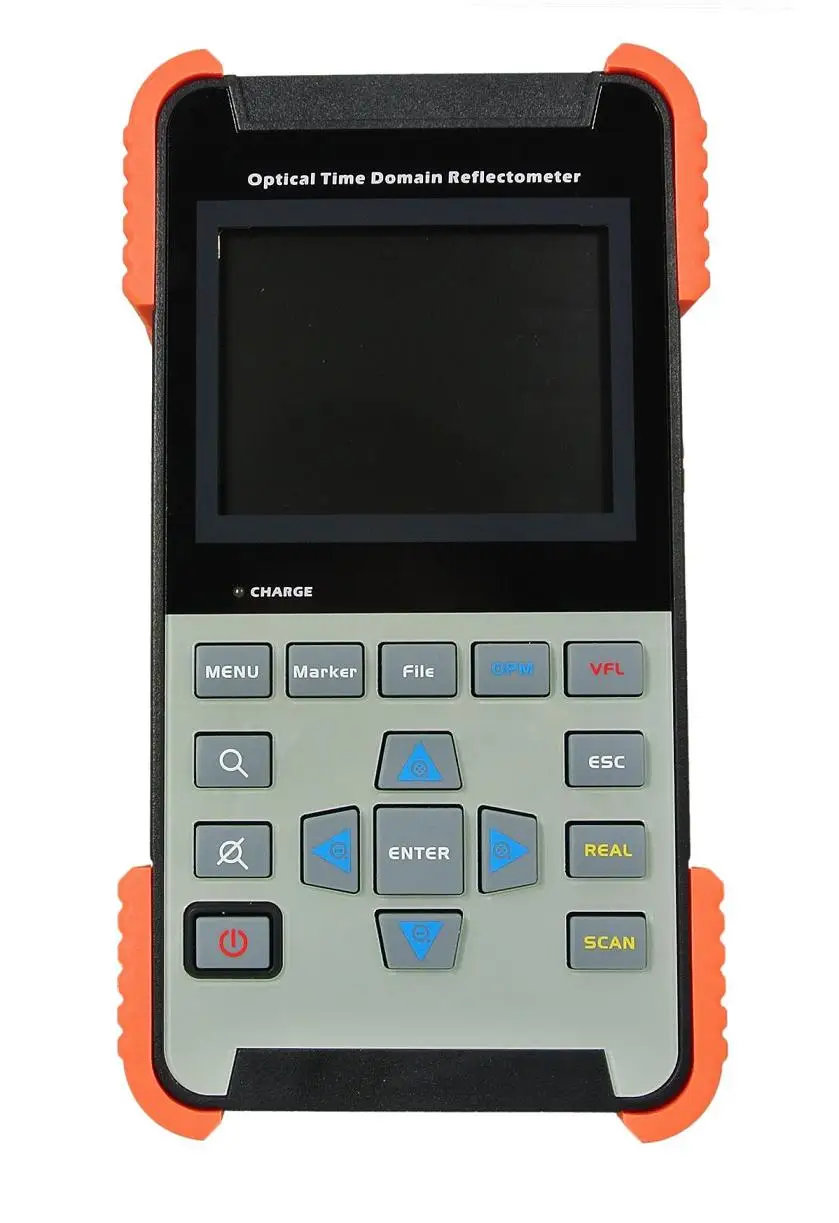

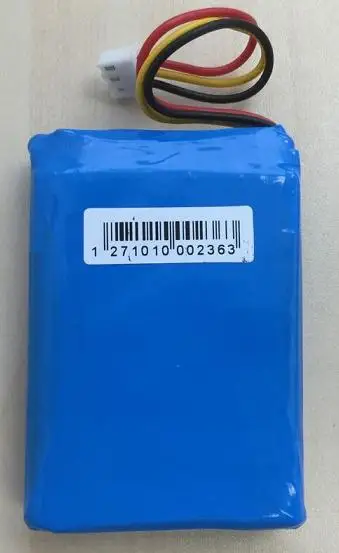

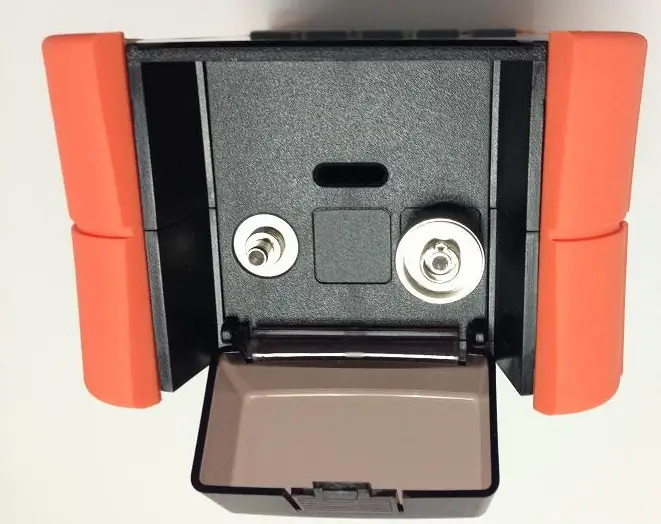

AOR500 battery.jpgAOR500-5.JPGAOR500-4.jpgAOR500-6.jpgotdr.jpg








Packaging & Shipping





Packaging:
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement





Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
