120kg Two Side Open Frameless Door Hardware Glass Door Floor Hinge HD 8000 / BTS84
- Category: >>>
- Supplier: Haida Doorcontrol Co. Ltd.Haida Ltd.
Share on (62216004541):
Product Overview
Description

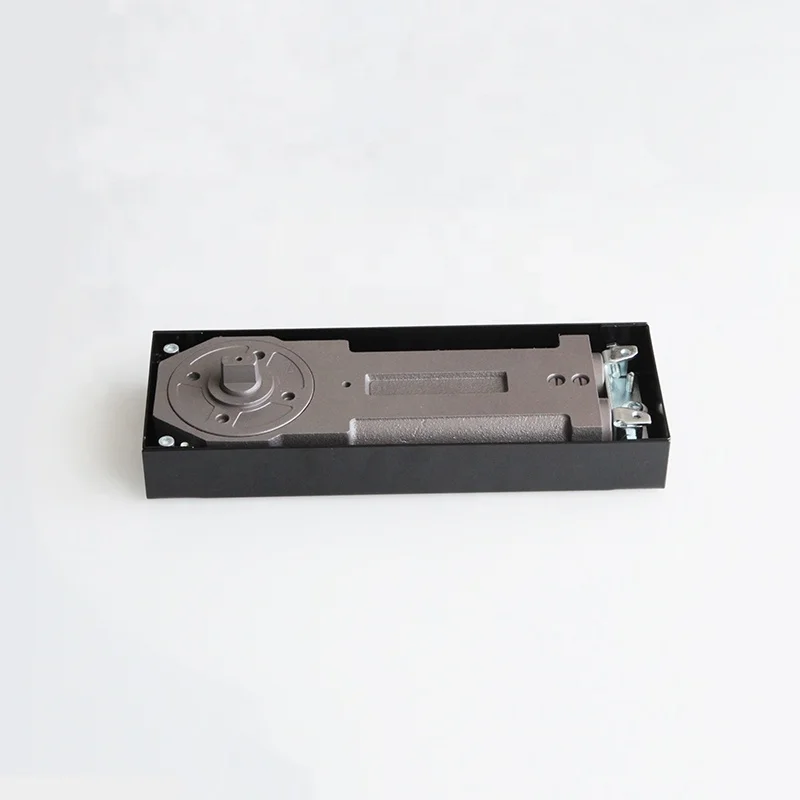

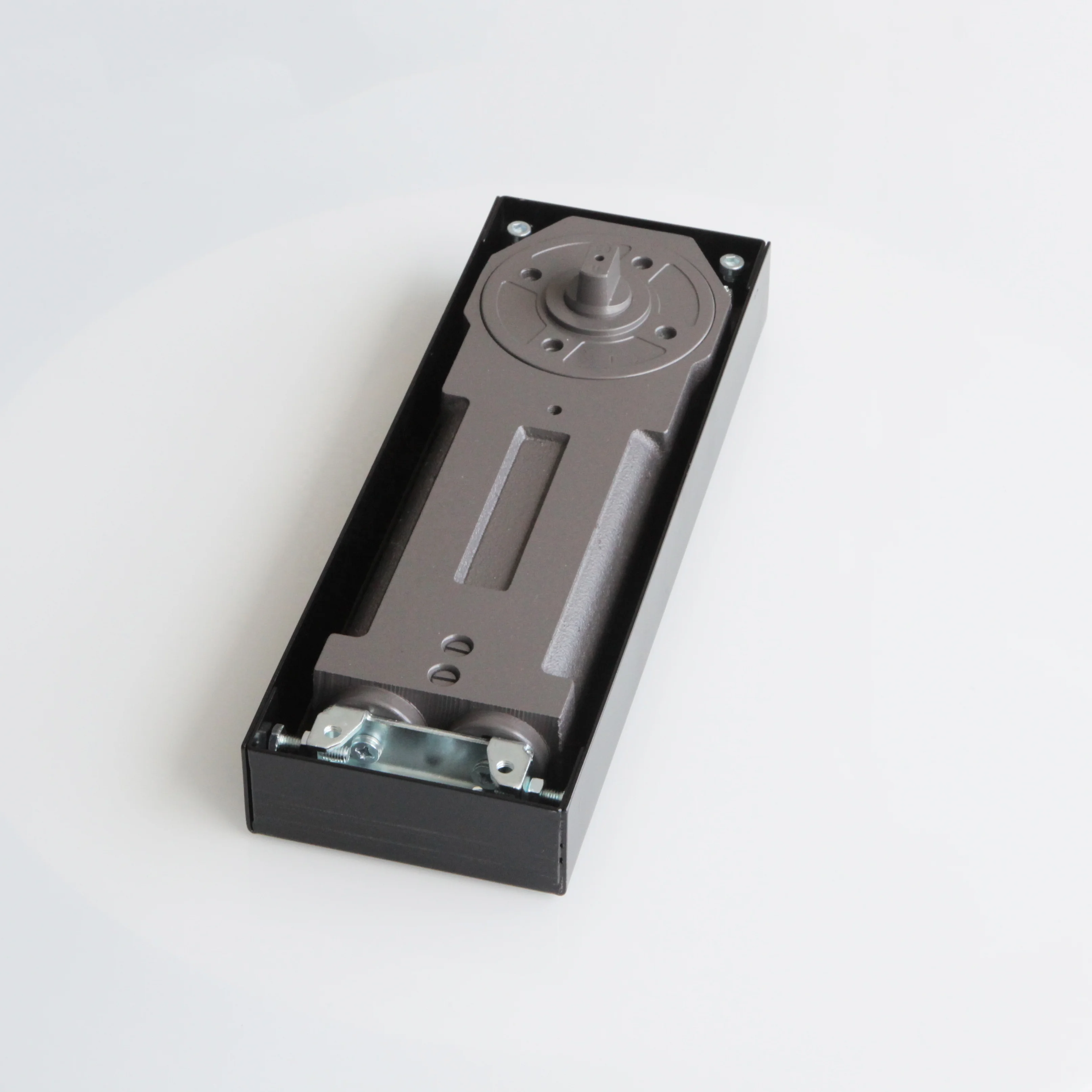

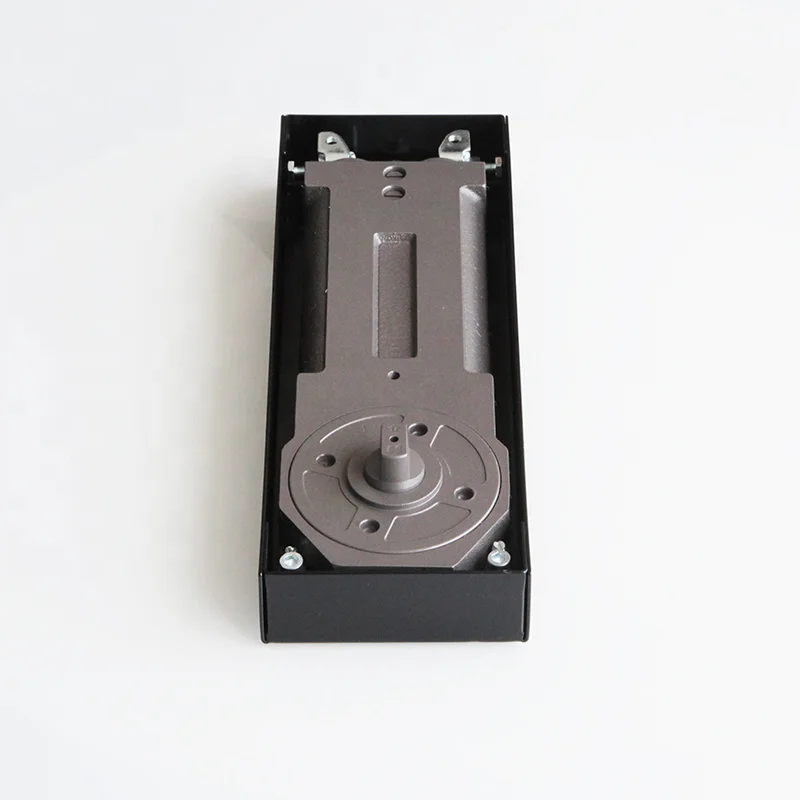

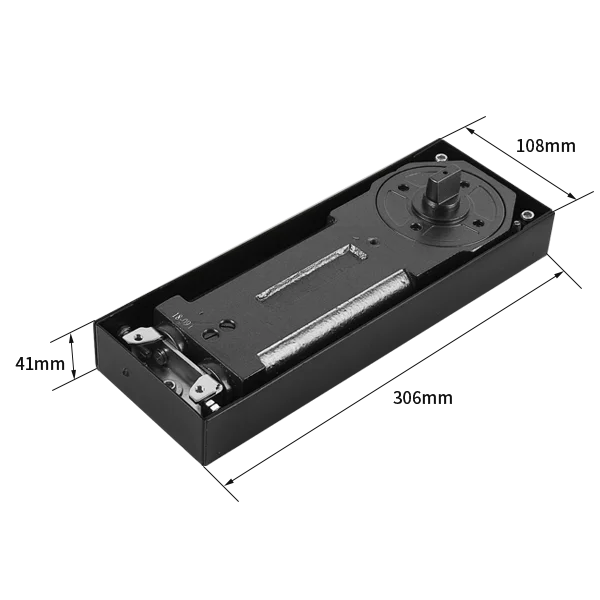

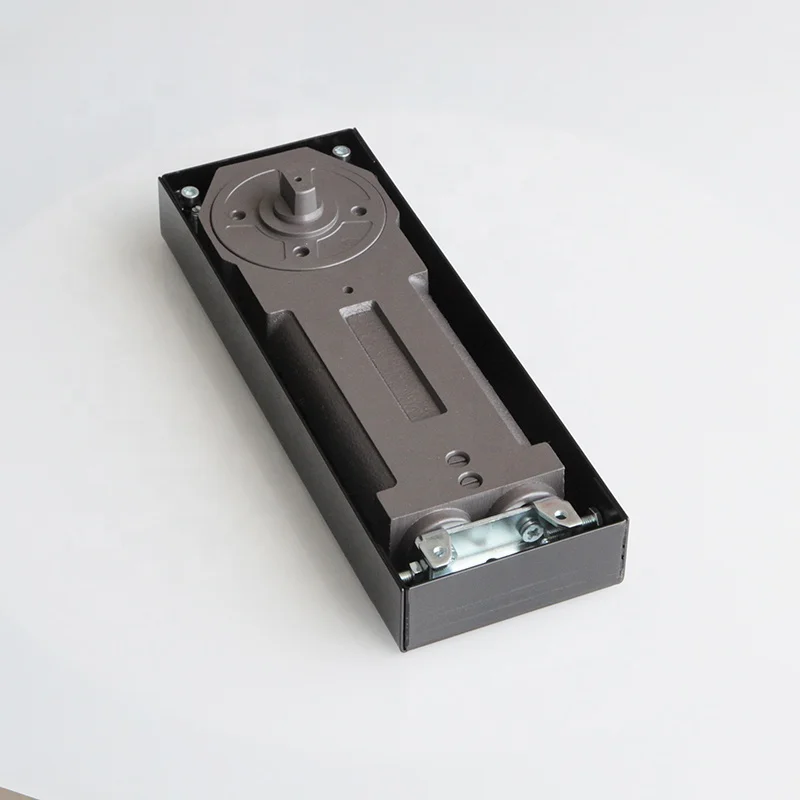

120kg Two Side Open Frameless Door Hardware Glass Door Floor Hinge HD-8000 / BTS84
Product Description
| Technical Parameters |
Model | HD-8000 |
| Applicable Standard | EN1154 & ISO9001 |
| Engine Cylinder | Double Cylinder |
| Max Door With | 1000mm~1200mm |
| Max Door Weight | 100kg / 120kg / 150kg |
| Max Open Degree | 130° |
| Hold-Open | 90° or 105° or NHO |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 306mm*108mm*41mm |

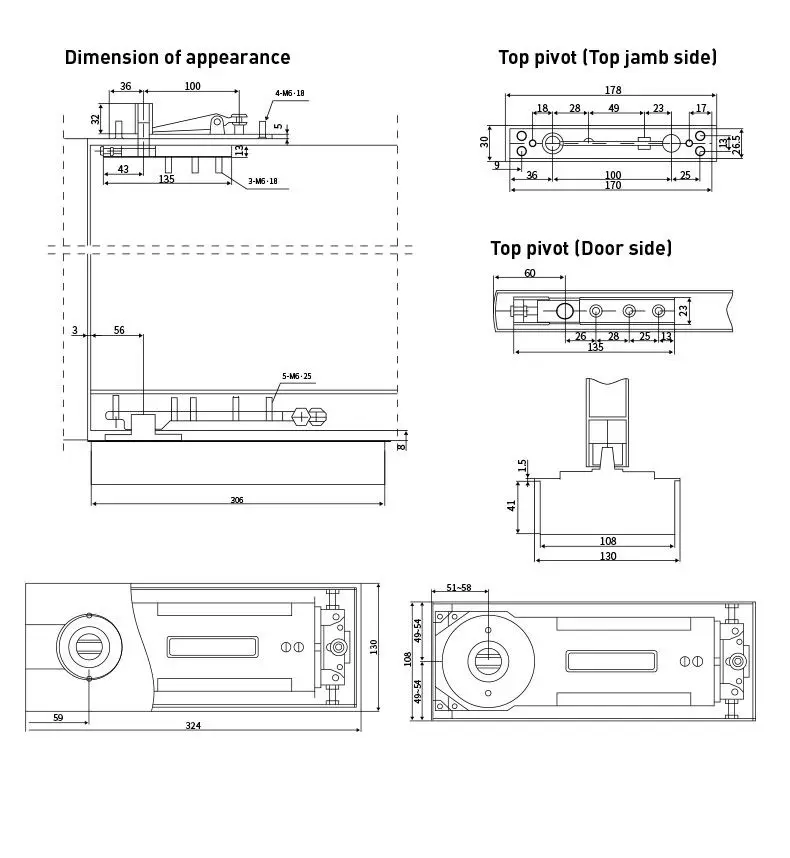

| Dimension of Appearance |
Product Feature
| Product Features |
A. Produced under ISO9001 quality management system
B. Double speed adjustment, ball bearing inside,closing smoothly
C. Fixed closing force EN2/EN3/EN4 for optional
D. 500,000cycles tested , long service life
E. Applicable for glass door, wooden door, aluminum door and frame door
F. Different Cam for Optional(Germany, Italy, Brazil, Japan and so on)
Product Details
| Product Details |
Company Profile
| About us |
| Why choose us |
1. The world's biggest floor spring manufacturer in China.Daily productionover 15,000PCS
2. The factory has three production base located in ZHEJIANG ,ANHUI,JIANGSU three province. The area cover 72,000 square meters.
3. Over 33 years producing experience. Ripe production process.
4. Impeccable testing system covered from raw material,components,semi-finished products.
5. HAIDA has own national test laboratory (Intertek Satellite Lab)to make sure the growth of our company.
| Workshop & Lab |
| Producton Process |
More Products
| More Products |
Certifications
| Certification |
FAQ
| FAQ |
Q: What is the minimum quantity ?
No MOQ,We can sell even 1PCS
Q: How long is the delivery time?
10 to 30days,depend on your order quantity
Q: Can you send samples before place the order
Yes,sure.we can provide samples for quality checking.
Q: Do you provide OEM service?
Yes,we do
Q: How about the payment terms ?
T/T,D/P,L/C,Paypal,Western union and cash all acceptable.
Q: How about your quality warranty?
When the products got problem during our warranty period,we will provide
