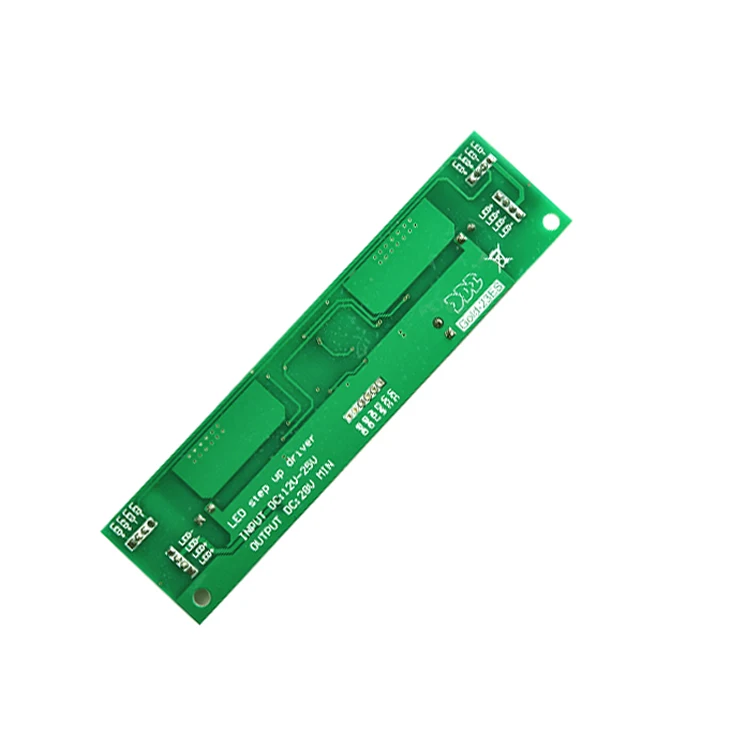

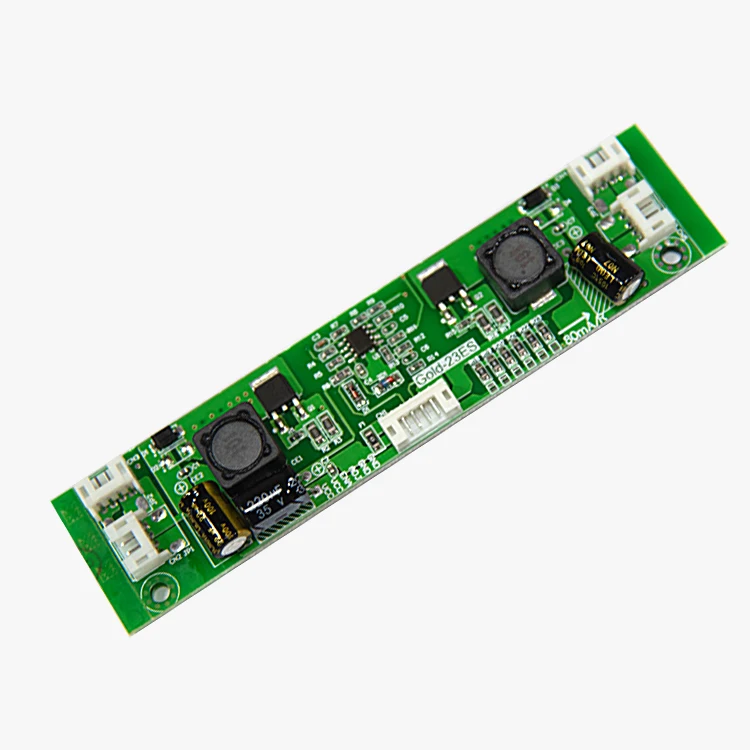

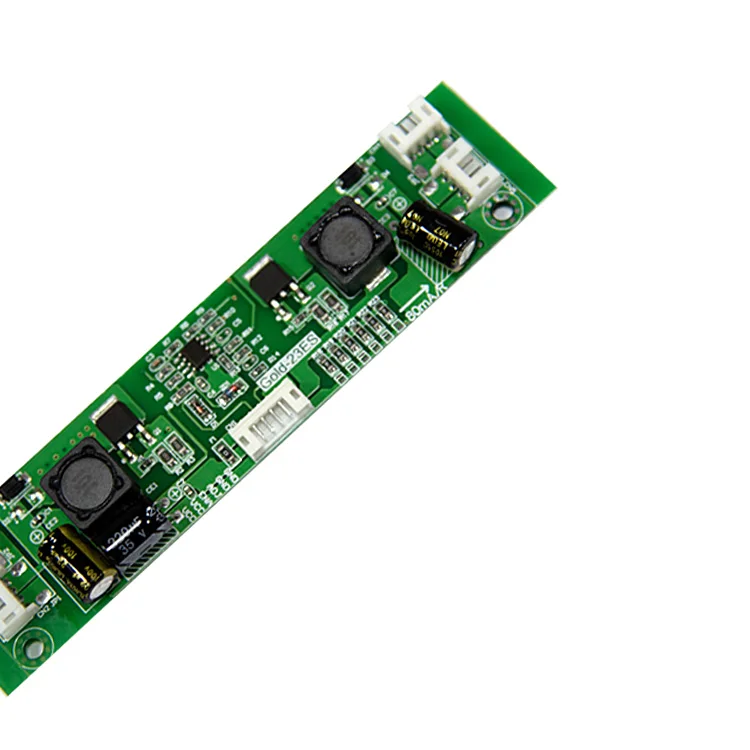

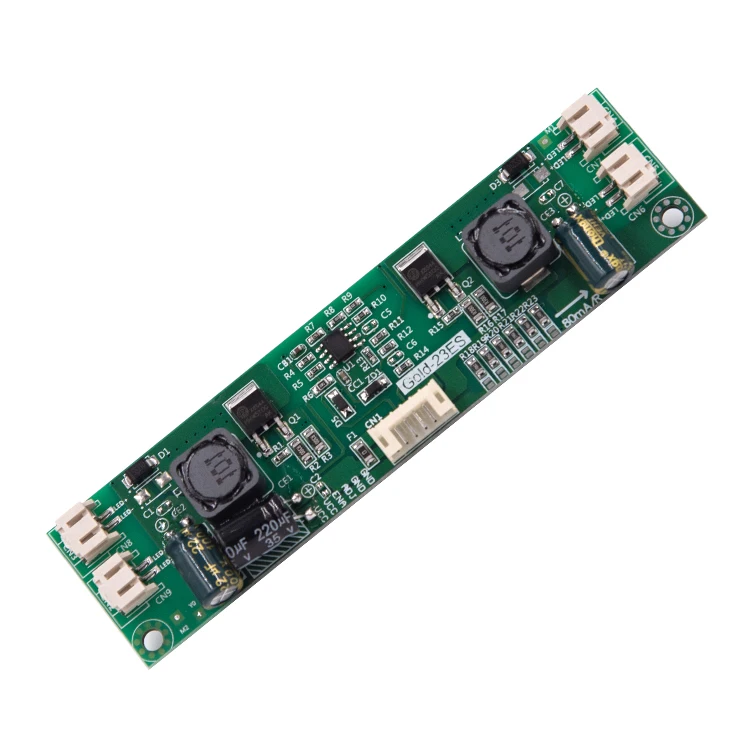

26 65inch LED TV universal inverter/LED tv backlight driver board Gold 23ES

26-65inch LED TV Constant current board /LED TV universal inverter/LED tv  backlight driver board  Gold-23ES

1. Connect the power, ground, and switch signals required by the boost board to the universal LED inverter board.

VCC supply, ON switch signal, ADJ brightness control, GND ground

Tip: The same connection method as the LCD high-pressure board

· The LED connection must pay attention to the interface definition (positive and negative) points, positive input power supply, do not reverse or wrong.
