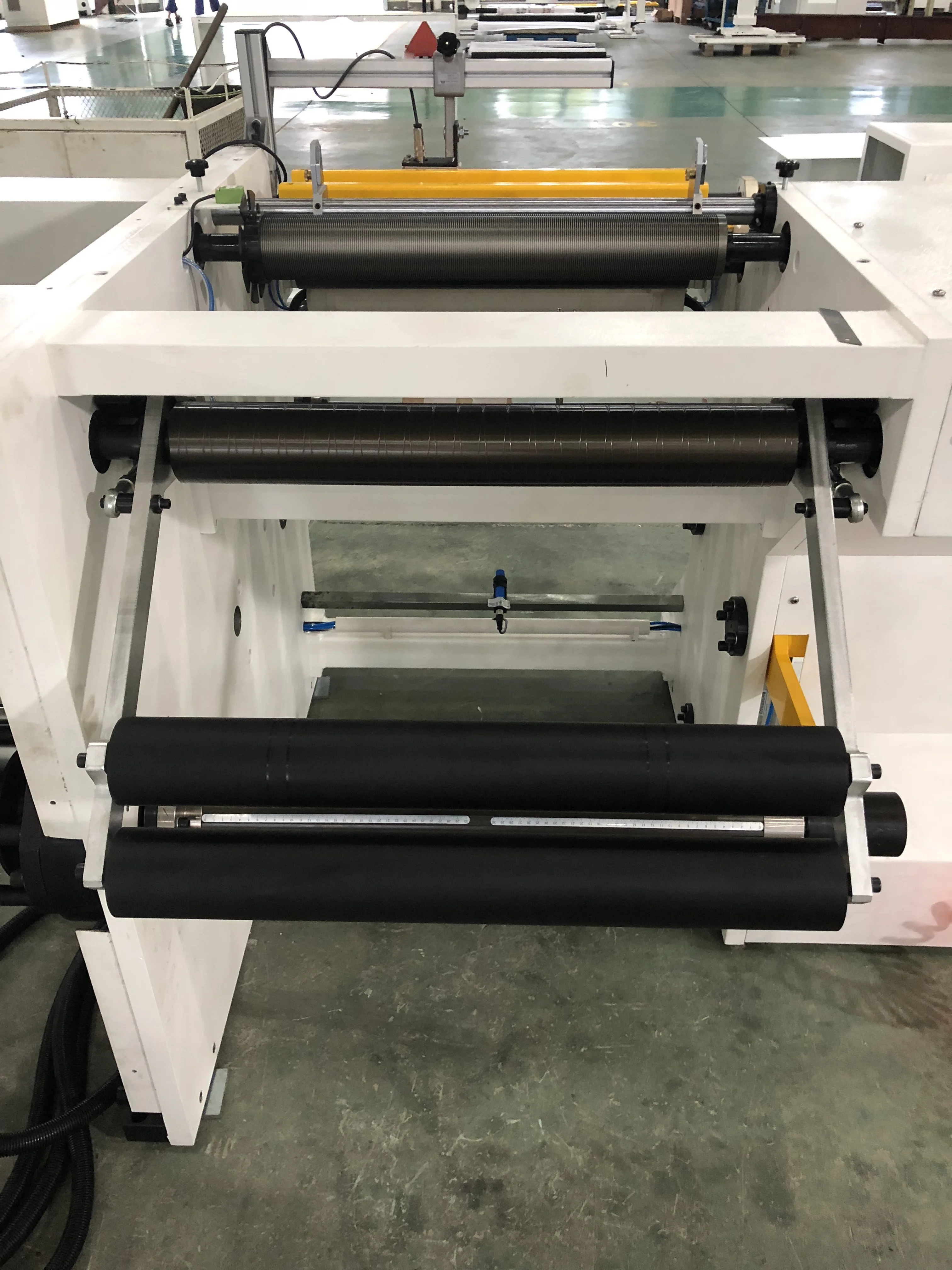

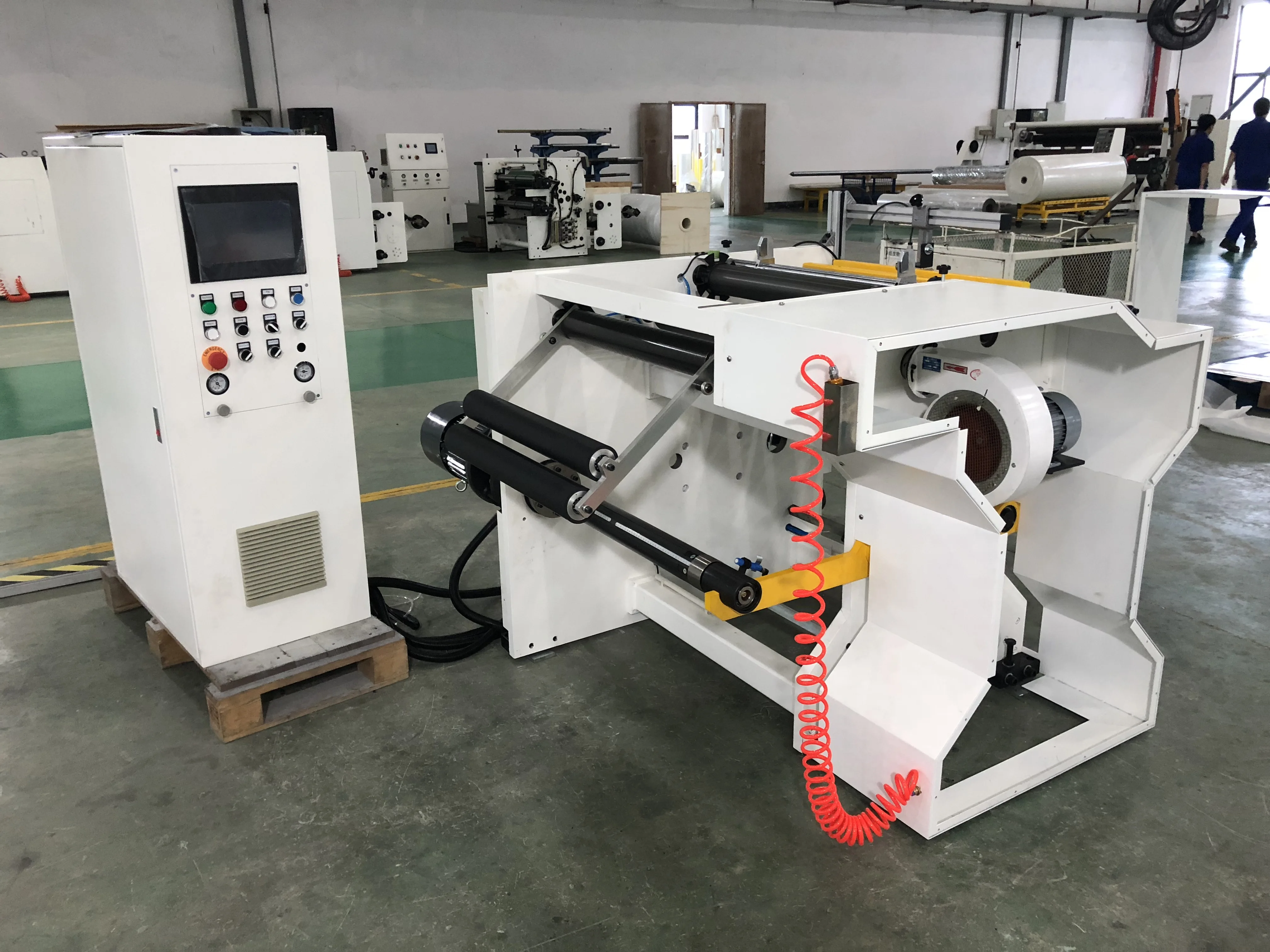

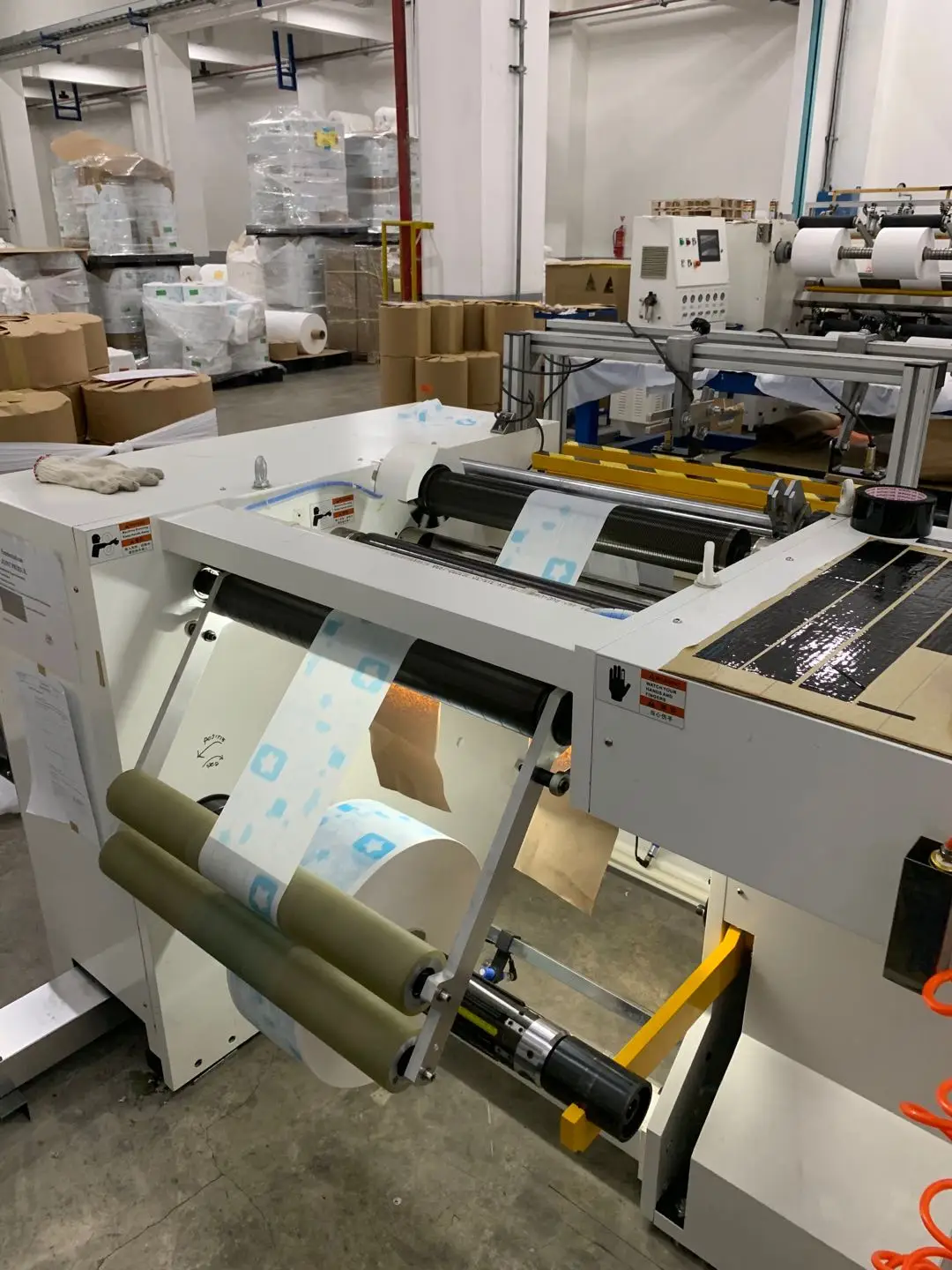

This machine is special design for Baby diaper/PE breathable lamination printing film which requires low tension. The
machine is work with production line which will produce wide web jumbo roll.
Machine Specification
Slitting material
Baby diaper/PE breathable lamination printing film
Material thickness
12um-40um
Machine speed
Max 300m/min
slitting way
Razor cut for the edge trim
Control system
Mitsubishi servo control system
Unwinding
width
100-500mm
Specification according to buyer's request
diameter
Max 650mm
core
3”（ID 76.2mm+0.4 -0.2)paper core Length of core: 100-500mm
Rewinding
width
100-500mm
Specification according to buyer's request
diameter
Max 650mm
core
3"paper core (6" as optional)
Length of roll face
600mm
Main Features
1)It can achieve low tension with high precision control, low tension fluctuation, high efficiency and good qualified product rate. It is the harmony of high configuration and soft technology. 2) Machine designed according to the material characteristics, the problems of warping edge, swinging edge, wavy edge and influence of thickness tolerance are effectively solved. The edge precision±0.5mm. 3) rewinding for baby diaper/PE breathable lamination printing film
Testing Criteria
YES
Slitting Accurancy
±0.2mm
Radian
Accurancy
1mm/m
Rewinding Edge Precision
±0.5mm
No
X
Wrinkle
X
Scratch
X
Stretch
X
Crack
X
Edge up
X
Waive edge
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support. * Sample material testing support. * View our factory. * Visit customer factory if required
After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. * Spare parts supports * 24 Hours * 7 days service hot line
