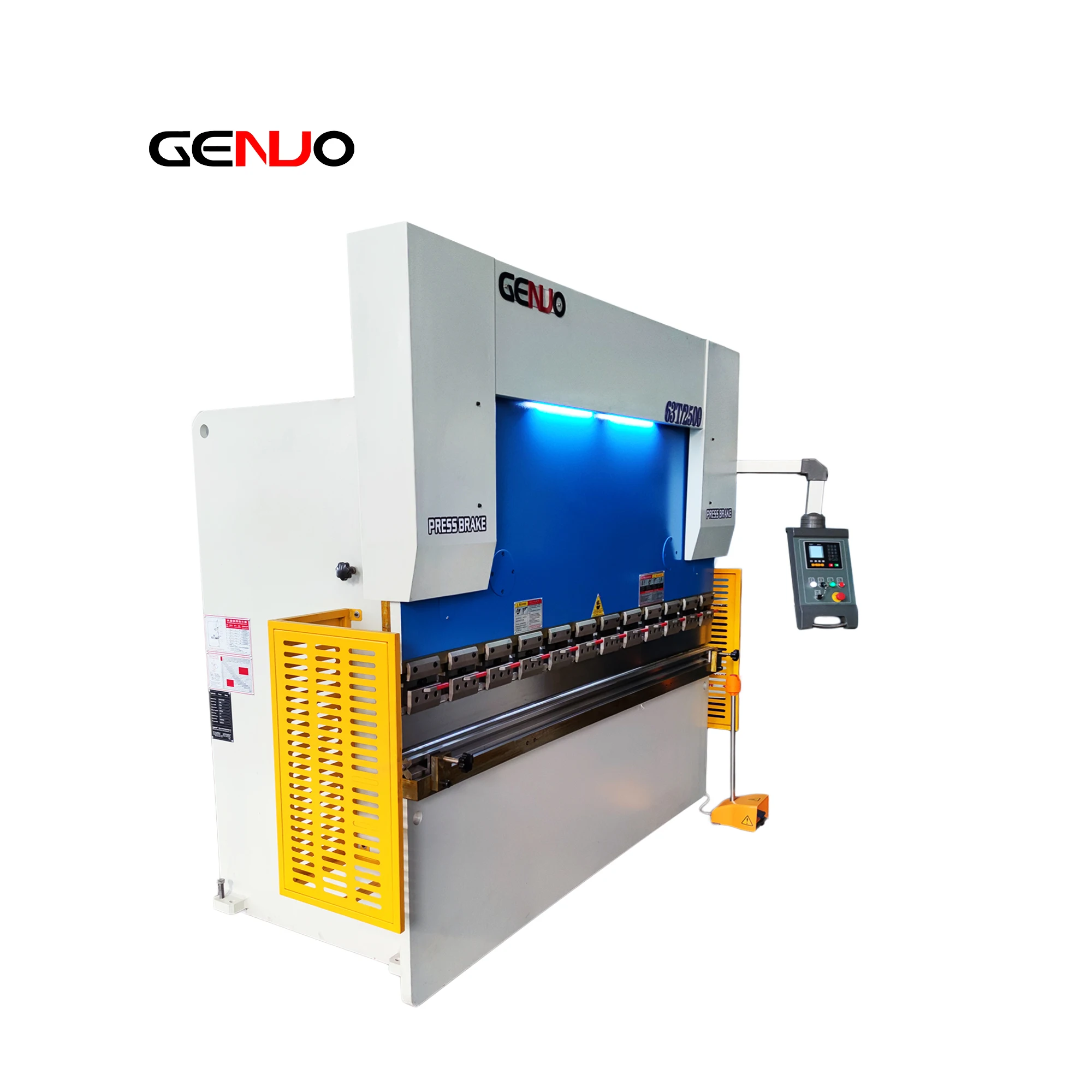

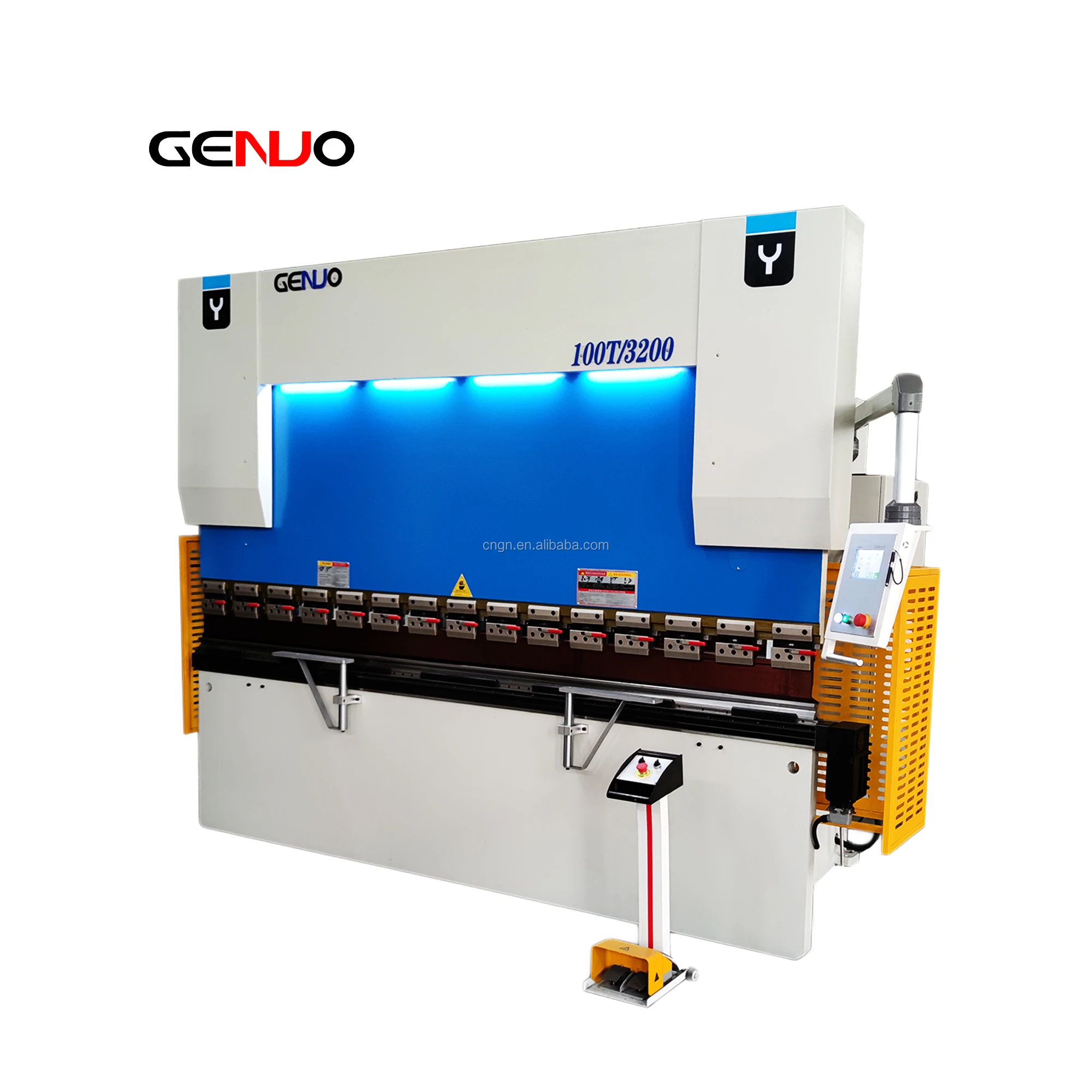

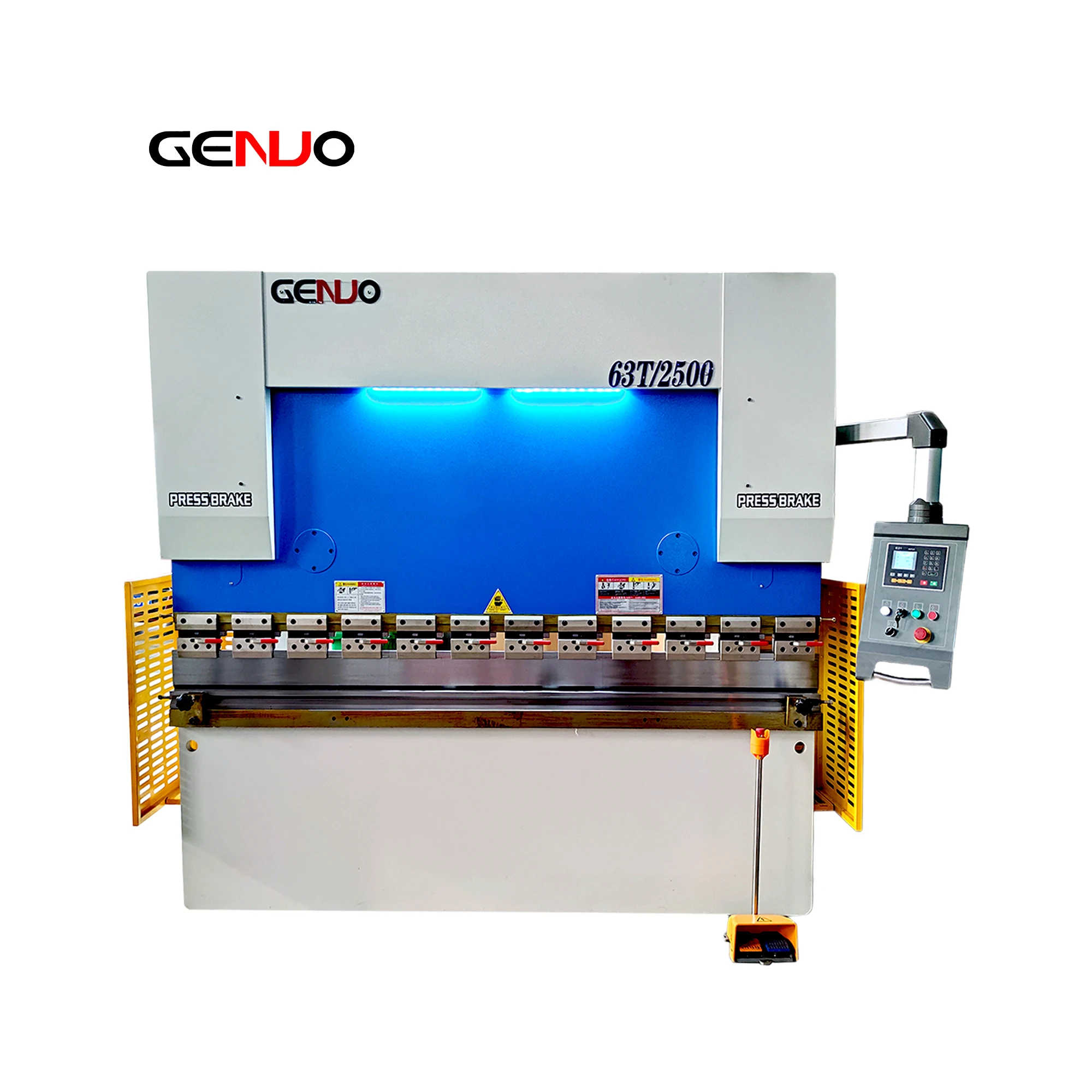

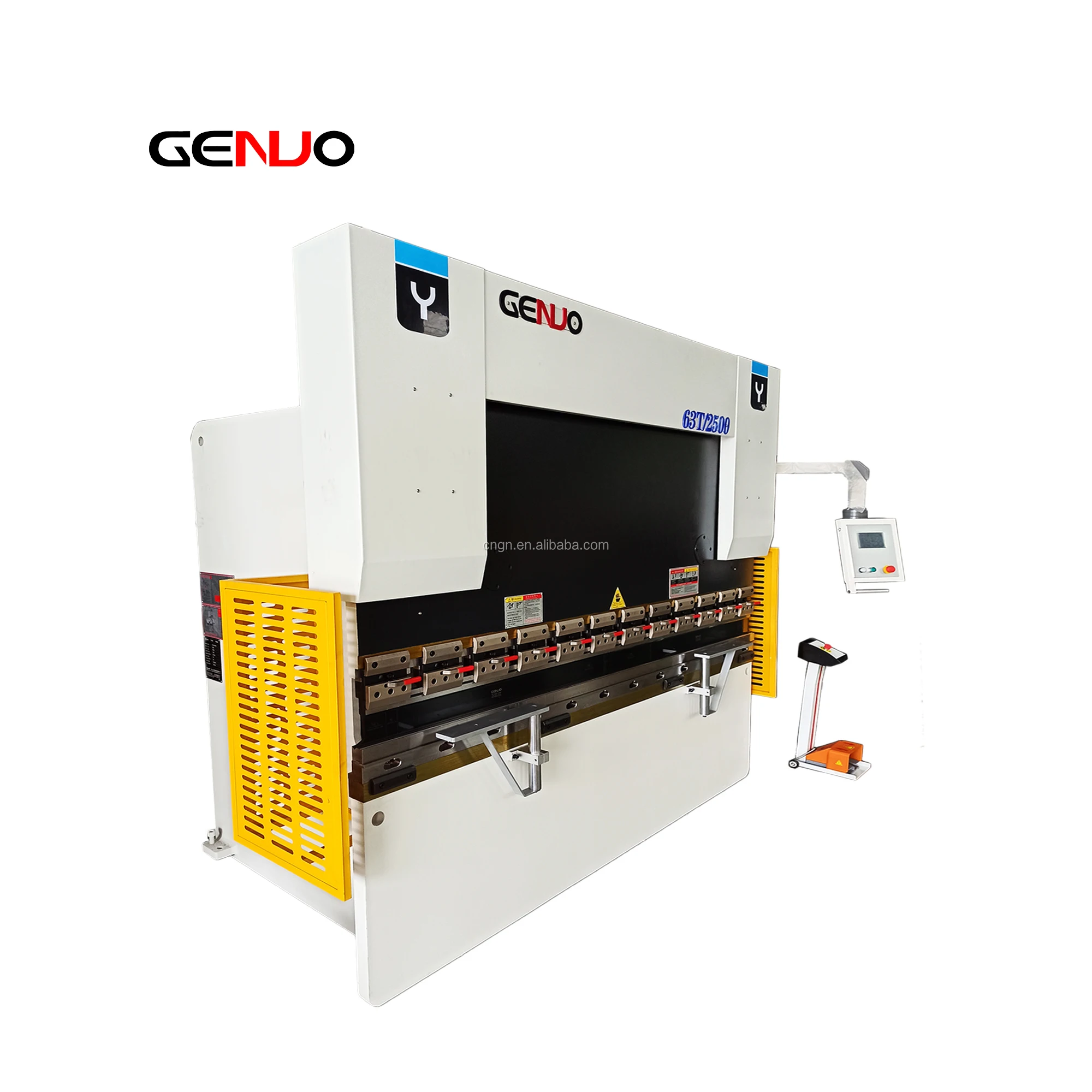

GENUO direct sale ball screw CNC press brake, plate bender with estun e21 system control, metal bending machine
- Category: Press Brake >>>
- Supplier: Maanshan Genuo Machinery Manufacturing Co. Ltd.
Share on (62216155672):
Product Overview
Description
Features
Adhering to advanced design concept, simple appearance, comfortable operation human-machine experience
Special NC or CNC bending control system is fitted with mainframe of the bending machine.
Multi-work-step programming function is able to achieve an automatic operation and contnuous positioning of multi-step procedures,as well as an automatic precision adjustment for positions of back gauge stopper and gliding block.
The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.
IMported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear Stopper, for proceSssing precision of machine to be higher.
The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.
IMported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear Stopper, for proceSssing precision of machine to be higher.
Details Images
Optional Controller
ESTUN E21+ Shihlin Converter
E21+ Shihlin converter control via bus communication, wiring is simple, performance is good, block and back gauge can be positioned rapidly and accurately. Time relay is built in, partial logic function is realized. It is featured with low cost and high efficiency.
Cybelec CybTouch 8 ,Switzerland
CybTouch 8P is specifically designed for conventional (with torsion bar) 2-axes or 3-axes press brakes.
It has an intuitive and vivid color full touch screen and a high integration of functions. Its robust design is available in panel or housing version.Thanks to its large keys, online help, simplified software and many other automatic functions that constantly guide the operator,
CybTouch is as simple as a positioner control.
It has an intuitive and vivid color full touch screen and a high integration of functions. Its robust design is available in panel or housing version.Thanks to its large keys, online help, simplified software and many other automatic functions that constantly guide the operator,
CybTouch is as simple as a positioner control.
Delem DA-41s ,Netherlands
The DA-41s control provides a complete solution for conventional ( torsion bar)press brake applications for 2 axes. Offering a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on the state-of-the-art electronics.An extremely classic and stable bending control system
Stable Electrical Cabinet
Stable Electrical Cabinet
Durable France Schneider electrics ensure the stable operation of the machine.Reasonable line connection and arrangement greatly reduces the failure rate. And the operator and all parts of the machine played a good protection.
Optional Servo and drive to improve the positioning accuracy of X,Y Axis
Superior Hydraulic System
Superior Hydraulic System
Integrated hydraulic system, quick response. The low failure rate makes the machine run safely, efficiently and stably.The whole series of standard is equipped with galvanized cold drawn pipe and German ferrule type pipe joint. Reduce the risk of oil leakage by 50% compared with rubber and welded seamless tubing. And in can be longer service life.

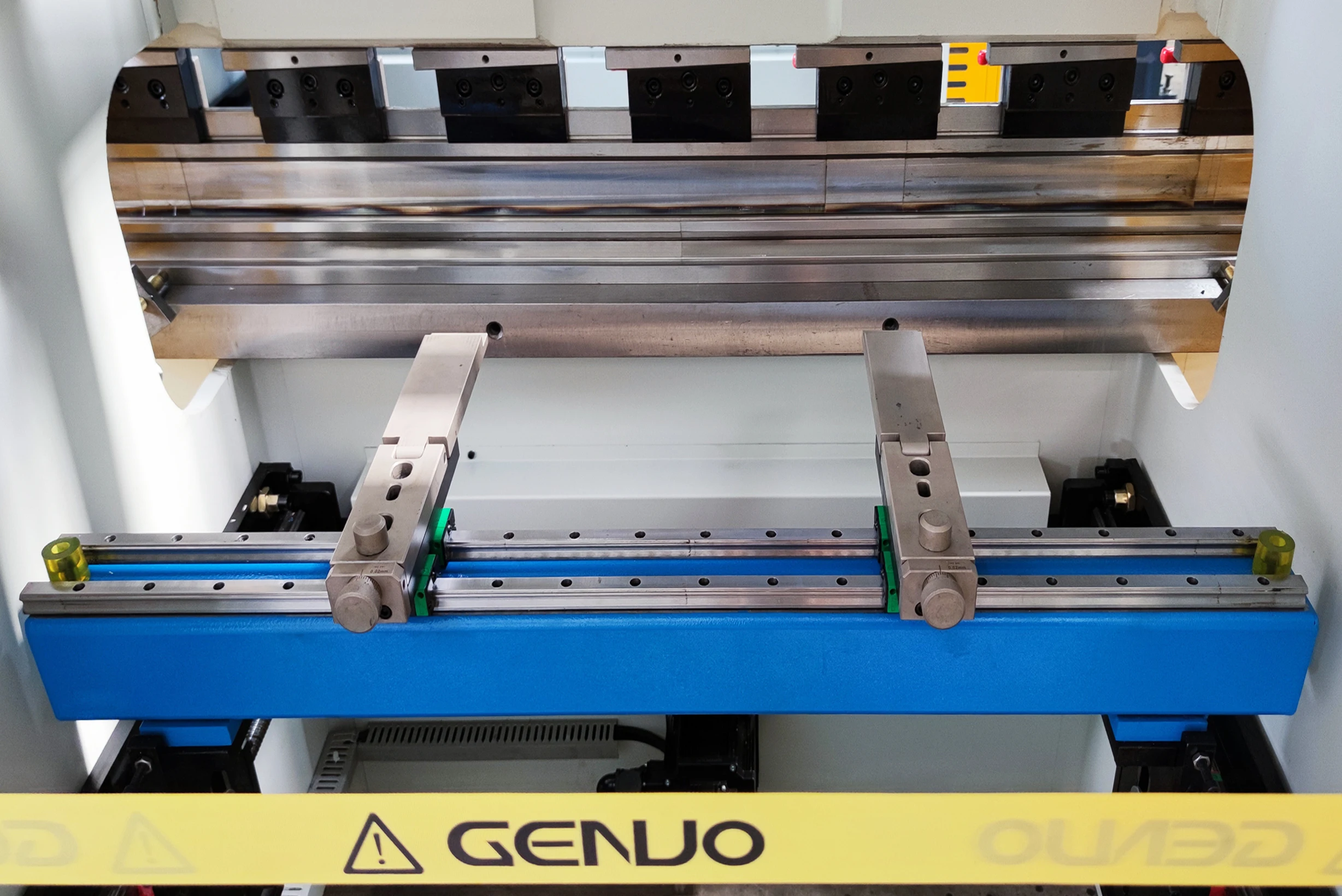

High Precision Back-Gauge
High Precision Back-Gauge
The unique and novel ball screw linear guide structure back-gauge ensures high positioning accuracy. Multi-level with movable, adjustable stop fingers. Increased positioning range makes bending more efficient and accurate .
Optional function more Complete multiple Axes.
Low Noise Power System
Low Noise Power System
Using Germany Siemens main motor and USA SUNNY gear oil pump guarantee the machine service life and improve the machine working
stability.At the same time, the special coupling device also greatly reduces the noise of the machine in the process of running.
Patent Fast Clamps
stability.At the same time, the special coupling device also greatly reduces the noise of the machine in the process of running.
Patent Fast Clamps
The whole series adopts GENUO GNSP standard fast holders. Patented rear butterfly hold down device,which can adapt to different types of European-standard, Amada type punches. Compared with the traditional tool holder, it can save more time and improve production efficiency.Safety, anti falling.There are also one button release upgrade style. Automatic hydraulic and pneumatic clamping are optional.
Diverse Press Brake Tools
Optimized design can make bending more simple and efficient. 42CrMo or C45 high frequency quenching process press brake tools, it is durable. Special surface nitriding treatment can be selected to prevent rust and beautiful appearance. Special punch and vdies can be customized according to the workpiece
and GENUO provide a complete set of solutions.
Dedicated Foot Switch
Dedicated Foot Switch
South Korea KACON pedal switch, improving the service life and operational sensitivity.With emergency stop, up and down control division. Make machine operating safer and easier.
It can also be equipped with multi-functional rocker Z1, Z2-axis, R-axis manual control.
Optional Installation
Mechanical Crowning or Hydraulic Deflection
Compensation
Oil Cooling Unit
Light Curtain
Laser Protection
Front Auto Follow support
Bending Robots
Size Chart of Design
Type | Nominal force (mm) | Woektable length(mm) | Poles distance (mm) | Throat depth (mm) |
WC67K-40T/1250 | 400 | 1250 | 1000 | 220 |
WC67K-40T/1600 | 400 | 1600 | 1200 | 220 |
WC67K-40T/2500 | 400 | 2500 | 1800 | 220 |
Back-gaugeRange (mm) | Ram Strokes (mm) | Max open (mm) | Power （kw) | Dimension L*W*H(mm) |
10-500 | 100 | 320 | 4 | 1700*1550*2050 |
10-500 | 100 | 320 | 4 | 2100*1650*2050 |
10-500 | 100 | 320 | 5.5 | 2700*1750*2150 |
