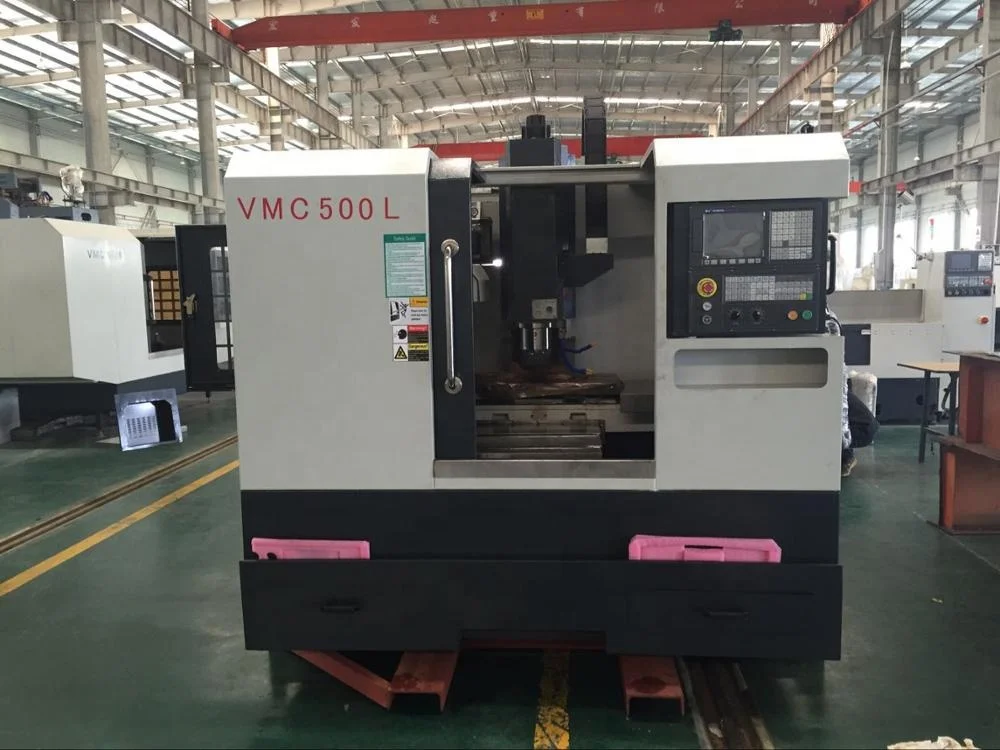

Vmc High Speed And Precision Vertical Machine Center VMC500


\t
\t
Model
\t
VMC500
\t
WORKTABLE
\t
Size of worktable(L×W)(mm)
\t
810×320
\t
\t
\t
T slot(width ×qty×spaces)(mm)
\t
14×3×100
\t
Max loading weight on worktable(kg)
\t
350
\t
TRAVEL
\t
X/Y/Z-Axis travel(mm)
\t
550×330×450
\t
\t
\t
Distance between spindle nose and table(mm)
\t
100-550
\t
FEEDING
\t
\t
\t
Distance between spindle center and column(mm)
\t
370
\t
Spindle speed(r/min)
\t
60-6000
\t
Spindle taper
\t
BT40
\t
ACCURACY
\t
Tool clamping way
\t
Pneumatically
\t
ATC capacity(optional)
\t
10
\t
Feeding speed(mm/min)
\t
1-10000
\t
Rapid feeding speed:X,Y,Z axis(m/min)
\t
15
\t
Positioning accuracy(mm)
\t
±0.008
\t
Repeatability accuracy(mm)
\t
±0.008
\t
MOTOR
\t
Min.set unit(mm)
\t
0.001
\t
Main motor power (kw)
\t
5.5/7.5
\t
Feeding motor power:X/Y/Z Axis(kw)
\t
1/1/1
\t
TOOLS
\t
Max.size of tool(mm)
\t
Φ80×250
\t
Max.loading weight of Tool(kg)
\t
7
\t
N.W(include machine stand)(kg)
\t
3500
\t
Overall size(L×W×H)(mm)
\t
2000×1750×2100
\t
OTHERS
\t
Packing size(L×W×H)(mm)
\t
2100×1850×2100
\t
Loading amount(20)
\t
6sets/40GP


Main Features


1)Use strong rigid casting steel. X/Y/Z axes are supplied with rectangular guide ways by plastic sticker, medium frequency quenching and precisely scraping.
2)Spindle from Taiwan with high speed and precision.
3)Imported bearing with high precision
4)Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.

Detailed Images

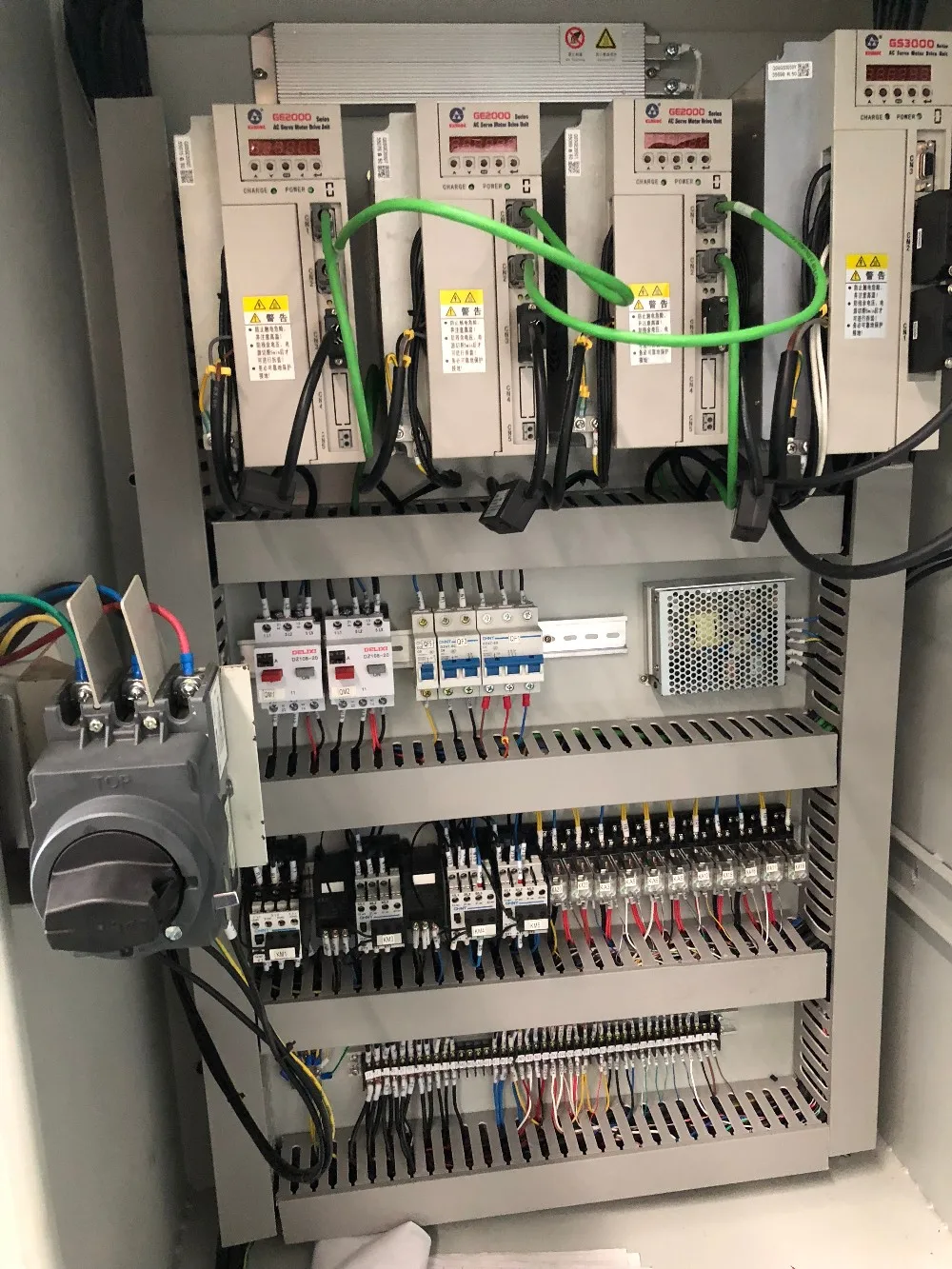

Control system :FANUC ,SIEMENS ,GSK or others

Standard accessories

Arm-type ATC

Automatic lubricating system

Spindle blowing device

Guide-way telescopic cover

Movable hand-wheel

Hand-held air -gun

Alarm light

Coolant system

Working light

RS232 interface

Level adjusting screws and block

Tool-box and manual

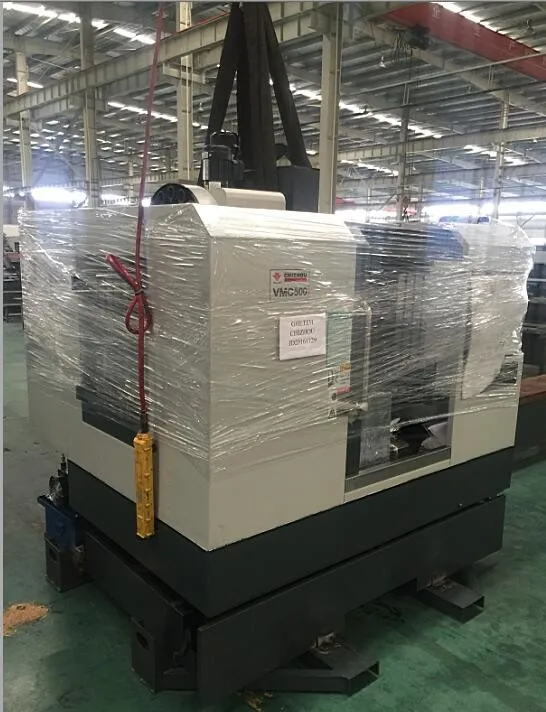

Packing & Delivery
\t
Packaging
\t
Size
\t
2100*1850*2100mm
\t
Weight
\t
N.W./G.W. 3500/3700KGS
\t



Packaging Details
\t
Iron casting pallet with
Certifications
Our Work Shop
We In Fairs
Our Service

OEM APPROVED

* LOGO OEM accept.

* Packing design OEM accept

* Even machine design OEM accept.

Our team Service

* Professional team,perfect pre-sale and after-sale service.

* Engineers available to service machinery overseas.

* Good English speakers from sale department,can handle your suggestion
