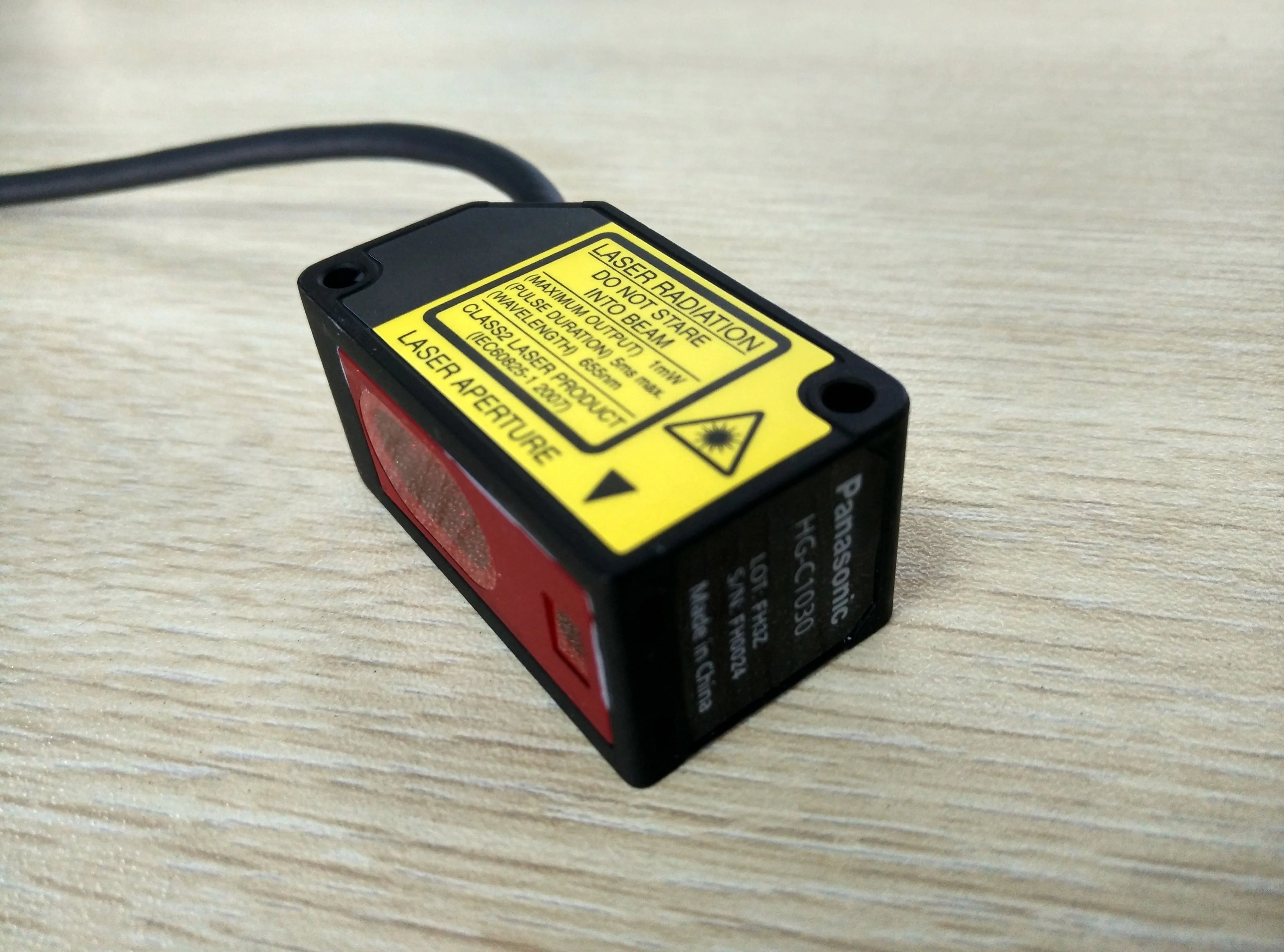

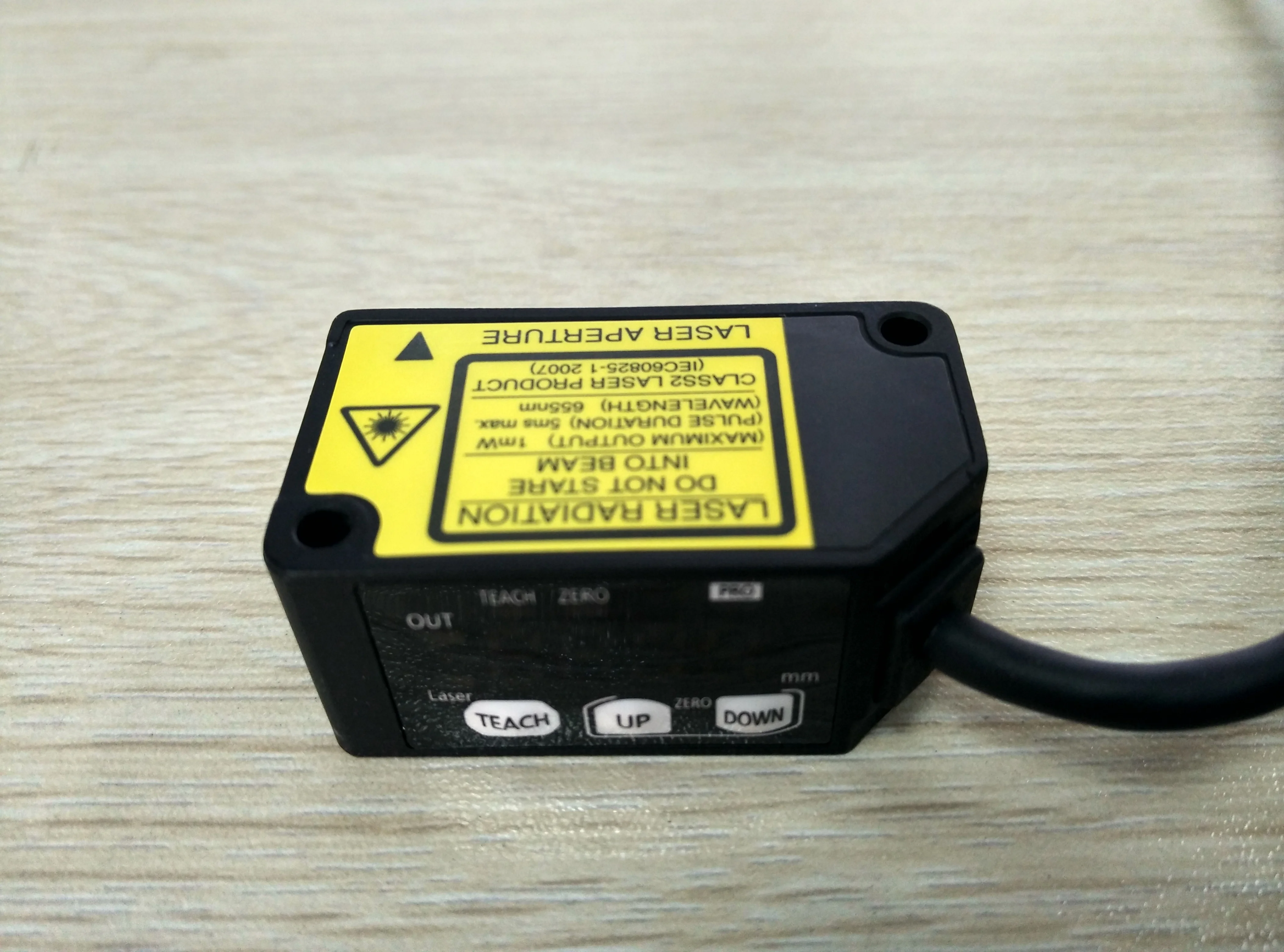

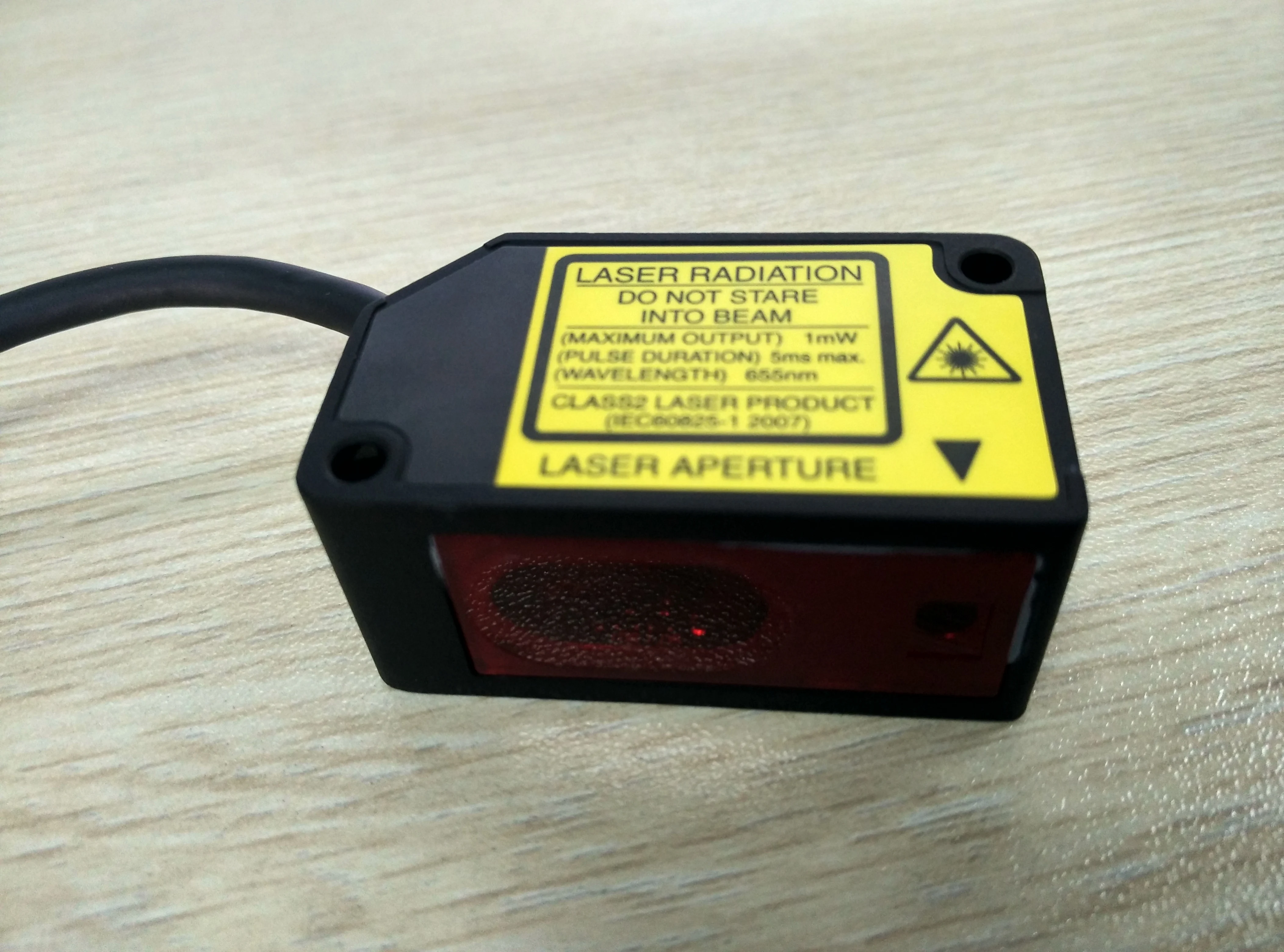

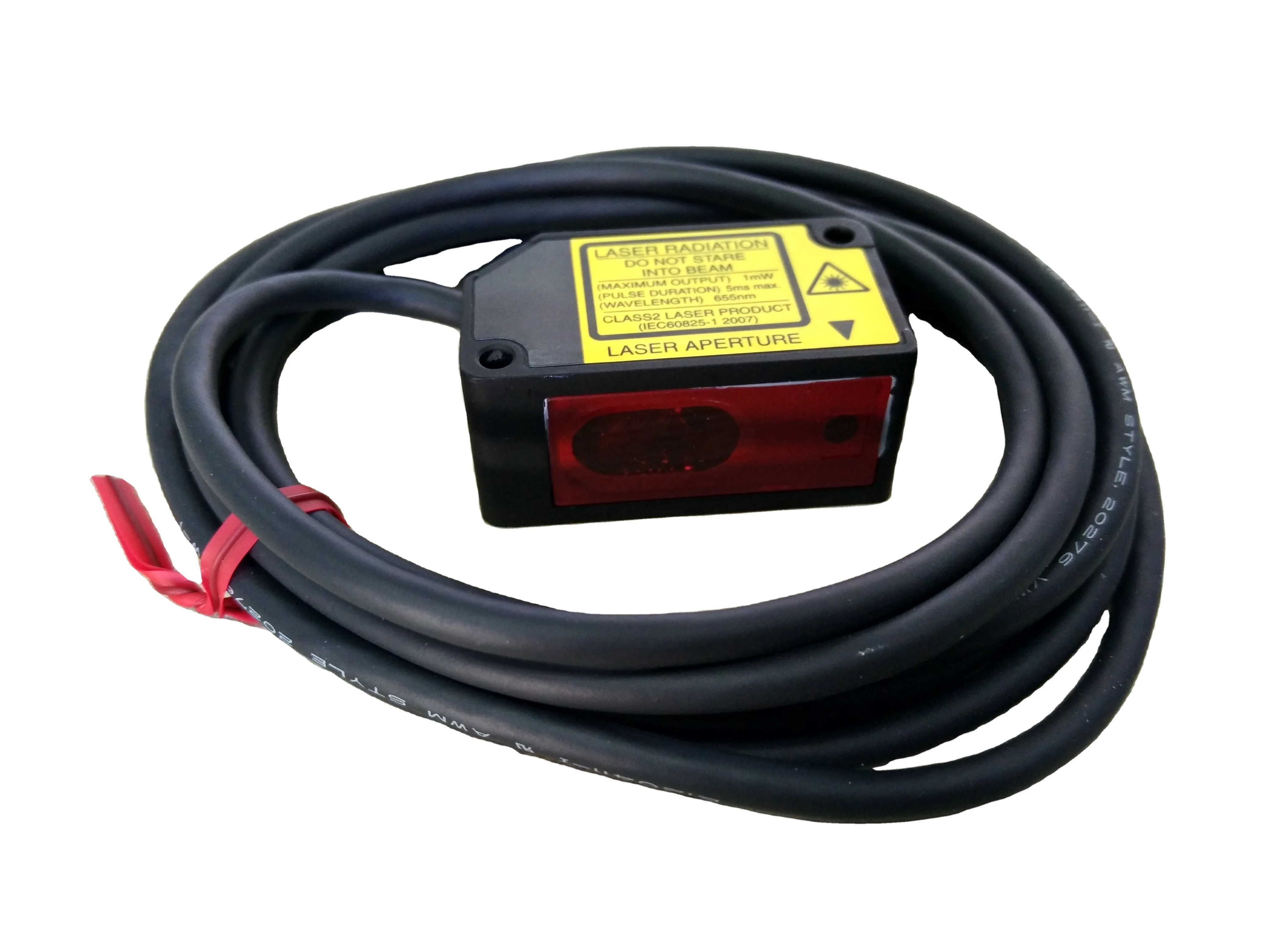

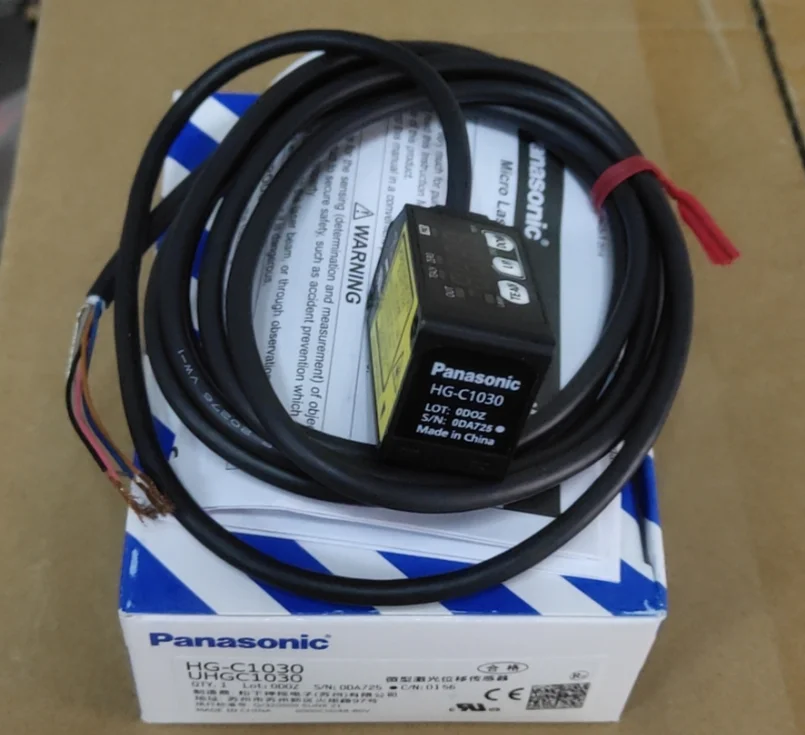

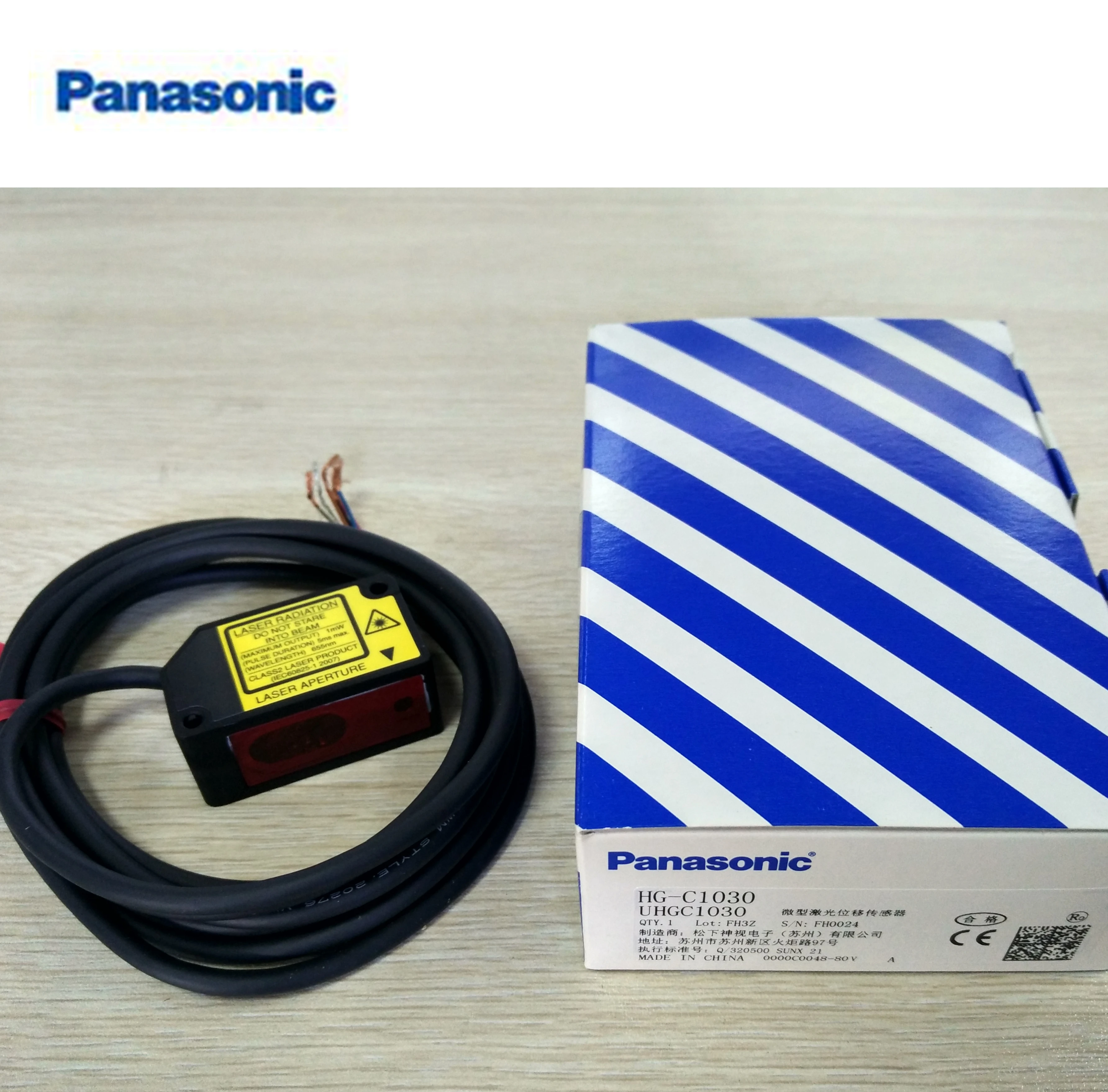

CMOS type Micro Laser Distance Sensor HG C1030 for PANASONIC

Product Overview

Description

















As of July 20, 2019
Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Item	Specifications
Product Number	HG-C1030
Part Number	HG-C1030
Applicable standard	EMC Directive Compliance, FDA Standard
Measurement center distance	30mm 1.181 in
Measuring range	±5mm 0.197 in
Repeatability	10 μm 0.394 mil
Linearity	±0.1%F.S.
Temprerature characteristics	0.03% F.S. /℃
Light source	Red semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA)(Note) Max. output: 1mW emission peak wavelength: 655nm 0.026 mil (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).
Beam diameter	ø50 μm 1.969 mil approx. (Note) This is the size in the measurement center distance. These values were defined by using 1 / e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply voltage	12 to 24V DCplus or minus 10% Ripple P-P 10%
Current consumption	40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage) Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 : 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control output	NPN open-collector transistor - Maximum sink current: 50mA - Applied voltage: 30V DC or less (Between control output to 0V) - Residual voltage: 1.5V or less (At 50mA sink current) - Leakage current: 0.1 mA or less
Control output:Output operation	Either Light-ON or Dark-ON
Control output:Short-circuit protection	Incorporated (Auto reset type)
Analogue output : Analog voltage output	• Output range: 0 to 5 V (at alarm: +5.2 V) • Output impedance: 100Ω
Analogue output : Analog current output	• Output range: 4 to 20mA (at alarm: 0mA) • Output impedance: 300Ω or less Note : Analog current output has been added from shipment in August 2016.
Response time	Switchable between 1.5 ms / 5 ms / 10 ms
External input	NPN non-contact input - Input conditions Invalid: +8 to +V DC or Open Valid: 0 to +1.2V DC - Input impedance: 10kΩ approx.
Pollution degree	2
Operating altitude	2,000 m 6561.680 ft or less
Protection	IP67 (IEC)
Ambient temperature	-10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient humidity	35 to 85% RH, Storage: 35 to 85% RH
Ambient illuminance	Incandescent light: 3,000 x or less at the light-receiving face
Vibration resistance	10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance	500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable	5-core composite cable, 2 m 6.5617 ft long
Cable extension	Extension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
Material	Enclosure: Aluminum die-cast Front cover: Acrylic
Weight	Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
