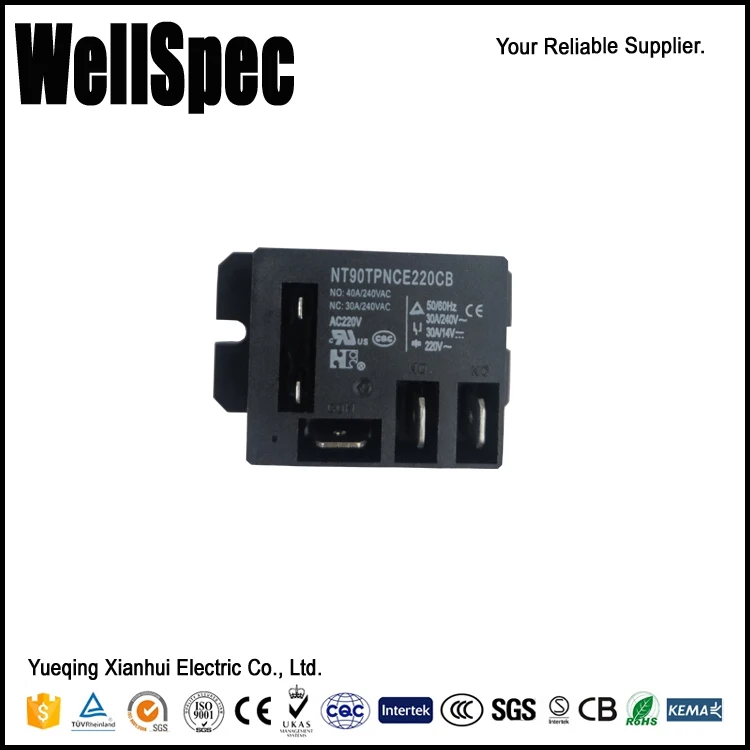

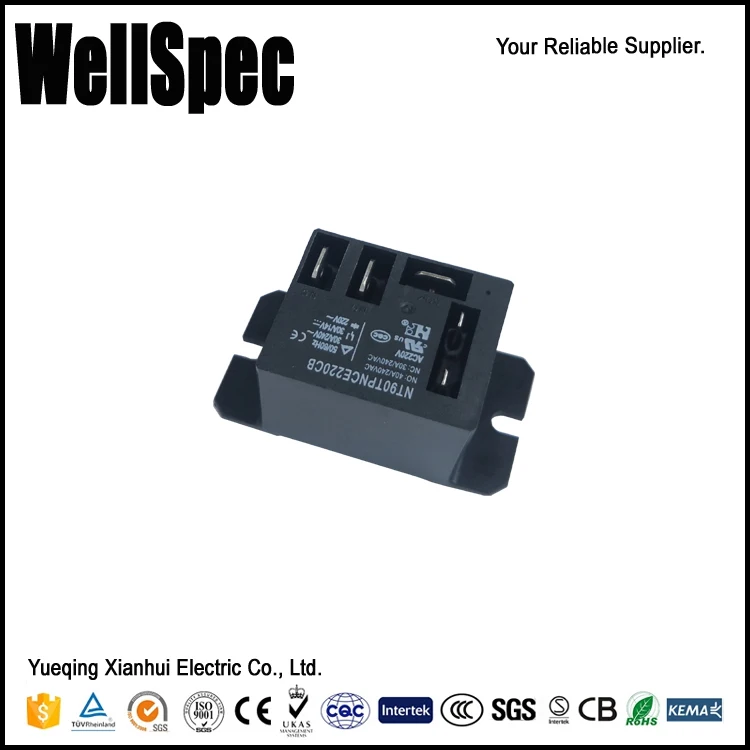

220 volt relay water pump relay switch NT90TPNCE220CB 220VAC 1Z 5PIN NO 40A240VAC/30VDC NC 30A 240VAC/30VDC is used at AC 50Hz and the voltage can be up to AC380V or DC 220V in automatic control circuit for connecting or breaking the circuit. It’s general purpose and designed with a terminal socket, acts as a protector for circuit or same function as an circuit switch. It can protect the electric equipment from damage. We have various pins specifications and coils voltages specifications which are available for any kind of application on equipment. relay 12v, solid state relay, omron relay, overload relay,wireless relay,gsm relay, relay module
1. Application
220 volt relay water pump relay switch NT90TPNCE220CB 220VAC 1Z 5PIN NO 40A240VAC/30VDC NC 30A 240VAC/30VDC has main functions such as automative simultaneous switching, interrupting, switching on parallel circuits and controlling large currents with small control variables, it controls circuits to realize automatic operation. It is widely applied to all kinds of equipment, such asautomatic industry control, remote control, testing, communication, electromechanical integration, door control and household appliances etc.
2. Features:
A. 40A switching capability;
B. Working temperature can be highest reach 125℃;
C. Various dustproof and sealed type are available for options;
D. Silver alloy contact: Silver Alloy (AgCdO, AgSnO2In2O3);
E. Can be assembled with TVS(transient voltage suppressor);
F. Can be assembled with transient resistance suppressor;
G. Small volume, compact size, high sensitivity and long service life.
3. Technical Data:
Contact Form
1Z(1C)
Operate Time
Max. 15ms
Voltage Drop
Typ. 15mV at 10A
Release Time
Max. 10ms
Max. 250mv at 10A
Max. Continuous Current
40A (23℃)
Ambient temp.
-55℃~125℃
Max. Switching Current
40A
Vibration Resistance
10Hz~60Hz 1.5mm
60Hz~500Hz 49m/S2
Contact Load
NO 40A 240VAC/30VDC
NC 30A 240VAC/30VDC
Shock Resistance
1000m/S2
Electrical Life
1×105OPS
Terminal
QC, 5pins
Mechanical Life
2×107OPS (300ops/min)
Construction
Plastic sealed, dust sealed
Initial Insulation Resistance
100MΩ (1A 6VDC)
Unit weight
Approx. 37g
Dielectric Strength
500VAC
Company Information
Our Services
Packaging & Shipping
FAQ
1. Working Conditions:
A. Ambient air temperature: -40oC~+125C, the highest monthly mean temperature should not exceed +35oC;
B. Altitude for installing place should not exceed 2000m;
C. Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;
D. Pollution level: level 2;
2. Quality Assurance of Our Relays:
A. The main materials used in our relays are high quality PA66 for injection molding, pure cooper H62 for terminals for spring and compound silver for contact.
B. Thediestructures are special design, all action positions are high accuracy.
C. A Variety of pins specifications and sockets are available for choosing for various wiring opitions types.
