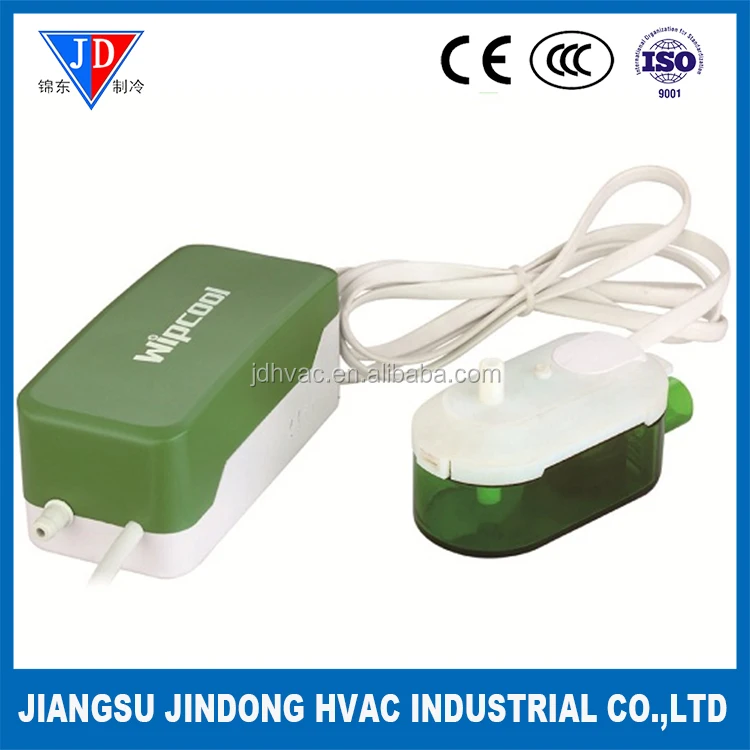

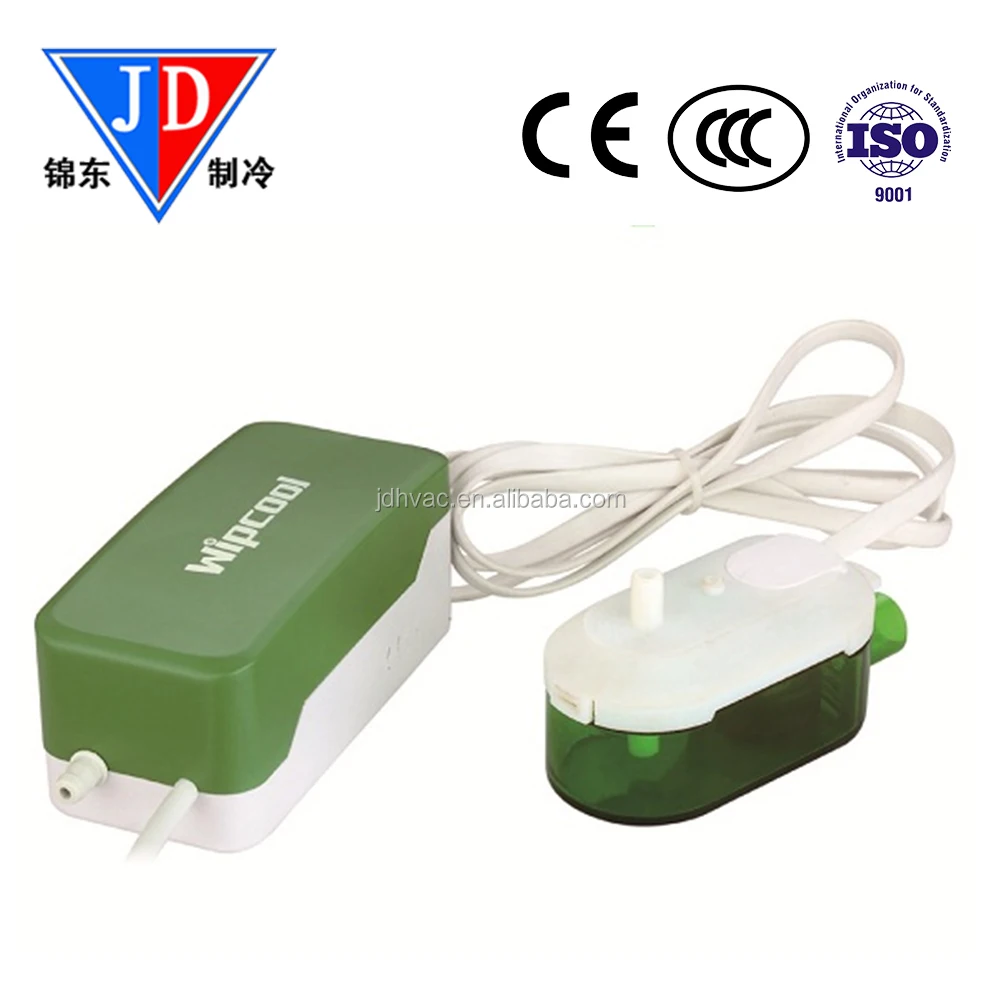

PC 40B Drain pump wall mounted condensate pump
- Category: >>>
- Supplier: Jiangsu Jindong HVAC Industrial Co. Ltd.
Share on (62216601894):
Product Overview
Description
Refrigeration type wall mounted water pump PC-40B
Product Description
Features of water pump:
1. Suitable for all voltages in the world
2. Quiet and non-vibration
3. Condensate inlet on the top or the side
4. Energy saving design
5. Pump can be installed in the wall mounted or to the condensate tray
Application of water pump:
1. Wall mounted split systems
2. Fan coils
3. Dehumidifier equipment
4. Floor mounted
Specifications
| Model | PC-24B | PC-40B |
| Voltage | 100-230V, 50/60Hz | 100-230V, 50/60Hz |
| Discharge head | Max.10m(30ft) | Max.10m(33ft) |
| Flow rate | Max.24L/h(6.2GPH) | Max.40L/h(10.5GPH) |
| Tank capacity | 55ml | 55ml |
| Mini splits up to | 8KW(30.0kBtu/h) | 15KW(45.0kBtu/h) |
Sound level at 1m | 19dB(A) | 21dB(A) |
| Ambient temp. | 0ºC~50ºC | 0ºC~50ºC |
Power consumption | 3W | 3W |
Detailed image
