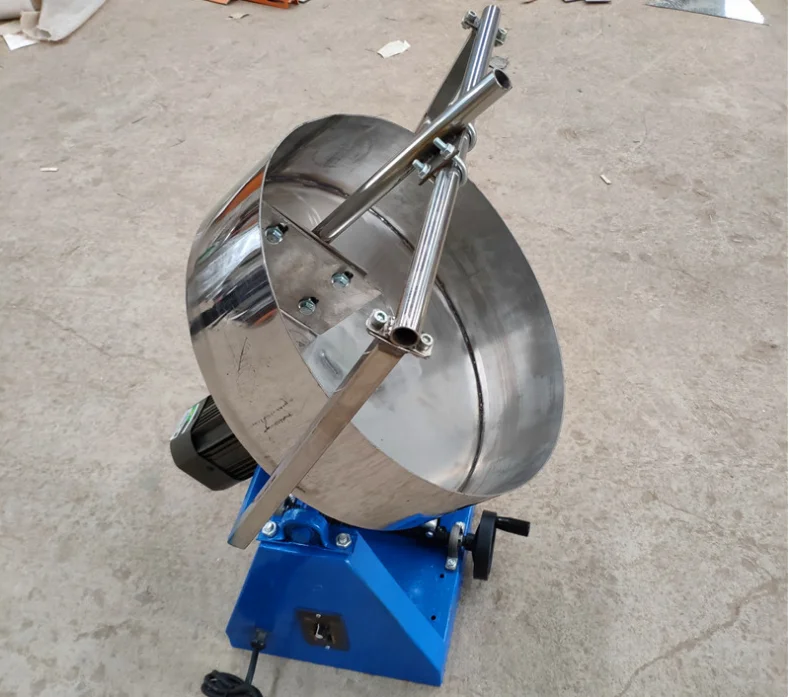

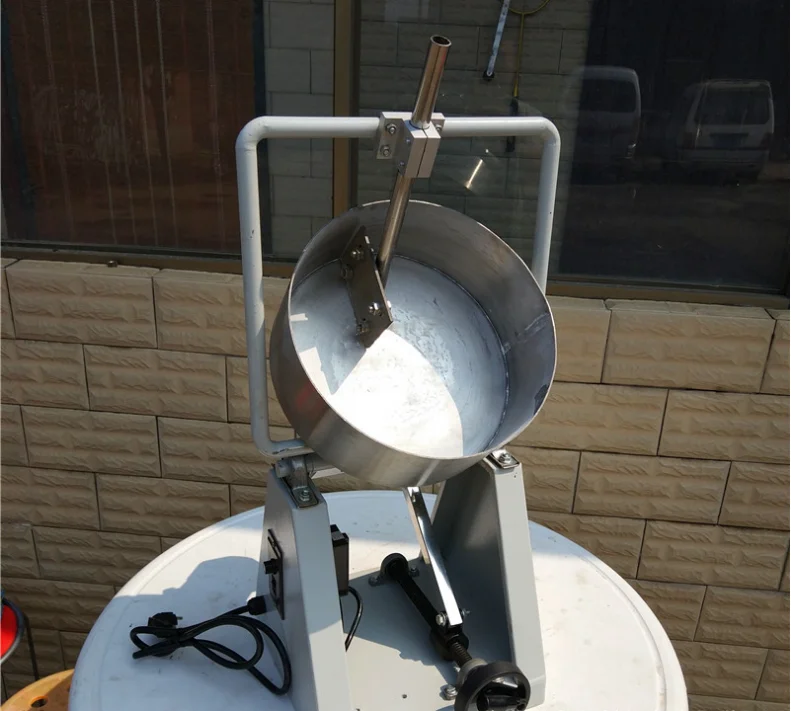

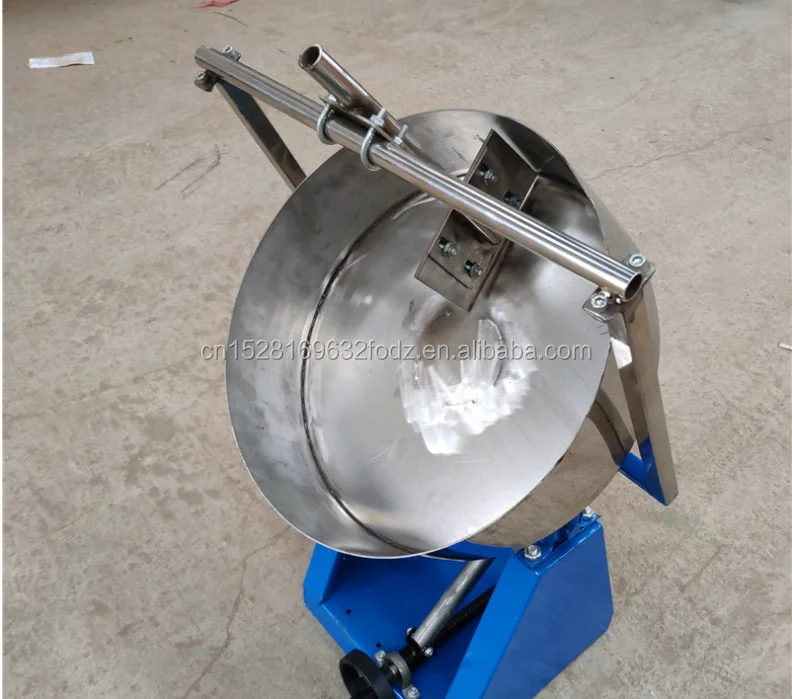

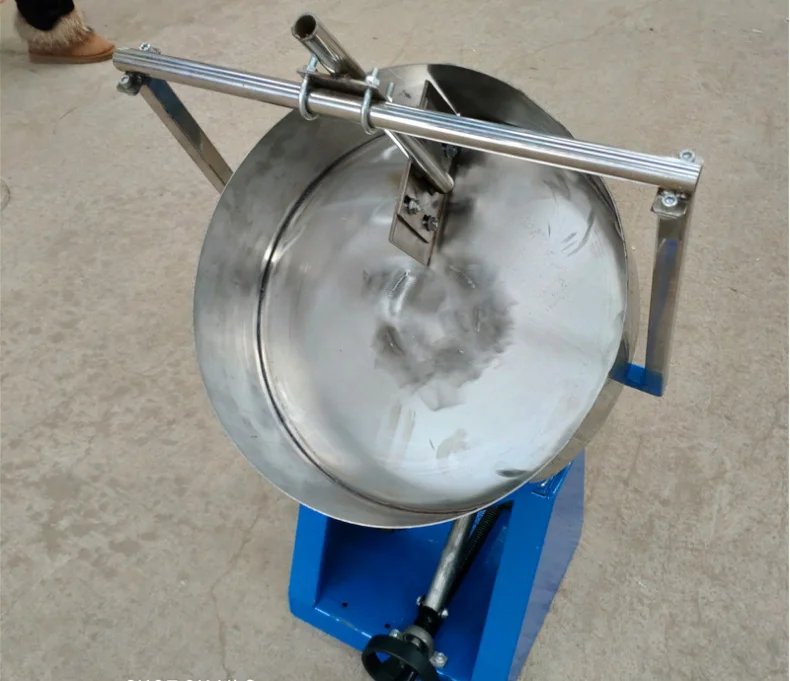

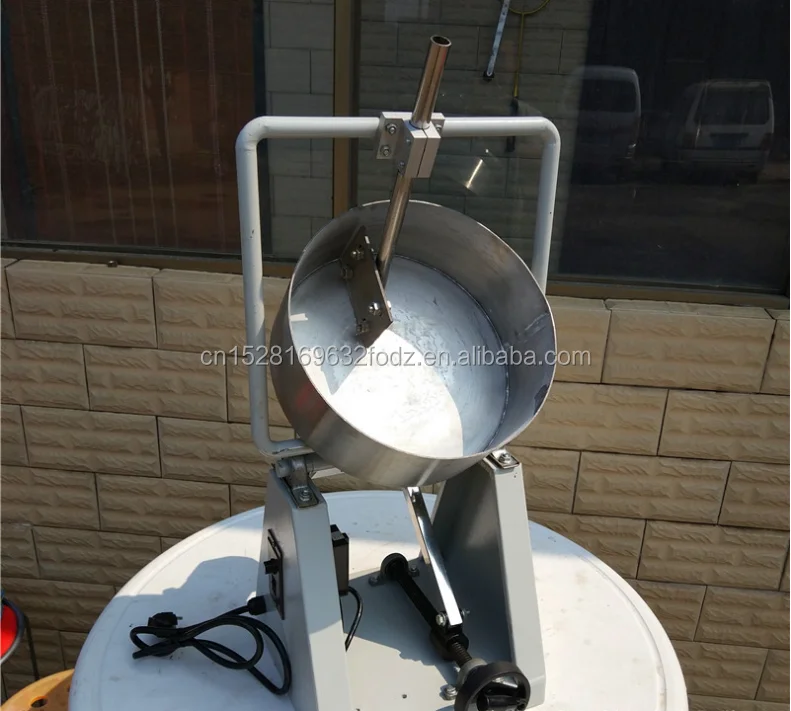

Small pelletizer machine,laboratory granulating disc machine



Introdution

Granulating disc is a main equipment which makes powder into ball shape, widely applied in cement industry, iron and steel industry and chemical fertilizer industry. It features uniform ball, easily water controlling, high strength, simple structure, low energy consumption, stable operation, etc.



Application
Granulating Disc is the main equipment to make the powder form material into ball, mainly used in the cement industry, steel industry and compounded fertilize industry it has the many advantages such as: ball as even, easy control water in ball, high ball strength, and the structre is simple, conveniently control, little energy depletion, revolve steadyetc.



Working Principle

The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer. The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge. It has the advantages of high granulating rate, homogeneous grain, high strength, easy to operate, convenient maintenance.









The pre-watering disc type ball forming machine is the first machine in China that adopts the electric scraper type ball forming machine to form a ball. It is the main equipment in the pre-watering ball forming system. The machine has uniform spherical particle size, convenient operation and stable operation. Long service life and other characteristics.
The disc granulator consists of a large plate, a large gear, a transmission part, a frame, a base, a scraper frame, and a powerless scraper.
1.The main body of the disc granulator, the main body comprises a frame, a regulating portion and a granulation disc.
2.One main reducer, the input shaft is equipped with a pulley, and the output shaft is equipped with a pinion.
3.Main point motivation, one with a pulley.
4.Support granulation disc device, including one spindle, two roller bearings, and two bearing housings.



Model	Diameter of Disc(mm)	Edge Height (mm)	Rotary Speed (r/min)	Motor Power (kw)	Capacity (t/h)	Dimensions (mm)
YZYP-500	500	200	32	0.55	0.02-0.05	650*600*800
YZYP-600	600	200	33.5	0.75	0.05-0.1	800*700*950
YZYP-800	800	200	21	1.5	0.1-0.2	900*1000*1000
YZYP-1000	1000	250	21	1.5	0.2-0.3	1200*950*1300
YZYP-1200	1200	250	21	1.5	0.3-0.5	1200*1470*1700
YZYP-1500	1500	300	21	3	0.5-0.8	1760*1500*1950
YZYP-1800	1800	300	21	3	0.8-1.2	2060*1700*2130
YZYP-2000	2000	350	21	4	1.2-1.5	2260*1650*2250
