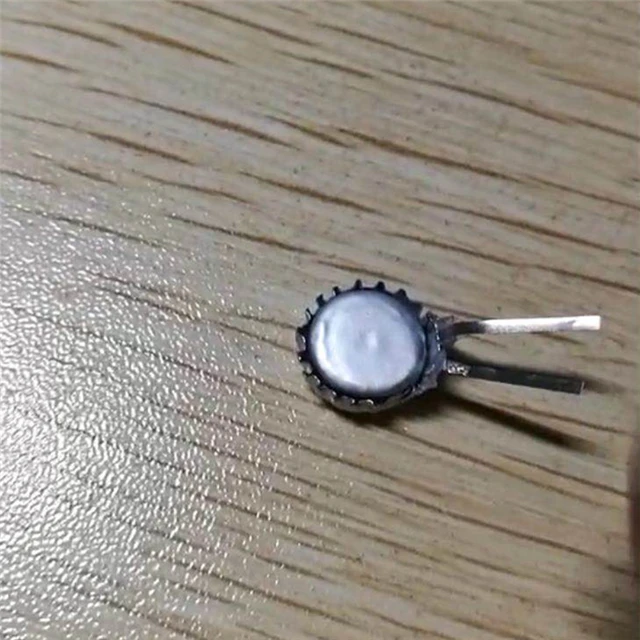

Hot sell CR5412 3.7V Lithium Polymer Battery, Coin LiPo541212R 3.7V 55mAh Cell Button Battery for wearable device

Product Overview

Description

1.LiPo541212R-3.7V-55mAh Round 3.7V LiPo battery cell or 3.7V button LiPo battery cell

Primary Technology Prameters:

Item			Content	Note
Capacity	Nominal		55mAh	Discharge:0.2CmA
	Minimum		53mAh
	Energy		0.204Wh
Nominal Voltage			3.70V
OverCharge Protection Voltage			4.25V
AC Impedance Resistance			not more than 500mΩ
Charging Current (Std.)			11.0mA	0.2CmA
Charging Current (Max.)			55mA	1CmA
Charging Voltage			4.20V
Charging Time (Std.)			Approx 6h	Charge: 1.6mA
Discharging Current (Std)			6.0mA	0.2CmA
Discharging Current (Max)			55mA	1CmA
Discharge Cut-off Voltage			3.00V
Operating Temperature		Charge	0~+45℃
		Discharge	-10~+60℃
Storage Temperature		less than 1 month	-10~+45℃	Percentage of recoverable capacity 80%
		less than 6 months	-10~+35℃
Storage Voltage			3.70~3.90V

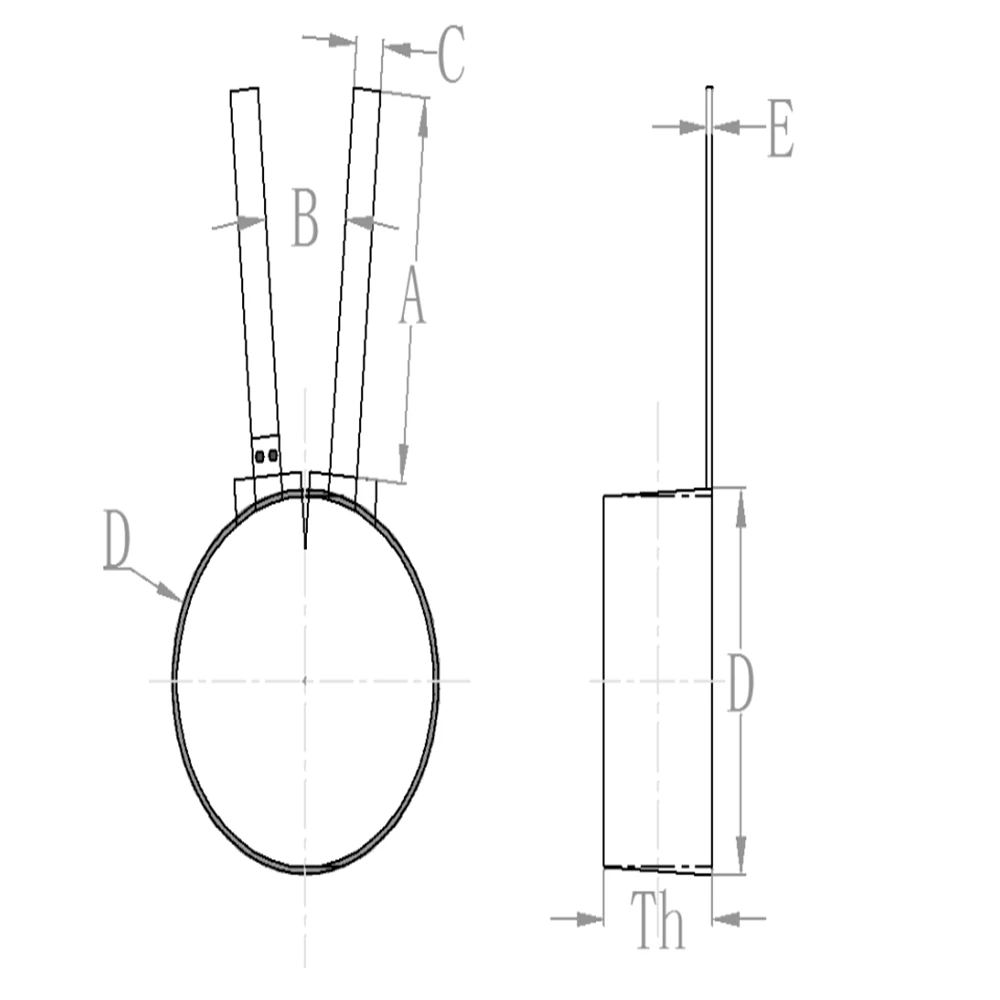

 2. Dimension of LiPo541212R-3.7V-55mAh Round 3.7V LiPo battery cell or 3.7V button LiPo battery cell





Mark	Description	Dimension Specification
Th	Thickness	Max 5.45mm
D	Diameter	Max 12.50mm
A	Tab Length	10±0.50mm
B	Radius between two tabs	10±5 degree
C	Tab width	1.5±0.2mm
E	Tab thickness	0.1±0.01mm

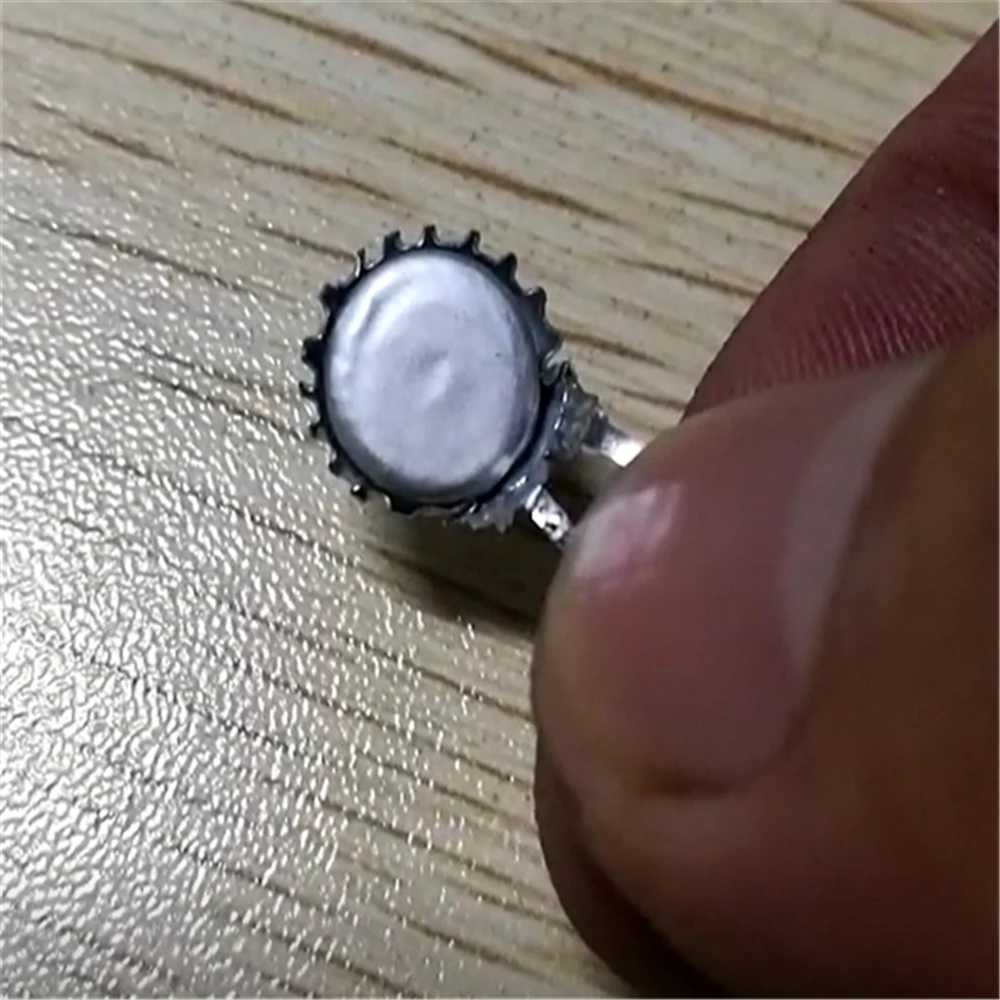

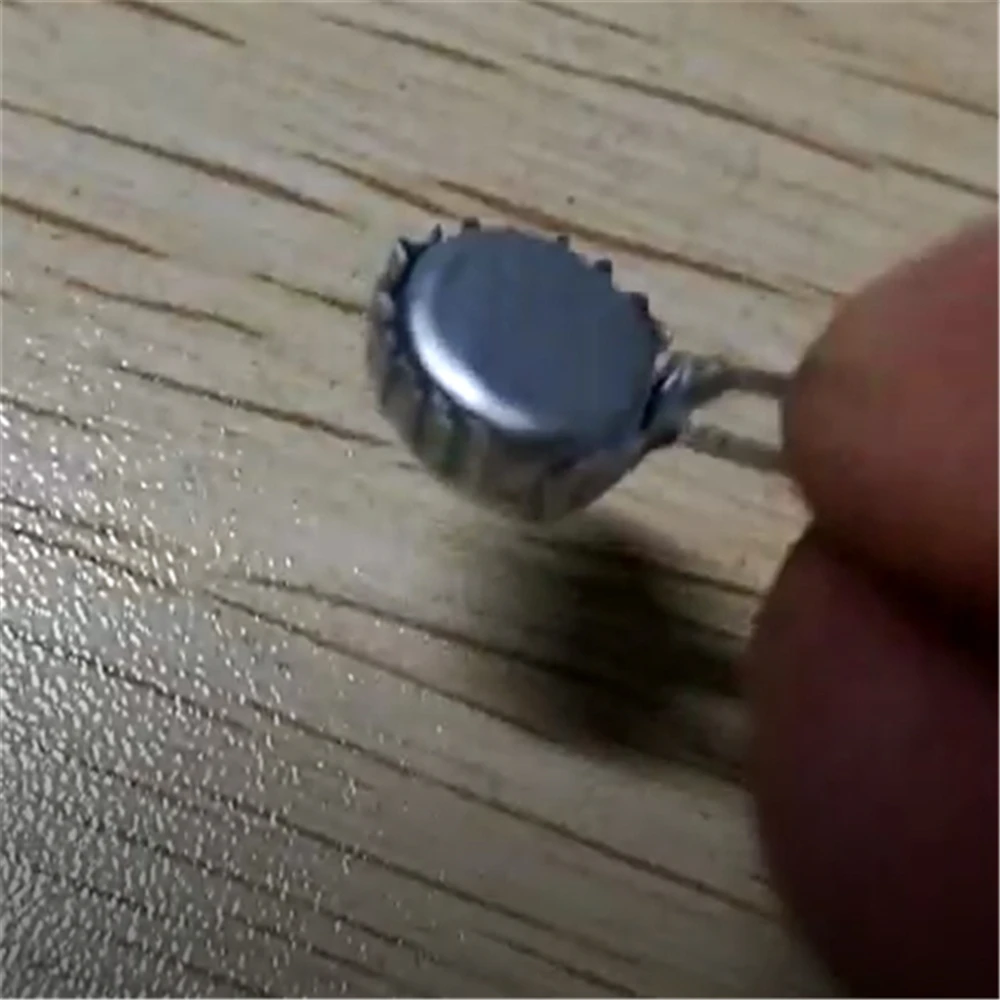

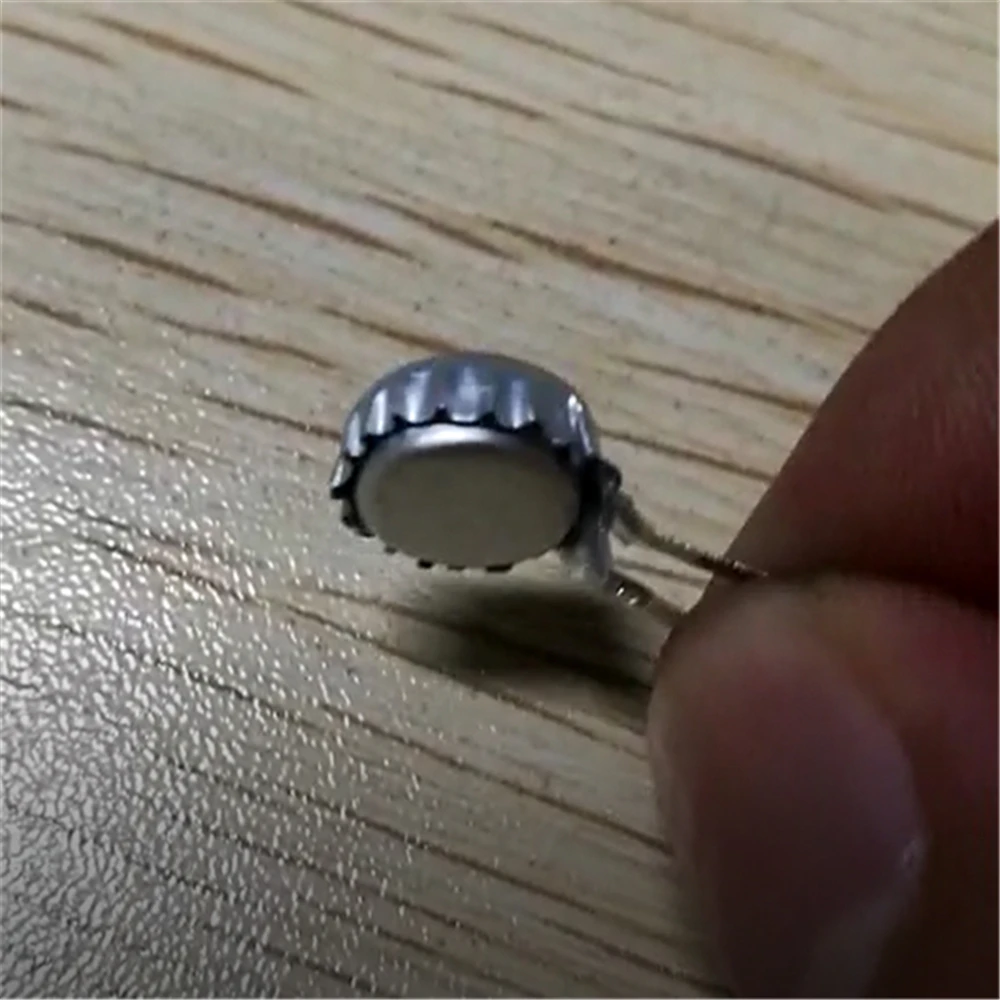

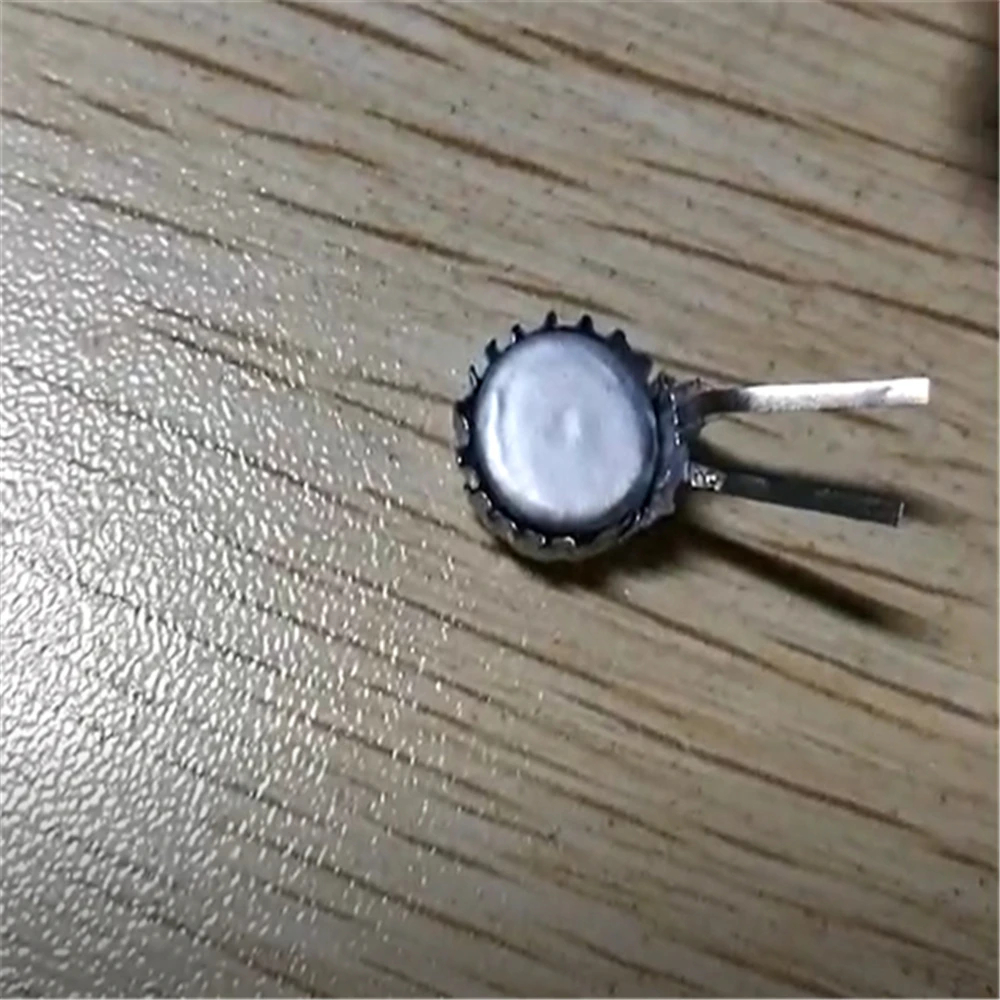

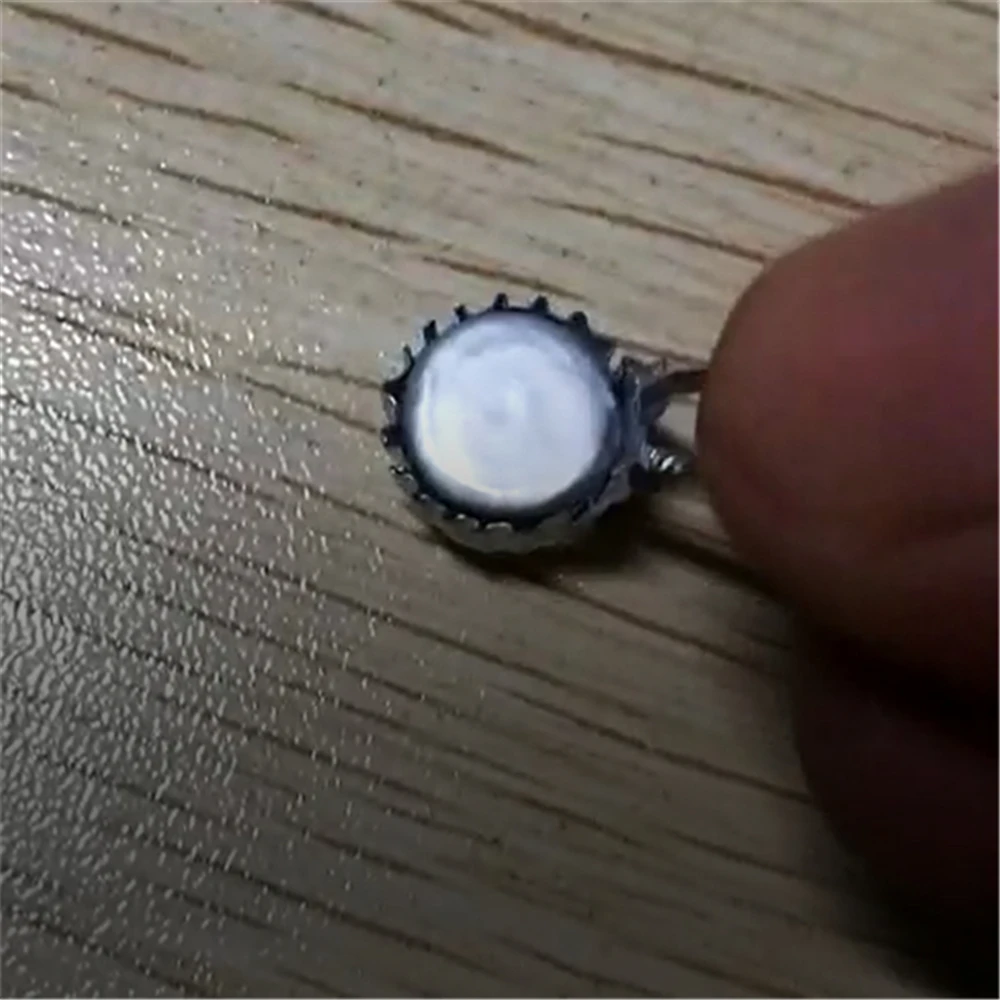

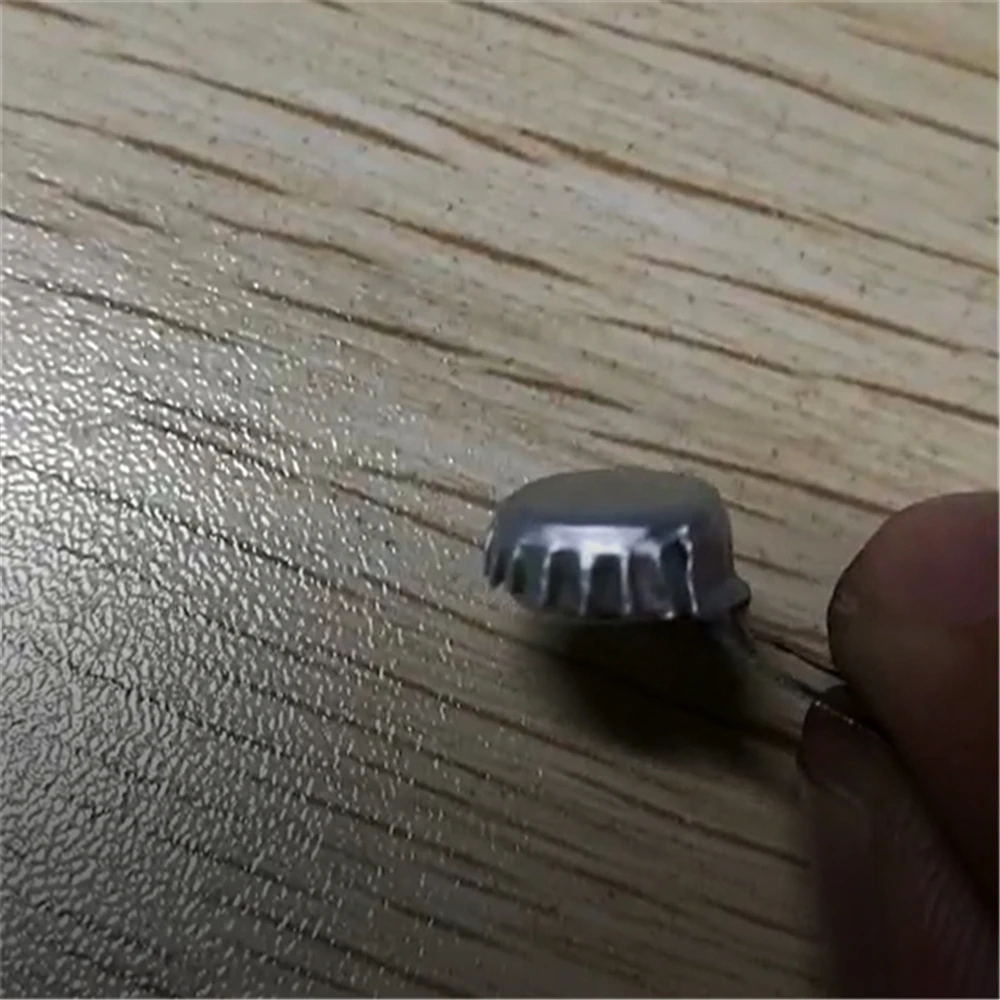

3. LiPo541212R-3.7V-55mAh Round 3.7V LiPo battery cell or 3.7V button LiPo battery cell

Picutures as blow:





4. Ultra thin battery model list and customized thin battery can be made according to your requirement

Ultra-thin lipo rechargeable model list:



LiPo032525-3.7V-10mAh thickness 0.3mm,

LiPo032550-3.7V-20mAh thickness 0.40mm,

LiPo041322-3.7V-3mAh thickness 0.50mm,

LiPo042525-3.7V-10mAh thickness 0.50mm,

LiPo042330-3.7V-12mAh thickness 0.50mm,

LiPo042550-3.7V-25mAh thickness 0.50mm,

LiPo043838-3.7V-35mAh thickness 0.50mm,

LiPo052026-3.7V-10mAh  thickness 0.60mm,

LiPo052525-3.7V-12mAh thickness 0.60mm,

LiPo054560-3.7V-90mAh thickness 0.60mm,

LiPo084646-3.7V-85mAh Thickness 0.82mm,

LiPo044040-3.7V-65mAh Thickness 0.45mm,

LiPo101010-3.7V-3mAh Thickness 1.30mm,

LiPo201010-3.7V-8mAh Thickness 2.10mm,

LiPo04125130-3.7V-300mAh Thickness 0.45mm,

LiPo152060-3.7V-135mAh Thickness 1.50mm,

LiPo120736-3.7V-15mAh Thickness 1.30mm,

LiPo043040-3.7V-25mAh Thickness 0.45mm,

LiPo043030-3.7V-18mAh Thickness 0.45mm,

LiPo073525-3.7V-40mAh Thickness 0.72mm,

LiPo042232-3.7V-15mAh Thickness 0.45mm,

LiPo044040-3.7V-30mAh Thickness 0.45mm,

LiPo052346-3.7V-15mAh Thickness 0.45mm,

LiPo054050-3.7V-45mAh Thickness 0.50mm,

LiPo071923-3.7V-13mAh Thickness 0.70mm,

LiPo091224-3.7V-8mAh Thickness 0.90mm,

LiPo102323-3.7V-28mAh Thickness 1.00mm,

LiPo103333-3.7V-60mAh Thickness 1.00mm,

LiPo104038-3.7V-100mAh Thickness 1.00mm,

LiPo150630-3.7V-18mAh Thickness 1.50mm,

LiPo151020-3.7V-18mAh  Thickness 1.50mm,

LiPo183248-3.7V-220mAh Thickness 1.80mm,

LiPo152040-3.7V-100mAh Thickness 1.50mm,

LiPo180925-3.7V-25mAh Thickness 1.80mm,

LiPo103050-3.7V-100mAh Thickness 1.00mm,

LiPo182550-3.7V-175mAh Thickness 1.80mm,

LiPo042255-3.7V-25mAh Thickness 0.45mm,

LiPo054050-3.7V-45mAh Thickness 0.50mm,

LiPo064525-3.7V-45mAh Thickness 0.60mm,

LiPo043228-3.7V-15mAh Thickness 0.45mm,

LiPo072620-3.7V-14mAh thickness 0.75mm,

LiPo072822-3.7V-20mAh thickness 0.75mm,

LiPo074640-3.7V-60mAh thickness 0.8mm,

LiPo075055-3.7V-130mAh thickness 0.8mm,

LiPo082620-3.7V-16mAh thickness 0.85mm,

LiPo084545-3.7V-100mAh thickness 0.85mm,

LiPo085055-3.7V-165mAh thickness 0.9mm,

LiPo092630-3.7V-35mAh thickness 0.95mm,

LiPo093535-3.7V-50mAh thickness 0.95mm,

LiPo093838-3.7V-60mAh thickness 0.96mm,

LiPo094241-3.7V-52mAh thickness 0.9mm,

LiPo093945-3.7V-90mAh thickness 0.95mm,

LiPo094660-3.7V-100mAh thickness 0.95mm,

LiPo093030-3.7V-50mAh thickness 0.9mm,

LiPo155050-3.7V-100mAh thickness 1.5mm,

LiPo032060-3.7V-20mAh thickness 0.3mm,

LiPo032749-3.7V-24mAh thickness 0.3mm,

LiPo121515-3.7V-20mAh thickness 1.2mm,

LiPo223048-3.7V-220mAh thickness 2.2mm,

LiPo254150-3.7V-500mAh thickness 2.5mm and so on.





Ultra-thin CP Li-MnO2 Primary Lithium Battery Model List:

CP042722-3.0V-15mAh thickness 0.4mm,

CP042922-3.0V-17mAh thickness 0.4mm,

CP042039-3.0V-25mAh thickness 0.4mm,

CP042345-3.0V-36mAh thickness 0.4mm,

CP052727-3.0V-22mAh thickness 0.5mm,

CP052922-3.0V-24mAh thickness 0.5mm,

CP052039-3.0V-35mAh thickness 0.5mm,

CP052345-3.0V-52mAh thickness 0.5mm,

CP054248-3.0V-100mAh thickness 0.5mm,

CP082922-3.0V-100mAh thickness 0.8mm,

CP084248-3.0V-320mAh thickness 0.8mm,

CP092030-3.0V-50mAh thickness 0.9mm,

CP124920-3.0V-160mAh thickness 1.2mm,

CP142828-3.0V-160mAh thickness 1.4mm, CP153030-3.0V-170mAh thickness 1.5mm, CP162235-3.0V-170mAh thickness 1.6mm, CP164548-3.0V-700mAh thickness 1.6mm and so on.





 5.  Application Fields

Those ultra thin battery are applied in sensors, labels, medical devices, power cards, smart cards, active RFID, wearable devices, message device, e-ink displays, RFID, Credit cards, key tag, cards and so on.



Currently, those thin batteries are already exported to America, France, Germany, Australia and 50 other countries and regions.



6. How to have a order?

(1)Online talk or inquire by email to confirm order(quantities, color, payment terms, delivey time etc.)

(2)Sales will make the Proforma Invoice(PI) and send it to your email address.

(3)Customer or client will make the payment against the Proforma Invoice(PI).

(4)We will start the order when we have received the payment.

(5)We will inform our customer or client purchase order situation timely.

(6)We will arrange shipment after 100% payment confirmed.



7. FAQ

Question: Do you have current sample in stock usually?

Answer: Usually, we don't have samples in stock because different customers have different requirement, even the voltage and capacity are the same, other parameters maybe different. Well, we could finish your sample once our customer or client order confirmed.
