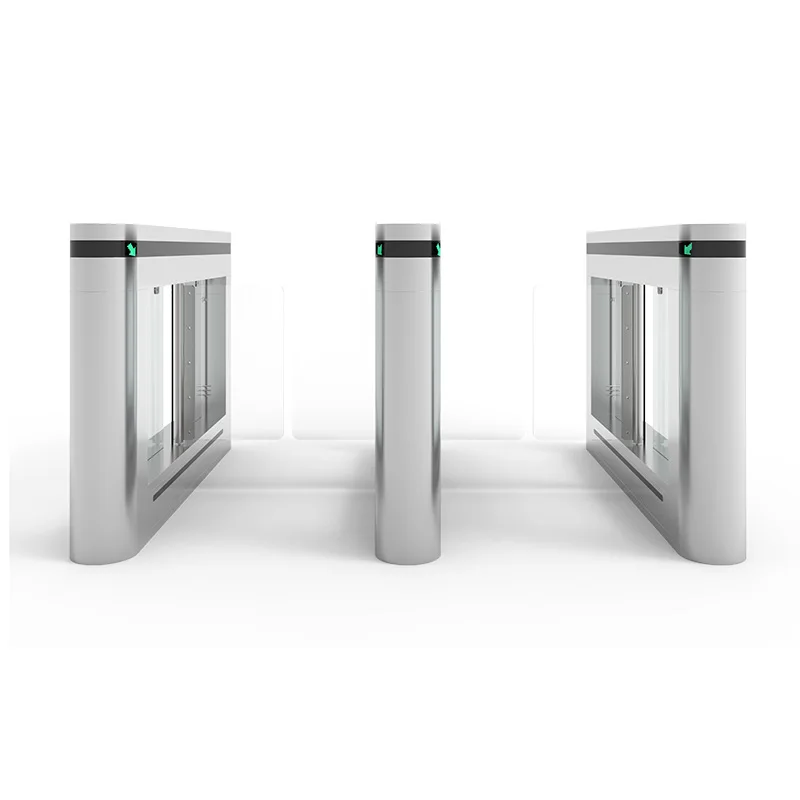

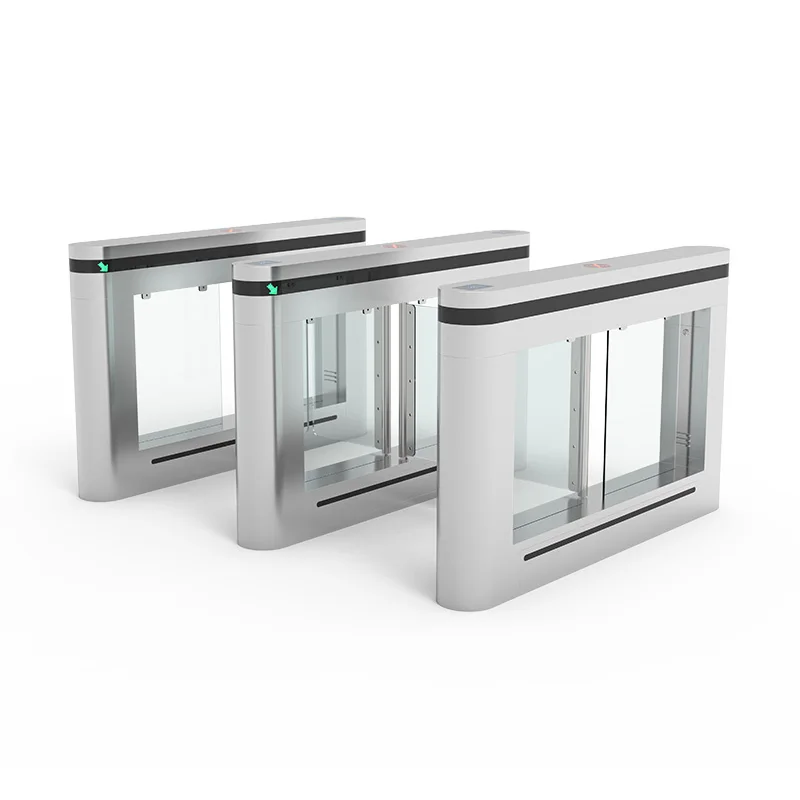

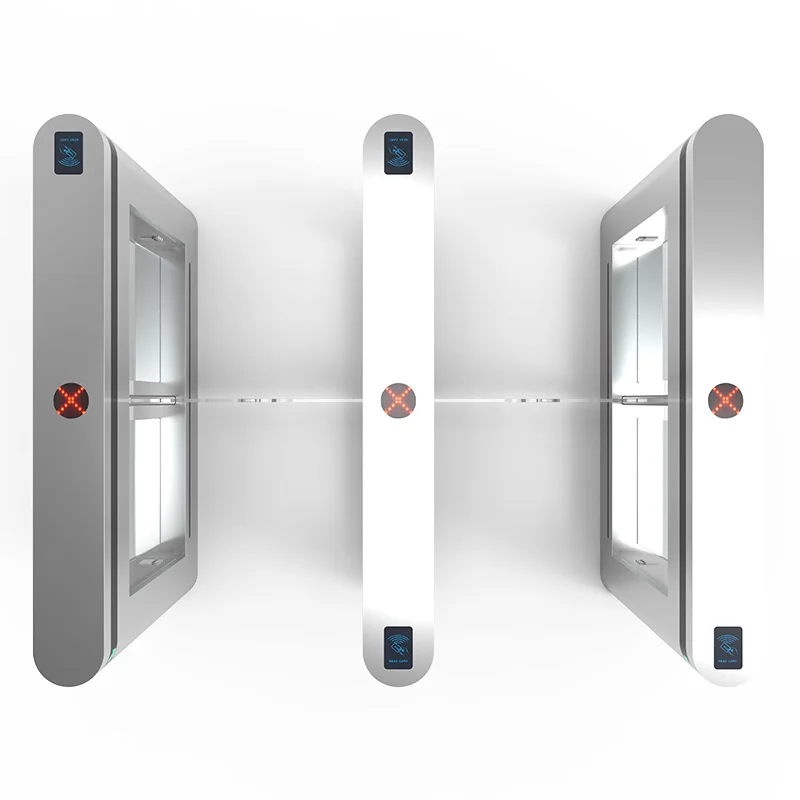

Wide Lane Wheelchair Handicapped Turnstile QR code Tickets Access Control Swing Turnstile Gate

Share on (62217141990):


Price:

Quantity:


Product Overview

Description


Wide Lane Wheelchair Handicapped Turnstile QR code Tickets Access Control Swing Turnstile Gate



product description




.jpg


.jpg




.jpg


.jpg














Parameters











































































































Structure parameters



Housing material



304 grade stainless steel



Thickness



1.5mm+1.2mm



mainabord



Independent development mainabord



Arm material



Acrylic



Technical parameters



Size



1600x200x1000mm



Lane width



850mm



Passing speed



35--50 people/min



Open/close speed



0.1--0.6sec



Weight



70KG



Turning angle



90 degree



infrared sensors



6 pairs



MCBF



5.000.000 times



Application



Indoor or outdoor



Rotating directional



Single way or Bi-directional adjustable



Noise



<55db



Operating temperature



-25 to 70℃



Relative humidity



5% to 95%



Package



Carton box inside. Wooden case outside



Electronic parameters



Power supply



110-220V/AC, 50/60HZ



Rated power



100W



Input signal



Dry contact



Driving motor



Brushed motor



Method of position



Limiter









FAQ


1. How  much sales of this gate TDZ-B236?


    Q: saled over 5000pcs


2. Do you have CE /ISO certificate ?


    Q:Of course, we can provide CE ISO copy if you want.


3. How can we install this model?


    Q:It's easy . we have done many jobs before sending you , you just need connect power cable and fixed


 the gate with four screws on the ground, also have complete manual of install and maintenance for reference.


4. If can customized logo?


    Q: Yes, can print your customized logo on the gate.





Related model






















Company Information


Shenzhen Tongdazhi Technology Co., Ltd.


>Established in 2009.


>National high- tech enterprise integrating R&D, production, sales and service.


> One-stop service provider solutions for intelligent access control gate.


>Design&develop advanced access control systems.


>Independent import&export rights.


>Sold in more than 80 countries&regions.





Our Advantages:


1.Focus on solutions for entrance and exit control for 12 years.


2.Support pedestrian, access control, face recognition and software secondary development customization.


3.Provide non-standard turnstile design and customization.


4.Provide scenic spot ticketing system, smart campus, smart building solutions.


5.With high-tech enterprise certificate, ISO certificate, CE certificate,
There are 2 inventions of the main board of the turnstile and the main board of the access control;


36 patent certificates such as appearance, use of new tech, and software.


 _20230208134103


With high-tech enterprise certificate, ISO certificate, CE certificate, SGS

test reportHydraulic Bollard and Flap Barrier, with inspection report from

Ministry of Public Security
