Factory price 5kw complete off grid solar power inverter system home solar panels kit solar energy system
- Category: >>>
- Supplier: Dongguan Singfo Solar Energy Sci.& Tech. Co. Ltd.
Share on (62217375158):
Product Overview
Description
Factory price 5kw complete off-grid solar power inverter system home
Product details
| OFF Grid Solar System Equipment List | ||||
| Solar Panels | Type | 16 X 315W SFM310-72Panels | ||
| Rated Maximum Power (Pmax) | 315W | |||
| Cell Type | Polycrystalline | |||
| Tolerance | ± 3% | |||
| Voltage @ Pmax (Vmp) | 36V | |||
| Current @ Pmax (Imp) | 8.75A | |||
| Short Circuit Current (Isc) | 9.64A | |||
| Open Circuit Voltage (Voc) | 43.2V | |||
| Nominal Operating Cell Temperature | 47°C ± 2°C | |||
| Standard Test Conditions | 25°C 1.5AM ,1000W/m2 | |||
| Solar Bracket | Type | Galvanized steel | ||

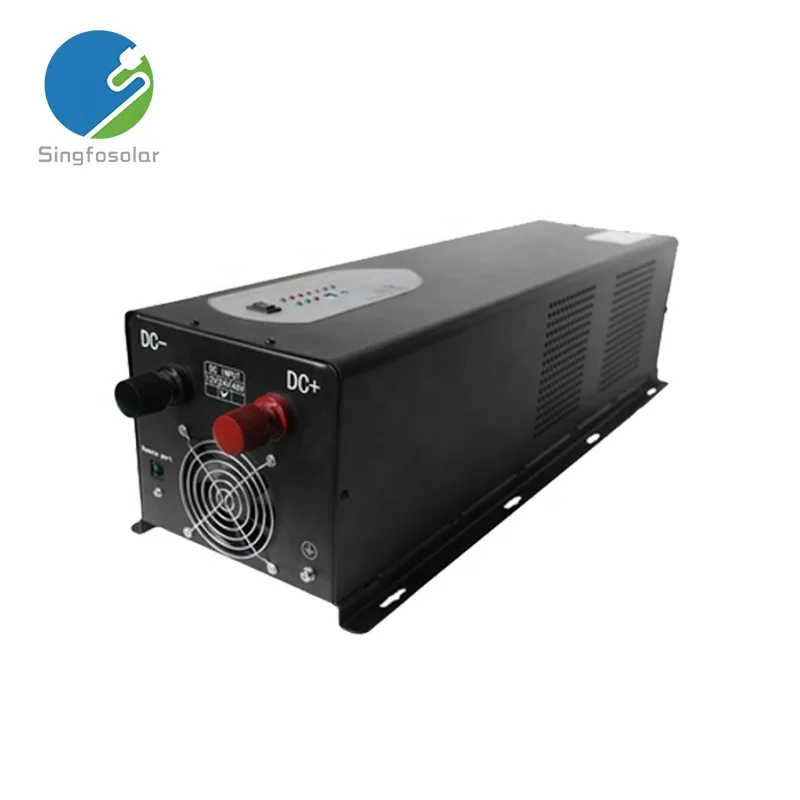

Inverter | SPEC | 96V 5000W | ||
| Wave Form | Pure sine wave | |||
| Output Voltage | AC110V/220V | |||
| Output Frequency | 50Hz/60Hz | |||
| Inverter Efficiency | 90% | |||

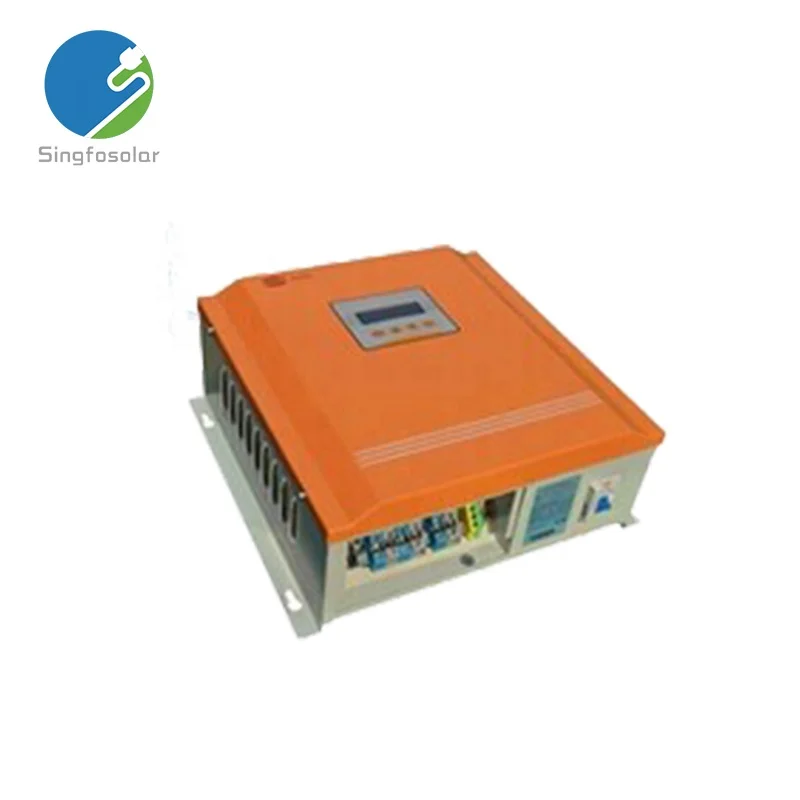

| Controller | Voltage | 96V | ||
| Capacity | 50A | |||
| Battery | Voltage | 12V | ||
| Capacity | 150AH | |||
| Battery Type | Deep Cycle, Sealed, Lead acid | |||

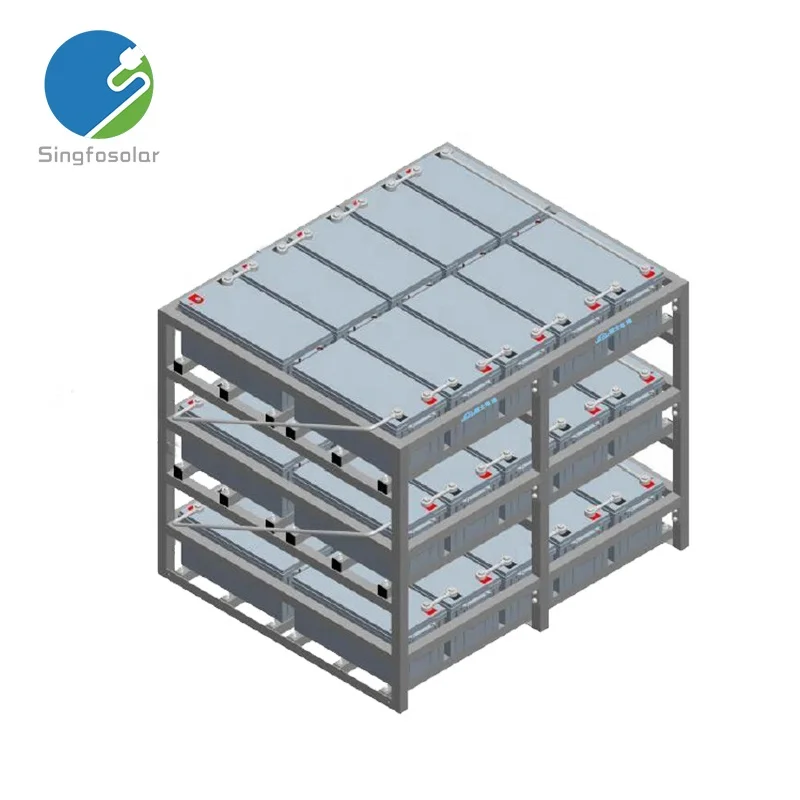

| Battery Rack | Type | Galvanized angle iron | ||

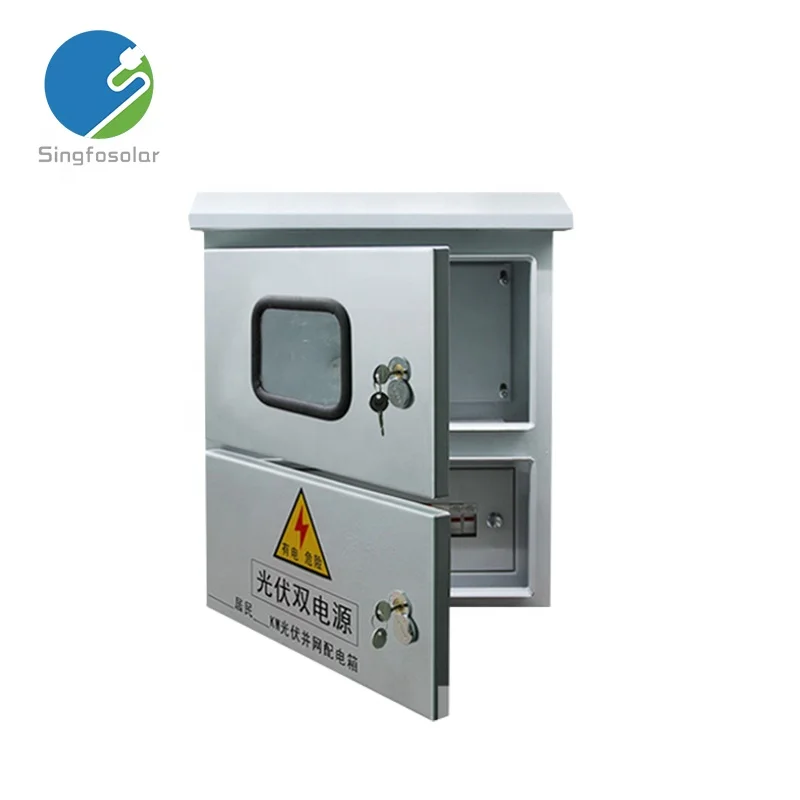

| Distribution box | SPEC | 5KW DC | ||

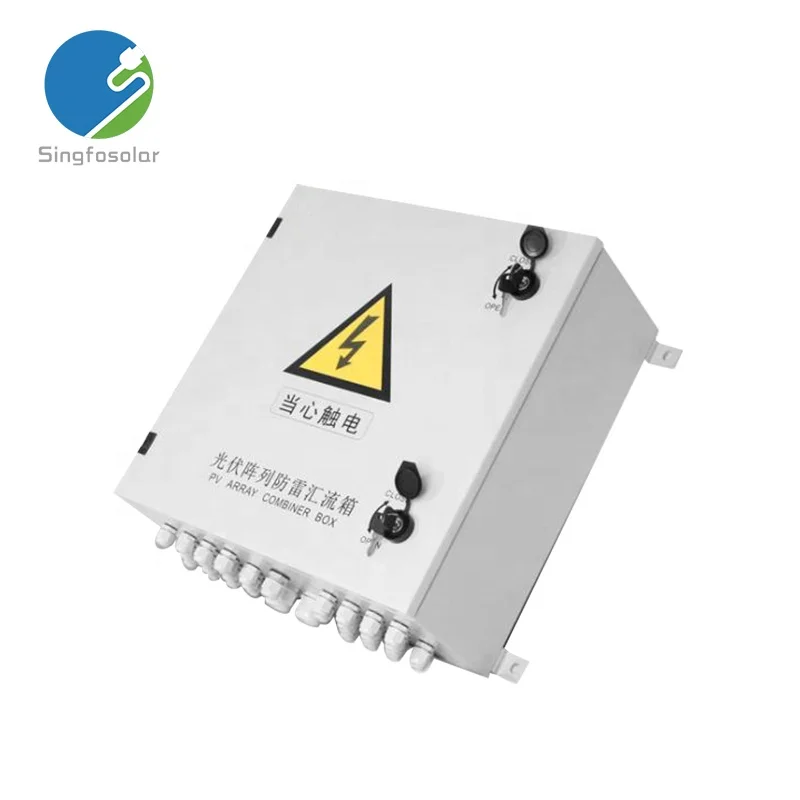

| Combiner box | SPEC | 4strings 10A | ||
| Cables | 4mm2 | 160meters | ||
| 16mm2 | 88meters | |||
| 10mm2 | 10meters | |||
More product
Show case
Company profile
Showroom&Exhibition
Product packaging
FAQ
Q:Why choose us?
A:Singfo Solar is a manufacturer of solar panel for 10 years. We devote ourselves in solar power industry. We offer design, product supply,consultan and after sales service.
Q:What certificate do we have?
A:We have TUV and ISO 9001.
Q:What about after sales service?
A: We offer 10 years warranty for solar panel. 1 years for off-grid solar system and 5 years for on-grid solar system.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shippment, video if necessary, and for big project, we can send engineer to the project site.
Q:Can you ship by air/express?
A:I am afraid of. Because the product is overlong.
Q:Will you offer any installation guidance?
A:Yes, we will offer documents after shippment, video if necessary, and for big project, we can send engineer to the project site.
