Product Overview
Description

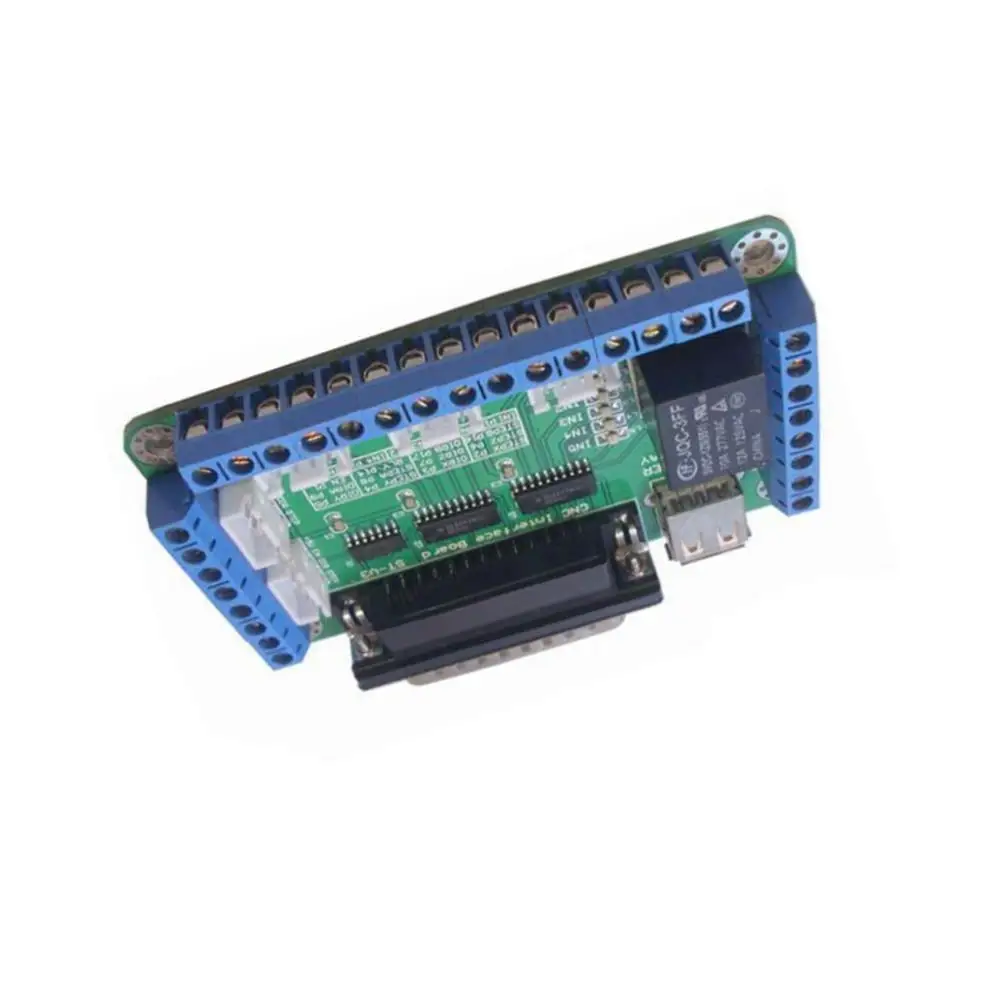

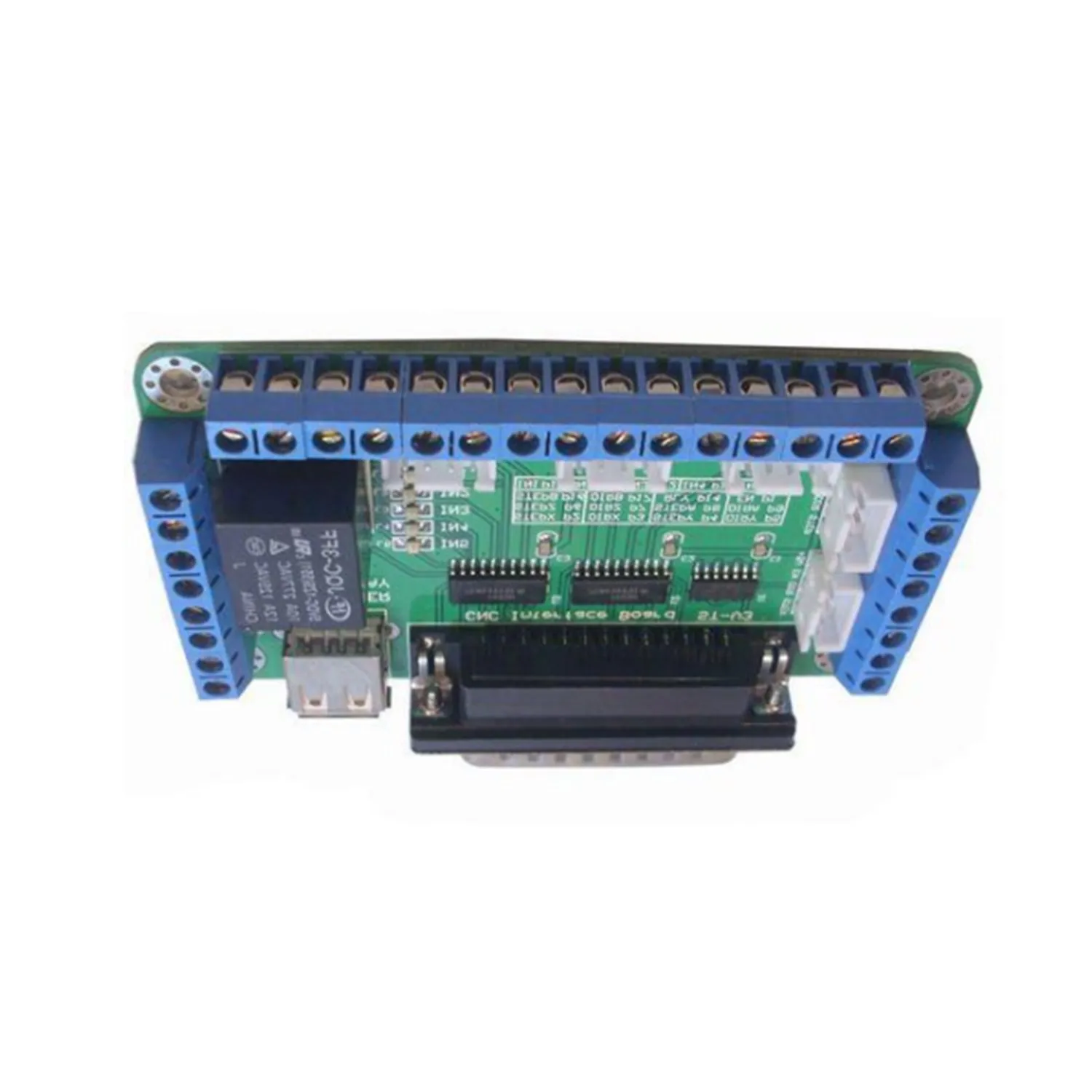

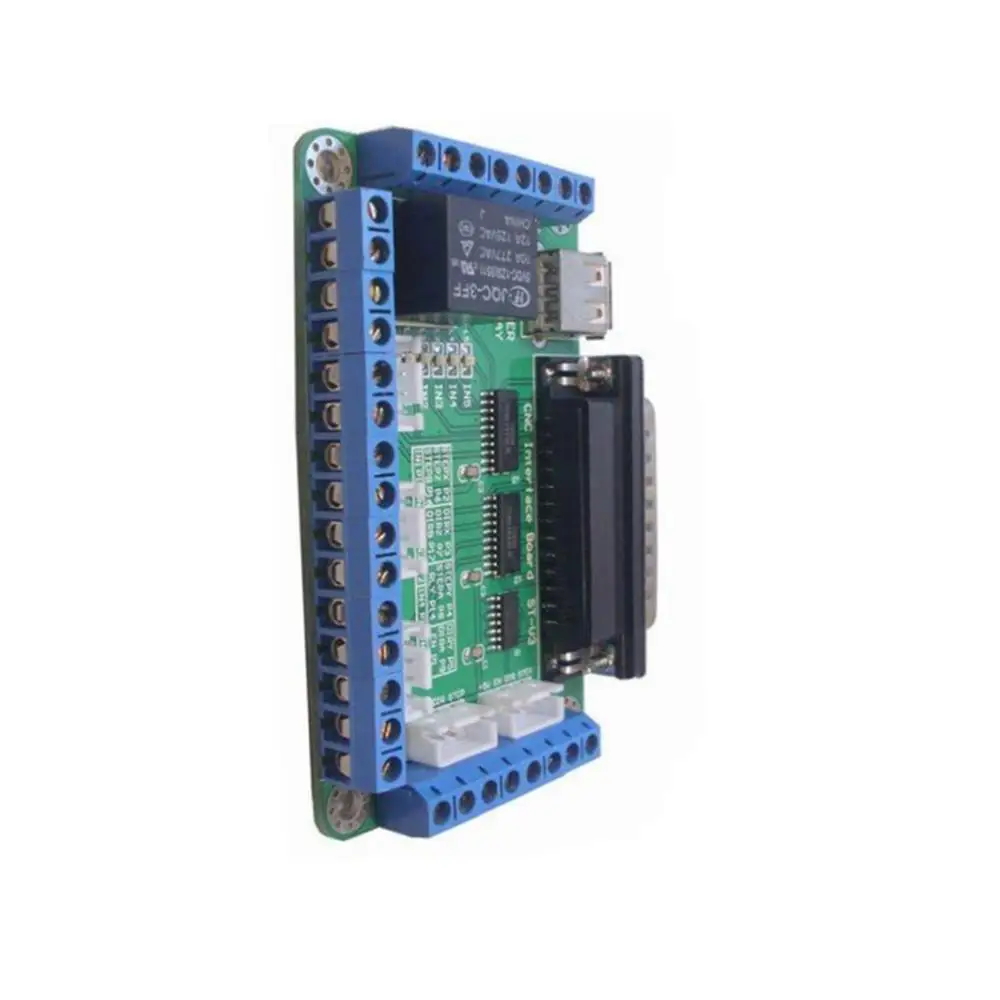

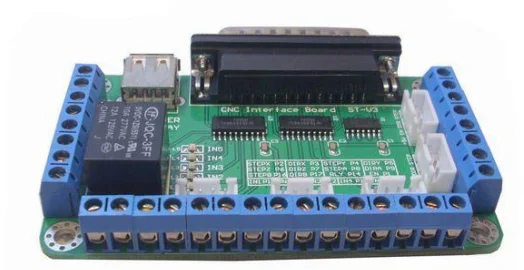

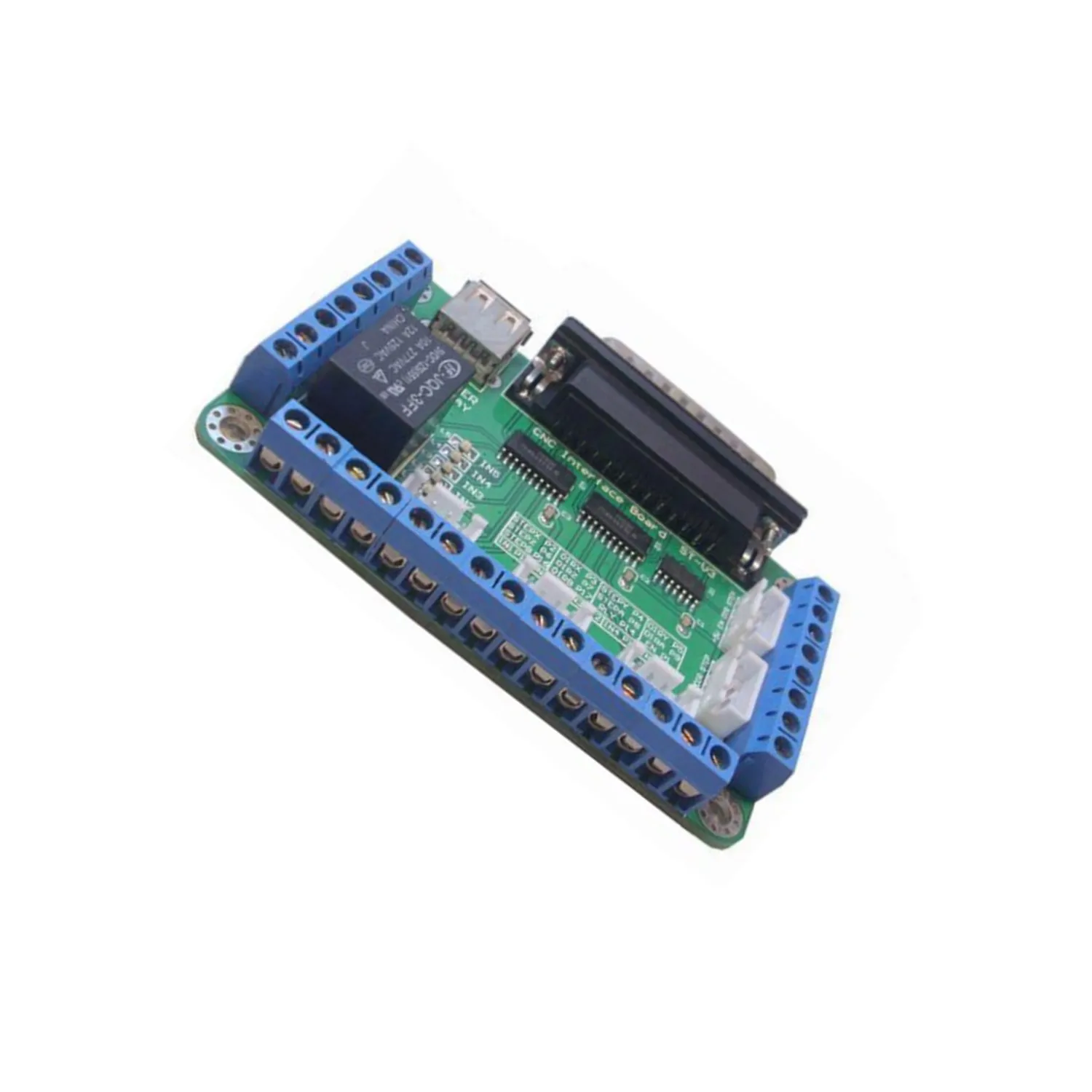

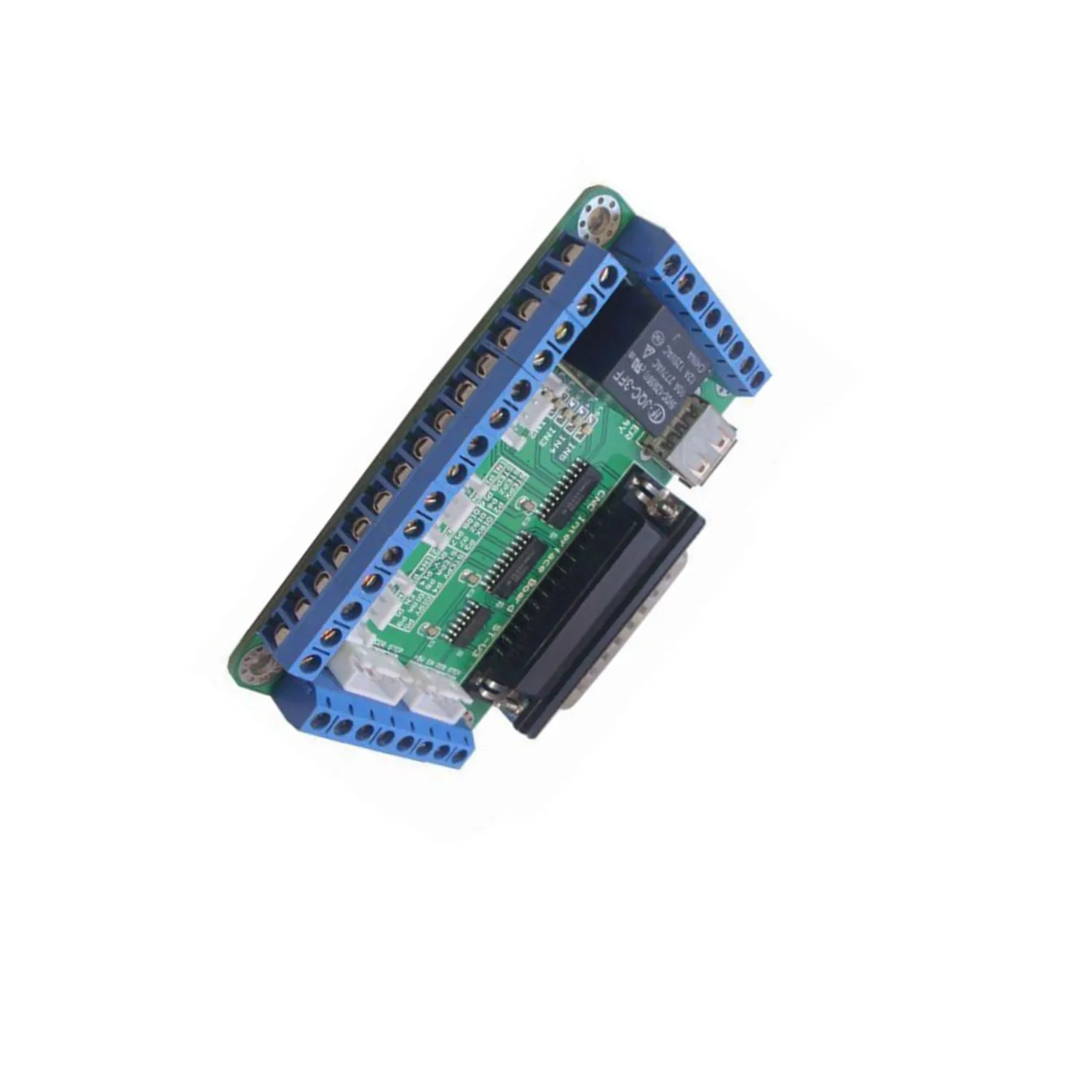

5 Axis CNC Breakout Board
Ⅰ,Features:
1.full support for MACH3, KCAM4, EMC2, and support parallel port to control the host computer software;
2.5 output signal ,can connect 5 stepper motor driver ;
3. 5 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED;
4. One relay, it can be used to control spindle start and stop,1 signal indication LED beside relay;
5. power supply have 2 choice, USB power form computer or an external 5V power supply; 6. pulse and direction signal shaping,enhanced, data transfer speeds reach 10 MBit / S;
7. have 2 kinds connector ,the 4PIN XH connector can connect driver convenient and efficient .

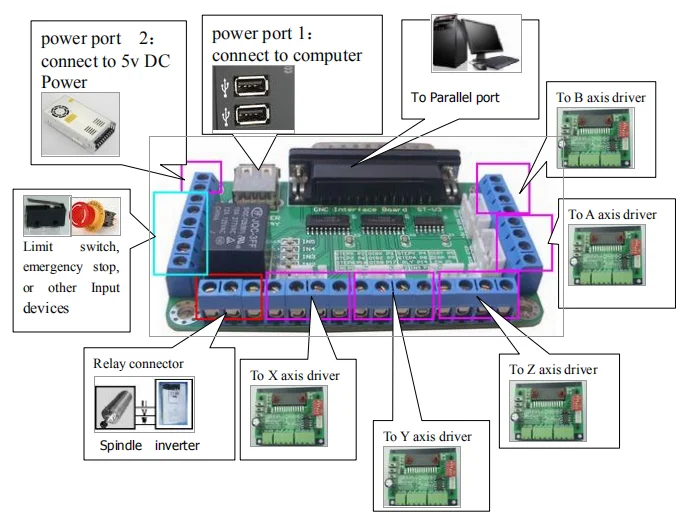

Ⅱ,Detail:
Note: power port 1 and power port 2,Can only choose one, cannot be used at the same time!

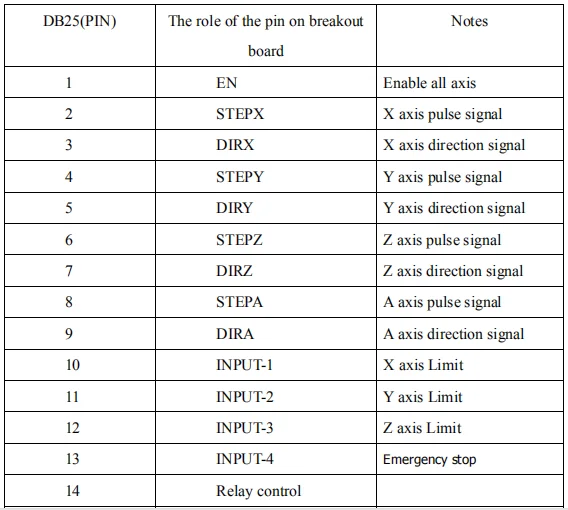

Ⅲ,Definition on pins of parallel port:
