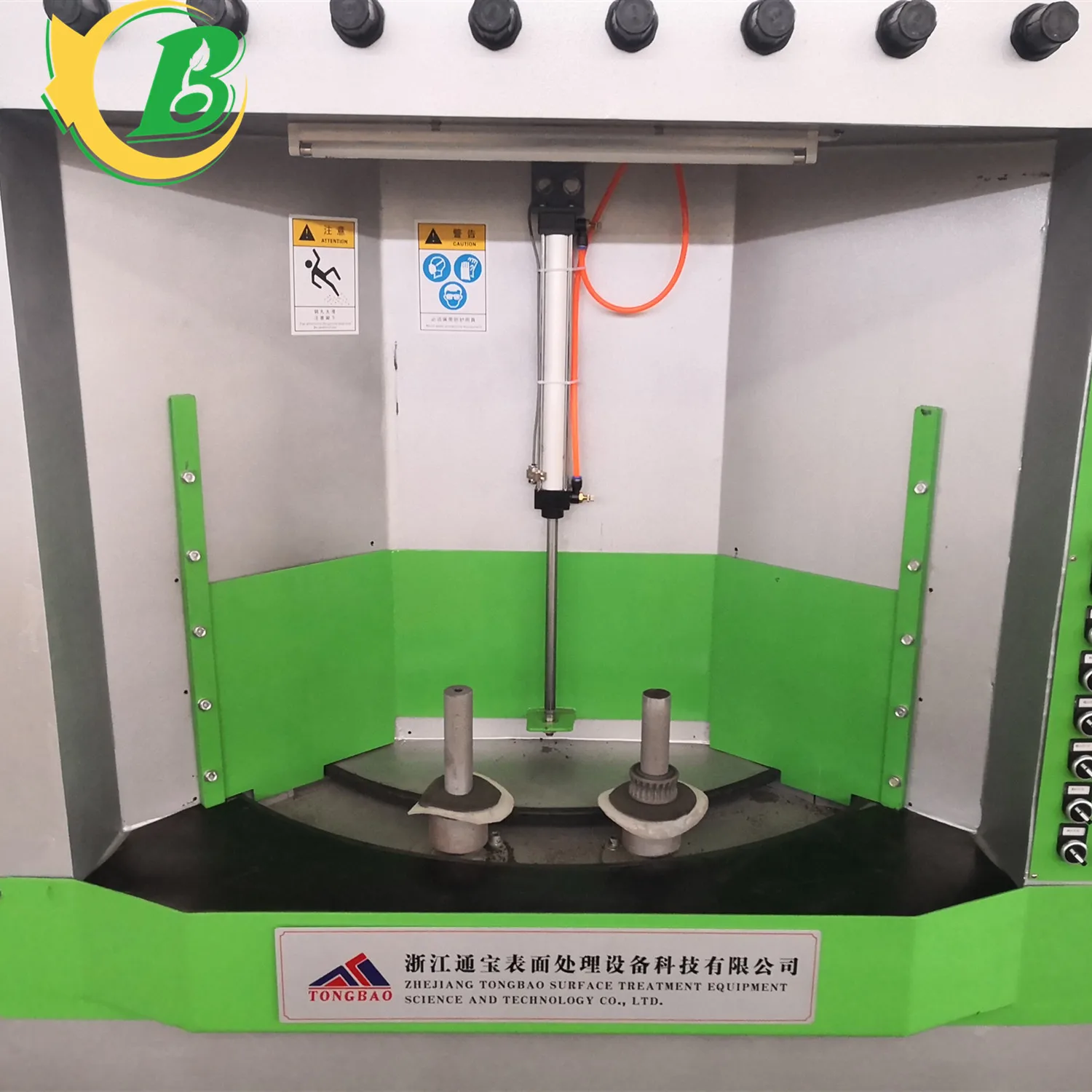

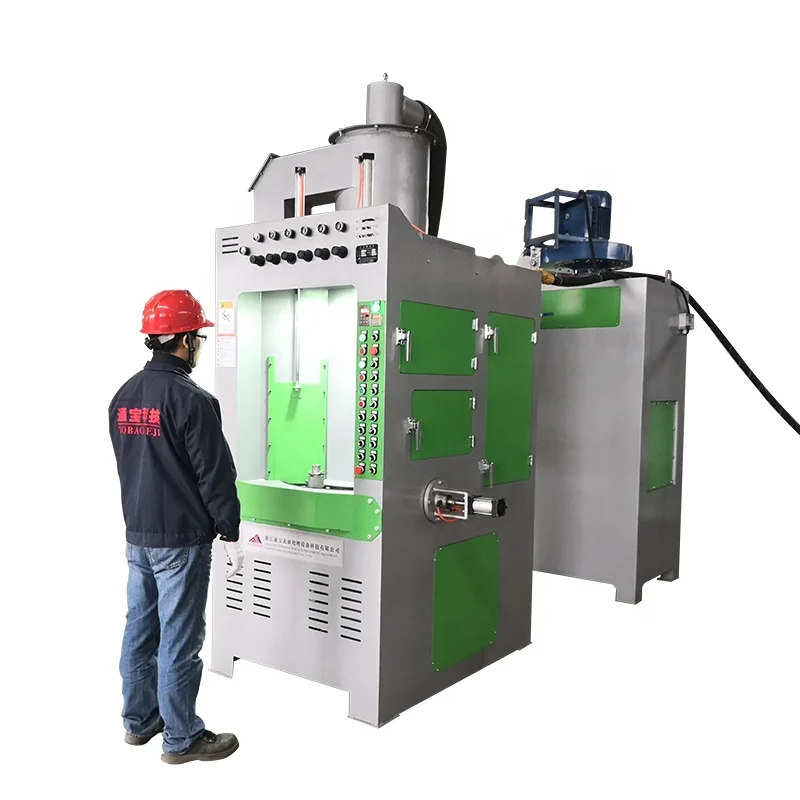

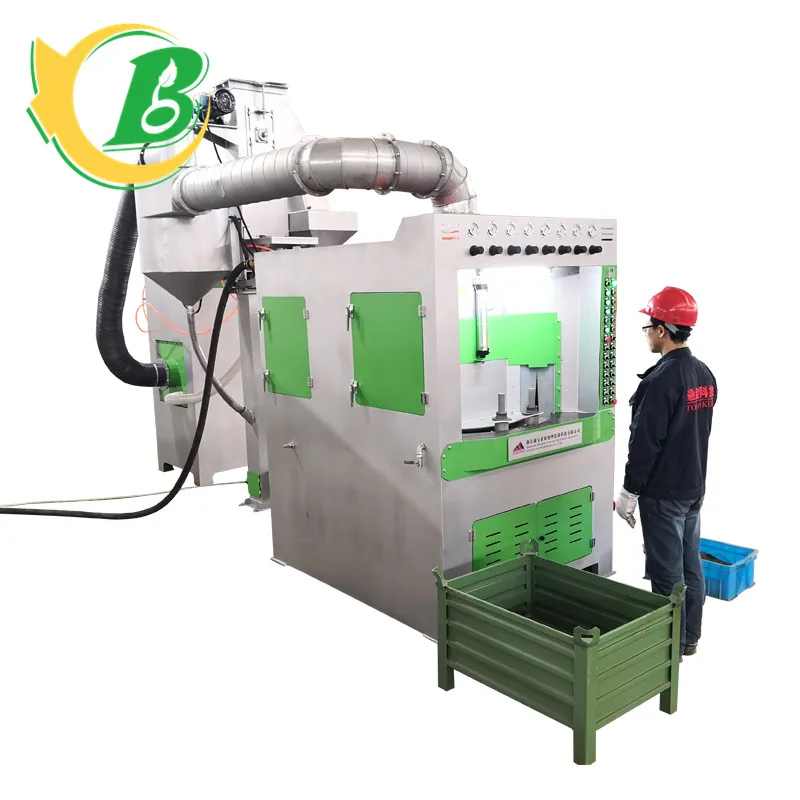

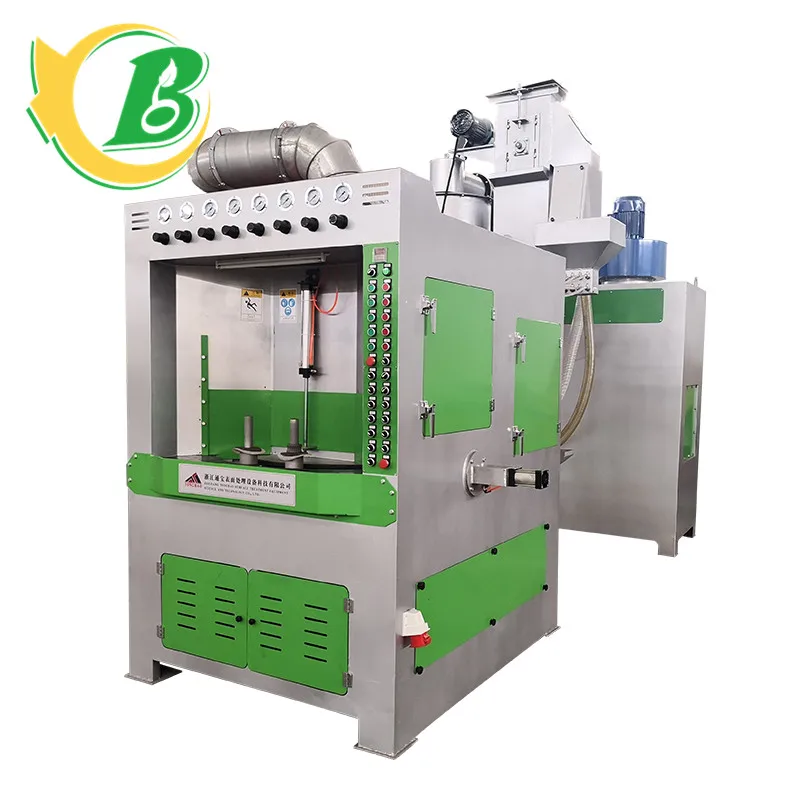

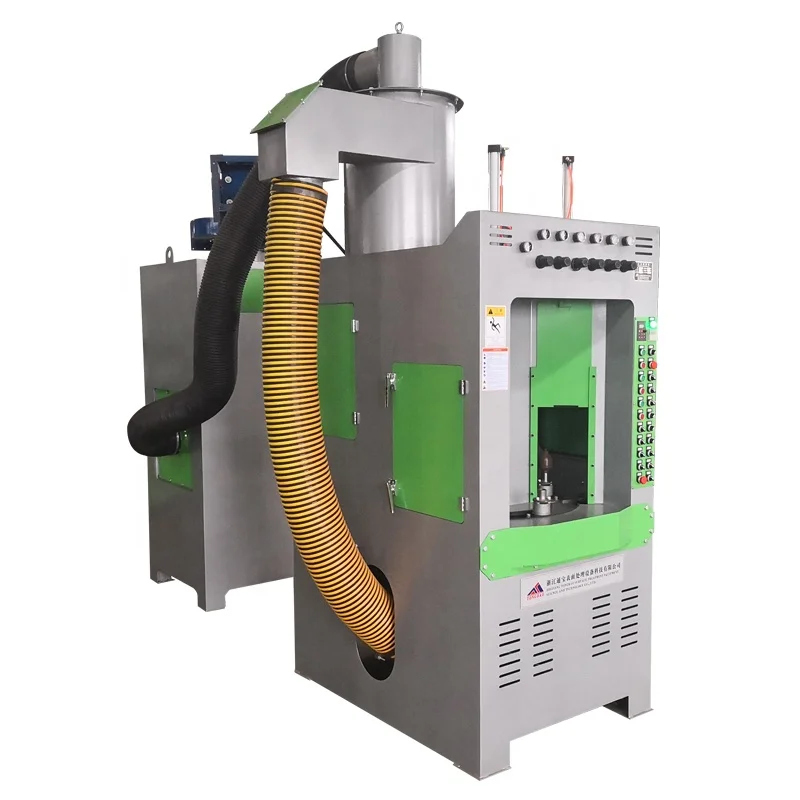

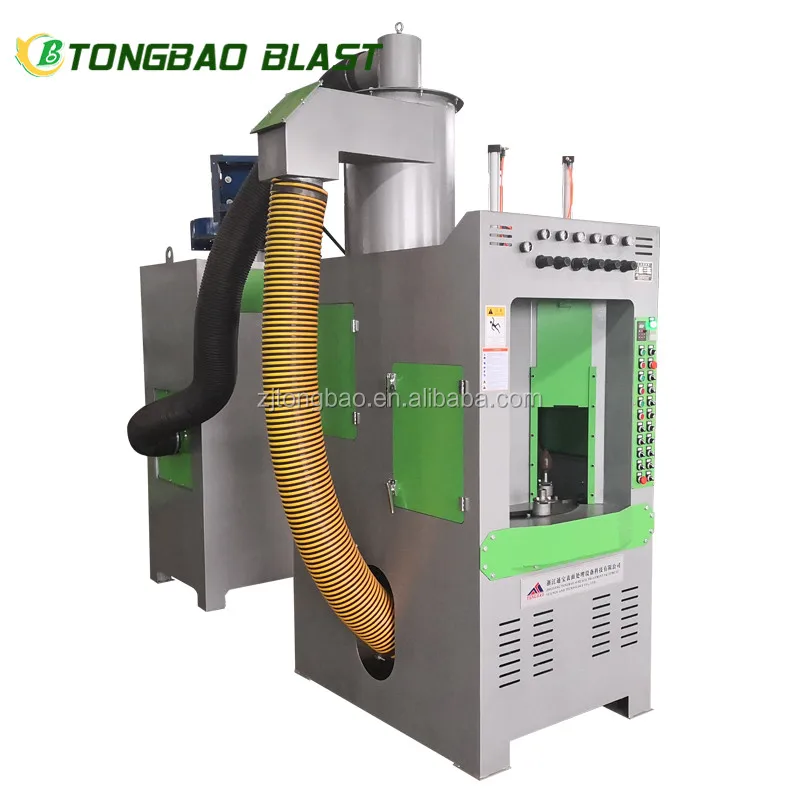

Turntable Sandblasting Cabinet for Car Rim
- Category: >>>
- Supplier: Hangzhou Tongbao Machinery Factory
Share on (62217516577):
Product Overview
Description
Turntable Sandblasting Cabinet for Car Rim for Sale
Specification:
For 360-degree impact treatment, our indexing table machines with rotary spindles are one of the most popular types. TB-NT-series machines are available in many cabinet sizes, with from 2 to 12 or more spindles for high speed and high volume processing. In these machine, the fixtured components are presented to the blast from multiple guns as the part is rotated at controlled and adjustable speed during the timed blast cycle.
Product Model:
Product main technical parameters
Specifications | TB-NT1014-4A | TB-NT1419-8A | TB-NT1820-10A | TB-NT2224-12A |
SIZE(L/W/H) | 1600*1550*2630 | 2020*2050*3000 | 2450*2220*3350 | 2850*2620*3500 |
Diameter of larger turntable |
750mm |
1150mm |
1500mm |
1500mm |
Number of guns | 4piece | 8piece | 10piece | 12piece |
Total power | ~3kw | ~6.5kw | ~8.5kw | ~8.5kw |
Compressed air source pressure |
5-8bar(kg/cm2) |
5-8bar(kg/cm2) |
5-8bar(kg/cm2) |
5-8bar(kg/cm2) |
Compressed air source gas volume | 3.2-6(m3/min) | 6.4-9.6(m3/min) | 8-12(m3/min) | 9.6-14.4(m3/min) |
Separator Fan Power
| 2.2kw | 5.5kw | 7.5kw | 7.5kw |
Separator size(φ/H) | 550*858mm | 550*858mm | 800*1520mm | 800*1520mm |
Separator air volume | 26(m3/min) | 45(m3/min) | 60(m3/min) | 60(m3/min) |
host weight | ~800kg | ~1100kg | ~1500kg | ~2000kg |
Detail Images

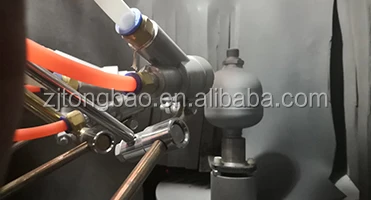

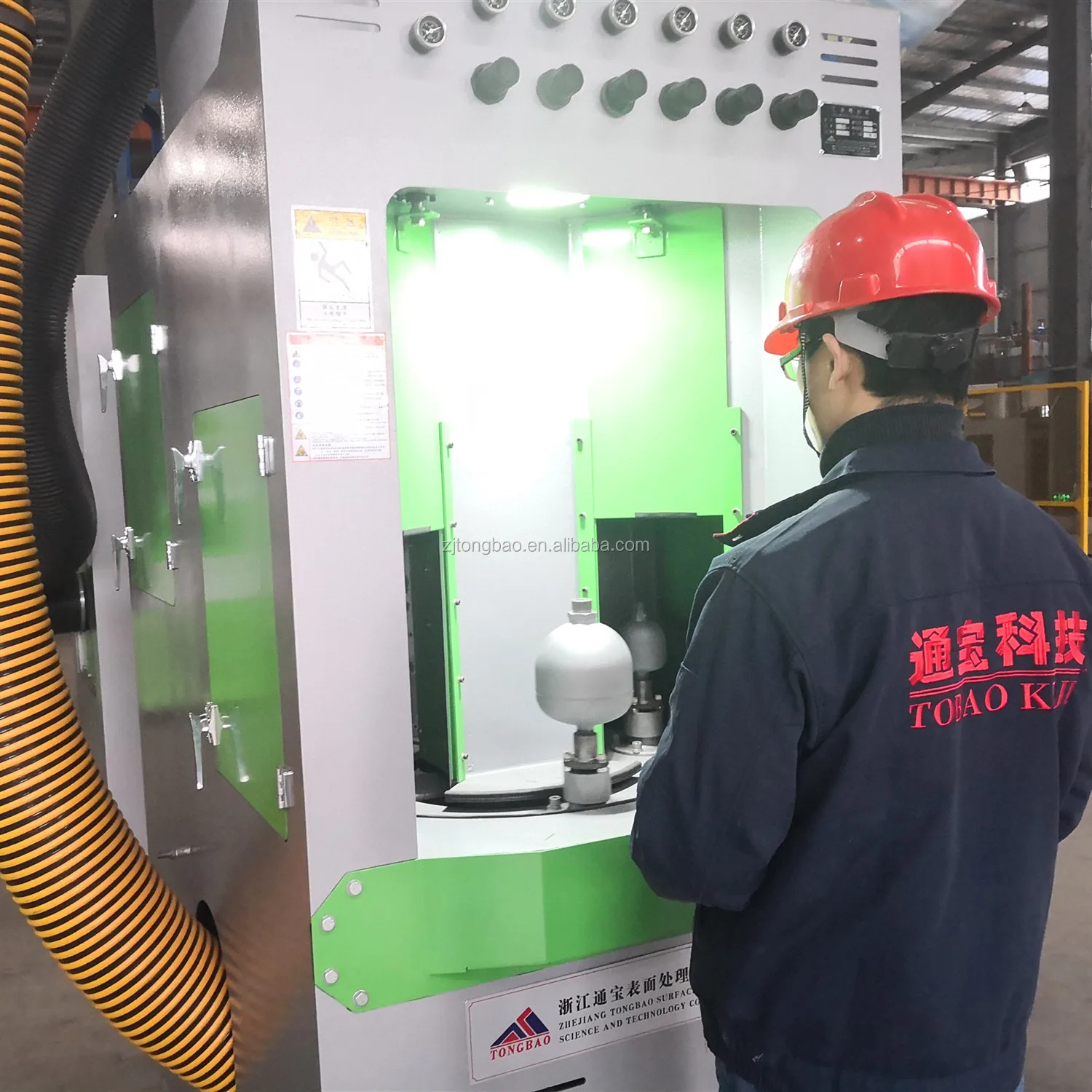

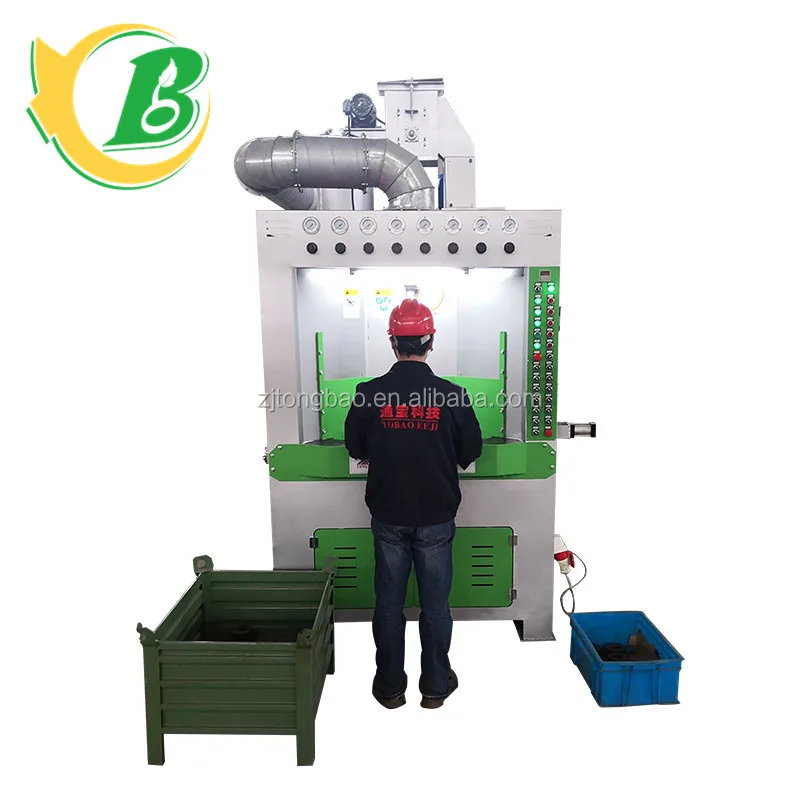

Working Live-action:
Sandblasting Samples:
Manual Cabinet Sandblasting Machine Application:
Company Information:
Guarantee and After-sale Service:
1. Guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.
2. We can supply the after-sale service through email or telephone with free charge.
