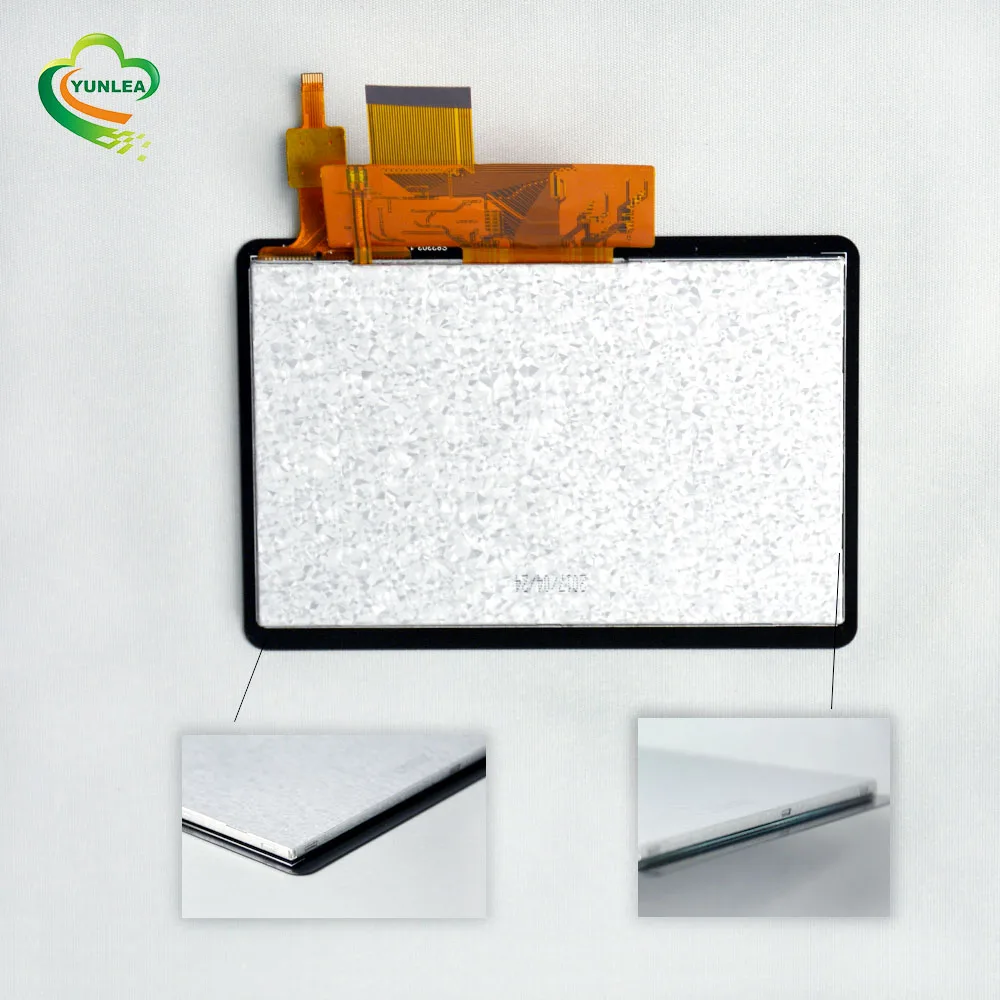

YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module
YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module

YUNLEA 450cd/m2 black silk printing 800x480 dots small size 5 inch tft lcd capacitive touch screen display module

Share on (62217590720):


Price:$22.50 - $25.00

Quantity:


Product Overview

Description


 Touch screen


You can choose:


1.high luminance touch display 300-1000cd/m2.


2. 1.4 to 10.1 inch touch display,

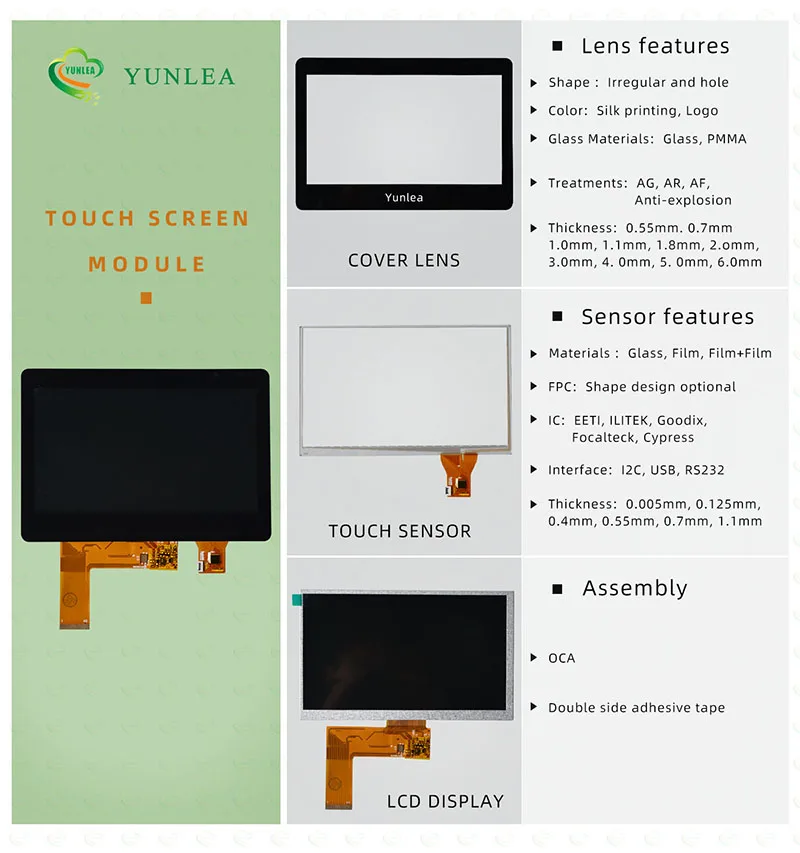

3.custom available: IPS/logo/transparency hole/real hole/silk-printing color/Anti glare/Anti fingerprint/Anti reflective/touch with water/gloves touch



Product Description




























































































The specification PCAP Touch screen
LCD Size5 inch
Panel Typea-Si TFT
Resolution800 x (RGB) x 480
Viewing Direction (Gray inversion)6 o’clock
Contrast Ratio500(Typ)
Luminance450(Typ)
Module Size127.0(W ) x85.80(L) x 4.58(T)mm
Active Area108.0(W) x64.80(L)mm
Driver ICILI6122+ILI5960
Touch solutionCOF(touch on the FOC)
Surface hardness6 H
Operating systemWin7/8/10, Linux, Android, Mac, QN
Operating temp-20 to 70 degree

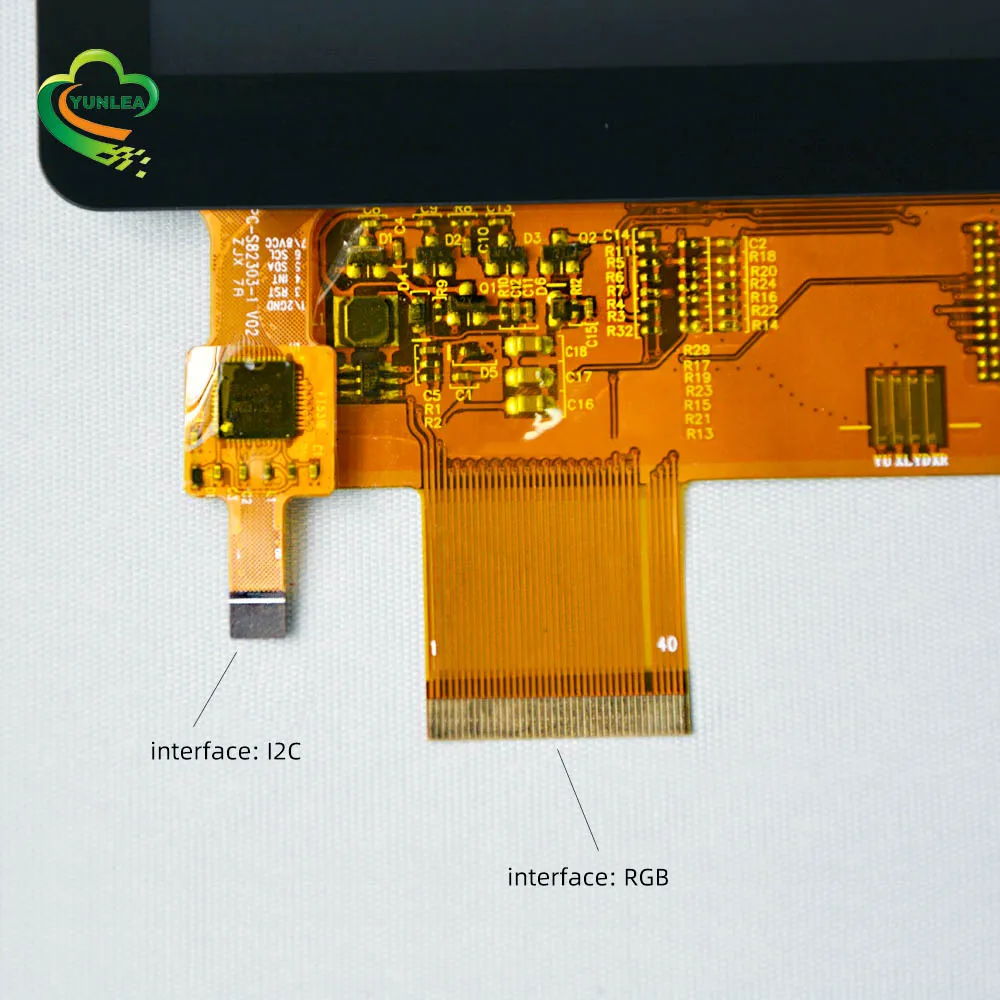

Interface of LCDRGB
Interface of CTPI2C
General Business Clauses
MOQ1 pcs
CustomizeAvailable
Trade TermsEXW or FOB
Warranty12 months
Lead TimeSamples in stocks,2~4 weeks for mass production

5 inch Touch display5 inch Touch display5 inch Touch display


Click items you like in our catalog:(as below)






Product Catalog





























































































































































































































































































































































































SizePart No.Sensor ODSensor (T)Lens ODCover glass(T)R angle Window VATouchcontroller
3.5"YL035CY0382.34X56.860.494.94X66.860.7 74.94X50.36Mstar 2133Aclick here
4.3"S82327H103.10x85.400.7114x770.7 96.04x53.86FT5346click here
5"YL050CY01120.7X75.80.55127X85.800.7R5109x65.8FT5436click here
7"YL070CY01159.70X94.100.55164.90X1000.7 154.08X85.92FT5436click here
8.4"8333084V01182X140.20.7207X1661.1R10170.4x127.8EETI/ILITEKclick here
10.1"8154101V02239.6x158.200.7254.96x172.61.1R10217.96X136.6EETI/ILITEKclick here
10.4"8334104V01233.4X177.90.7259.10X206.31.1R10213.1X160.3EETI/ILITEKclick here
12.1"8031121V01280X210.50.7220.5X2901.1R4246X184.5ILITEKclick here
8335121V01259.6X201.10.7293X2371.1R9246X184.5EETI/ILITEKclick here
15"8001150V03319X2440.7339.9X263.93R2304X228ILITEKclick here
8278150V01329X2450.7339.9X263.93R2304X228EETI/ILITEKclick here
15.6"8002156V02358X2101.1387X2313R16344X194ILITEKclick here
8156156V02362X2220.7387X2311.1R8344X194EETI/ILITEKclick here
17"8003170V03356.92x290.340.7377x2093R2338.92x271.34ILITEKclick here
8273170V01366.58X2990.7377X3093R2338.92X271.34EETI/ILITEKclick here
17.3"8004173V02398.9X235.81.1423.21X256.23R16383.21X216.2ILITEKclick here
18.5"8005185V03429.8X249.90.7458X2833R16410.8X231.4ILITEKclick here
8163185V02430.8X261.40.7440.8X271.41.1R8410.80X231.4EETI/ILITEKclick here
19"8006190V03398.32X321.060.7421X3463R2377.32X302.06ILITEKclick here
8200190V02400.32X329.90.7421X3462R2377.32X302.06EETI/ILITEKclick here
19.5"8007195V02450.5X259.761.1473.5X281.263R16433.5X241.26ILITEKclick here
21.5"8008215V02496.42X287.430.7524X321.83R16477.6X269.10ILITEKclick here
8160215V02508X303.80.7524X321.81.8R8477.6X269.10EETI/ILITEKclick here
23.6"8010236V02543.84X3160.7537X3493R16523.3X295.2ILITEKclick here
23.8"8012238V01544.03x315.51.1573x3493R16525.5X297ILITEKclick here
27"8014270V02618X355.71.1646X3843R16598X336ILITEKclick here
8245270v01619x3621.1 646x3843R16598X336EETI/ILITEK click here
32"  8016320V02719.7X414.31.1746.7X441.33 R16698.7X393.3ILITEKclick here
8246320V01720.7X420.31.1 746.7X441.3 3 R16 698.7X393.3 EETI/ILITEK click here
43"8018430V02973X561.51.1994.2X587.34R15943.2X531.4ILITEKclick here
55"8021550V011254.6X716.4171.81287.6X758.44R81209.6X680.4

ITLITEK



click here










Customized Solution


We have standard 3.5-55 inch Touch screen.So if our standard one can't fit with your project.We are welcome you to customized own touch screen.If you have any demand ,pls don't hesitate to contact with me.


Custom touchscreen


We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color, touch with water, touch with gloves and so on. If you are interested in, pls click it to watch the video.


special customized





Company Information



Shenzhen Yunlea Electronics Co., Ltd.




  YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have 10+ yrs experiences in medical & industrial & home automation products supply.
  Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.


20181119_134135_007


We have:


- 1. About 5000 m2 factory area
 - 2. 10+ yrs experience in producing touch screen.
 - 3. Cost-effective touch solution
 - 4. Fast delivery of 2-4 weeks for mass production


 - 5. From 1.44'' to 55'' PCAP touch screen with up to 10 points
 - 6. Individual customization of size, style, logo print, AG, AR, AF

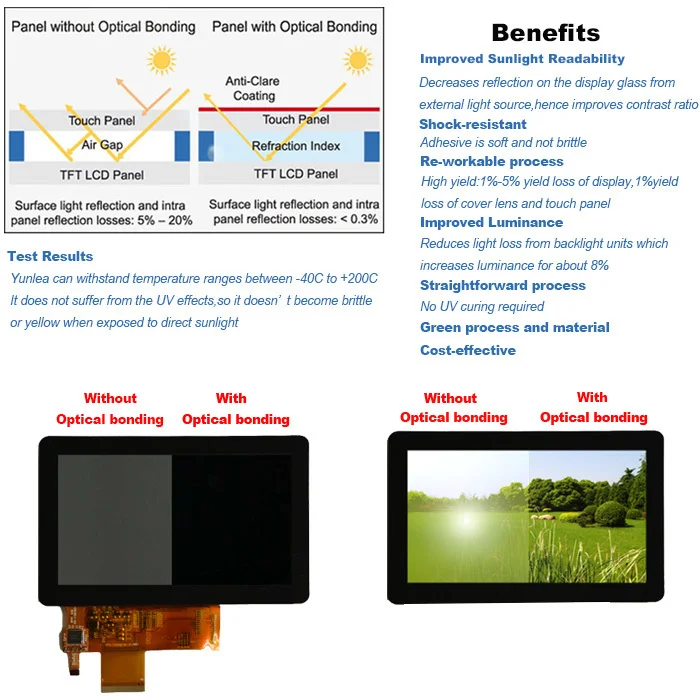

 - 7. Optical bonding of TFT and touch panel by OCA
 - 8. Touch with water/glove
 - 9. Individual cover glass design

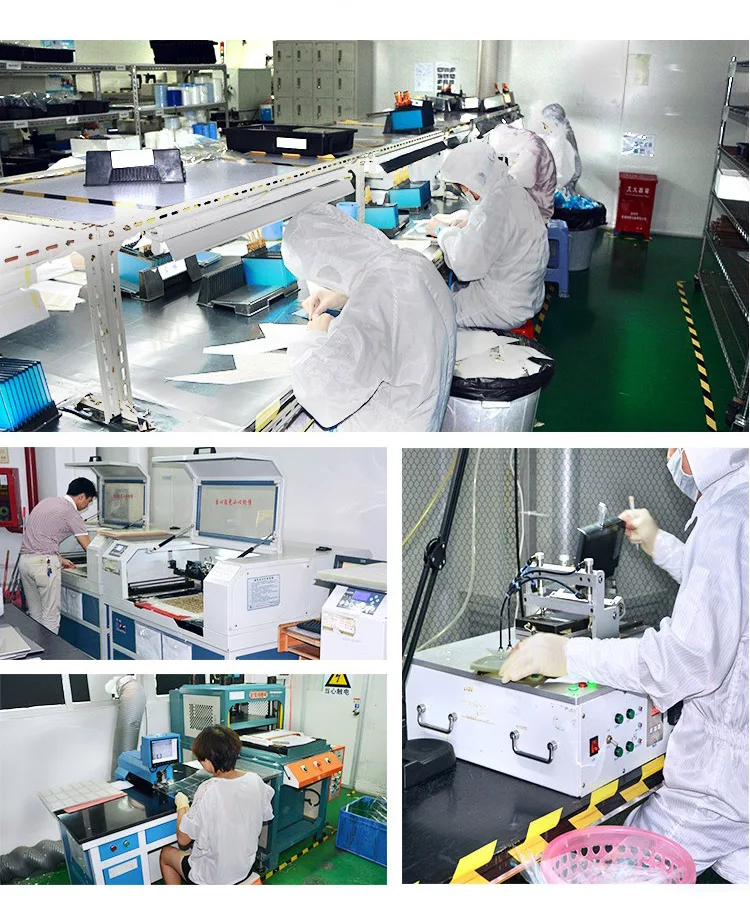

factory


Our client:


If you come to China, welcome to visit our factory. We will show you how touch screen is made.


customer visit









Package & Feedback


Packagefeedback01





FAQ


1.What is your delivery method?
DHL , UPS , FEDEX ,TNT

2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.

5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.

6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
