Sunrise outdoor transparent led display, popular in Middle East and Russia!

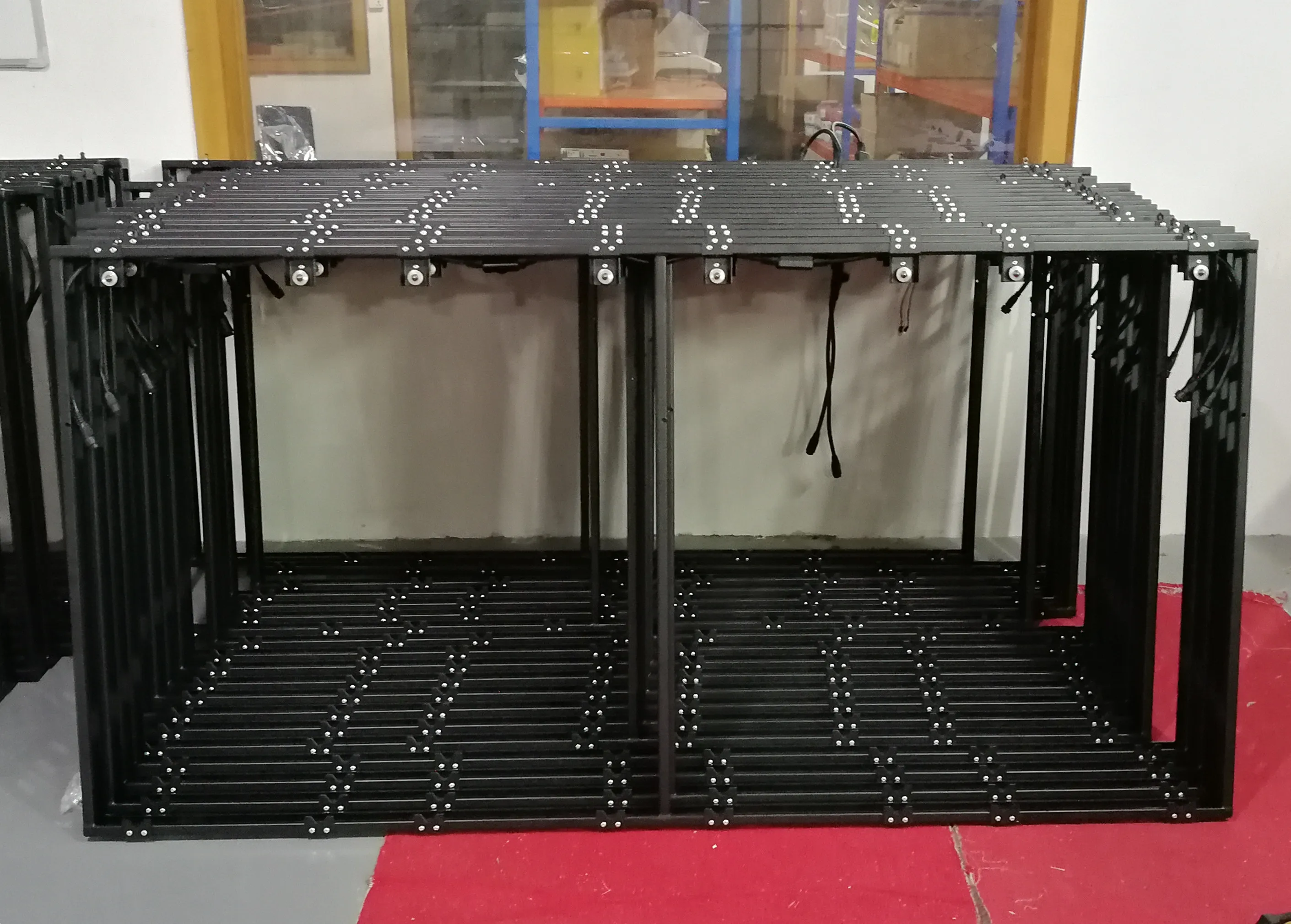

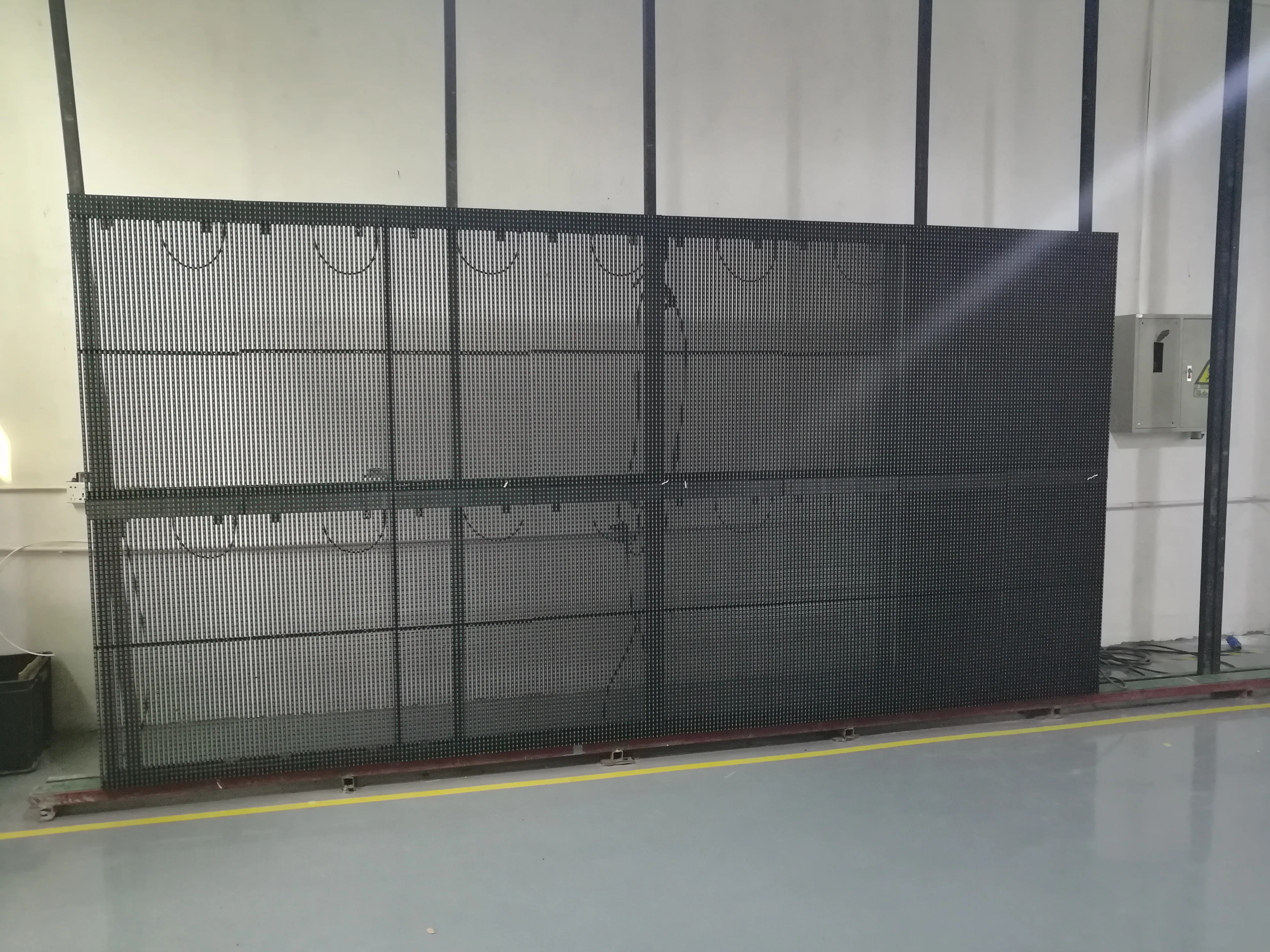

1: The Galaxy mesh strip bar can achieve the disassembling from rear side, and easy to handle rear maintenance. It also can be take out from the front side and achieving the front maintenance.
2: It is adopting the 2-in-1 signal and power combination together method, making structure more neat and beautiful. In the meantime, there is reducing the fail rate.
3: Accurate design hole is producing by antirust and saltproof fog srews fixing, keeping the same distance.
4:The control box is controller and power supply equipments to protect the panel.
It is convenient to mount on the panel rear side and can be fixed with real scene structure.
5: The black masks are excellent contrast rate, also fixed the LED position and keep good viewing angle.
6:According to the viewing distance, the LED design with down direction, achieving the best viewing effect.
ITEM
PARAMETER
Production Series
AT50
AT40
AT30
AT25
Pixels
DIP346RGB
Horizontal Spacing
50mm
50mm
31.25mm
25mm
Vertical Spacing
50mm
25mm
31.25mm
25mm
Resolution
400dot/sqm
800dot/sqm
1024dot/sqm
1600dot/sqm
Gradation
16bits
Brightness
≥6500CD/sqm
≥7000CD/sqm
≥7000CD/sqm
≥7500CD/sqm
Brightness range
5% ~ 100% Without loss of gray
Horizontal Viewing Angle
≥110°
Vertical Viewing Angle
≥60°
Best Viewing distance
40 ~ 700m
35 ~ 650m
30 ~ 600m
20 ~ 500m
Maximum power consumption
500w/sqm
500w/sqm
500w/sqm
500w/sqm
Average power consumption
150w/sqm
150w/sqm
150w/sqm
150w/sqm
Weight
9KG/sqm
10KG/sqm
11KG/sqm
14KG/sqm
Thickness
6cm
Thickness of installation
11.8cm
Refresh rate
3840Hz
Display mode
1920 x 1080 pixels
Lifespan
≥100 thousand hours (11 years)
Hollow rate
80.00%
75.00%
70.00%
60.00%
Protection rating
IP65
Power modules
High conversion efficiency (93%) PFC
Fire performance
Full V0 class flame retardant
ITEM
PARAMETER
Production Series
AT25
AT20
AT15
Pixels
DIP346RGB
Horizontal Spacing
25mm
31.25mm
15.625mm
Vertical Spacing
15.625mm
15.625mm
15.625
Resolution
2560dot/sqm
2048dot/sqm
4096dot/sqm
Gradation
16bits
Brightness
≥8000CD/sqm
≥7500CD/sqm
≥8500CD/sqm
Brightness range
5% ~ 100% Without loss of gray
Horizontal Viewing Angle
≥110°
Vertical Viewing Angle
≥60°
Best Viewing distance
20 ~ 300m
20 ~ 400m
15 ~ 300m
Maximum power consumption
500w/sqm
500w/sqm
800w/sqm
Average power consumption
150w/sqm
150w/sqm
240w/sqm
Weight
13KG/sqm
12KG/sqm
18KG/sqm
Thickness
6cm
Thickness of installation
11.8cm
Refresh rate
3840Hz
Display mode
1920 x 1080 pixels
Lifespan
≥100 thousand hours (11 years)
Hollow rate
60.00%
70.00%
40.00%
Protection rating
IP65
Power modules
High conversion efficiency (93%) PFC
Fire performance
Full V0 class flame retardant
IP65 WATERPROOF AND VO FIREPROOF
Full V0 class flame retardant, even there is fire incident around, the display won't get fired.
Glue filling, to make waterproof and dustproof
Operating temperature: - 40℃ ~ + 70℃, be able to operate both at every cold and hot environment, excellent for Russia and Middle East.
EXCELLENT POWER SUPPLY AND HIGH BRIGHTNESS

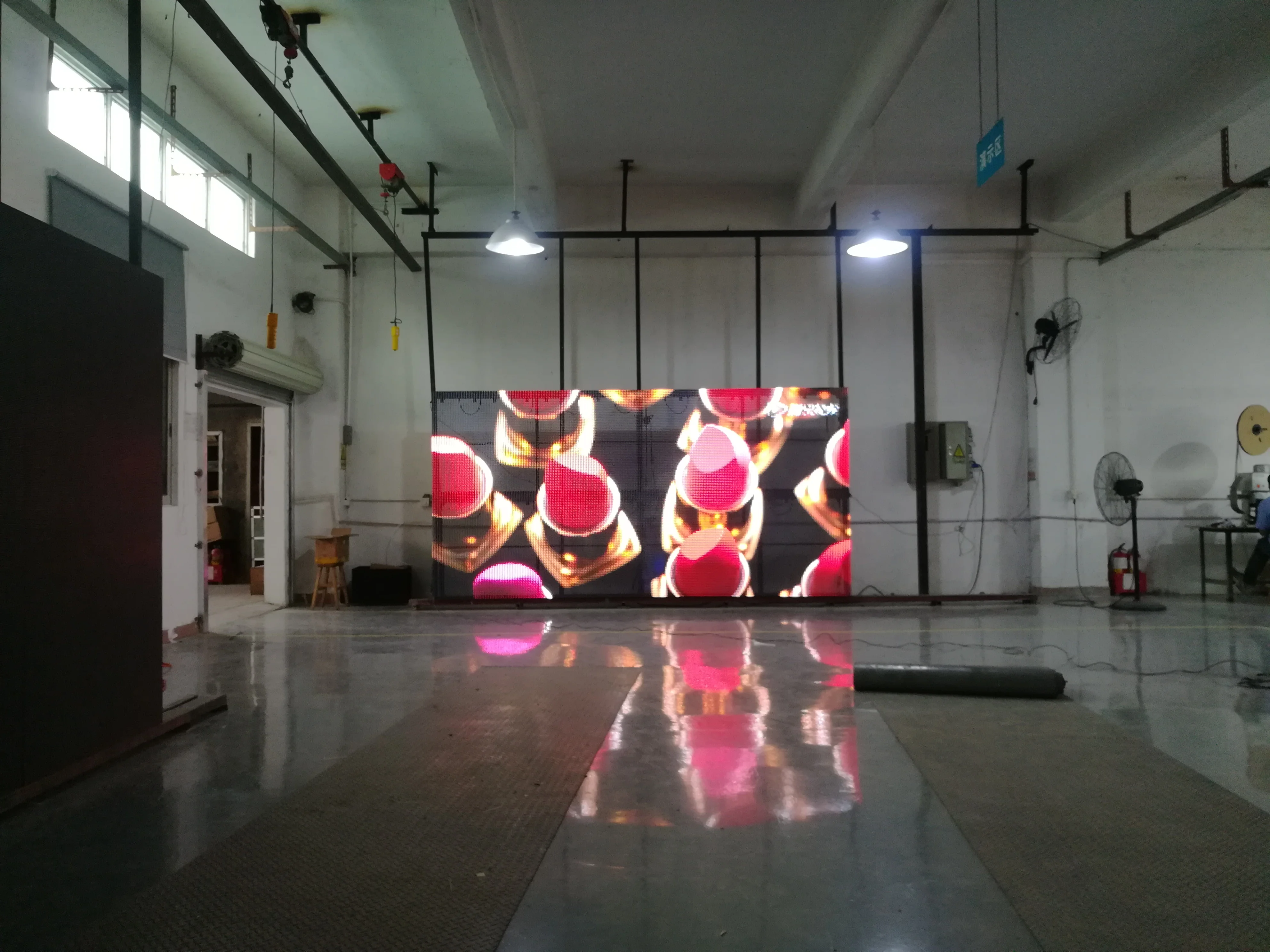

Detailed Images
Meanwell and Greatwall power supply are standard configuration with Sunrise outdoor transparent screen, which are approved by CE, ROHS, CCC, CB and UL. Quality is very safe and stable, while other suppliers are Rong Electric or G-Energy,
which have no certificates or less certificates. That's no good quality, break down wasily.
With two meanwell power suppliers in one panel and static scan mode, brightness is over 8500CD/sqm.
People can see it clearly in direct sunlight, while some suppliers use other not famous power and 1/2 or sp scan mode.
Brightness is only 6000CD/sqm, people can not see clearly under strong sunlight, especially when the time is 11:00 am to 3:00 pm.

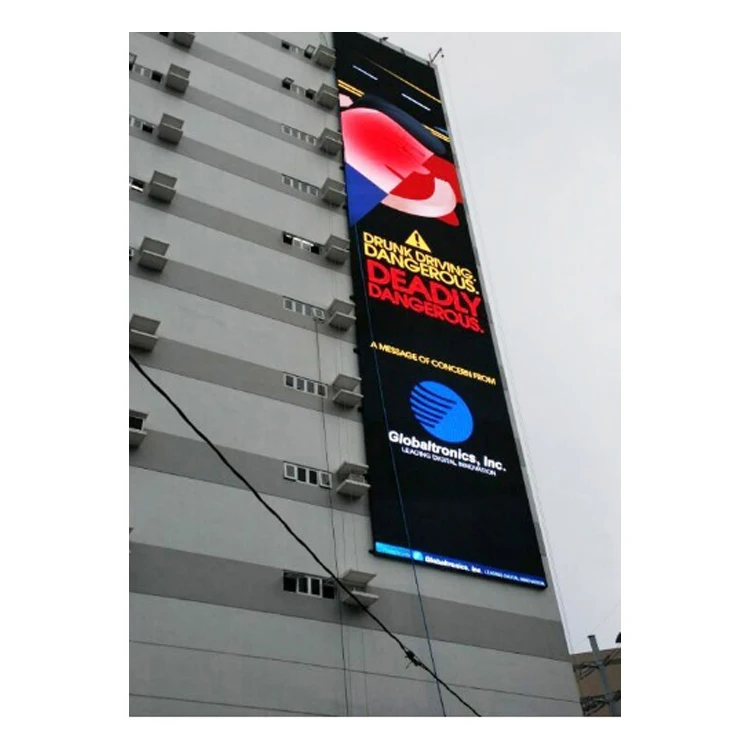

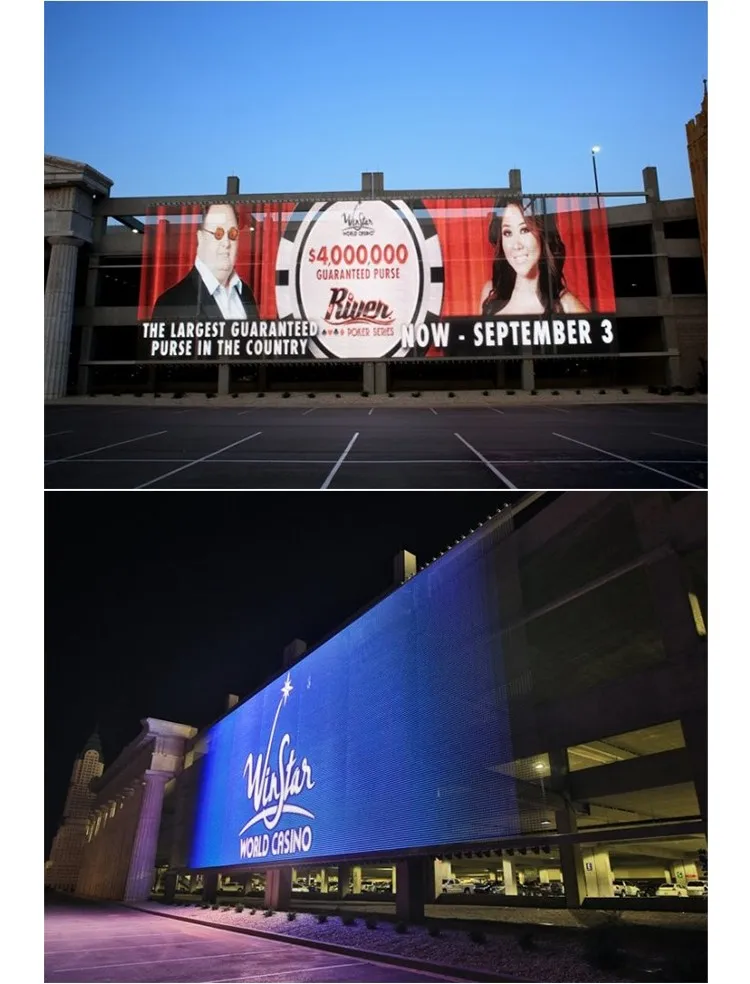

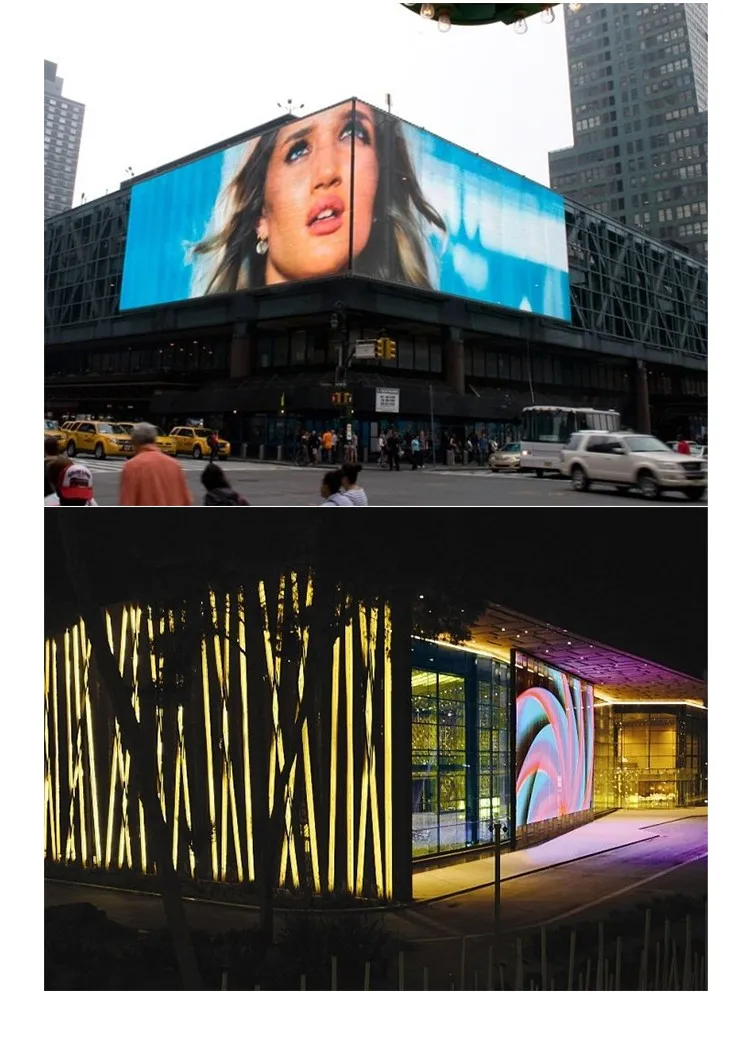

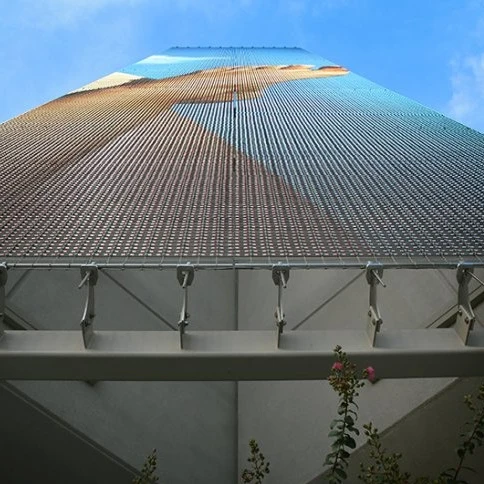

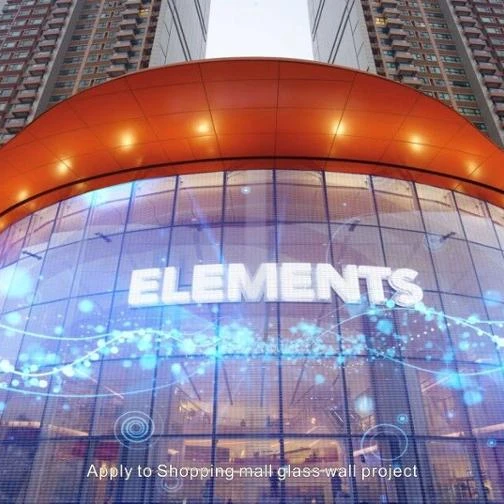

SUCCESSFUL CASE
Packing & Delivery
There are 2 normal package of Outdoor building 500sqm P15.625/P31.25 LED display with 7500CD/sqm brightness screen.
1.Two panels in a carton, then 10 cartons in a pallet. (Suggested ship by container)
2.Twenty panels in a wooden cases.
Welcome to contact melody with more informations!
Skype: hmx0011 and whatsapp/wechat: 0086 136 4093 8256.
Our Company
Member of Qianhai Equity Exchange About us Shenzhen Sunrise Opto Electronic Technology Co.,Ltd., a professional LED display manufacturer located in Shenzhen,China over 12 years, with a plant over 6,000 square meters. Sunrise is one of the High Technology enterprises with design, R&D,manufacture and marketing team.We have highly qualified R&D staff, numbers of experienced workers, and well trained marketing team.
Our company is ISO9001, TUV , CE, ROHS , FCC approved . We sincerely hope to establish the cooperation & business partner relationship with you in the near future.And it's our great pleasure to invite you to visit our factory for evaluation.
FAQ
Q1: What's the highest brightness when I use in Middle Eats or Russia?
P15.625/P15.625 highest brightness is 8500 to 10000 CD/㎡.
It is not only help with the clear performance even when there is strong sunshine at 12:00am to 14:00pm,
the audiences still see clear in outdoor environment.
Q2: How do I adjust the brightness when there is day or night?
There can be supplied with the light sensor, it can be automatically adjust the brightness when there is day or night.
Q3: Is that complicate for installation?
The frame is simple and light structure frame. A Single person also can finish the installation easily.
Q4: What's the power consumption?
It is 150W/㎡ of the outdoor transparent led display. We don't need to spend high electricity cost.
It is 336% power saving for whole big project such as 300 ㎡.
Q5: How is maintenance?
If there is 1 LED out, then we just take out of one single led bar and change with the new one.
No need to return back the whole module. It is not only save the time but also save the freight.
