Product Overview
Description
Dry-mix Concrete Gunite equipment Shotcrete Machine for Building Material
Product Description

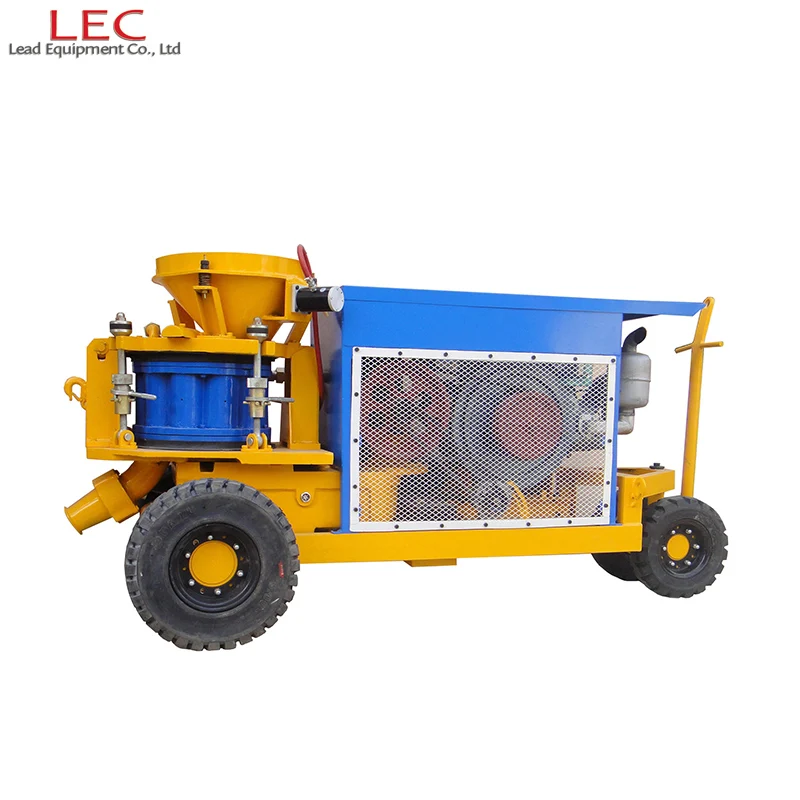

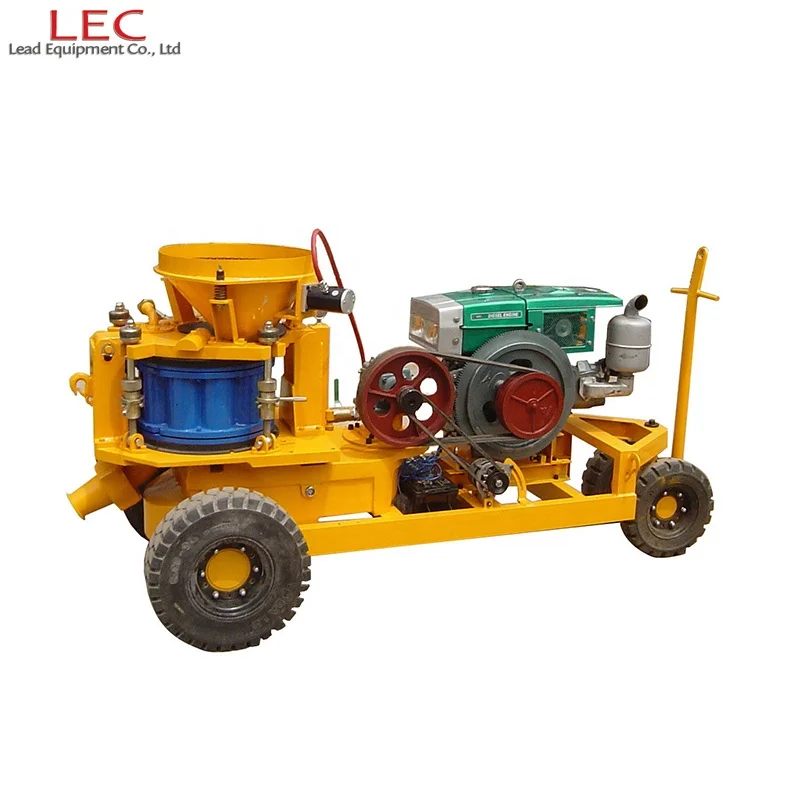

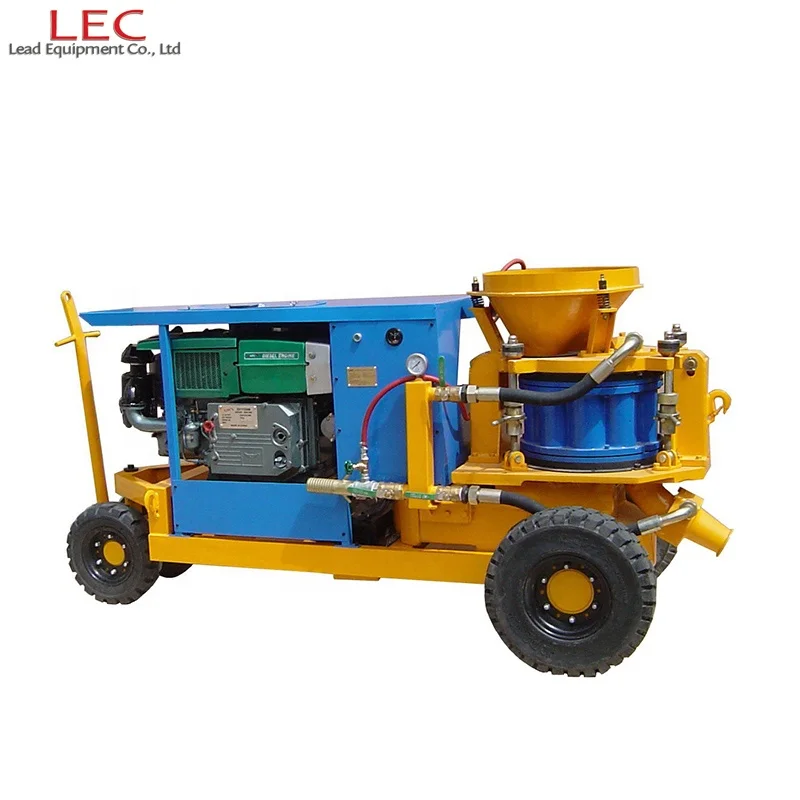

LZ-9D diesel engine type shotcrete gunite machine description:
LZ-9D is LEC large-sized shotcrete machine for the spraying process with Diesel Engine driven.
LZ-9D can be used for large-section tunnel building, mine, etc.
LZ-9D is verified by ISO9001:2008 and CE Certification.
LZ-9D is LEC large-sized shotcrete machine for the spraying process with Diesel Engine driven.
LZ-9D can be used for large-section tunnel building, mine, etc.
LZ-9D is verified by ISO9001:2008 and CE Certification.
Technical parameters
Specification (with Diesel motor drive): | ||
Output Capacity | 6-9m3 /h | |
Max. Horizontal Conveying Distance | 200m | |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 | |
Max. Aggregate Size | Dia.20 mm | |
Conveying Hose Inner Diameter | Dia.64 mm | |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) | |
Air Consumption | 10~12m3/min(357-430CFM) | |
Material Charging Height | 1.1m | |
Rotor Speed | 7.5-11r/min | |
Diesel Engine | 20hp,2200rpm, Radiator Cooling | |
Diesel Engine Starting | Electric start | |
Clutch Type in Diesel Engine | Automatic Clutch | |
Air Vibrator | OR100,Oli | |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m | |
Net Weight | 950kg | |
Related products
Advantage
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
