Customized city bus route stop announcement systems rolling text digital signage LED panel board display
- Category: >>>
- Supplier: Shenzhen Zhongzhigu Electronics Technology Co. Ltd.
Share on (62217708394):
Product Overview
Description
Product Description
Features of Running LED display board for city bus route stop announcement systems
1. Easy to use. The message can be updated via U flash drive.
2. Support English, numbers displaying
3. Adopt Taiwan Epistar 12mil LED chip with high brightness, little heat and long life time.
4. The brightness is automatically controlled, it will save more energy and make the life time longer.
5. The software and hardware are both developed by ourself.
Specifications of bus LED destination display
| No. | Item | Specification |
| 1 | Model | EL-0896 |
| 2 | Type of Media | SMD3528 |
| 3 | LED color | Red for 08*96dot |
| 4 | Wavelength | 592 to 595 |
| 5 | Pitch | 8mm horizontal,10mm vertical |
| 6 | Pixel | 08*96 dots |
| 7 | Character Height | 80mm |
| 8 | Display Area Dimensions | 768mm(W)*80mm(H) approx. |
| 9 | Enclosure Dimensions | 790mm(H) *100mm(D) approx. |
| 10 | View distance/Viewing Angle | 100m;120°(H)/120°(V) |
| 11 | Information to be displayed | destination,route,station, other service message |
| 12 | Languages Supported | English/Spanish/Portuguese, other regional language |
| 13 | Brightness | Inbuilt light sensor,auto adjusted. Also 4class set,25%,50%,75%,100% |
| 14 | Data Interface | Wireless or RS485 |
| 15 | Store | 16 M |
| 16 | Relative Humidity Level | No test yet |
| 17 | UV Resistant | yes |
| 18 | Operating Voltage Range | 24(9~36VDC) |
| 19 | Protection Rating | IP54 |
| 20 | Acceptable temperature range | "-40℃ to +80℃ |
| 21 | Cabinet | Aluminium |
| 22 | Weight | 0.8KG |
| 23 | Vibration | 100% vibration test |
| 24 | Certification | E-MARK, ISO9001,CE,AIS in india |
| 25 | Warranty | 5years |

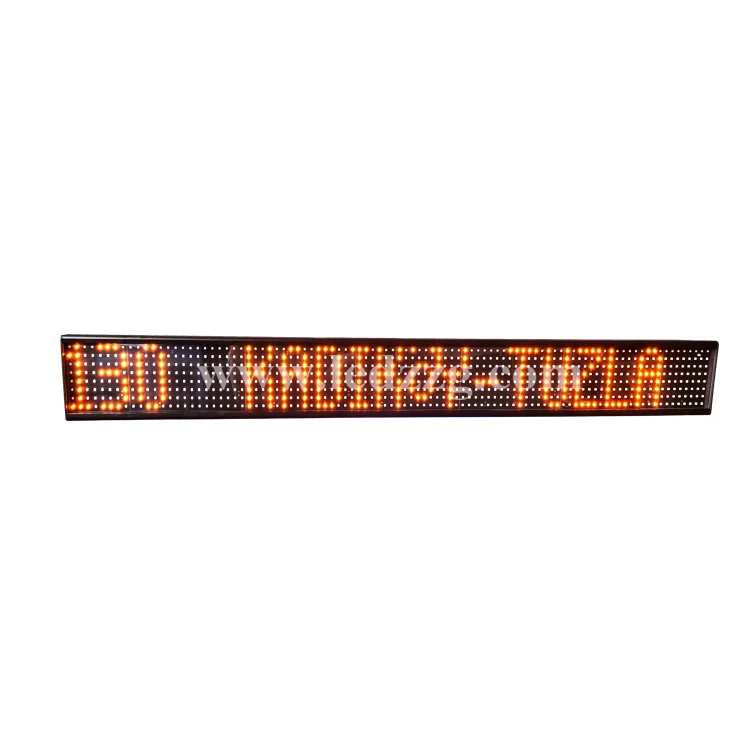

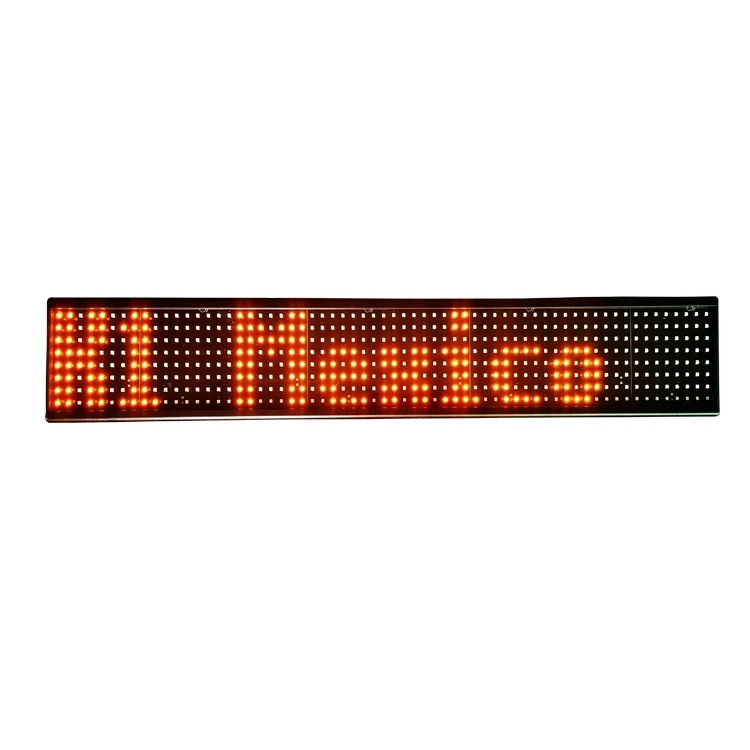

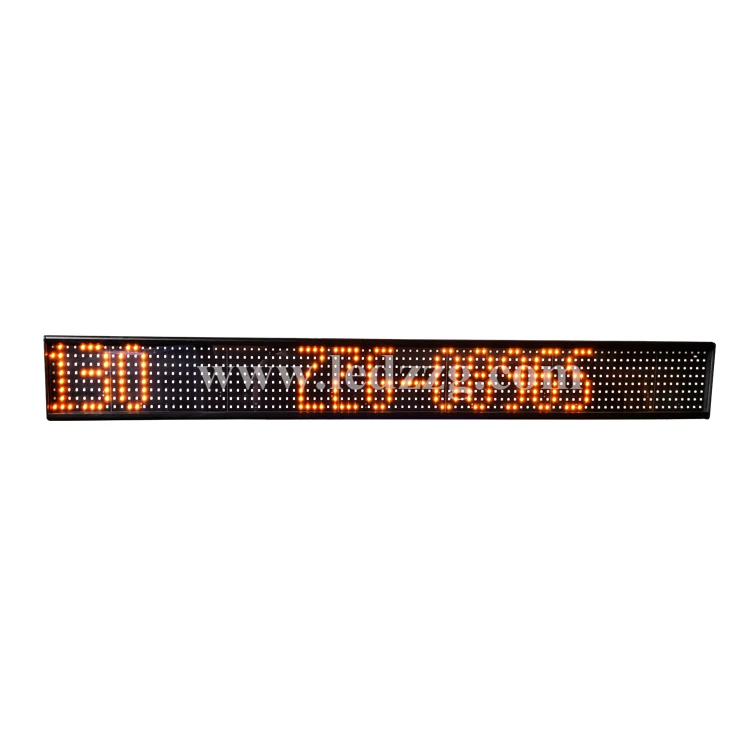

Product Images
Company Information
Shenzhen Zhongzhigu Eliectronic Technology Co., Ltd was established in 2009, concentrated on research & development as well as production of bus announcement system, bus LED display and parking lot LED display. We have many engineers experienced in ARM, FPGA and other embedded system. Adhering to the spirite of "concentration & innovation", we aim to provide first-class products in the world. We are not eager to become the largest, but to be the best on the market.
With years of development, we have great competitive advantages in terms of quality and price. Complete and reliable supply chain has been built, which is footstone of quality assurance and steady-state growth of company. Meanwhile, we groped and built a complete quality test system after years of supplying products to America, Europe, bus factories in South American, Southeast Asia, India, Africa etc. Our products are approved of CE certification and AIS certification etc.
Artisan spirit of excellence, with this faith, we are making tireless efforts and perseverance to make products excelsior and passing the torch to do one thing---intelligent bus stop announcer and LED display system.
Our Services
1. Free 4-year-warranty
2. Free software, user-friendly
Packaging & Shipping
FAQ
Q1: How long is the lead time usually?
A1: The lead time is usually 10 to 15 days after the order is placed.
Q2: What payment terms do you accept?
A2: T/T payment, West Union and PayPal are available.
Q3: Can you make OEM display?
A3: Yes, of cause we are able to do it. You just need to tell us your own idea, then we will do the rest.
Q4: Are the contents that showing on the LED display programable?
A4: Yes, we will offer soft ware and manuals for you. And then you can program it by yourselves.
Q5: Are you a factory or a trading company?
A5: We are a factory located at Shenzhen, China
For more details about Running LED display board for city bus route stop announcement systems. Perfect solution for bus, please feel free to contact us
