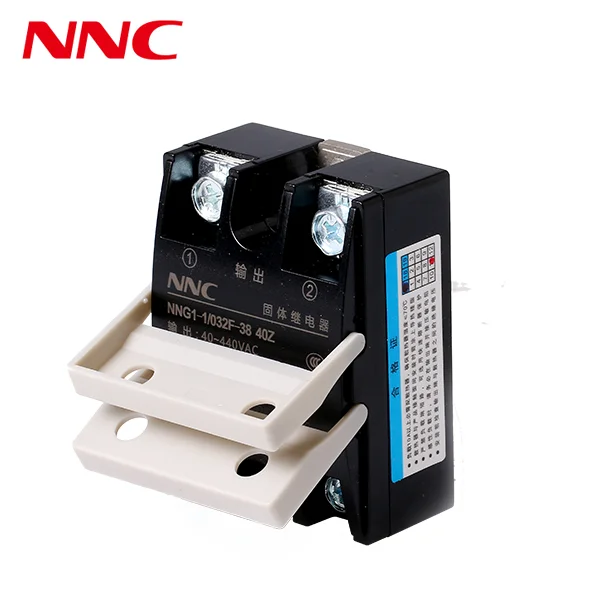

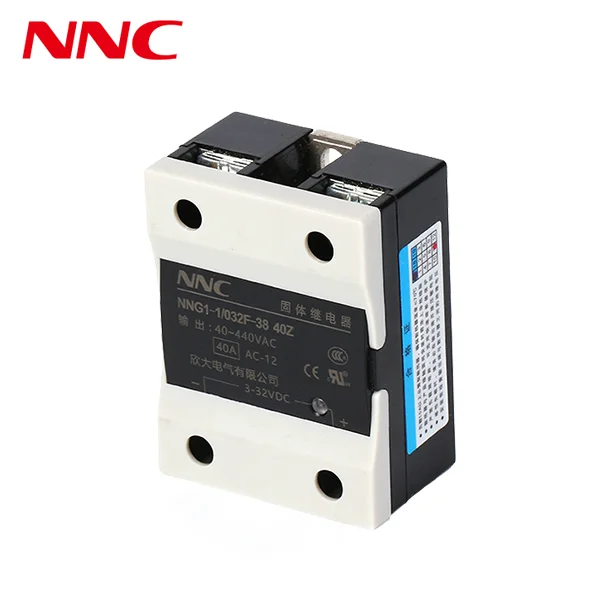

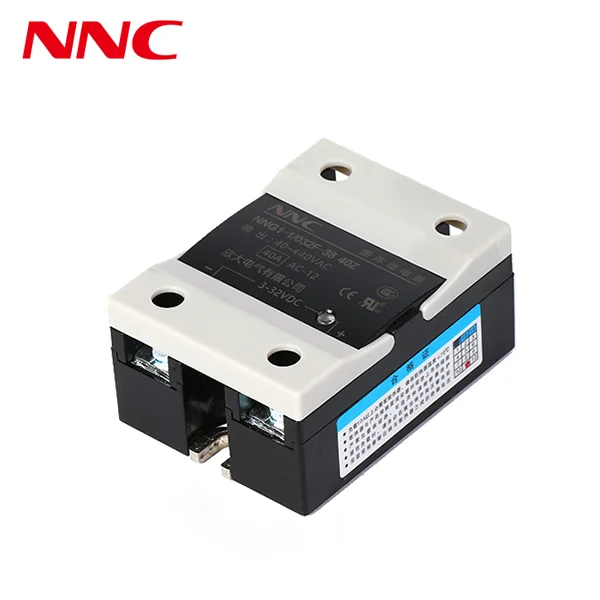

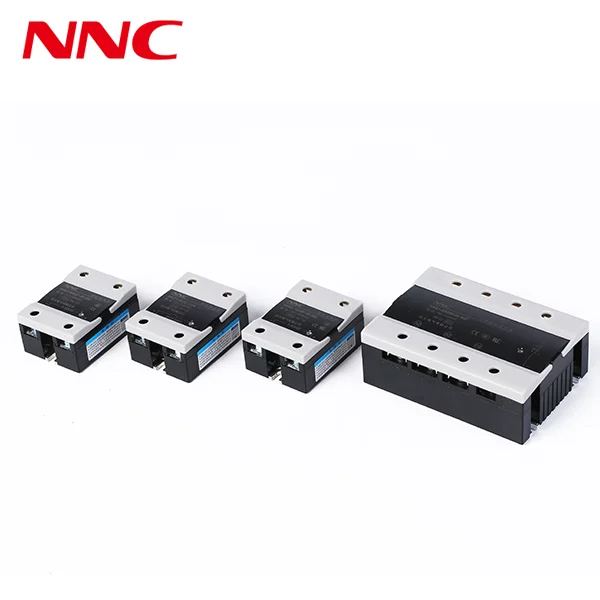

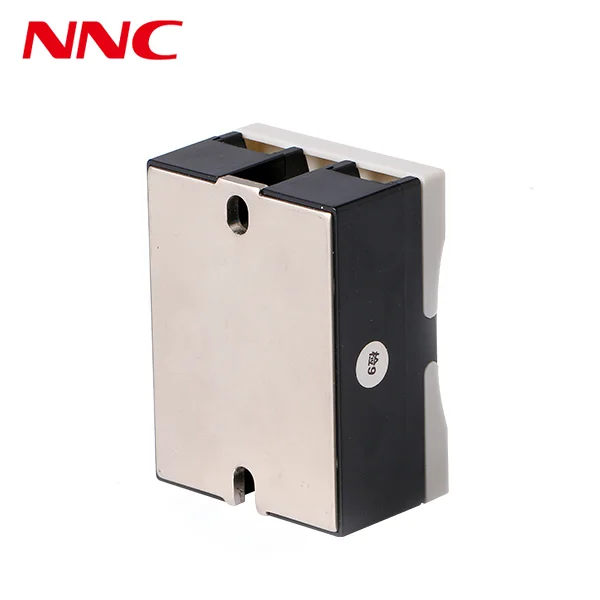

NNC Clion ssr NNG1 1 032F 22,38 40AMP DC to AC solid state control relay
- Category: Relays >>>
- Supplier: Clion Electric Co. Ltd.
Share on (62217765641):
Product Overview
Description

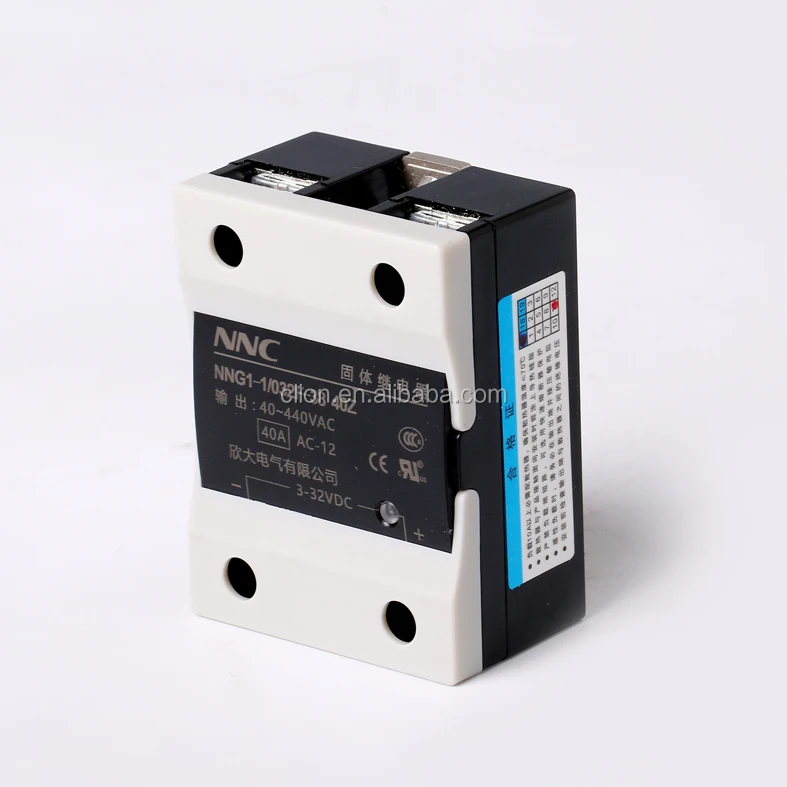

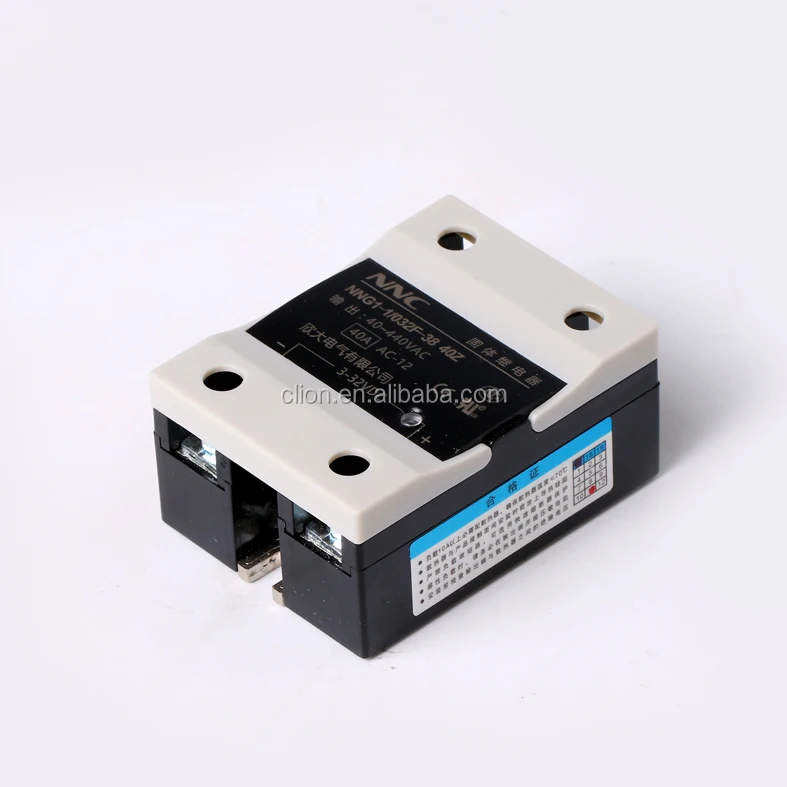

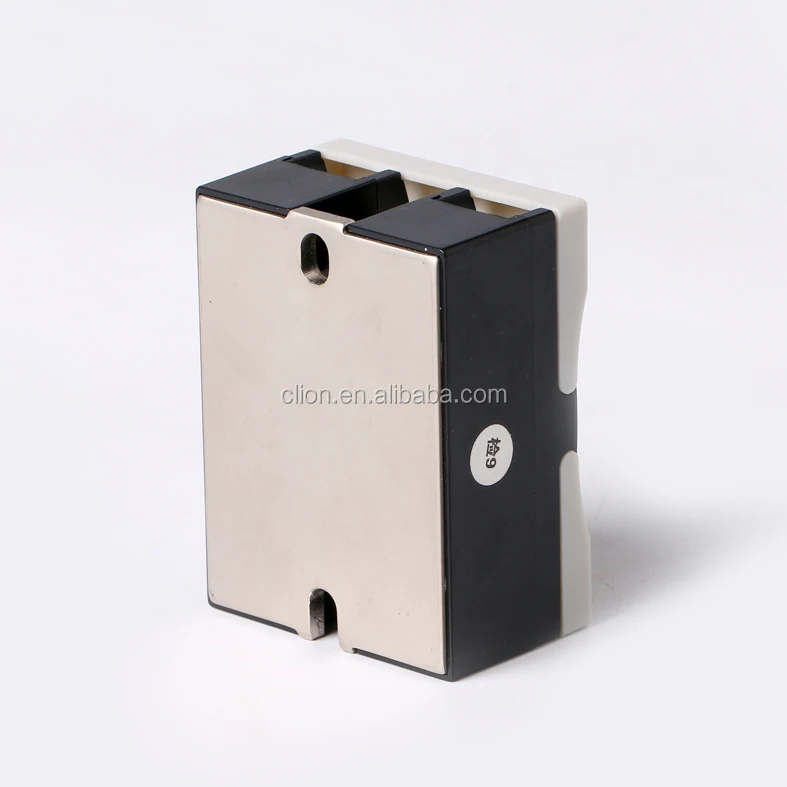

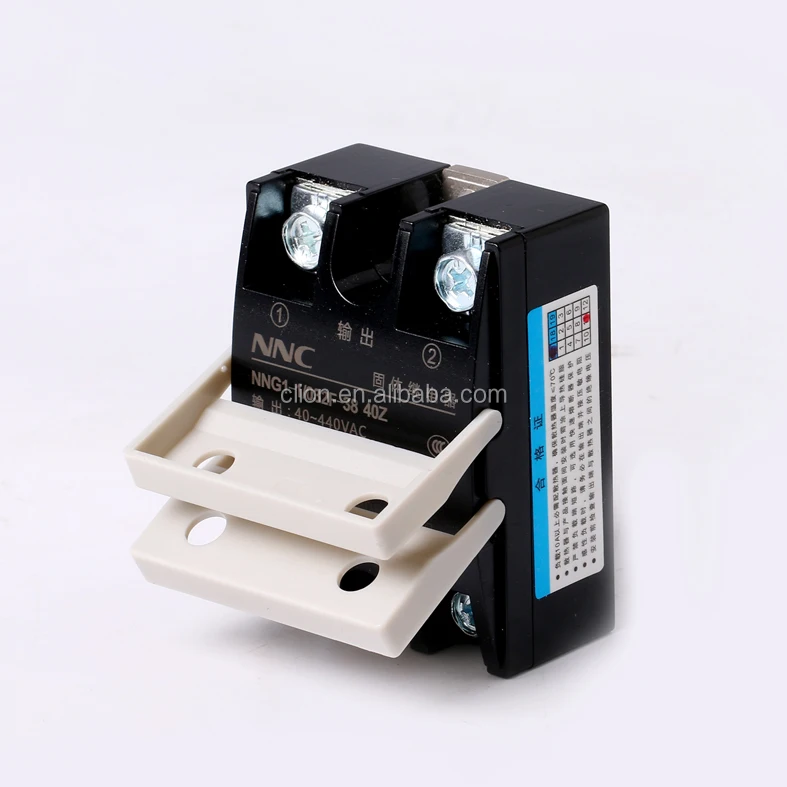

Product display
Product display

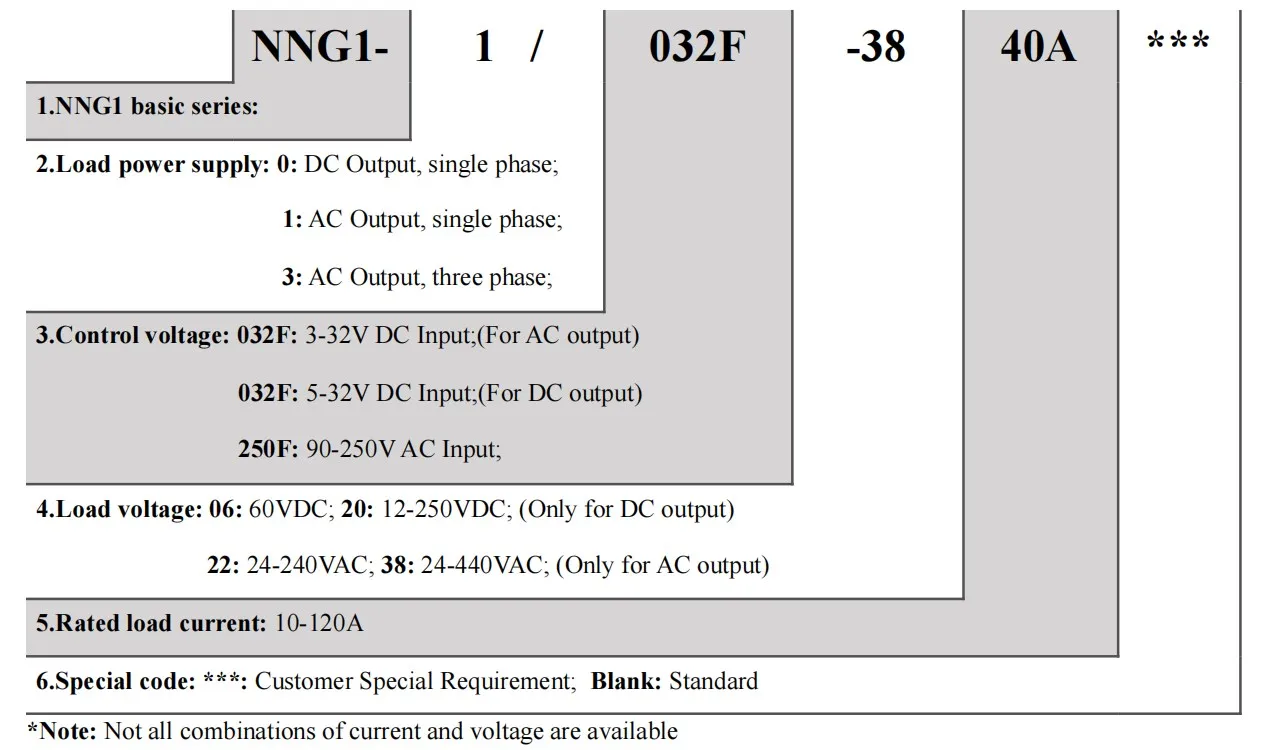

Specification of NNG1-1/032F-22,38 DC-AC 10-120A single phase solid state relay
| Control voltage | 032:3-32VDC |
| Control current | 6-25mA |
| Connected voltage | 3VDC |
| Turn off voltage | 1VDC |
| Reverse voltage | 32VDC |
| Load voltage | 22:24-240VAC 38:40-440VAC |
| Load current | 10,15,20,25,30,40,60,80,100,120A |
| Transient voltage | 22:600VAC 38:900 VAC |
| On-state voltage drop | AC:≤1.6VAC |
| On-off time | AC:≤10mS |
| Off-state leakage current | AC:≤10mA |
| Dielectric withstand voltage | ≥2500VAC |
| Insulation resistance | Testing in 500MΩ,500VDC |
| Environmental temperature | -30℃~80℃ |
| Installation style | Screw installation |
| Relay weight | 10≈90g 40A≈95G 80A≈100G |
| Dimension | 60×45×27.5mm |
| Notice | When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be cooled by the air fan or water. |
Related products
Related products
Company profile
Company profile
Clion Electric Co.,Ltd,established in 2003,is one of the leading industrial control component manufacturers in China.We provide a wide variety of industrial control components including:numerous types of relays (such as time relay, electromagnetic relay, solid state relay etc.),sensors,rotary encoders,switches (micro switch,limit switch,push button switch etc.) and other distribution control products,such as surge protective device,dual power automatic transfer switches,circuit breakers,etc.
We imported the most advanced production technology and equipment from around the world. We provide high quality products with the lowest prices, and now our annual output reach 80million .Under the ISO9001:2000 ,ISO 14001:2004,OHSAS18001 management system, Clion has obtained CCC,CQC,CE,UL and TUV certificates for our products which passed the ROHS testing.Due to the product quality,as well as excellent customer service,the products are sold well all over the mainland China and exported to the country as the west,the middle east and the southeast Asia .
To achieve the sustainable development in the increasingly fierce global market, Clion will insist on the management idea:Integrity,Beyond, to provide the high cost performance product, superior after-sale service and rapid delivery to meet the requirement of all the worldwide customers.
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
