LINGQIAO 450T Hydraulic Hollow Cylinder Jack, 200 Ton Double Acting Piston Electric Jack
- Category: >>>
- Supplier: Liuzhou Lingqiao Prestressed Machinery Co. Ltd.
Share on (62218065873):
Product Overview
Description
Product Description

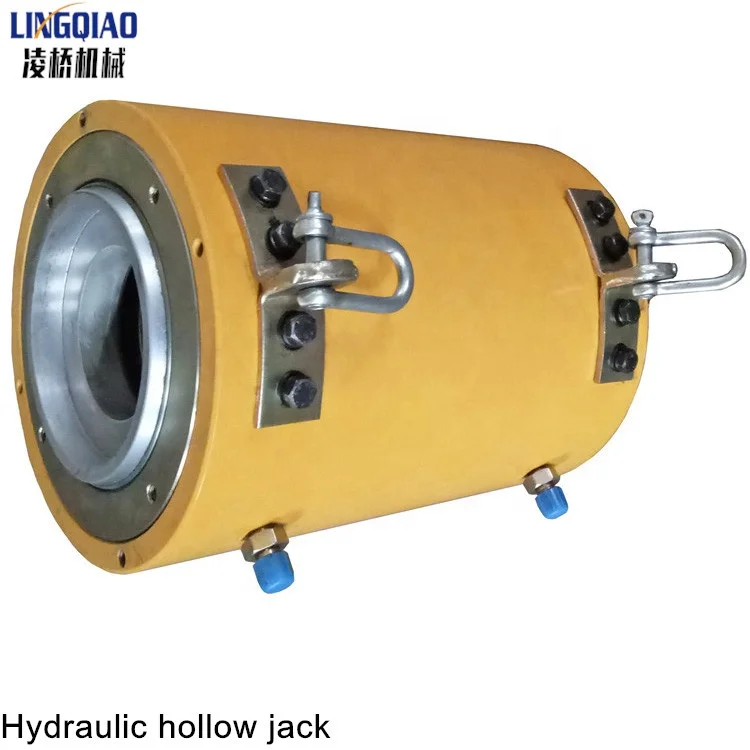

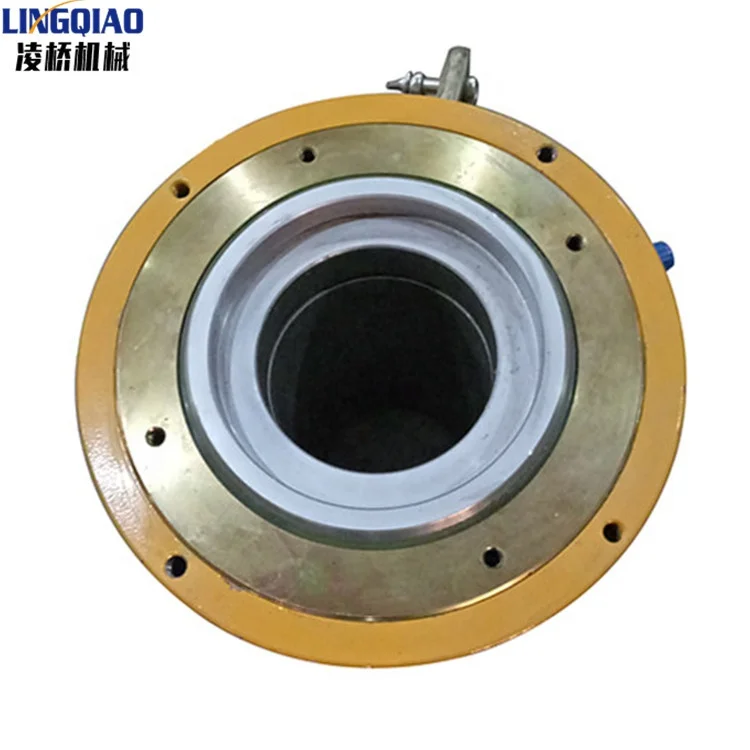

450T Hydraulic Hollow Cylinder Hydraulic Jack Hydraulic Hollow Plunger 200mm
Production Line and Flow Chart

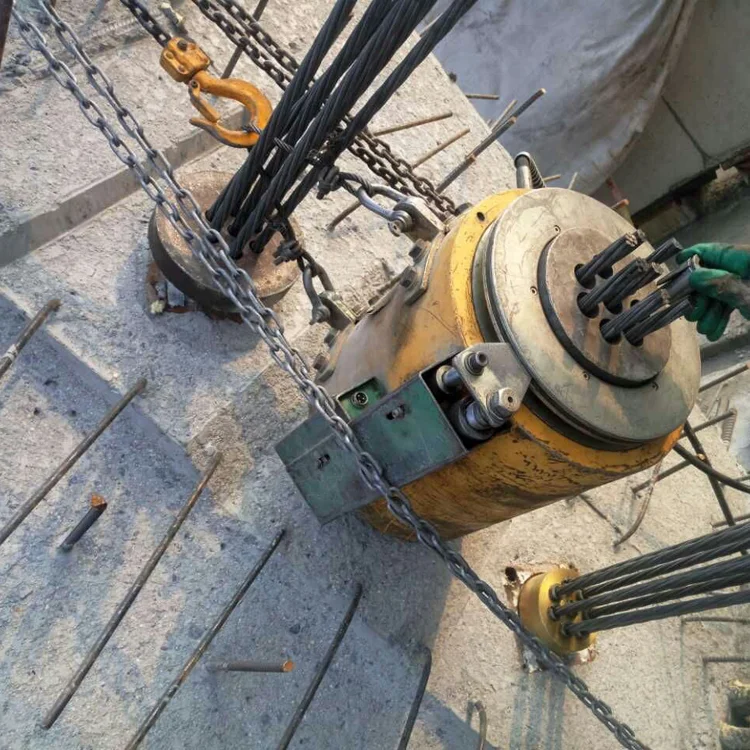

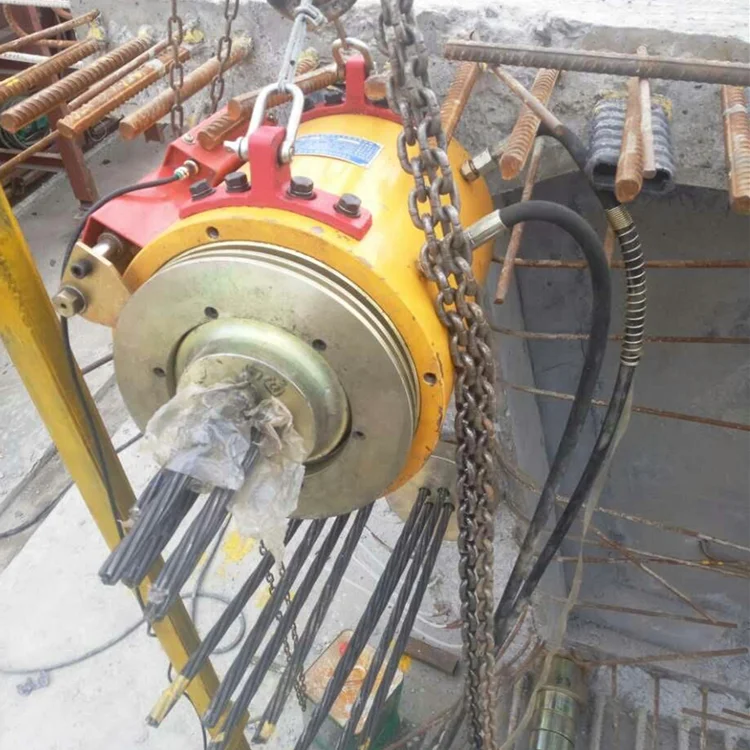

1. Tension Jack 450 ton hydraulic hollow jack for Post tension Mainly used in to tensioning the pc strands/steell wire of the bridge construction.
2. General tonnage of the jacks is based on the anchor's holes to match use .
3. With the electric lift hydraulic jack together use the complete set equipment : anchorage, Electric oil pump,Mixer, Grouting machine,push machine for pc strand/ steel wire .

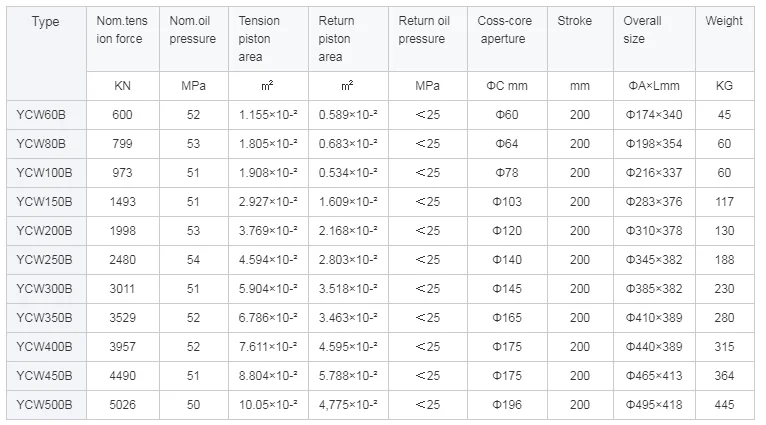

4. Our hydraulic jack tonnage is "70-650 tons, anchor hole is: 2-32 holes. Oil pump is: 3-7.5 kilowatts, the other requirements we can customize.

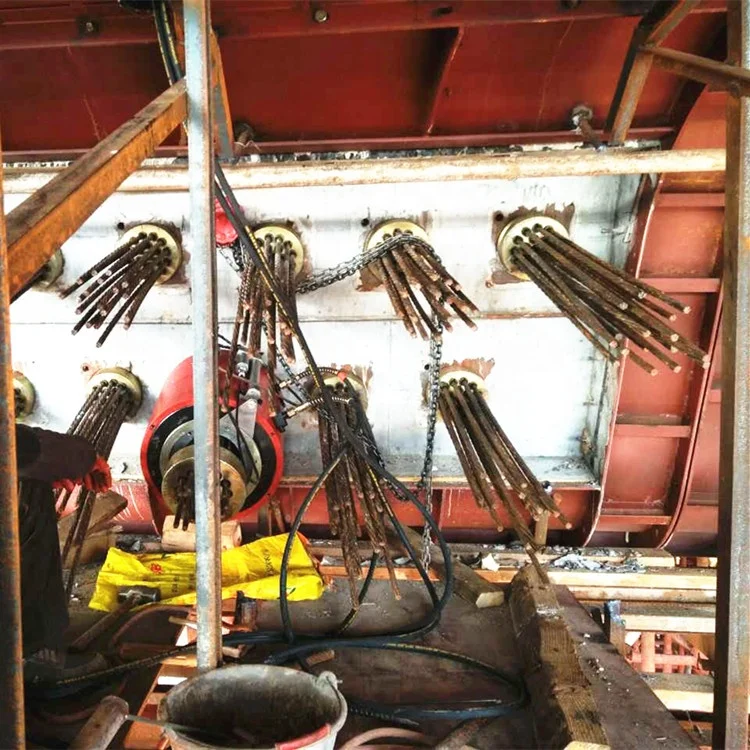

5. The device can be used widely in post-tensioning operation for immense constructions, prestressed concrete bridges, ground anchorage, marine constructions, foundation anchorage,etc
*Operating principle
The oil cylinder ,heading cover(adjusting nut) ,end cover(hold-down ring), front sealing plate,back sealing plate of this jack connect with cross-core socket to form a "motionless body", and the piston of the jack is "motion body", when the hydraulic oil pushes the "motion body" to the right, it begins to tension; When the hydraulic oil pushes the motion body to the left, it is the piston-return after the tension.
2. General tonnage of the jacks is based on the anchor's holes to match use .
3. With the electric lift hydraulic jack together use the complete set equipment : anchorage, Electric oil pump,Mixer, Grouting machine,push machine for pc strand/ steel wire .
4. Our hydraulic jack tonnage is "70-650 tons, anchor hole is: 2-32 holes. Oil pump is: 3-7.5 kilowatts, the other requirements we can customize.
5. The device can be used widely in post-tensioning operation for immense constructions, prestressed concrete bridges, ground anchorage, marine constructions, foundation anchorage,etc
*Operating principle
The oil cylinder ,heading cover(adjusting nut) ,end cover(hold-down ring), front sealing plate,back sealing plate of this jack connect with cross-core socket to form a "motionless body", and the piston of the jack is "motion body", when the hydraulic oil pushes the "motion body" to the right, it begins to tension; When the hydraulic oil pushes the motion body to the left, it is the piston-return after the tension.
Construction and range of application
Certifications
Packing & Delivery
FAQ
Q :Will are there calibration certificate of the jack?
A :Our Jack are calibrated by China authority,is our China standard.But please kindly confirm you need.
Q :What can I get the anchorage?
A :If you need the anchorage based on your drawing,just kindly provide the drawing for our check before producing.and we have 12.7mm(0.5") and 15.24mm(0.6") types of wedge.
Q :What is your term of delivery?
A :We accept EXW, FOB Shenzhen,FOB Guangzhou , CIF,DDU.You can choosethe one which is the most convenient or cost effective for you.The DDU is often delivery by express.
Q :What about the lead time for the mass production?
A: We often arrange our product within 7 working days .But h onestly, it depends on the order quantity and the season you place the order.
Related Products
Company Profile
Liuzhou Lingqiao Prestressed Force Machinery Co., Ltd. is a prestressed product research and development, equipment, anchor production, construction as one of professional enterprises.
Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. Our company is strong in technology, with a number of years in prestressing anchorage machinery professional and technical personnel, to provide users with inexpensive high-quality products and good after-sales service and professional technical advice.
We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
