Rock wool Sandwich Wall Panel Price In Myanmar

Product Overview

Description

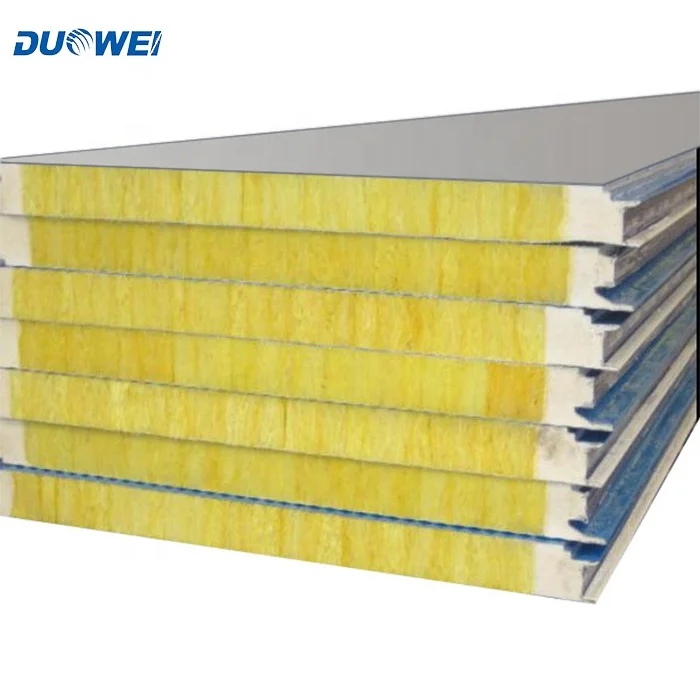

DUOWEl new model fireproof rockwool/glasswool sandwich panel is recombined into a beautiful, flat, and tough building board by choosing two layers of high-quality color coated steel sheets or other precisely profiled metal sheets as its faceplates, rotating the stripped rockwool/glasswool 90 degrees after roll forming (make the fibers vertical to the upper and lower steel sheets) and strongly binding high-quality rockwool/ glasswool with the metal faceplates using high-strength, high-adhesion, high-fire-prevention binder. Excellent fire prevention, thermal insulation, environment protection and other characteristics of the formed boards provide a best choice for industrial building envelope system.







Technical parameters of DUOWEI new model fireproof rockwool sandwich panel (The values in the following table is calculated on the basis of rockwool bulk weight of 120kg/m3,0.6mm outer steel sheet and 0.5mm inner steel sheet.)
Allowable vertical load and thermal conductivity of DUOWEI new model fireproof rockwool sandwich wall panel (allowable deflection f≤L/200)
S(mm)	W/m2k	G(kg)	P=KN/m2	0.60	0.80	1.00	1.20	1.50
50	0.75	15.53	L(m)	3.66	3.13	2.75	2.46	2.12
75	0.53	18.37	L(m)	4.90	4.22	3.73	3.35	2.91
100	0.41	21.21	L(m)	5.99	5.17	4.58	4.12	3.59
150	0.31	26.88	L(m)	7.82	6.75	5.98	5.37	4.68
Allowable vertical load and thermal conductivity of DUOWEI new model fireproof rockwool sandwich wall panel (allowable deflection f≤L/240)
S(mm)	W/m2k	G(kg)	P=KN/m2	0.60	0.80	1.00	1.20	1.50
50	0.75	15.74	L(m)	3.78	3.31	2.98	2.71	2.41
75	0.53	18.68	L(m)	4.83	4.21	3.76	3.42	3.01
100	0.41	21.62	L(m)	5.77	5.02	4.47	4.04	3.55
150	0.31	27.51	L(m)	7.53	6.54	5.82	5.26	4.61
