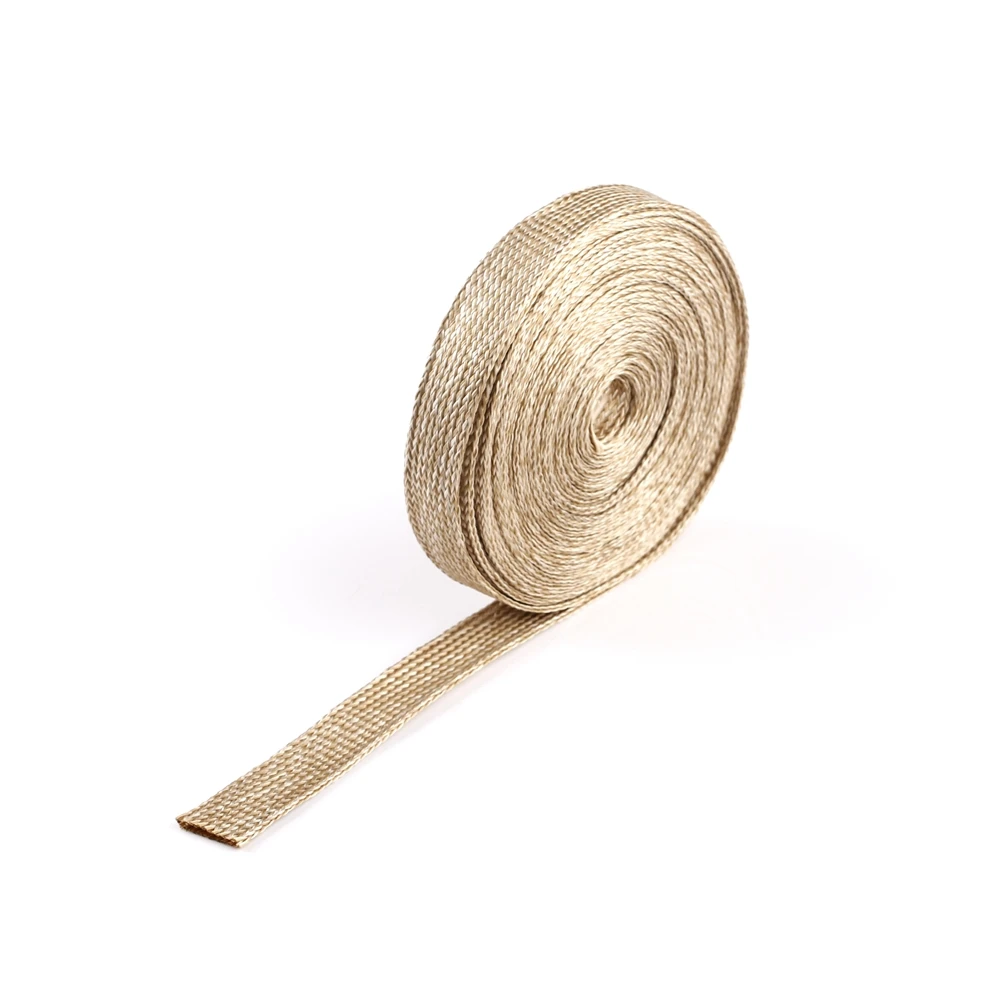

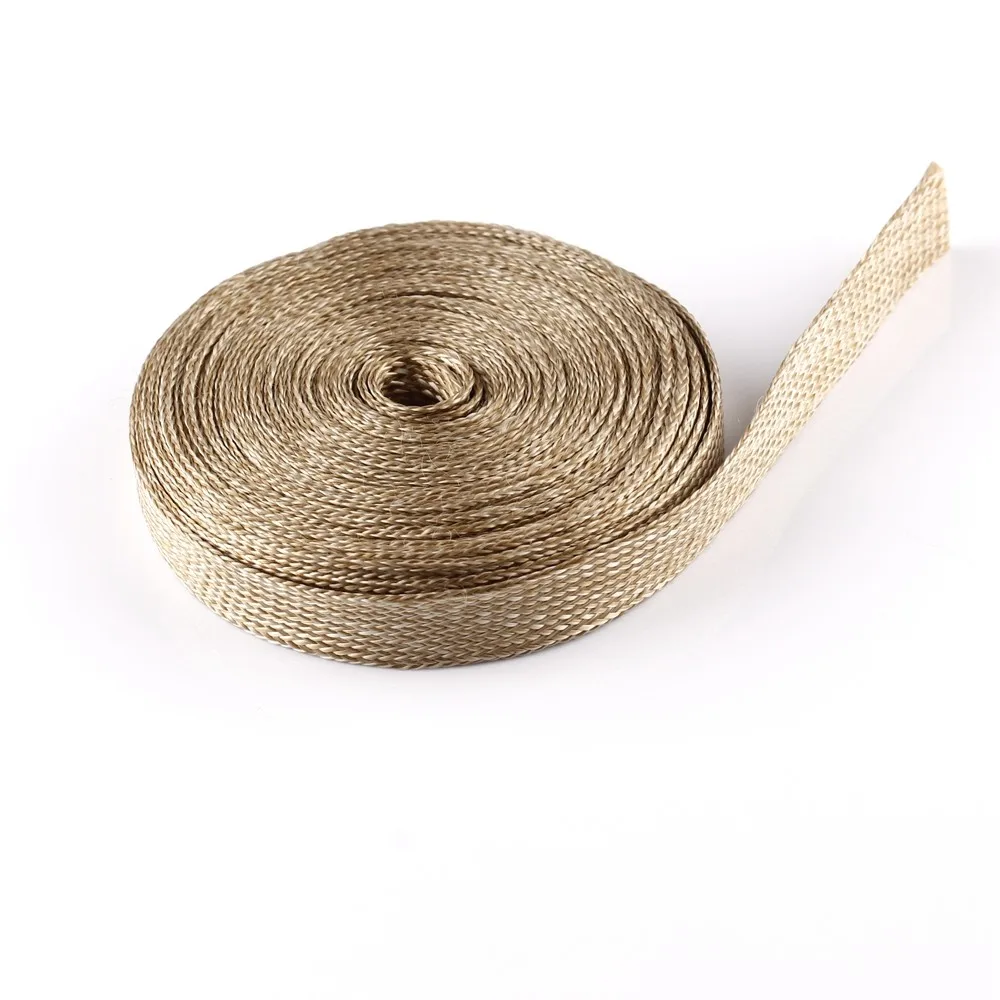

  • 13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving
13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving
13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving
13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving
13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving

13mm High Temperature and Heat Resistant Uncoated Fiberglass Kevlar Braided Sleeving

Share on (62218181380):


Price:$2.80 - $2.82

Quantity:


Product Overview

Description


Product Description

 kevlar Braided Sleeve uses kevlar aramid fiber as raw material

◆low weight
◆very high tensile strength
◆excellent impact resistance to repeated loading
◆.good fatigue resistance
◆good vibration damping properties
◆Resistance to crack propagation
◆low thermal conductivity and low shrinkage
◆low smoke

◆the most important characteristics at room temperature are substantially maintained, even if the material temperatures from - 170 ° C to + 250 ° C
◆flame-resistant, self-extinguishing, does not melt

◆excellent chemical resistance to most fuels - lubricants, detergents and salt water
◆excellent electrical properties, very low conductivity and low dielectric constantsuitable to tissues for conventional textile processing

\t

Part No
\t
Size
\t
Expanded Range
\t
Standard Packing
\t
Inch
\t
MM
\t
 Min.(I)
\t
 Max.(O)
\t
m/Roll
\t
LS-KV-003
\t
1/8''
\t
3mm
\t
2.4mm
\t
6.4mm
\t
1000m/Roll
\t
LS-KV-006
\t
1/4''
\t
6mm
\t
3.2mm
\t
11.1mm
\t
500m/Roll
\t
LS-KV-010
\t
3/8''
\t
10mm
\t
6.4mm
\t
12.7mm
\t
350m/Roll
\t
LS-KV-012
\t
1/2''
\t
12mm
\t
7.6mm
\t
19mm
\t
300m/Roll
\t
LS-KV-016
\t
5/8''
\t
16mm
\t
9.5mm
\t
25.4mm
\t
300m/Roll
\t
LS-KV-019
\t
3/4''
\t
19mm
\t
12.7mm
\t
31.8mm
\t
300m/Roll
\t
LS-KV-025
\t
1''
\t
25mm
\t
15.9mm
\t
38.1mm
\t
200m/Roll
\t
LS-KV-032
\t
1-1/4''
\t
32mm
\t
19.1mm
\t
44.5mm
\t
150m/Roll
\t
LS-KV-038
\t
1-1/2''''
\t
38mm
\t
25.4mm
\t
63.5mm
\t
100m/Roll
\t
LS-KV-045
\t
1-3/4''
\t
45mm
\t
31.8mm
\t
69.9mm
\t
100m/Roll
\t
LS-KV-051
\t
2''
\t
51mm
\t
38.1mm
\t
88.9mm
\t
100m/Roll
Detailed Images
Exhibition
Our Company

Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant UL, ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.


From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.

Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days

laboratory


WorkShop


Office

Certifications
Other product

1.  12MM Expandable PET braided sleeve /PET cable sleeve / heat shrinkable tube

2.  14MM Nylon expandable sleeving for cable assemblies

3.  40MM Halogen free and fire resistance Pet Expandable Braided Cable Sleeve

4.  10MM White Flame retardant braided PET Nylon flexible Expandable cable protective Sleeve for electric fabric cable

FAQ
1.What is the MOQ ?
◆100 meters for our own available designs.

2.Can I get a lower price if I order large quantities?
◆Yes, cheaper prices with more bigger size orders.

3.What is your terms of payment?
◆T/T 100% in advance.

4.What is your terms of delivery?
◆FOB,CIF,EXW.

5.Can you produce according to the samples?
◆Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

6.What is your sample policy?
◆We can supply the sample, the customers just need to pay the courier cost.

7.Can I mix different designs?
◆sure!

8.How about your delivery time?
◆Generally, it will take 1 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Our Service

◆OEM Manufacturing welcome: Product, Package.
◆ Sample order.
◆We will reply you for your inquiry in 24 hours.
◆ after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
