MA3300D High Quality Manual Electrostatic Powder Coating Spray Gun
- Category: >>>
- Supplier: Qingdao Jobon Science&tech Development Co. Ltd.
Share on (62218378107):
Product Overview
Description
Product Description

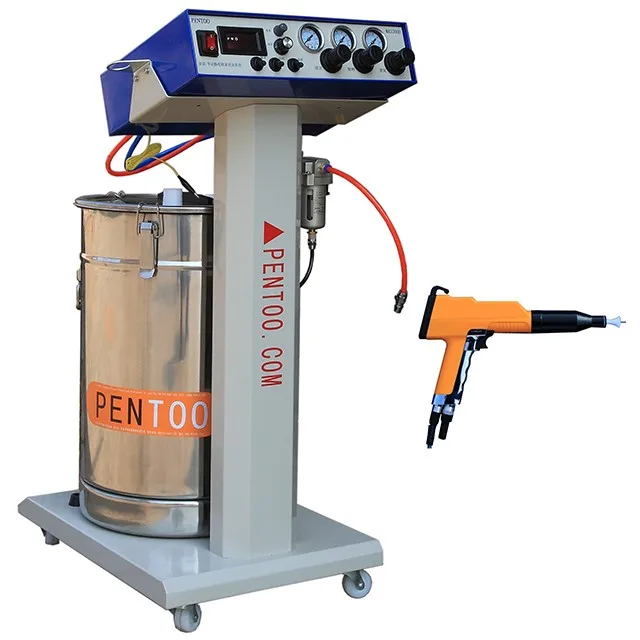

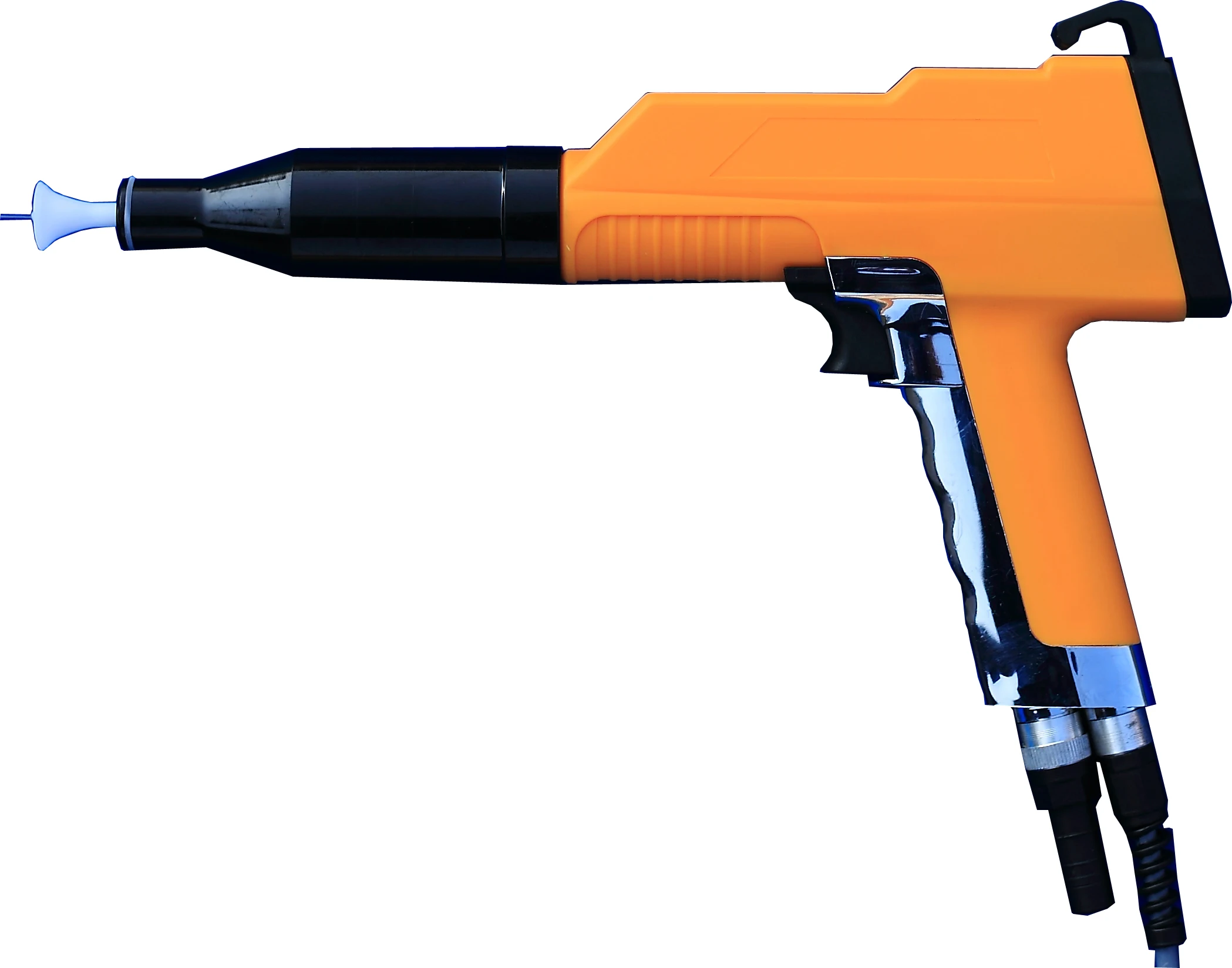

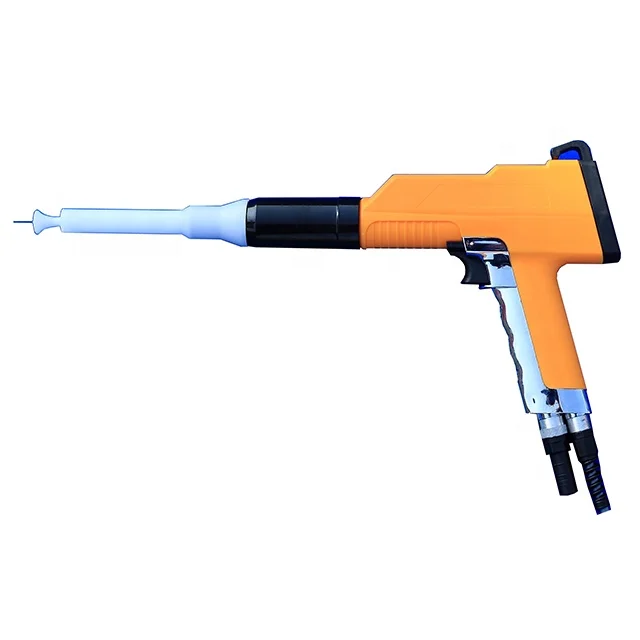

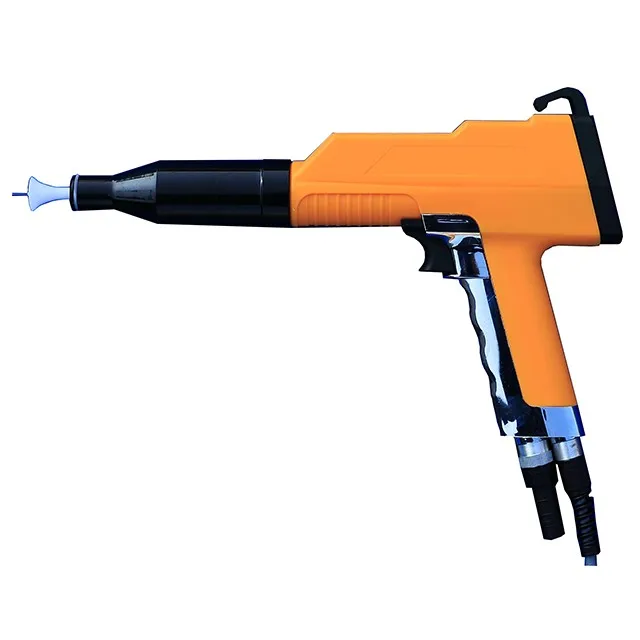

MA3300D High Quality Manual Electrostatic Powder Coating Spray Gun
Advantages:
1.Strong capability for deep groove & angle workpiece
2.Powerful automatic thickness control function
3.Large coating area per unit time
4.Two years warranty
5.Easy to operate
6.3 languages control panel (Chinese, English, Spanish)
7.Quick Color Change
Voltage | 100~240VAC |
Frequency | 50~60Hz |
Max Power | 100W |
Safety Level | IP54 |
Ambient Temperature | 0-40℃ |
Input Pressure | 0.55MPa (5.5bar, 80PSI) |
Max Moisture Content of Compressed Air | 1.3g/cubic meters |
Max Oil Content of Compressed Air | 0.1mg/cubic meters |
Electrostatic Polarity | Negative |
Max Output Voltage | 150KV |
Max Output Current | 120Ua |
Gun Weight | 580g |
Gun Length | 330mm |
Cable Length | 4m |
Powder Duct | 3.5m |
Max Powder Output | 650g/min |
Packing Size | 650mm*470mcm*950mm |
Packing Weight | 30kg (double paper carton for air shipment) |
Detailed Images

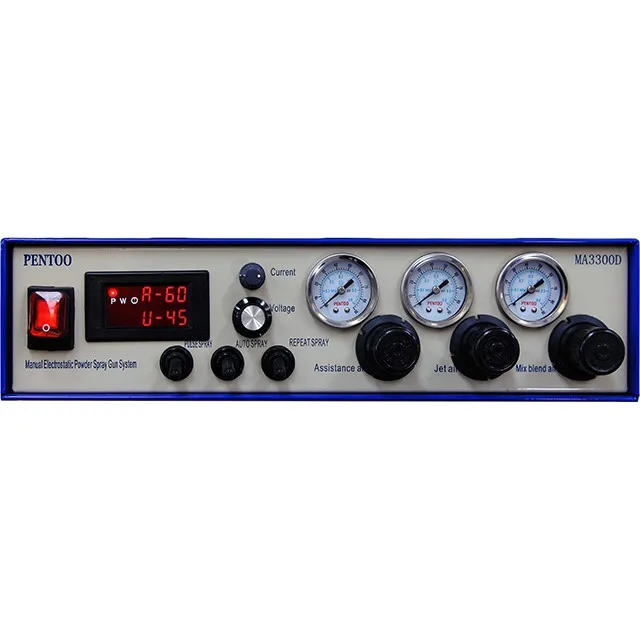

Touch Screen Control
Three Languages Show: Chinese, English, Spanish
Our Certifications
Our Company
*Leading company in powder coating line
* 40 sets more patents
* 8 sets invention patents
* 8 people R&D team
* The first level R&D laboratory
* 50 more workers
* 5 people sales team
* 5 people after sales service team
* 10+ overseas agents
* 15 years exporting experience
Customers
Packing & Delivery
Packing Details :
If use Cartons in 70*56*54cm,gross weight is 32kgs
if use wooden box 73*60*64,cm,gross weight 42kgs
