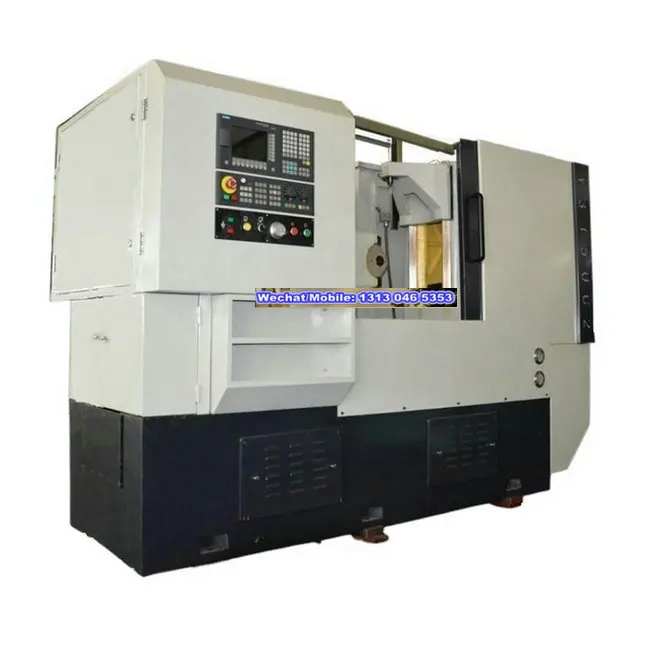

YN3150C2 2-axis cnc gear hobbing machine




Main Featurers:


l YN3150CNC2 is an economic 2 axis CNC high-production gear hobbing machines with following axes under the CNC control:


X-axis: radial feeding, servo motor


Z-axis: axial feeding, servo motor


l   Such machine is mainly used for cutting cylindrical gears with straight teeth, helical geras, short spline shaft, sprockets, worm wheels and so on.


l   Such machine is much suitable for batch and mass production of gears in industries of heavy-duty automobile, construction machinery, as well as suitable for workshops with small batch and job lot production of kinds of gears production.













Main Technical Data:





































































































































Specifications



Unit



YN3150CNC2



Maximum diameter to be hobbed



mm



550



Maximum modulus



mm



8



Maximum angel of helix







±45°



Worktable diameter



mm



510



Diameter of worktable bore



mm



80



Distance from the hob center to worktable center



mm



30~330



Distance form the hob center worktable surface



mm



235~535



Maximum diameter of hob



mm



160



Maximum length of hob



mm



160



Maximum axial movement of the hob



mm



500



Cone of the spindle bore



r/mm



MT 5



Hob spindle speeds(2 shifts-variable speed stepless)



rpm



40~150


64~250



Max. speed of work table



rpm



12



Axial federate (Z-axis)



mm/min



600



Axial rapid travel speed



mm/min



800



Radial feed rate(X-axis)



mm/min



1500



Radial rapid travel speed



mm/min



2000



Power of the main drive motor



kW



7.5



Servo motor power of Z-axis



kW



2.5



Servo motor power of X-axis



kW



2.5



Total power consumption



kVA



14



Net weight



kg



2100



Machine overall dimension (length × width ×height)



mm



2750×1500×1900



The measure of area (length × width )



mm



         2500×1900








Free Std Accessories






































S.N



Name



Remark



1



Main machine



1 set



2



Hob arbor assemblies of Ø 22, Ø 27 and Ø32



one set/each



3



Center



1 pc



4



Operation tools



1 set



5



Documents in English



1 set






Our Services


1, Your inquiry will be replied in 24 hours;


2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;


3, To offer free spare parts and service within one year of warranty;


4, Technical Support Provide operation video for training;


5, Professional after-sales service team;


6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353


7, Fax us:+86-411-84410129





Factory Overview:

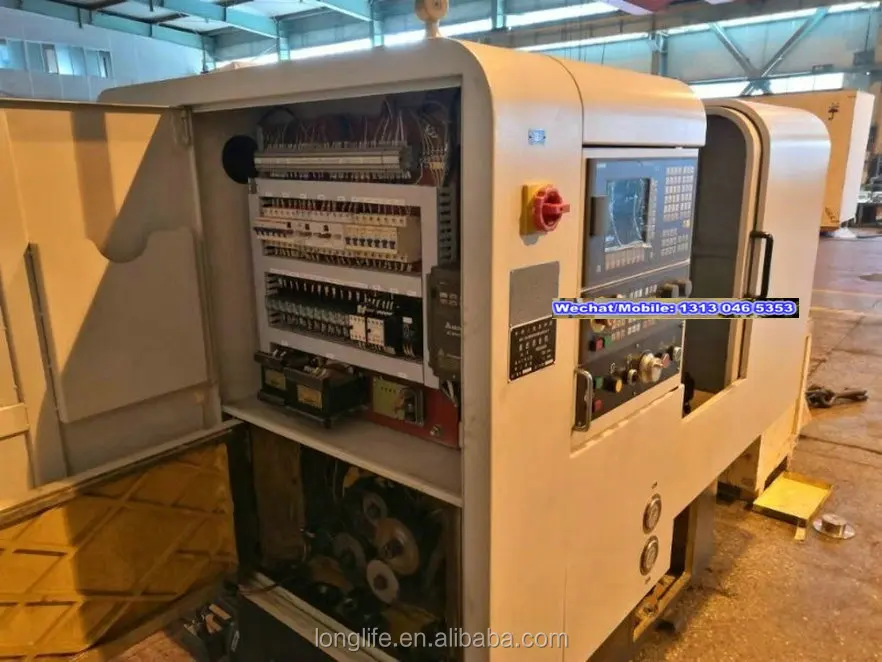

YN3120 cnc gear hobbing.jpg
