72*72mm Series Digital Analog DC Voltage Meter DC 0-500V Voltmeter
Product Description
This series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.
Technical Data
Model number
ZY-72L
Accuracy level
1.5 level and 2.5 level
Resistance to mechanical forces
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength
2KV 50Hz for 1min
Voltage affection
The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position
Vertical
Operating temperature
-20 to 40 °C (-4 to 104 °F)
Operating humidity
85% RH max, non-condensing
Detailed Images

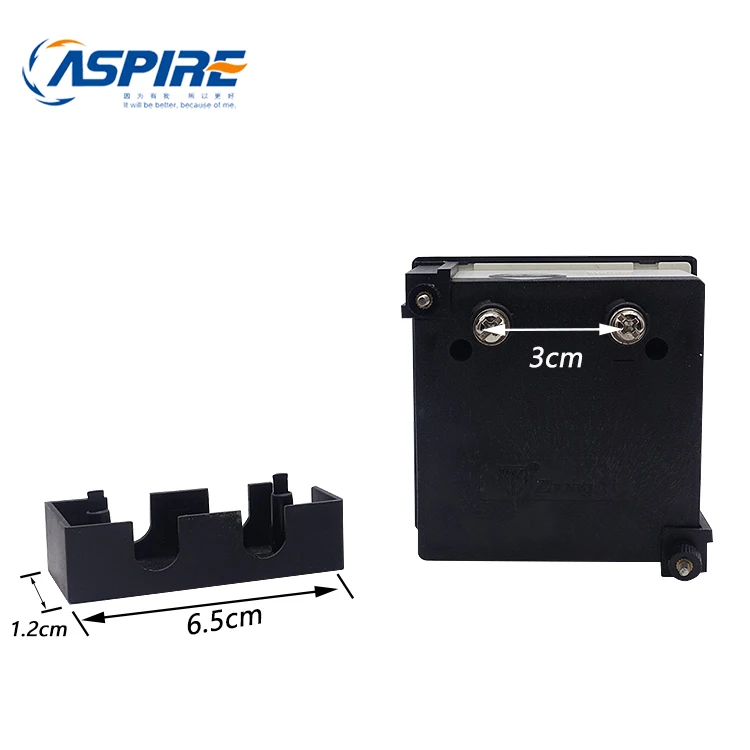

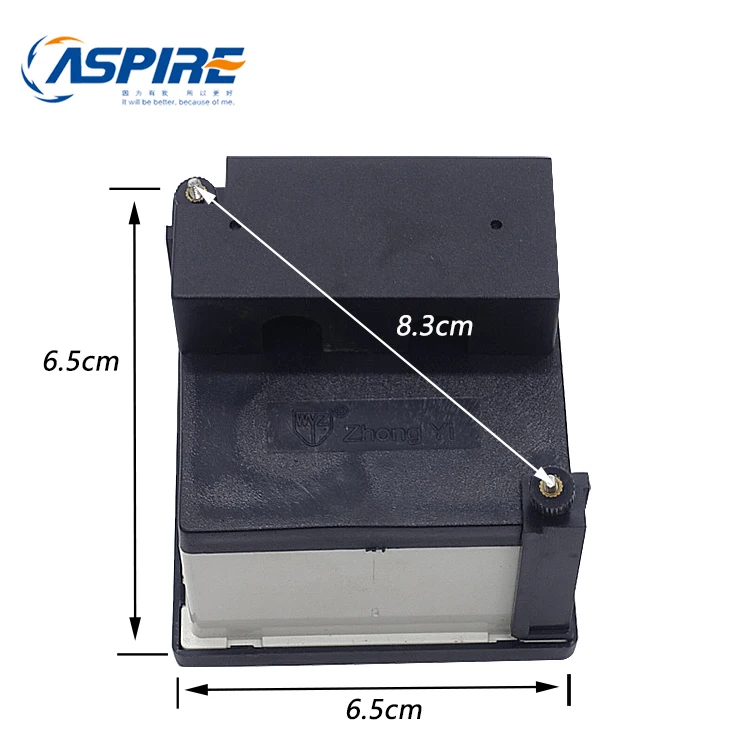

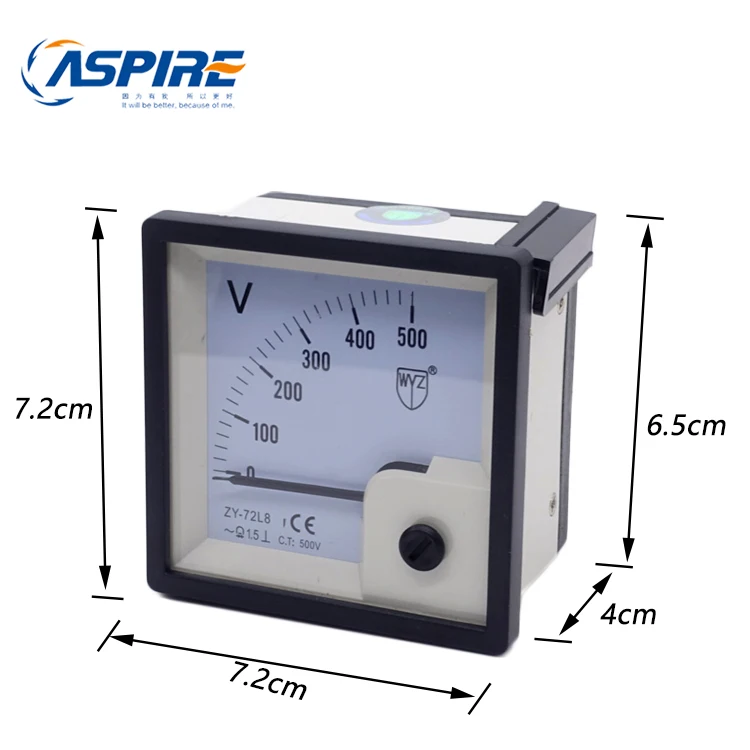

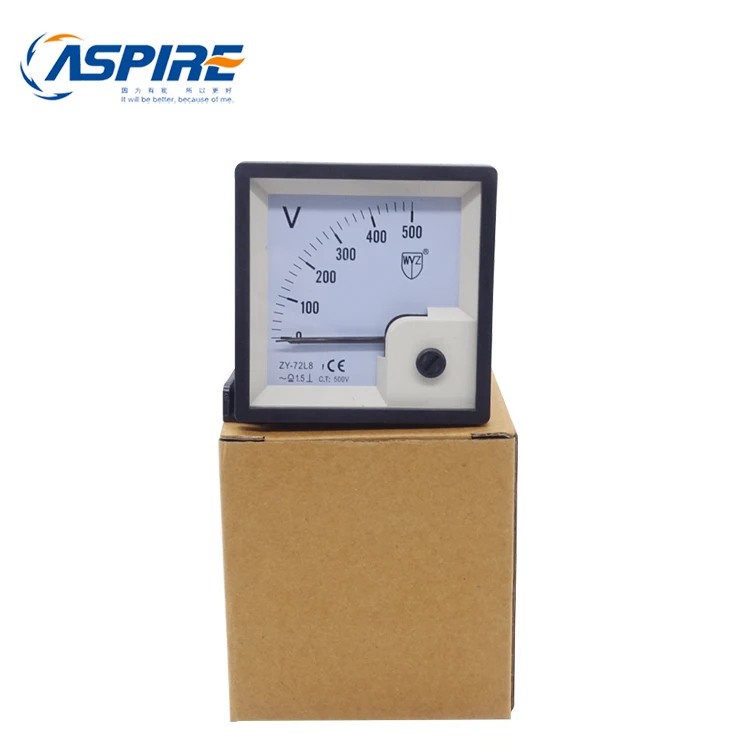

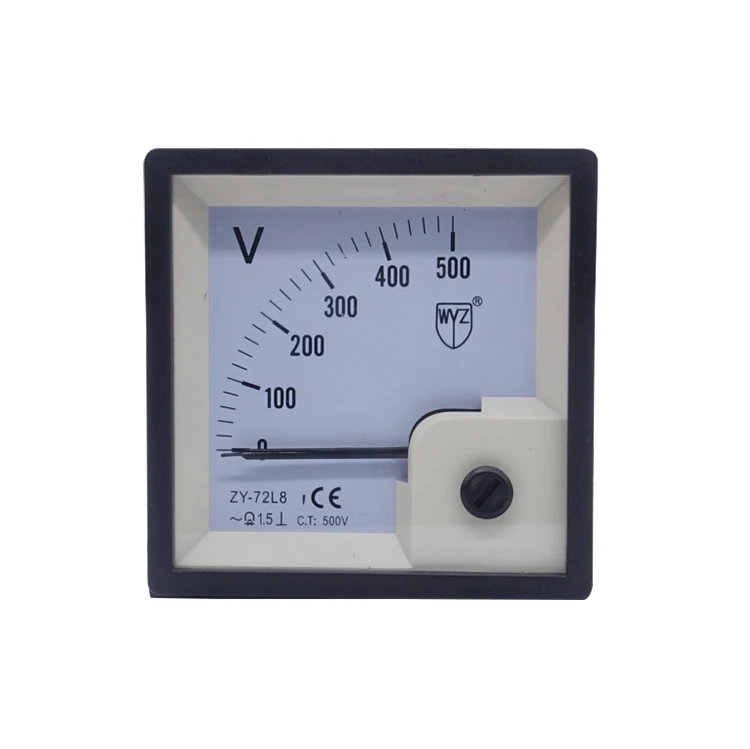

Voltmeter 500V Pictures
Related Products
Company Information
Certificate
Contact Us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.
Q2: How long is your delivery time?
A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.
Q3: What is your guarantee ?
A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.
Q4:Can your products be used in severe condition place?
A: Don't worry. We test our products both in high temperatuer and low temperature testing equipment, from -40°C to 80°C.
