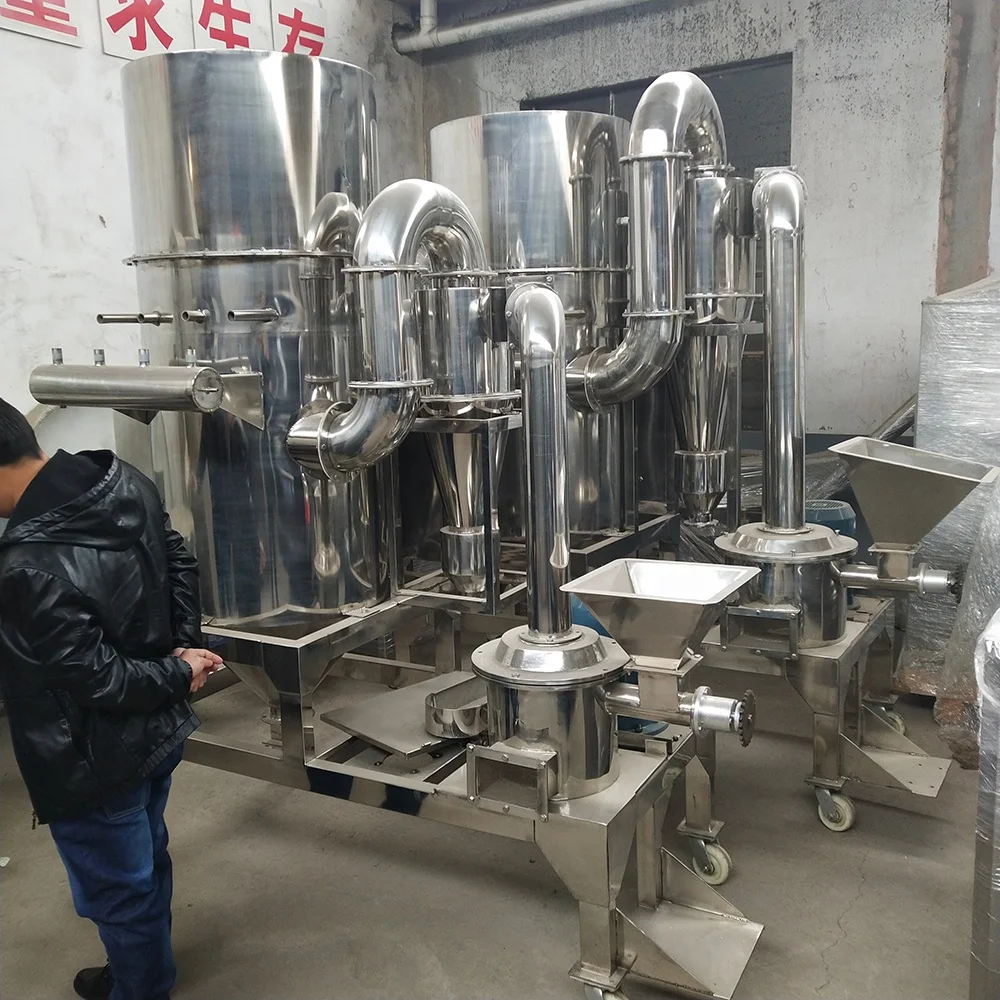

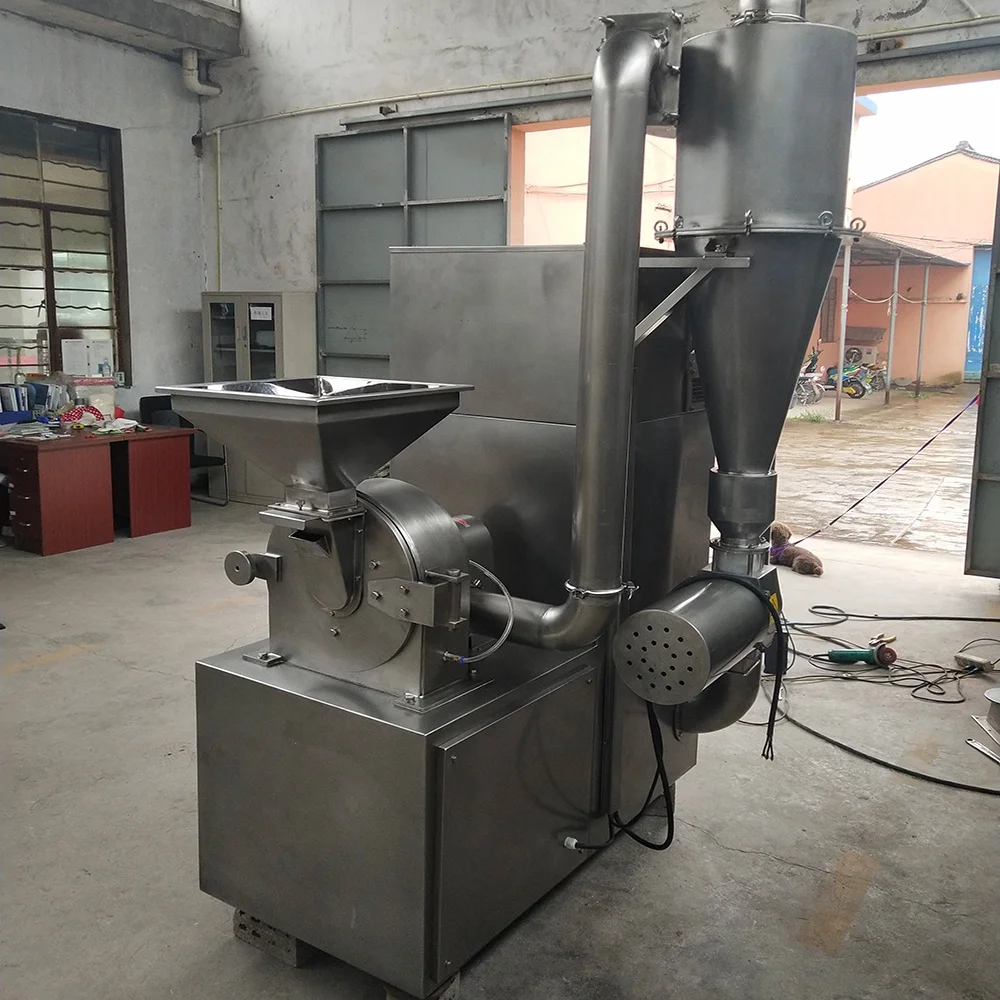

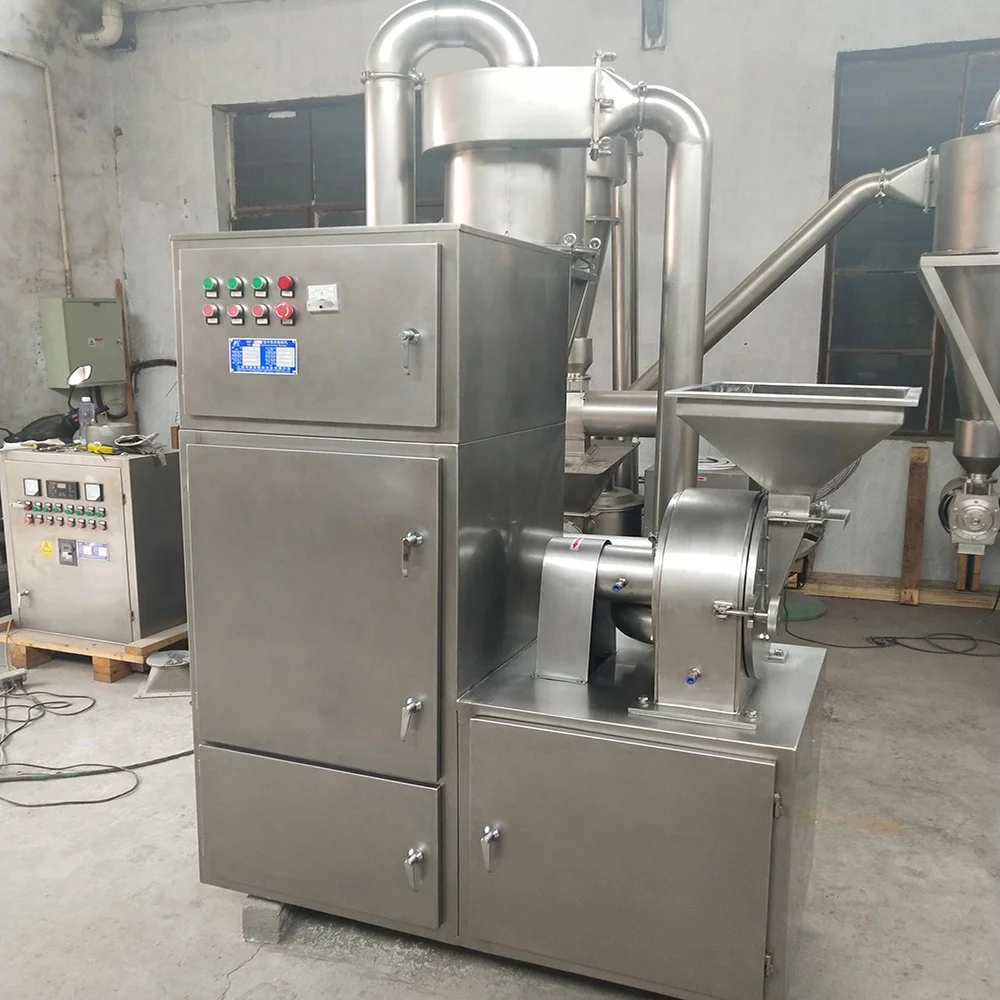

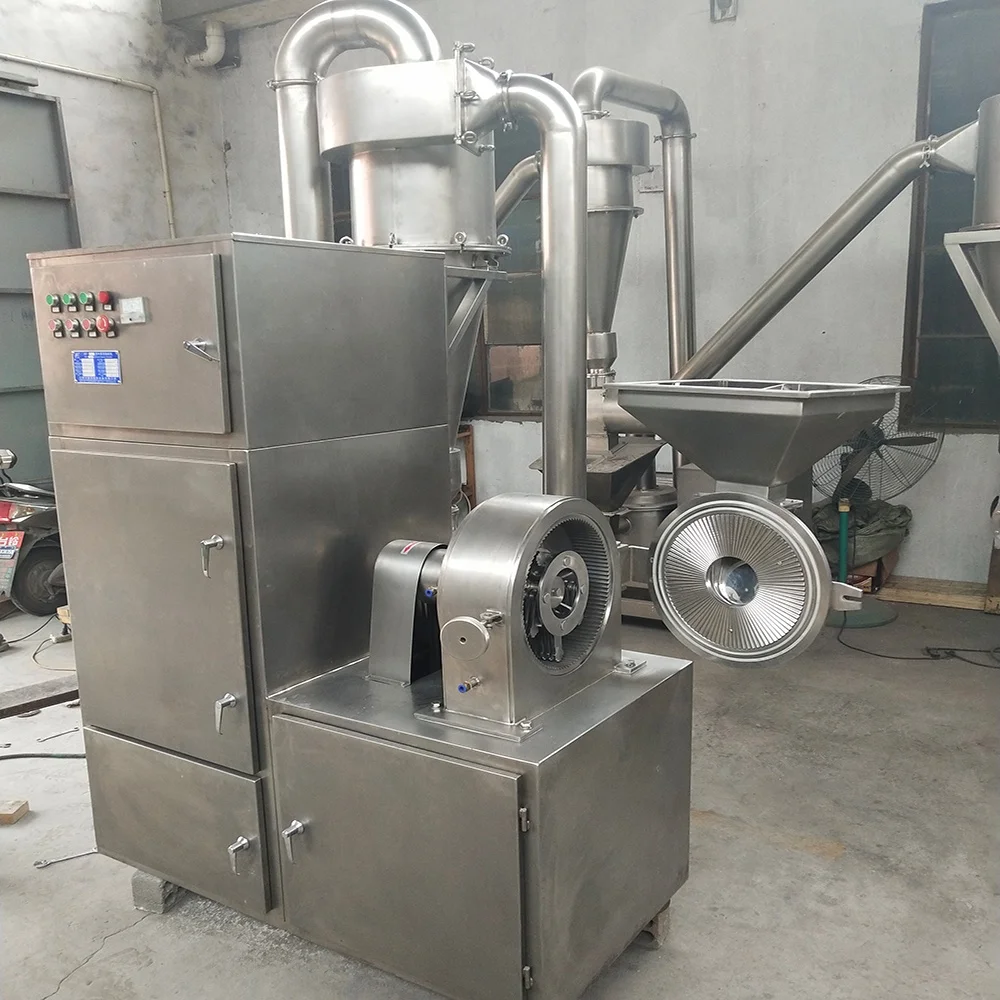

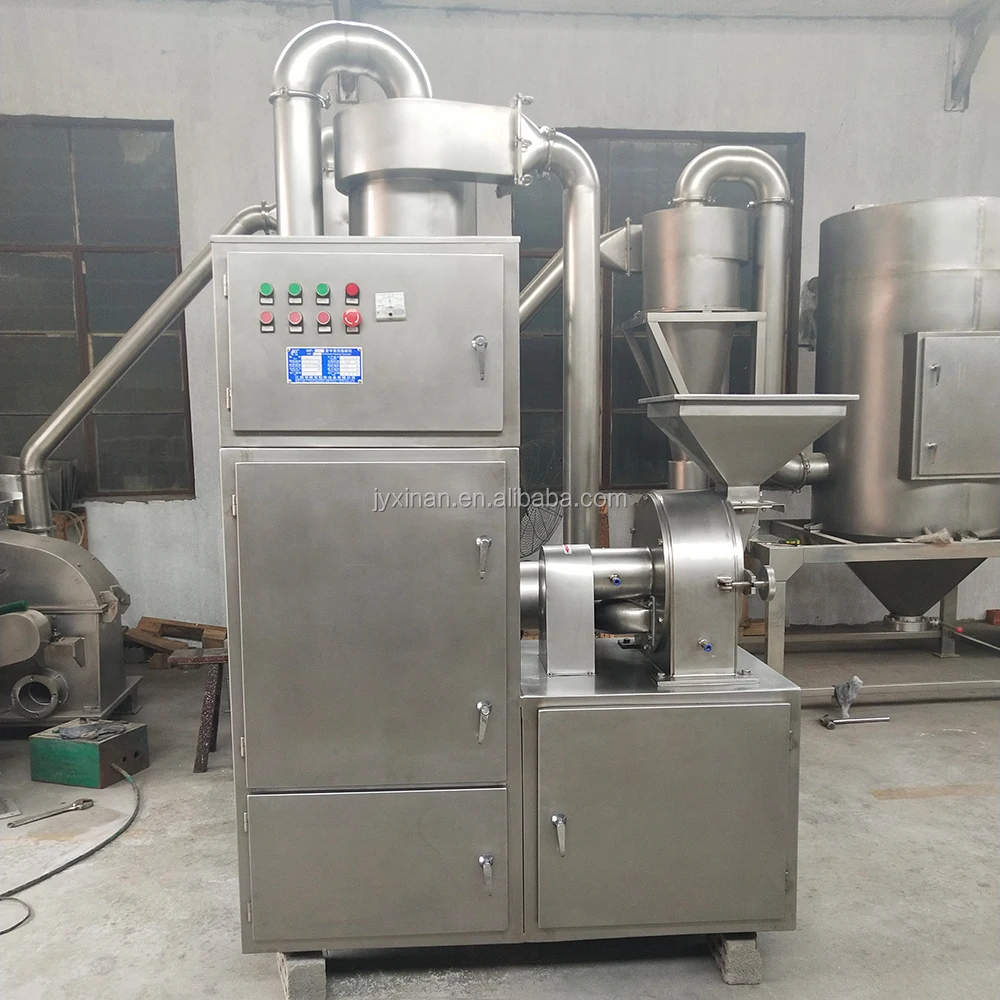

freeze dried powder superfine superpowder pulverizer machine

 Model WF Dust-Collecting Herbs Pulverizer is applied in the industries pharmaceutics,chemical,food and etc.  Air-cooled system and non sieving netdesign are major features of the machine.This model can process all kinds of material without limits of the Viscosity, handness, softness or fabrics of the materials. Especially it performs wenon herbs and plants with grease.

Principle:

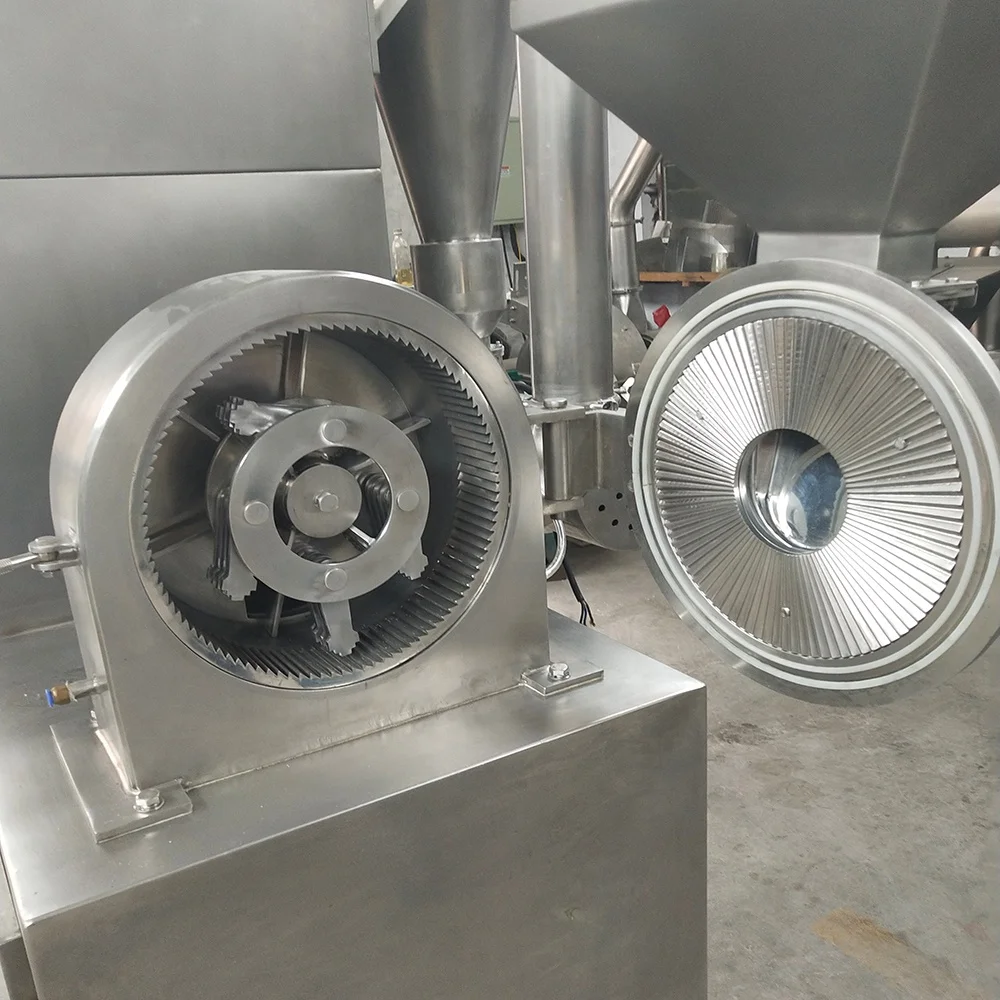

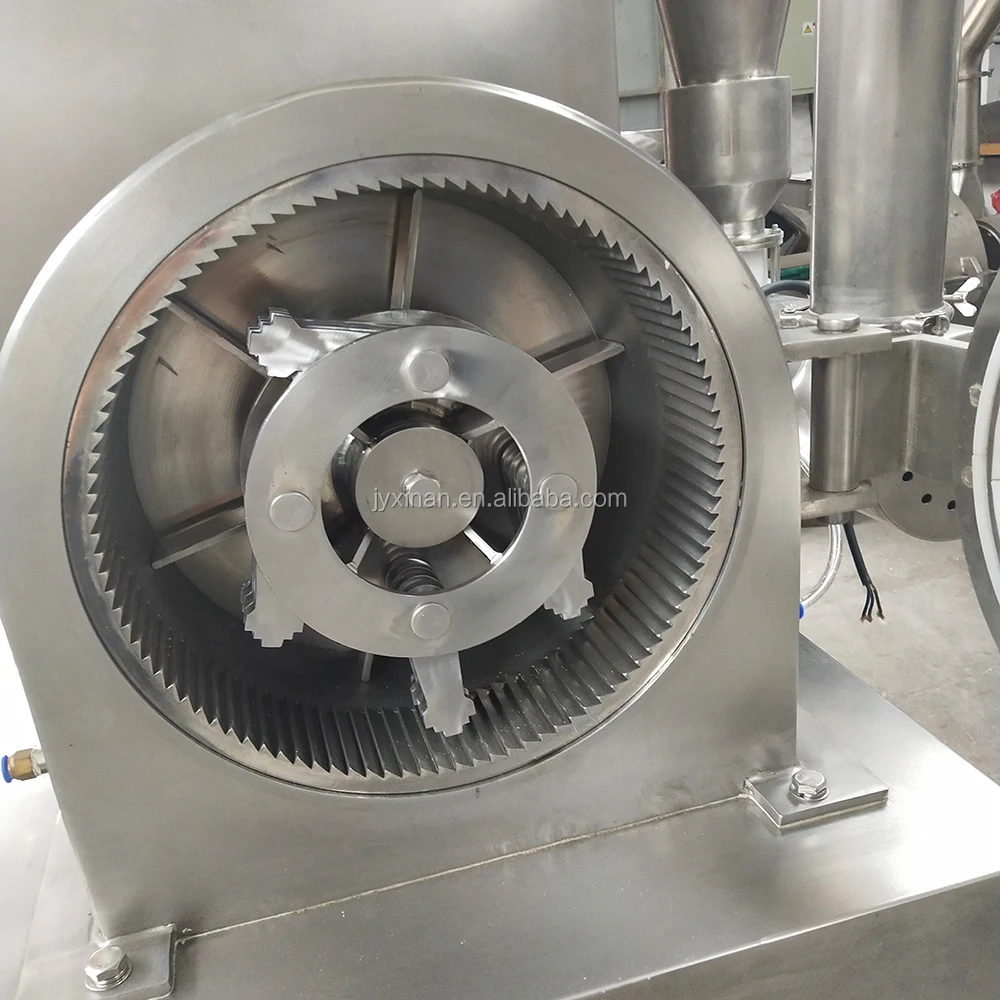

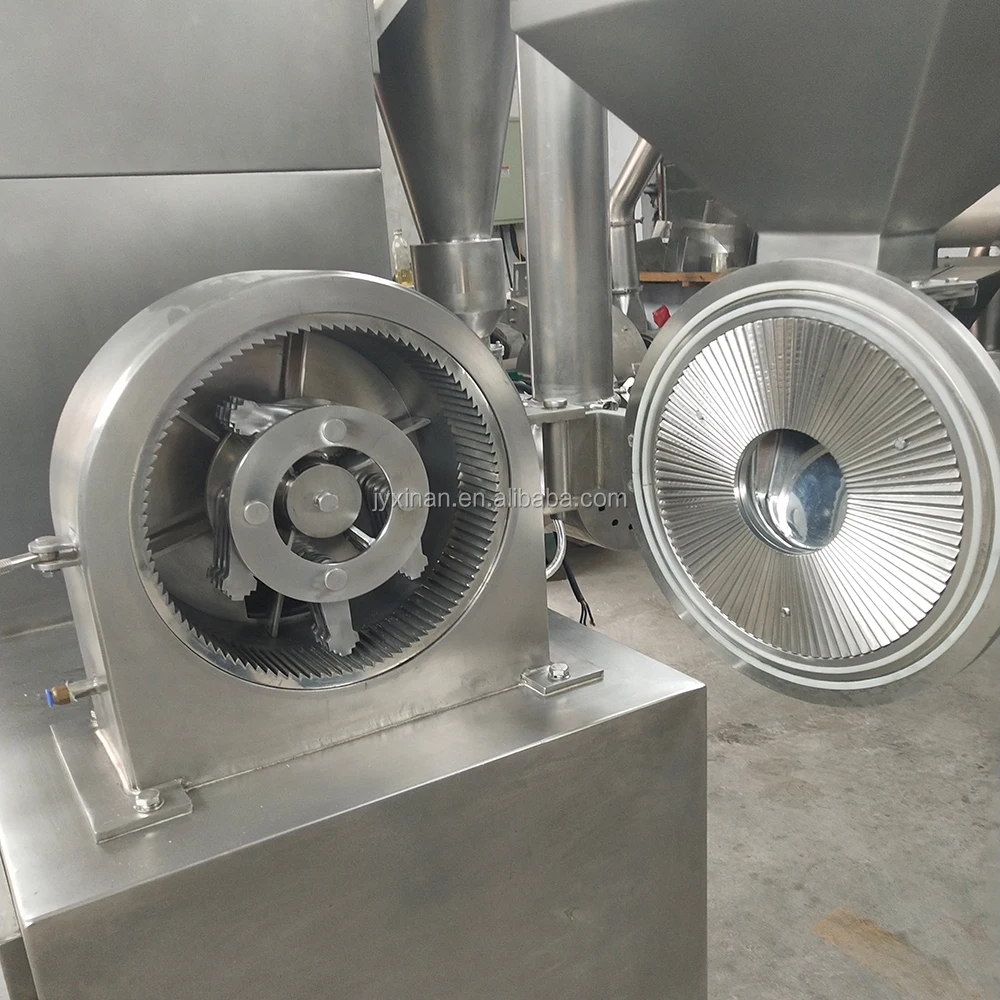

The machine consists of loading hopper,grading wheel, pulverizing knife, gearring, pulverizing motor, discharging port, fanblade, aggregating box,dust collectin box, etc. The material goes into crushing chamber through the loading hopper, and then gets crushed by high-speed rotary blades. The grading wheel and the grading plate can be adjusted to produce specific particle size. Dust from aggregating box will be collected by dust collection box. The machine is designed according to GMP standard and made of stainless steel. There is no dust in the air during the crushing process. Over advantages are simple structure, convenient cleaning, low noise and high productivity.
