Car Reverse Sensor With Camera Parking System 3.5 inch Monitor

Product Overview

Description







Car Reverse Sensor With Camera Parking System with 3.5 inch Monitor





Item No: WRD735S120

Dimension:18x17x12cm



This Wlreless Rear View Sytyem Kit can automatically switch to rear view when reverse.

The Metal housing 480 TVLs high resolution camera gives you clear image of the back of vehicle.

Wireless model easies the installation much more when compared with those wired ones.



1. 2.4G Built-in Wireless! Unique tech design !

2. Wide transmission range: 60meters

3. Automatically switch on when reverse gear is engaged

4. High digital resolution TFT-LCD monitor: 960*240 (DOT)

5. Display size: 3.5 inches

6. Monitor is powered from the cigarette lighter socket (DC 12V only)

7. Monitor mounts to windshield fir, easy-to-see rear coverage

8. Monitor can be 360 degree circumrotated

9. PAL or NTSC system auto convert

10. With buttons for menu operation

11. One video input ,12. Camera: wide angle (170°), High resolution (480TV line), extra-low illumination for clear,night vision.

13. Complete water-proof lens.

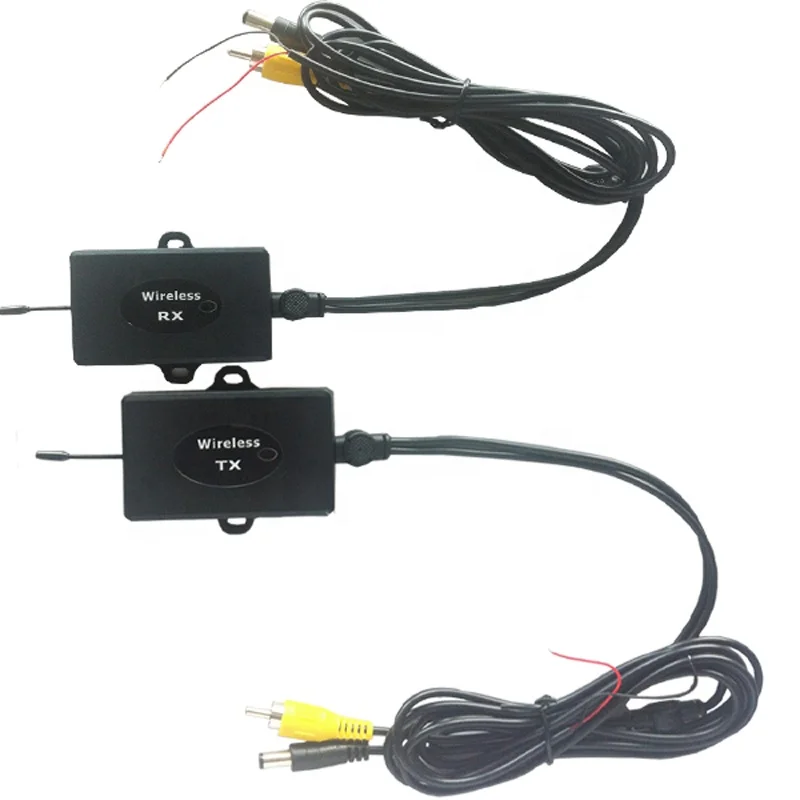

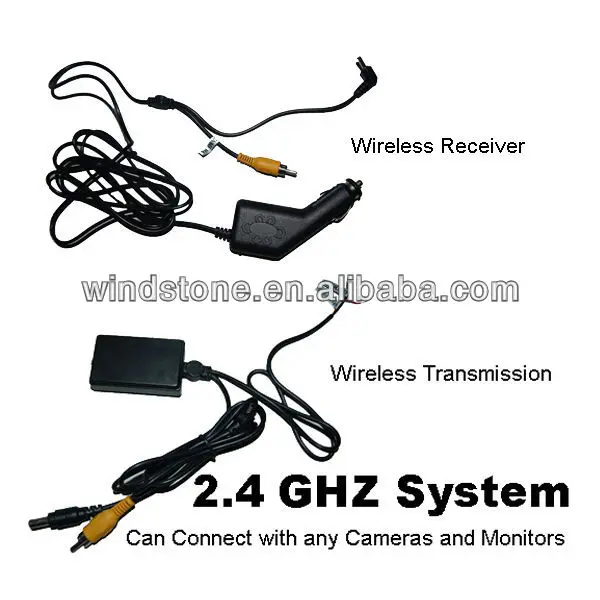

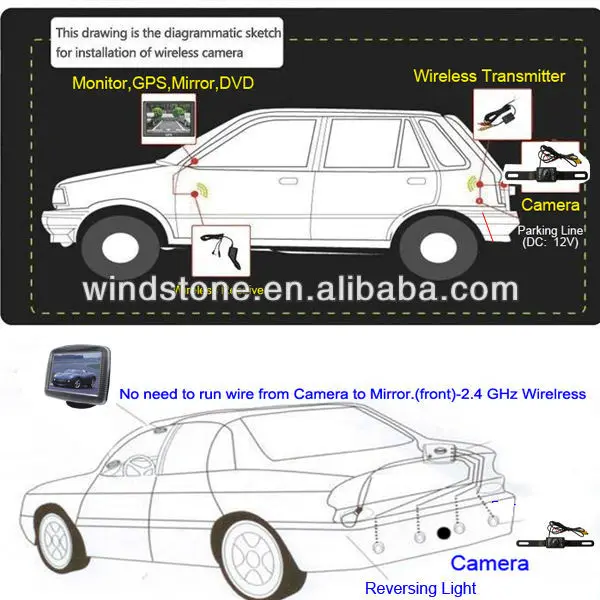

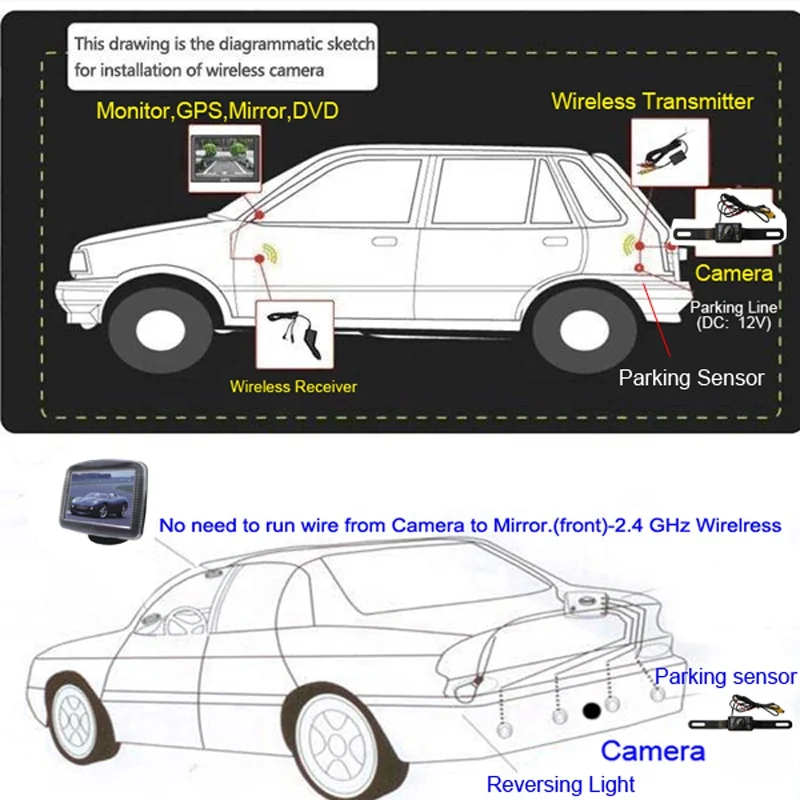

14. Easy and neat installation: receiver inside car charger, transmitter inside camera.

 The distance between the Monitor to camera should be under 5M.





TECHNICAL SPECIFICATON OF MONITOR AND INTERNAL RECEIVER

Supply voltage	DC10.5V-15V(12V normal)
Current consumption	300mA(Max.)
Operating temperature	-20°C~60°C
TV System	PAL or NTSC system auto convert
Resolution	960xRGBX240
Screen size	3.5 inches
Video input	One video input
Turn on mode	Automatic turn on when receiving video signal
Receiver: Wireless transmission frequency	2.4Ghz
Receiver: Wireless transmission range	More than 60 meters for open space



Supply voltage	DC10.5V-15V(12V normal)
Current consumption	100mA(Max.)
Operating temperature	-30°C~70°C
Image device	1/4 inch color, VC0702
TV System	NTSC system
Resolution	420 TV lines
Effective pixels	720*480
Minimum illumination	0.5 LUX.
View angle	120 degree (diagonal)
S/N ratio	More than 48db (AGC-Off)
Video out put	RCA connector 1.0vp-p 75 ohm
Others	Automatic white balance, AGC and BLC
Transmitter: Wireless transmission frequency	2.4Ghz
Transmitter: Wireless transmission range	60 meters for open space



1×monitor

1×camera

1×Auto Charger(Receiver inside)

1×power cable

1×angle spacer

2×quick splices

2×screws

4×plastic bundles

1×manual

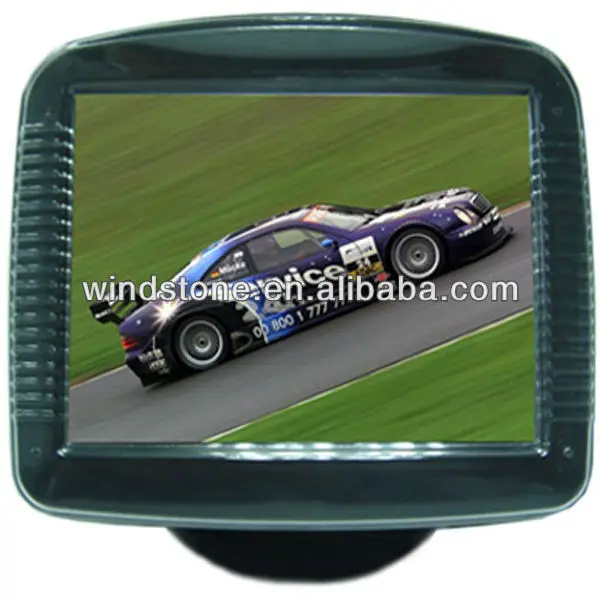

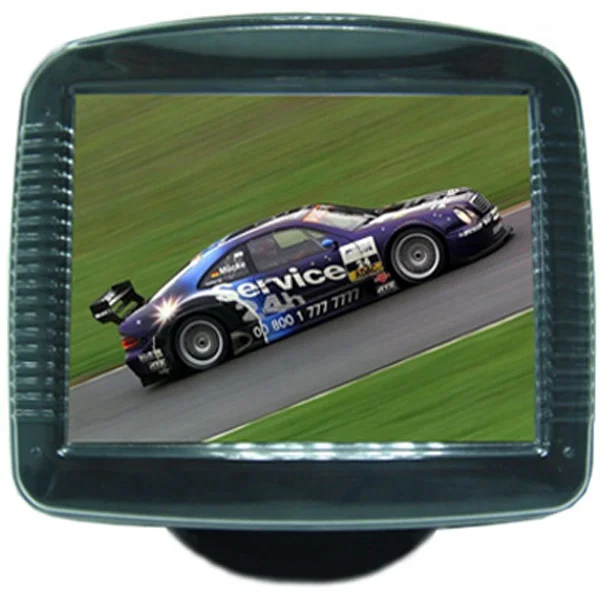

3.5 inch Monitor
