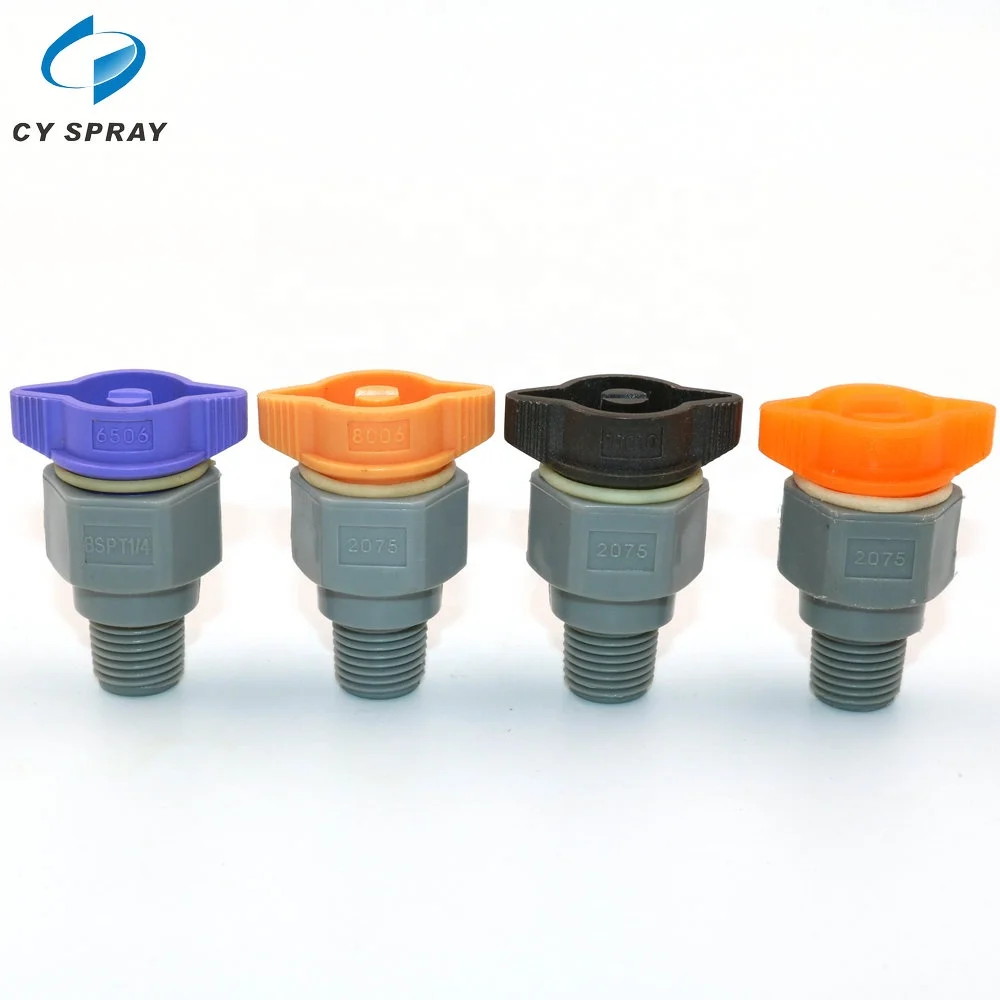

PCB Etching plastic nozzle ,PCB Etching plastic spray nozzle paint spray nozzle

Share on:

Price:$1.10 - $1.50
Price in USD:Details


Product Overview

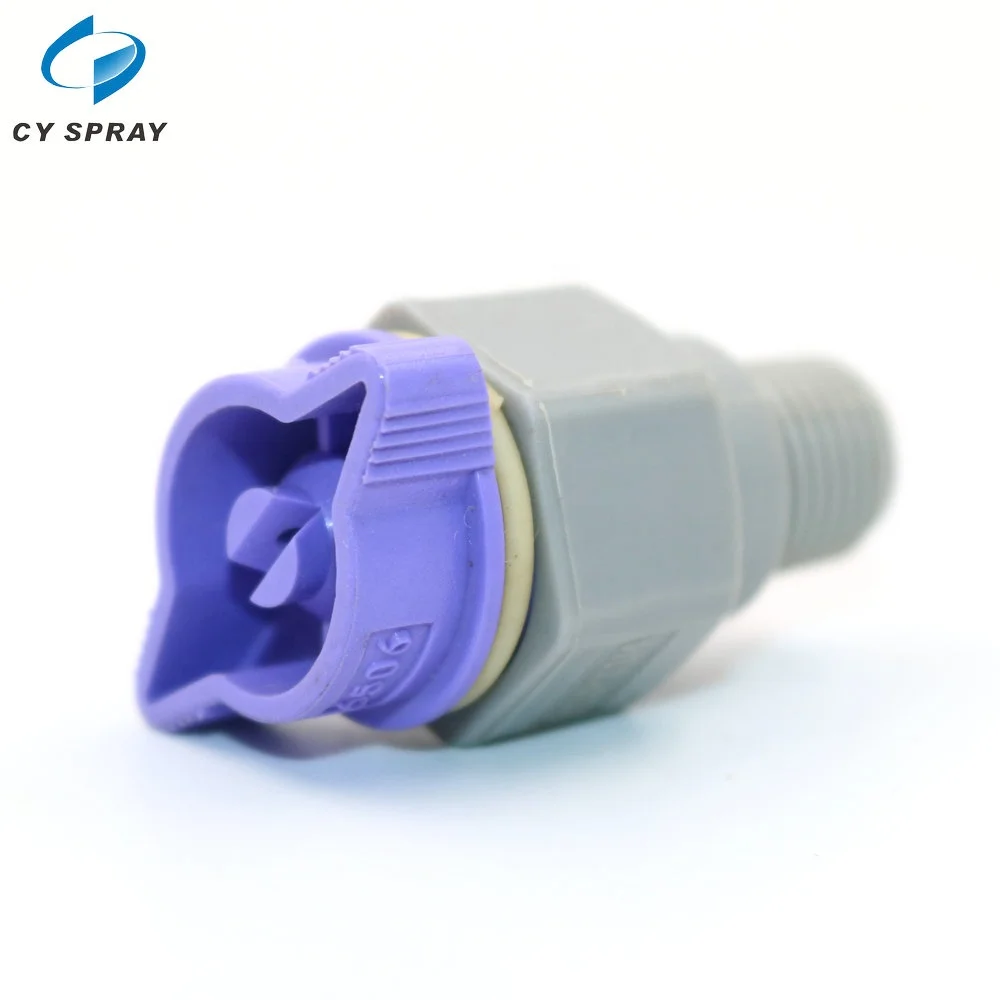

Easy nozzle replacement
Quick dismantling nozzle design, the nozzle and spray head can be quickly dismantled .You can rotate the spray head by 90 degree to install it ,or split it from nozzle by hand,so it can significantly downtime during maintenance.

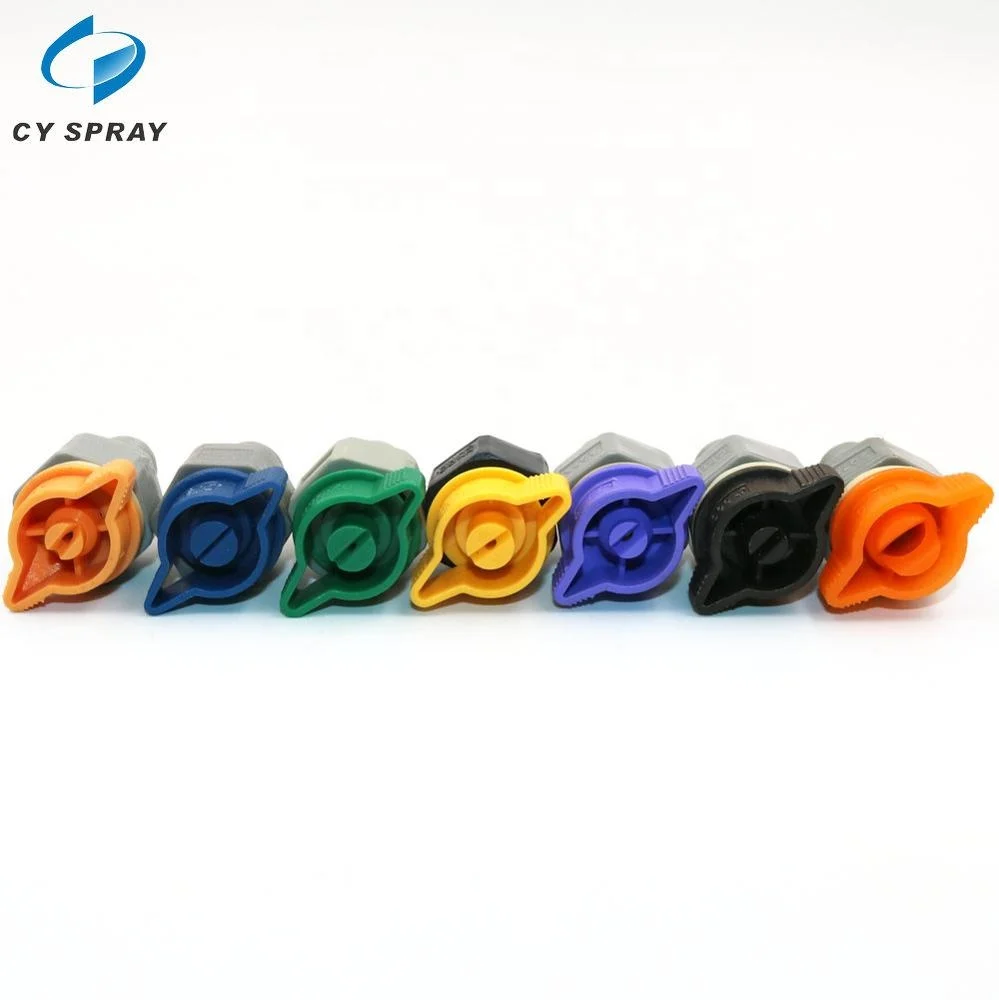

Auto orienting spray head
There is an interior block, which can keep nozzle in right position without manual adjustment. Therefore , it can avoid quality problem caused by wrong orientation of nozzle.

Anti-corrosion and wearable
Easy split noz PP( 25% ), Carbon Fiber PP (40% ) and PVDF, Featured high intensity, wearability and anti-corrosion ; suitable for washing and rinsing of corrosive solution, such as phosohate, acid&solvent; Max temperatures for glass Fiber PP is 82 °C; Max temperature for carbon Fiber is 120°C; while PVDF is high pure without pigment which can keep high purity in processing, and the max temperature is 148°C under 7KG pressure .

Widely capacity choice
Available sizes: 1/8'' , 1/4'' and 3/8'' ; Absolutely windtight between nozzle and spray head with an interior O-shaped NBR windtight circle; Easy split Nozzle; Special appearance of spray head for grasp; Available spray head shapes; QC Flat fan, QB Full cone and QA Hollow cone ; and various capacitys & angles arevaiable.

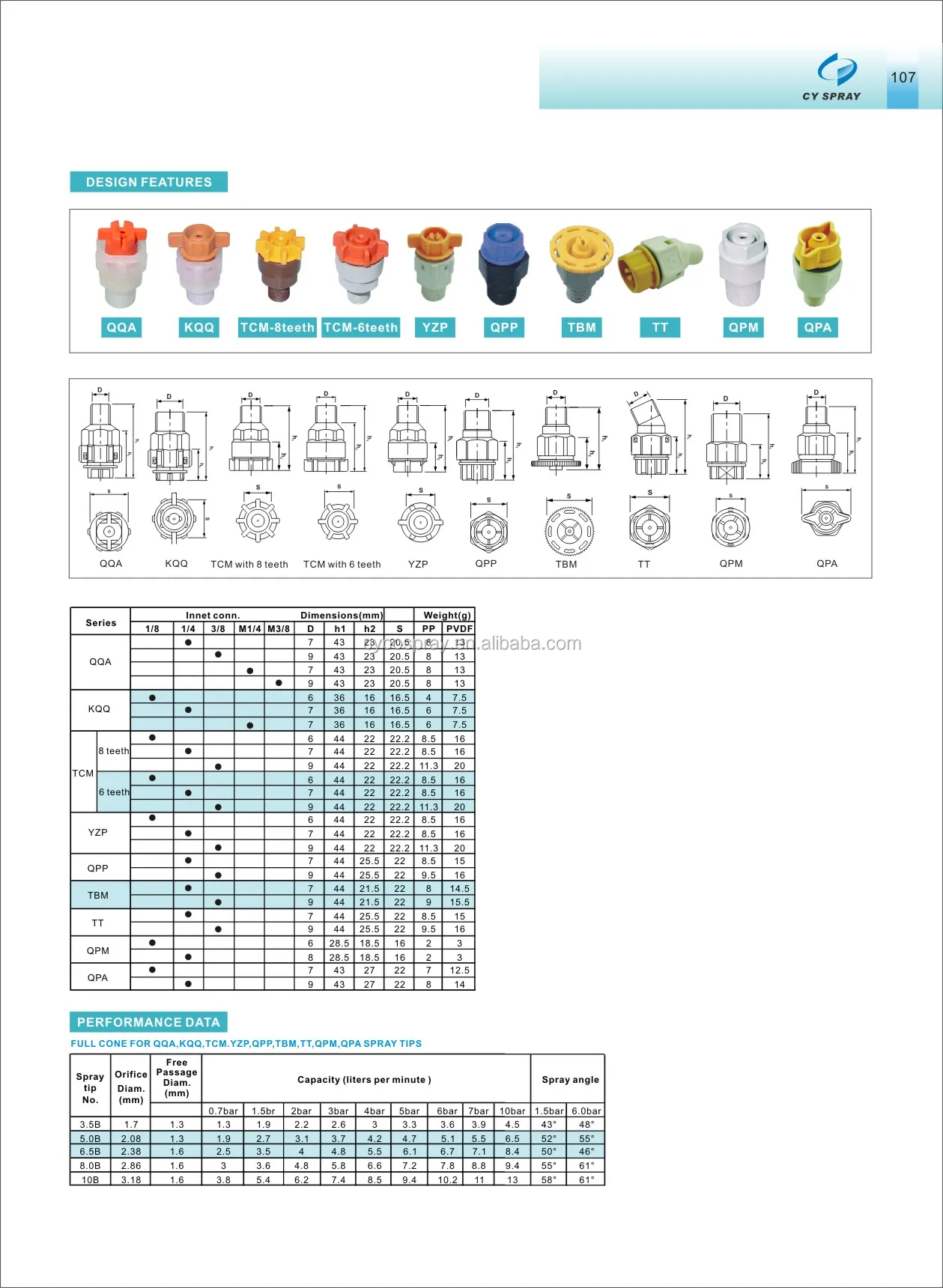

Product NameYZP series nozzles
Material PP,PVDF
Thread TypeBSPT
Thread Size1/8'', 1/4'',3/8"
Flow Rate0.25-13L/Min at 0.5-10BAR
Spray Angle50° ,65°,80°,90°,110°,
Packing Plastic Bag+ Carton, Special requirements are available
Custom MadeAvailable




  • PCB manufacturing

  • Washing & Raining

  • Dedusting

  • Quenching & Cooling

  • Gas Washing

  • Deoxidation, Dearating and Aerating





Our Services

Company profile

Our certificates



Shipping & payment





Q1. What are your terms of payment?
T/T, Paypal,Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.

Q2. How about your delivery time?
A:3 workdays for goods in stock.
B:7-10 workdays for existing model which is without stock.
C:30 to 35 workdays for casting models.
D:The specific delivery time depends on the items and the quantity of your order

Q3. Can you produce according to the samples or can you provide the sample for the quality test?
Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Some samples we can provide free of charge ,But should pay the courier cost.


Q4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
