  • 12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor
12uf refrigerator cbb65 capacitor reactive power compensation capacitor

12uf refrigerator cbb65 capacitor reactive power compensation capacitor

Share on (62219851795):


Price:

Quantity:


Product Overview

Description



Product Description

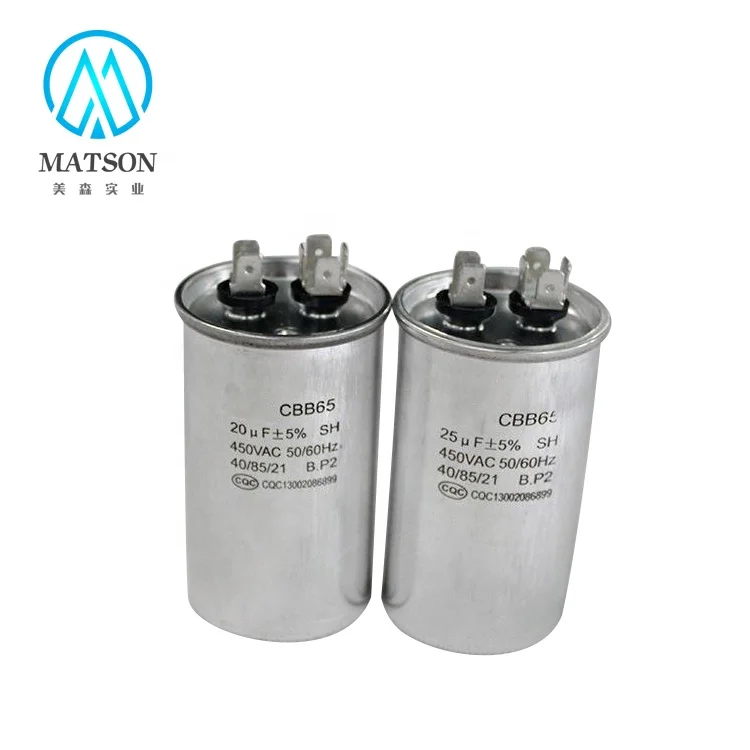

12uf refrigerator cbb65 capacitor reactive power compensation capacitor (Column,Aluminum case,Explosion-proofed)



Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property
High stability and reliability
Safer with Explosion-proofed design

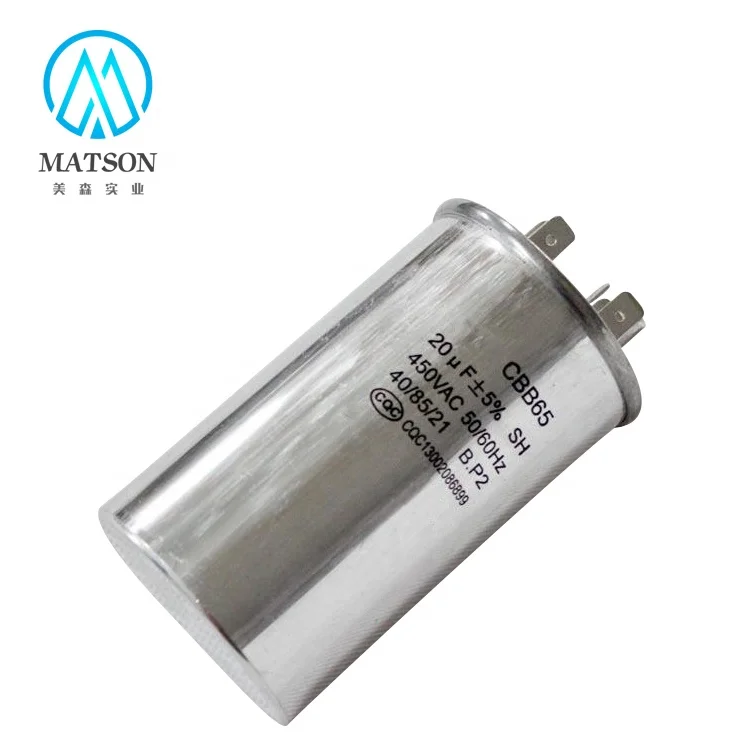

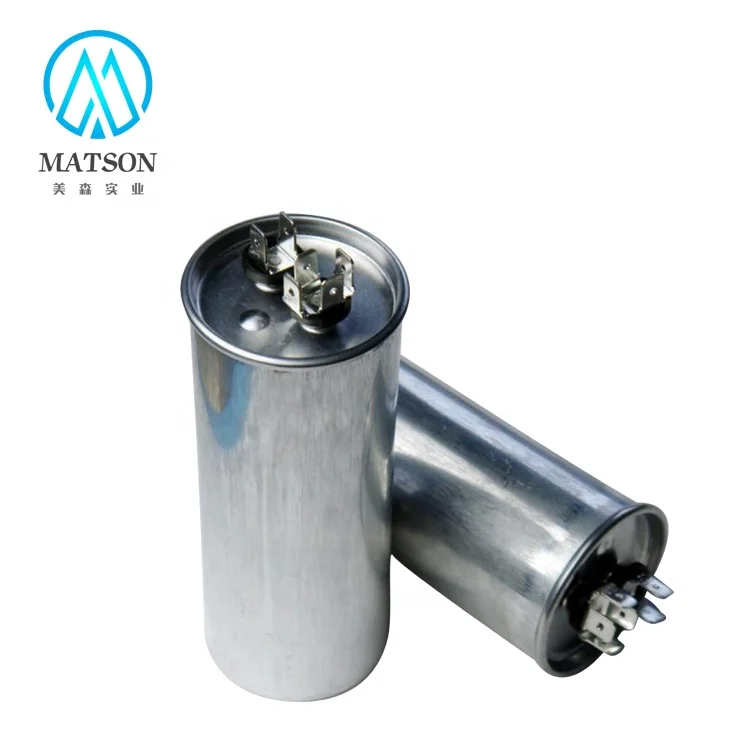

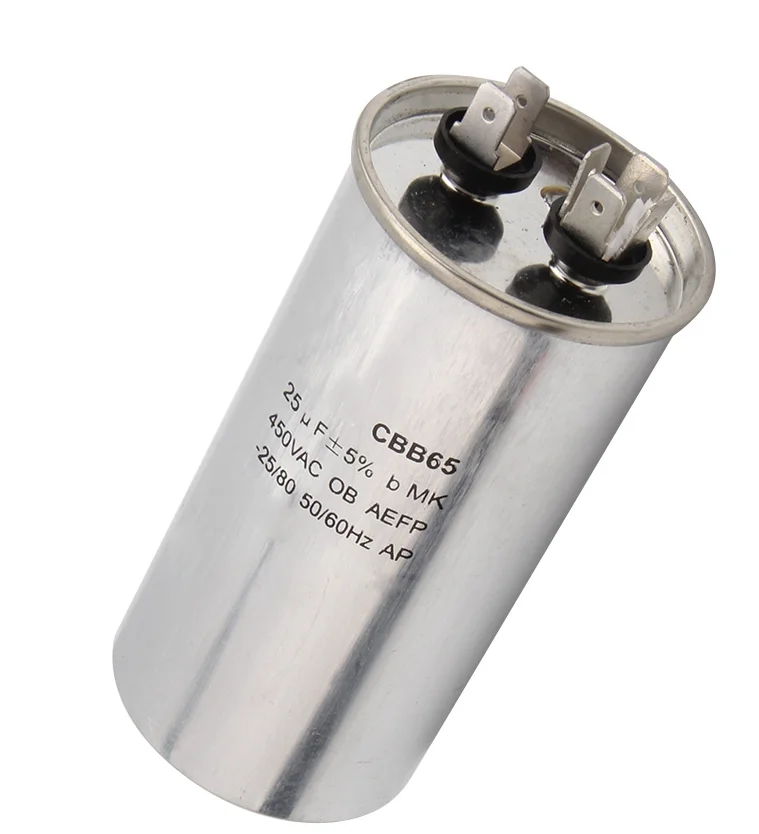

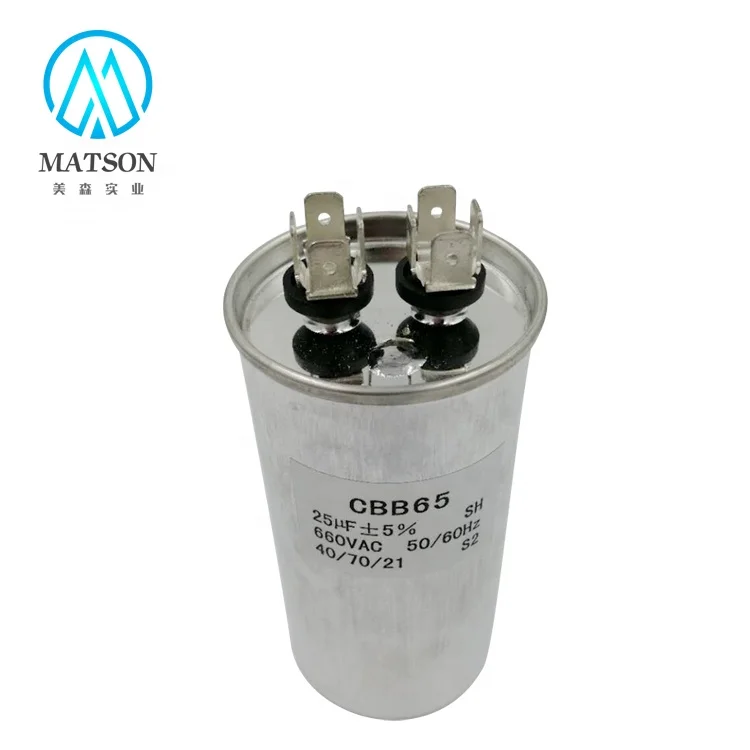

Products Show






Specification
Reference standards
GB/T 3667.1(IEC60252-1)
Climatic category
40/70/21, 40/85/21
Class of operation
Class B(10000h) Class C(3000h)
Class of safety protection
S2/S1
Voltage range
250VAC,370VAC,440VA,450VAC/660VAC
Capacitance range
2-100uf
Capacitance tolerance
±5%,±10%,±15%
Dissipation factor
20*10-4(100Hz,2020℃)
Test voltage terminal to terminal Utt
2 Un for 2 seconds
Test voltage terminal to case Utc
(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance
≥3000s(1000Hz, 20℃,1min)

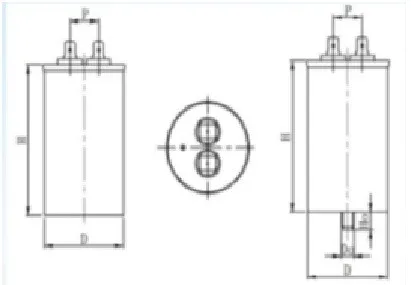

Production specifications
Terminal
Size
CBB65-450VAC 5HF-9μF
2*4 or 2*2
Φ40*60
CBB65-450VAC-10μF
2*4 or 2*2
Φ40*60
CBB65-450VAC-12.5μF
2*4 or 2*2
Φ40*70
CBB65-450VAC-15μF
2*4 or 2*2
Φ45*70
CBB65-450VAC-20μF
2*4 or 2*2
Φ50*75
CBB65-450VAC-25μF
2*4 or 2*2
Φ50*85
CBB65-450VAC-30μF
2*4 or 2*2
Φ50*100
CBB65-450VAC-35μF
2*4 or 2*2
Φ50*100
CBB65-450VAC-40μF
2*4 or 2*2
Φ50*100
CBB65-450VAC-45μF
2*4 or 2*2
Φ50*100
CBB65-450VAC-50μF
2*4 or 2*2
Φ50*125
CBB65-450VAC-55u F
2*4 or 2*2
Φ50*125
CBB65-450VAC-60μF
2*4 or 2*2
Φ50*125
CBB65-450VAC-65μF
2*4 or 2*2
Φ55*125
CBB65-450VAC-70μF
2*4 or 2*2
Φ55*125
CBB65-450VAC-80μF
2*4 or 2*2
Φ60*125
CBB65-450VAC-90u F
2*4 or 2*2
Φ60*125
CBB65-450VAC-100μF
2*4 or 2*2
Φ63.5*125
CBB65-660VAC-20μF
2*4 or 4*4 or 2*2
Φ50*100
CBB65-660VAC-25μF
2*4 or 4*4 or 2*2
Φ50*100
CBB65-660VAC-60μF
2*4 or 4*4 or 2*2
Φ63.5*150
We can customize CBB65 capacitor according to your requirement


Company Profile




Production line













Why Choose Us




Packing & Delivery


Packing Details : carton

Delivery Details : 20 days after getting payment



1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film

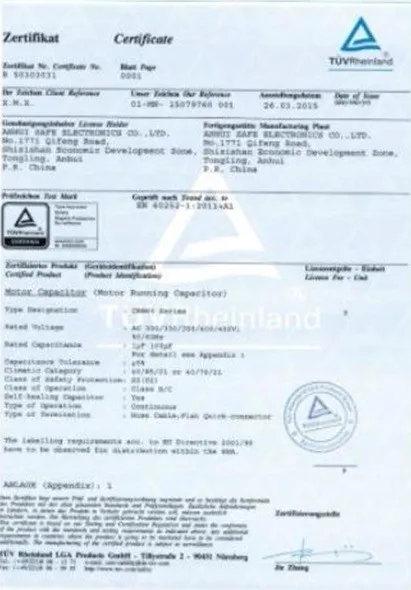

Our Certifications
