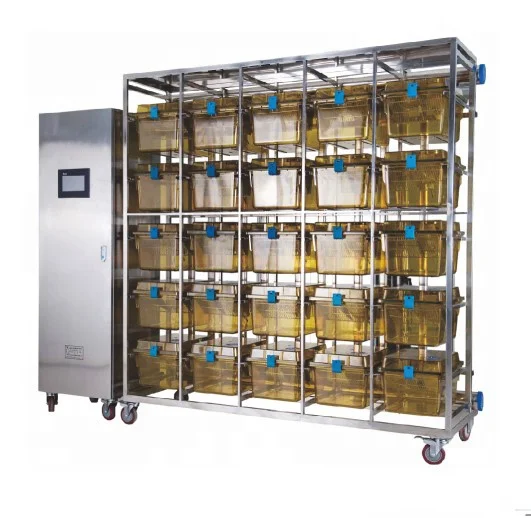

Lab Rat & Guinea Pig Cages IVC Systems with Touch Screen IVC System of 16/20/25/30 Cages

Product Overview

Description

Lab Rat & Guinea Pig Cages IVC Systems with Touch Screen of 16/20/25/30 Cages

1 The control unit of the equipment confirm with national safety standard, the  power supply is 220V, pressure sensors, motors, and the corresponding instrument requires are high-quality imported products;
2 The racks are  made of stainless steel 304, the surface is polished, inner surface  is smooth, the welding spot has no burrs. The rack should be nice in appearance, solid and stable, and easy to move;
3 The other parts of the control unit are made of stainless steel 304, the surface is polished, inner surface  is smooth, the welding spot has no burrs
4 The timer is attached  to remind users to replace high efficiently filters timely;
5 The control unit has the function of a power cut alarm, equipment failure alarm ,temperature and humidity alarm and many other auxiliary functions, power cut alarm reminds the user to open the life window of the cage

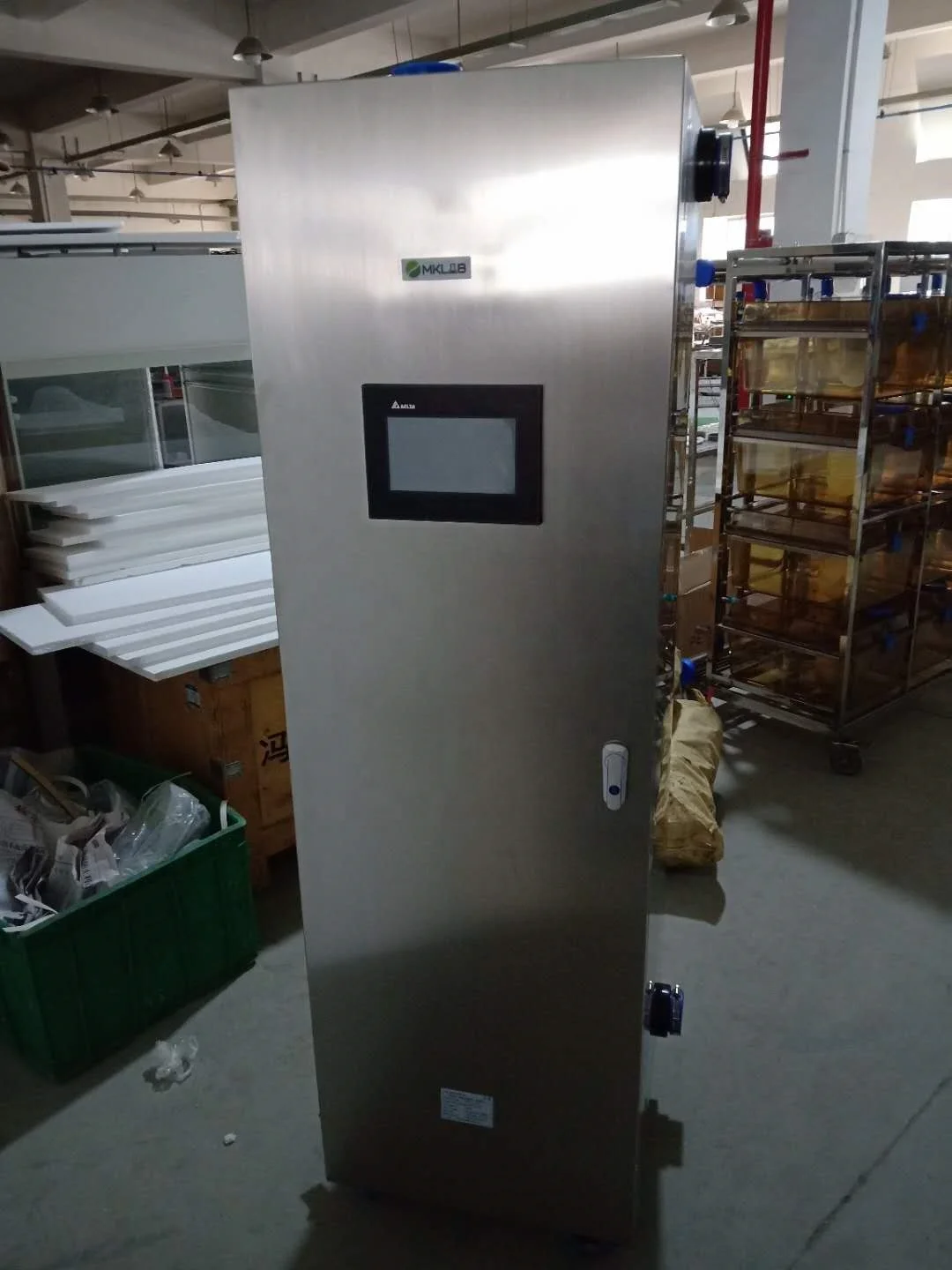

6 There is a  LCD screen on the control unit  for you touch and control.
7 Using static wind technology, to ventilate individually to each cage to prevent cross infection;
8 Static wind technology make the air to go everywhere in the cage, the life window can prevent the mouse from suffocate when power is off.
9 Cages are connected tight, and sealed well, when the equipment are placed in ordinary environments, the inside of cage can still  maintain the SPF level of air cleanliness;

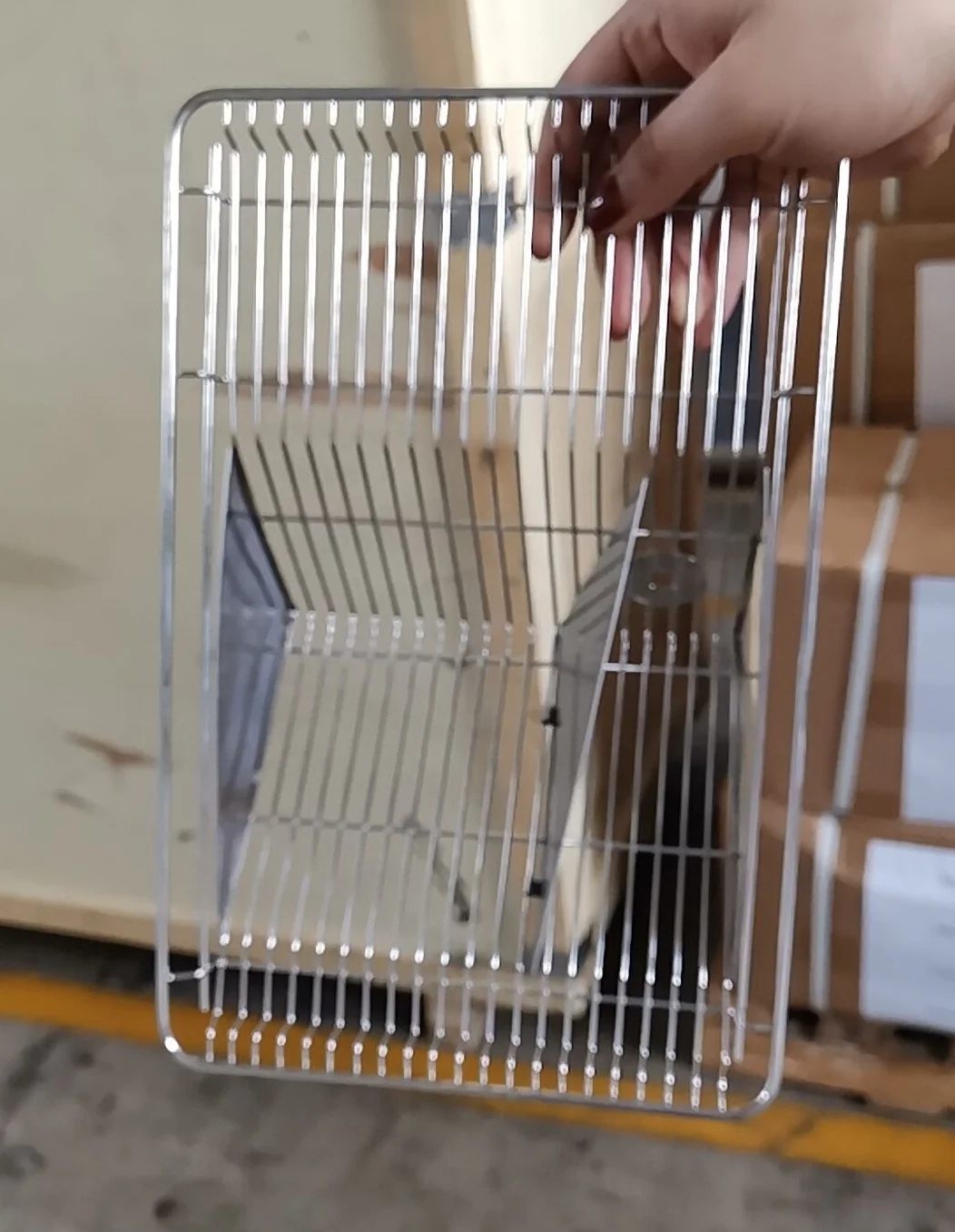

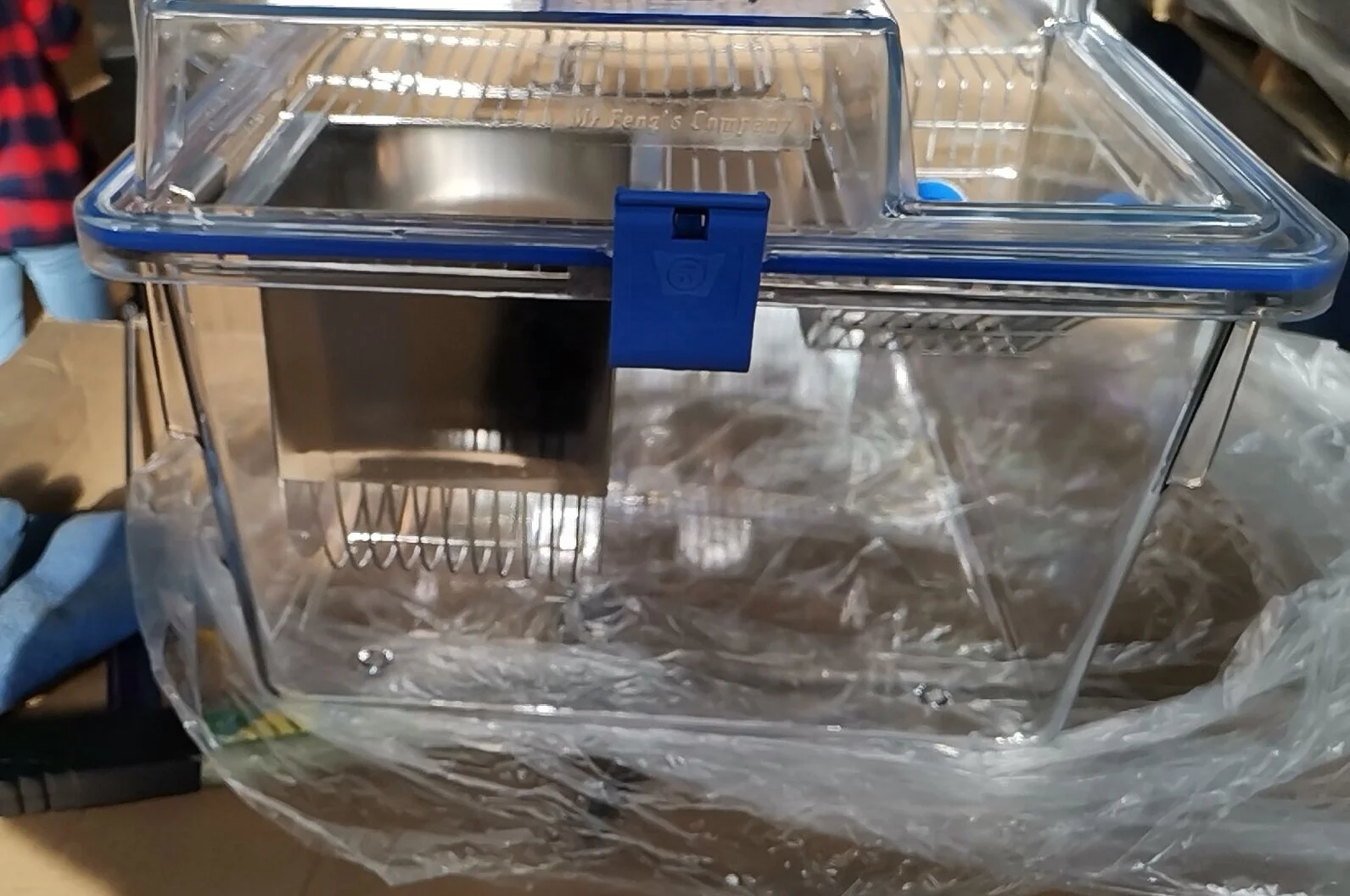

10 The cage are sealed well, good transparency, use silicone rubber to resist acid and alkali, No distortion in 15 pounds pressure and 150 ℃ for half an hour .; The net are made of stainless steel ,the wire diameter is Φ1.8mm-Φ4.0mm, and is  made of 1Cr18Ni9;
11 The cage use static pressure to let the clean air to go smoothly downwards to get the living area, the inlet and outlet filter can avoid the enter of hair, sawdust , etc to come into the control unit

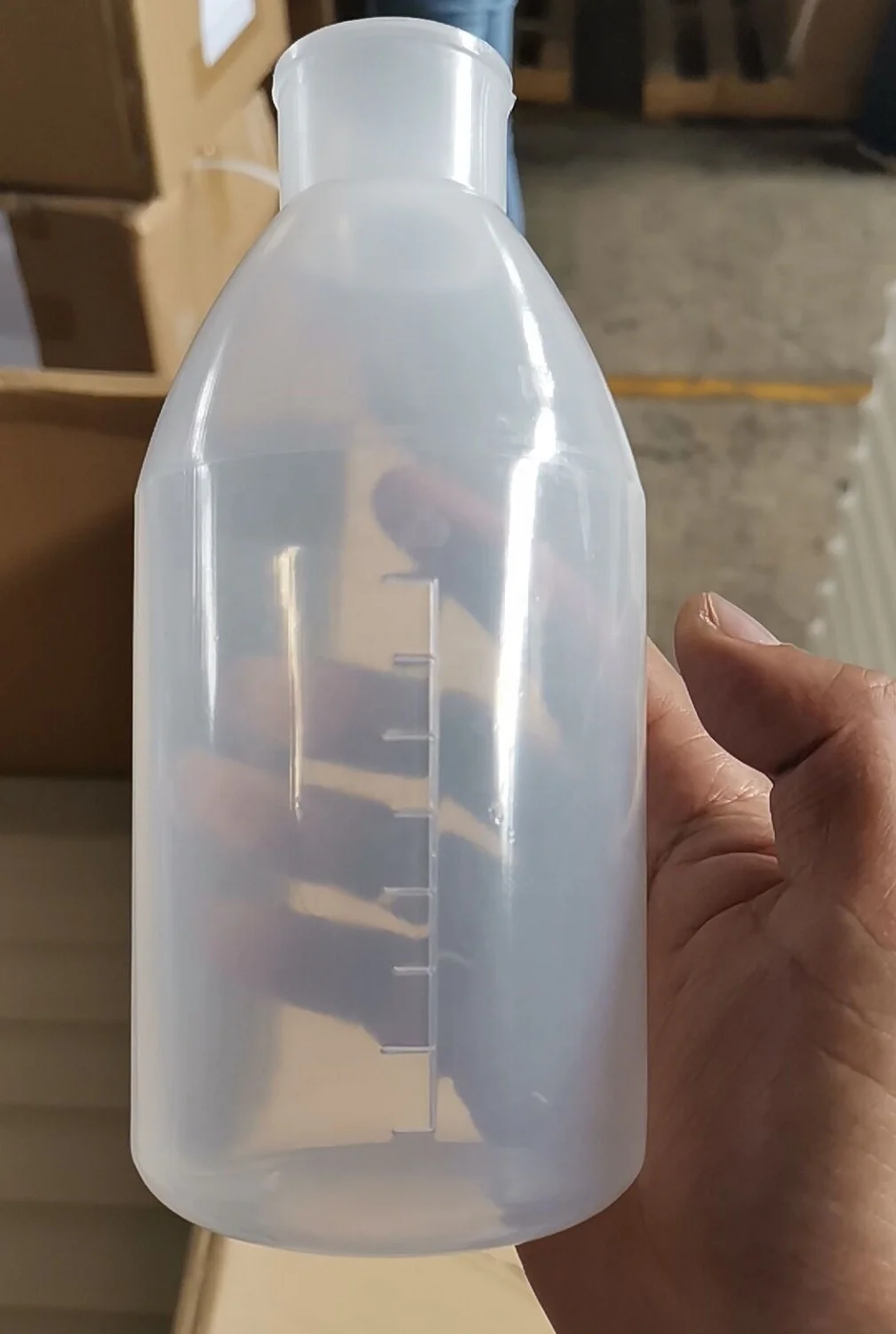

12 A transparent PC water bottle is put in each cage, which is made of imported thermos table materials; transparency, resist acid and alkali.
13 Buckles are made of aerospace engineering plastics, which is thermos table ,anti-wear and beautiful, durable, easy to operate. We are the only manufacturer to resolve the problem currently.

Model	Cages	Sizemm	Rows
CRG16cages	16	1590x680x1590	4layersx4
CRG20cages	20	1980x680x1590	4layersx5
CRG25cages	25	1980x680x1910	5layersx5
CRG30cages	30	2420x680x1910	5layersx6
CRG16cages x2	32	1590x680x1590x2	4layersx4x2
CRG20cages x2	40	1980x680x1590x2	4layersx5x2
CRG25cages x2	50	1980x680x1910x2	5layersx5x2
CRG30cages x2	60	2370x680x1910x2	5layersx6x2





Air change times(Number/h)	10~20(adjustable)
Air flow speed (m/s)	≤0.18
Gradient pressure difference(pa)	20~50(adjustable)
Air cleanliness(level)	<100
Falling bacteria (number/utensil/hour)	0
Noise(dB)	<55
