Mosi2 Heater 1800 Molybdenum Disilicide Price High Temperature Heating Element
- Category: >>>
- Supplier: Zhengzhou,Mingxin,Electric,Heating,Material,Co.,Ltd.
Share on:
Product Overview
Description
Electric Mosi2 Heater 1800 Molybdenum Disilicide Coil Price High Temperature Heating Element
Products Description
Mosi2 heating rod, Mosi2 heating element, Molybdenum disilicide /mosi2 heater
Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum.
Molybdenum disilicide (MoSi2) is a refractory metal silicide that is primarily used as a heating element. In recent years, its potential for use as a structural ceramic has been recognised, as the material combines excellent oxidation resistance and high elastic modulus at elevated temperatures.
Quality first, reputation above all！！！
Our pleasure to work wth you.

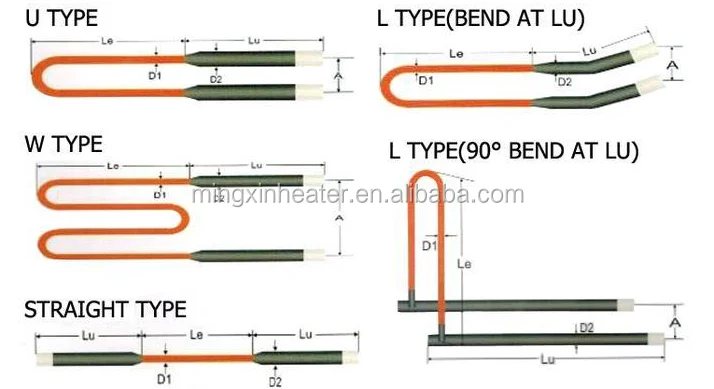

Marks of Mosi2 heater
When you enquiry, please tell us the following data
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
Product Paramenters
1) Physical properties of ceramic Mosi2 heating element
Physical properties | ||||||||
Volume Density | Bend Strength | Porosity Rate | Water Absortion | Hot Extensiblity | ||||
5.5-5.6g/cm³ | 15-25kg/c㎡ | 7.4% | 1.2% | 4% | ||||
2) Chemical Properties of ceramic Mosi2 heating element
Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.
3) The max temperature of elements in different atmosphere
Atmosphere | Max. element temperature | ||
Mingxin MX1700 | Mingxin MX1800 | ||
Air | 1700℃ | 1800℃ | |
Nitrogen | 1600℃ | 1700℃ | |
Argon, Helium | 1600℃ | 1700℃ | |
Hydrogen | 1100-14550℃ | 1100-1450℃ | |
N2/H2 95/5% | 1250-1600℃ | 1250-1600℃ | |
General applications | Heattreatment Forging Sintering Glass melting Refing radiant tubes | Laboratory furnaces Testing equipment High temperature sintering production furnace | |
4) Recommend surface load
Recommend surface load | ||||||||||
Furnace Temperature (℃) | 1400 | 1500 | 1600 | 1650 | 1700 | |||||
Surface load of Hot zone(w/c㎡) | ＜18 | ＜15 | ＜12 | ＜10 | ＜8 | |||||
Details Images
Details Images

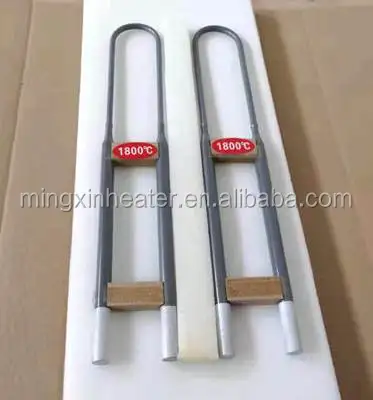

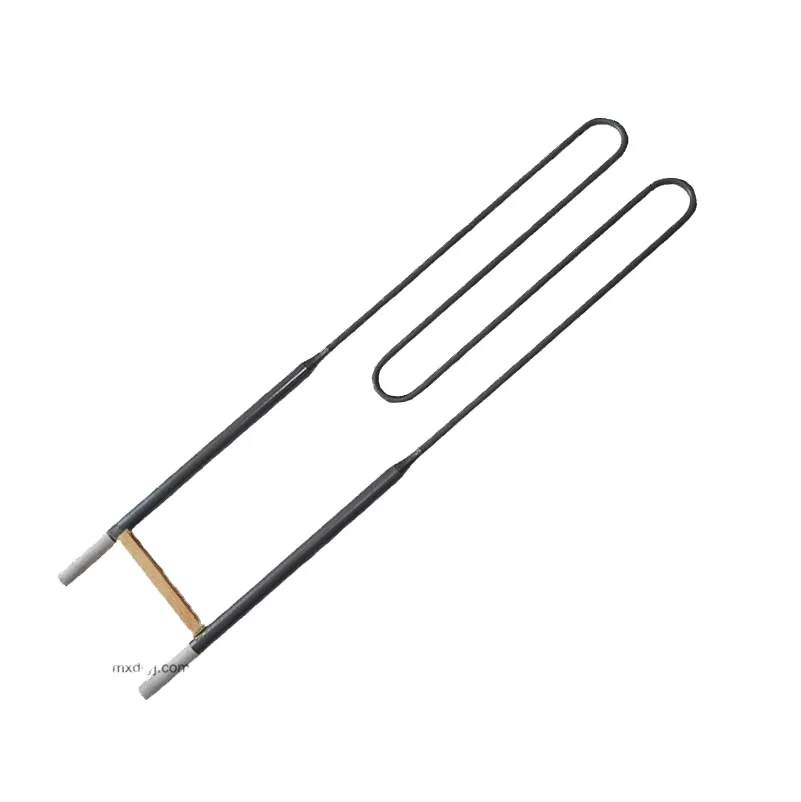

Mosi2 heater , mosi2 heating element, molybdenum disilicide heating rod

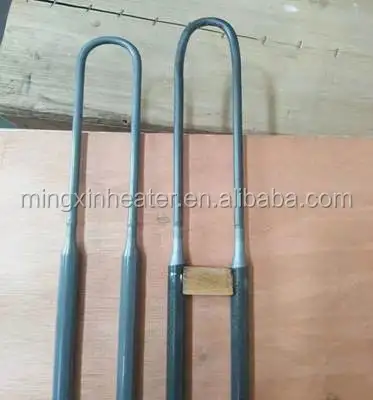

Mosi2 heating element consists of hot zone and cold zone, the welding point is beautiful ,smoothly, without bump

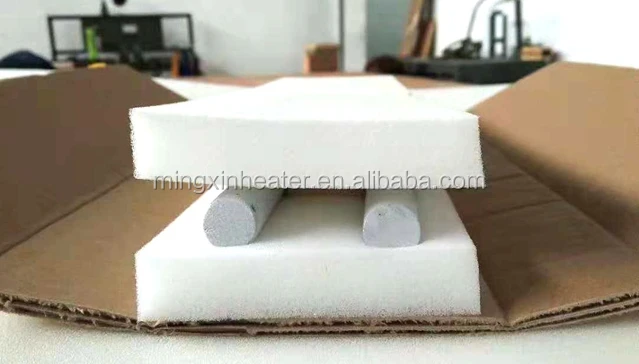

Packaging Details: Packed with sponge and box case, and then put it into wooden case.
Port: Qingdao, Shandong
Lead Time: Shipped in 10 days after payment Transportation: Most by air.
Notice for using
It should be pointed out that element cannot be used for rather long time in 500-700°C, or it will be powdered owing to the strong oxidizing action in low temperature.

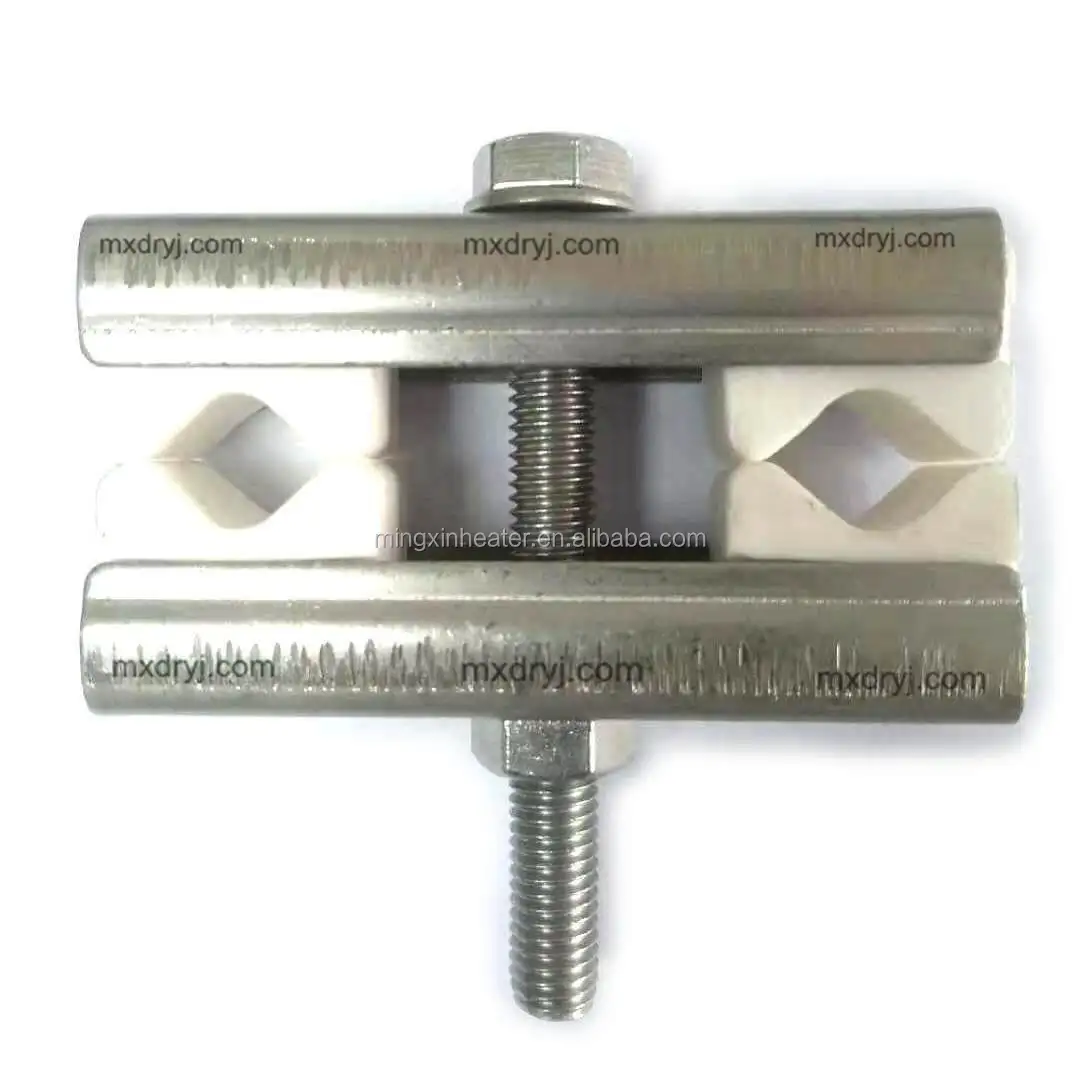

Accessories

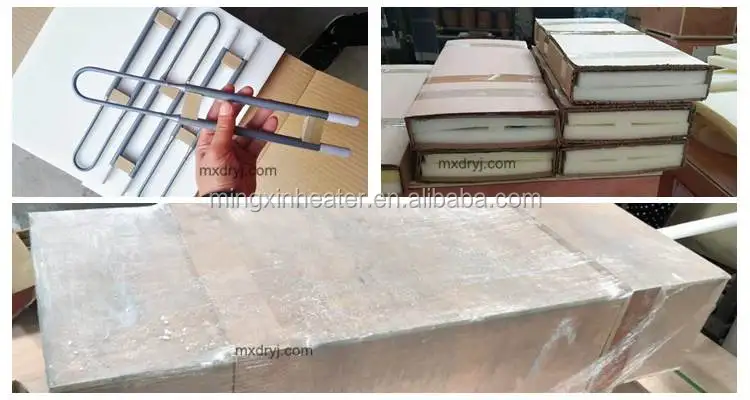

Product packaging
Packaging Details: Packed with sponge and box case, and then put it into wooden case.
Port: Qingdao, Shandong
Lead Time: Shipped in 10 days after payment Transportation: Most by air.
FAQ
Why choose us?
1. Why the price is so competitive?
You are ordering to the direct factory.
2. Where is your factory located? How can I visit it?
Our factory is located in the 10km southeast of the world-known ancient temple-Shaolin temple with beautiful environment, wonderful scenery and convenient transportation.
(Detailed address: Sanlizhuang High&New Tec. Zone, Dengfeng, Henan 452483, China)
We can arrange car to pick up you if you call us in advance.
3. Which payment do you accept?
A: TT and L/C.
4. How can I get some samples?
We are honored to offer you one sample for free after talk. But you should pay for sample freight.
5. What do your factory do on quality control?
As for Quality, without compromise, we has QC for every batch.
Any question, please don’t hesitate to contact us online, by phone or email.
