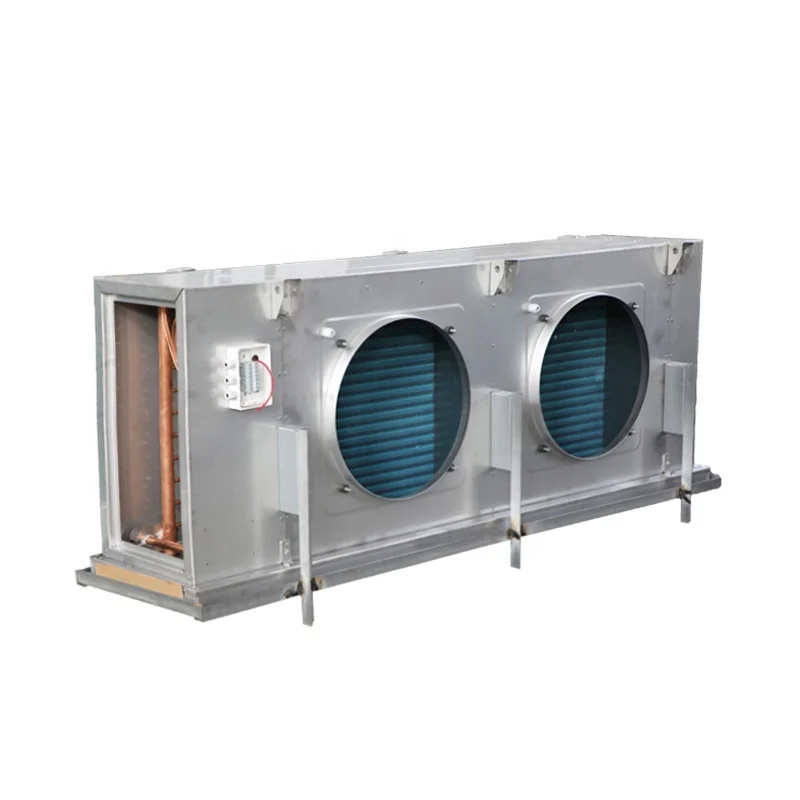

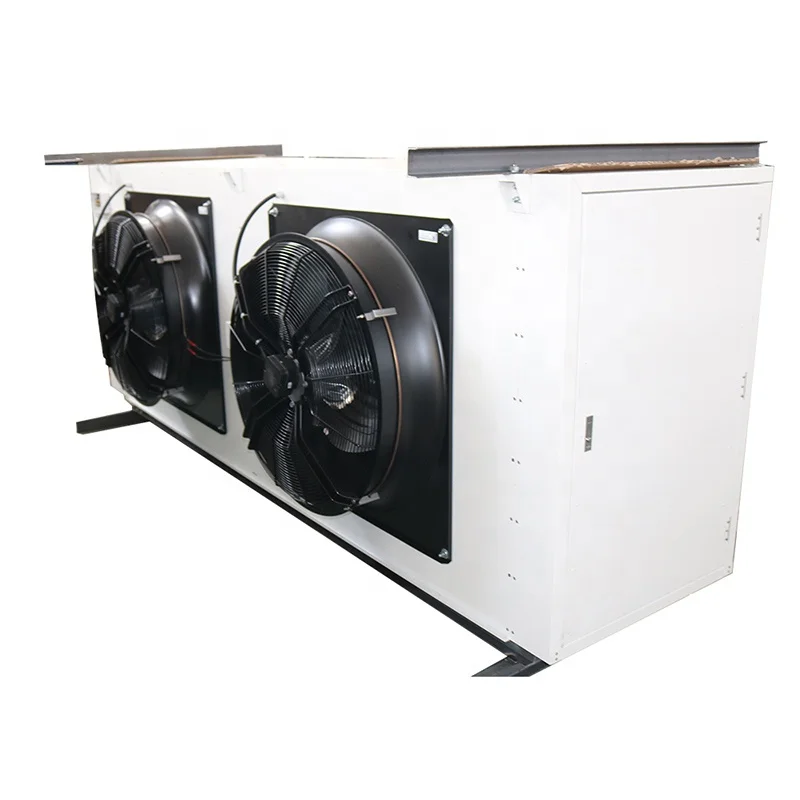

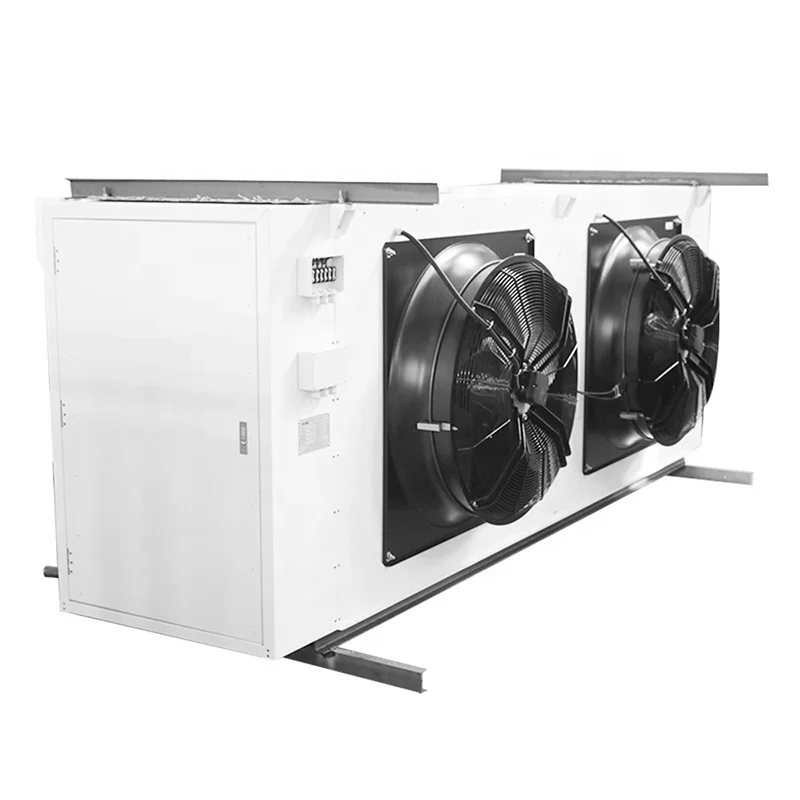

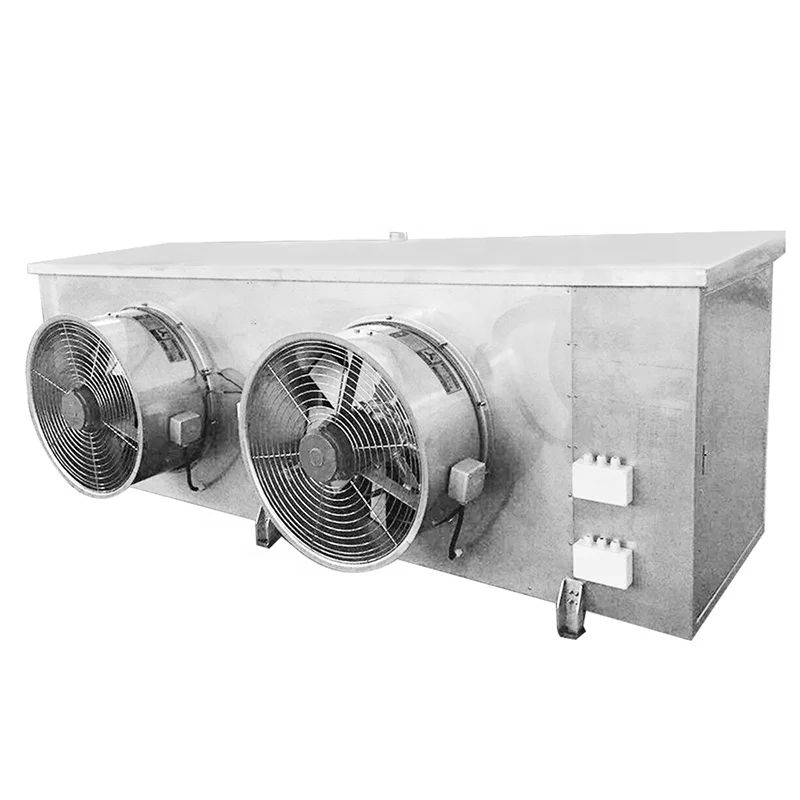

DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage
DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage

DJ series 2 fans cooling coil 4 fpi ceiling mounted evaporator for cold storage

Share on (62220111046):


Price:$1,000.00 - $1,700.00

Quantity:


Product Overview

Description






Product Description


Evaporative air cooler is a suitable for a variety of cold storage cooling equipmet, it has the advantages of compact structure,
light weight, no occupation of the use of cold storage area, high efficiency, the cold storage food rapid cooling, greatly
improving the storage of food freshness.





Axical Fan





























Blade material:Aluminum or stainless steel or Nylon
Casing material:Stainless steel or Galvanized steel
Motor voltage:According customer's requirement
Bearing:NSK or SKF
Protection Grade:IP55
Original:China brand or International brand




External Fan





















Blade material:Coated steel or Aluminum
Grille material:Coated steel or Stainless steel
Advantages:Lower noise, Large air volume,Saving  room space, Energy efficiency Erp2015
Original:Germany Ziehlabegg or China




High Efficiency Tube





















Material:Copper
Tuber OD:5/8''
Inside type:Inner grooved tube
Advantages:Increase inside heat exchange areas of tube  and intensity of refrigerant. At least 15% heat transfer  efficiency increased




 High Strength Tube

























Material:304 or 316L stainless steel
Tube OD: 5/8''
Test pressure:5.0Mpa
Expanding pressure:40Mpa
Advantages:Running more safty, Better corrosion  resistance, Good welding quality










Features


































 Coli Block




·Φ16mm Copper tube or stainless steel tube.
·High efficiency sine wave fin.
·Fin material:8011, AlMg3, 304(316L), Coated.
·Fin Pitch: 4.5mm, 7mm, 10mm, 12mm.
·Other fin pitchs can be customized by user.




 Optimized Design




·Sturctures and covers of Unit Cooler are designed by       our 3D software .

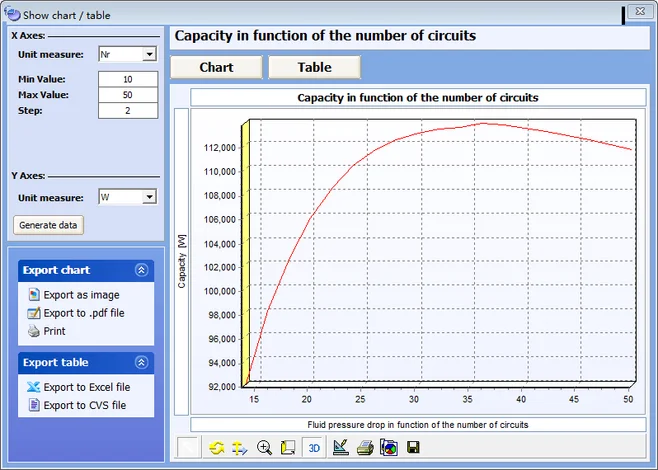

·Our advanced coil software can simulate your running      heating conditions.
·We can provide CAD drawings and reliable data of your    customized products.




 Optimized Structure& Casing




·Using maintance door, checking and maintance will be      easier.
·Suppport foots are consided which can provice                  convenience of installing and carring.
·Normal casing material is galvanized steel ,power              coated white RAL9018.


·Other option: Aluminum or stainless steel.




 Guarantee of Safe Running


·Stainless steel Pipe running pressure to 5.0Mpa,                Blasting pressure to 40Mpa.

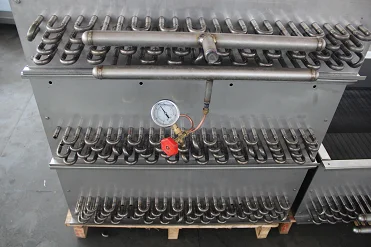

·Nitrogen pressure 5.0Mpa which keeping 24 hours for      leaking test.


3e9b1c438aeb343048727199dbcb26436df36d9840d2e-QuSpmb.png·Eddy current testing provide good quality of stainless steel tube.

·TIG welding process of bend is fully automatic which can guarantee high strength and good apperance.


·Float-Coil Tech. which can float tubes in the centre of       plate holes. Avoiding direct friction between tubes and     plates which may causing leakage of tubes in process of running and transport.



 Fan System

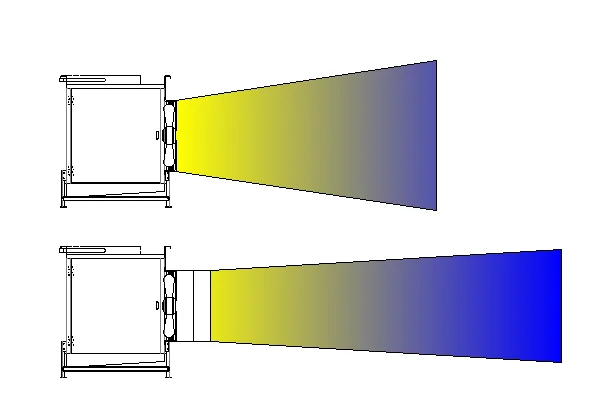

·Extended air throw streamer,air throw can reach to 70m
·Motor protection class IP54, Insulation grade F.
·Duct axical fan blades are made of casting aluminum
·Motor application temperature: -45℃~50℃.
·Lower noise fan is possible for special application             conditions.
·Motor power will be changed with the change of air           temperature and resistance.



 QQ20161215110727.jpg Rapid Defrosting System

·Electrical defrosting- stainless steel heating pipe,              installed in fan, coil and water pan
·Water defrosting- water tray spraying
·Hot gas defrosting- hot gas pipe set in tray, energy           saving and high efficient, help oil return to compressor
·Conbine different defrosting ways together






Production Process


 .jpg








Company Information


111


Our workshop.jpg


 Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.

Our main products are as below :


* Heat exchange coil in all types
* Evaporator & air cooler ; condenser
* Evaporative condenser / cooling tower

Our heat exchange coil has been exported to USA, Canada, Australia, South Africa etc.




Certifications


 .jpg





Packaging & Shipping


.jpg








FAQ





1.What is your delivery time?
   10---40days.
2.What are the payment terms?
   30% T/T before production and balance before shipment
3.What is your warranty?
   One year for the whole unit.
4.What is the valid time of the quotation?
 One month.
5.Can we do our OEM logo?
    Yes,we can do OEM logo for you.
6.Can you do our country plug?
   Yes,we can do the plug according to your request without extra cost.











Contact


Contact:  Lucy Zhang


Skpe: lucyzhang228627


wechat / whatsapp: 0086 15961187579
