No Power Attic Gable Heat Extractor 50W Eco Energy Solar Fan Roof Mounted DC Motor Duct Fan Air Ventilation Ceiling Exhaust Fan

Share on (62220231123):


Price:

Quantity:


Product Overview

Description



"We are 100% Reliable Manufacturer and Look High into the Product Qualities & Utilities!"


Product Description


SIPL Comprehensive & Innovative Solar Ventilation Exhaust Fans

Having been a strong & experienced & of far sight seeing solar manufacturer in the ventilation industry since from 2012, we make our solar fans into a comprehensive series that they cover your different demands either for roof / wall / ceiling mounting, or for day time heat extraction / day-night time continuous air circulation, or for home / factory / greenhouse / poultry farm / water tank / dome tent / storage cotainer heat exhaust use, etc.

And, to better suit such various ventilation demands, our solar fan series include different size / power options that a smaller power one is enough for a small space application, while a bigger power one or more pieces together is recommended for a large space application!

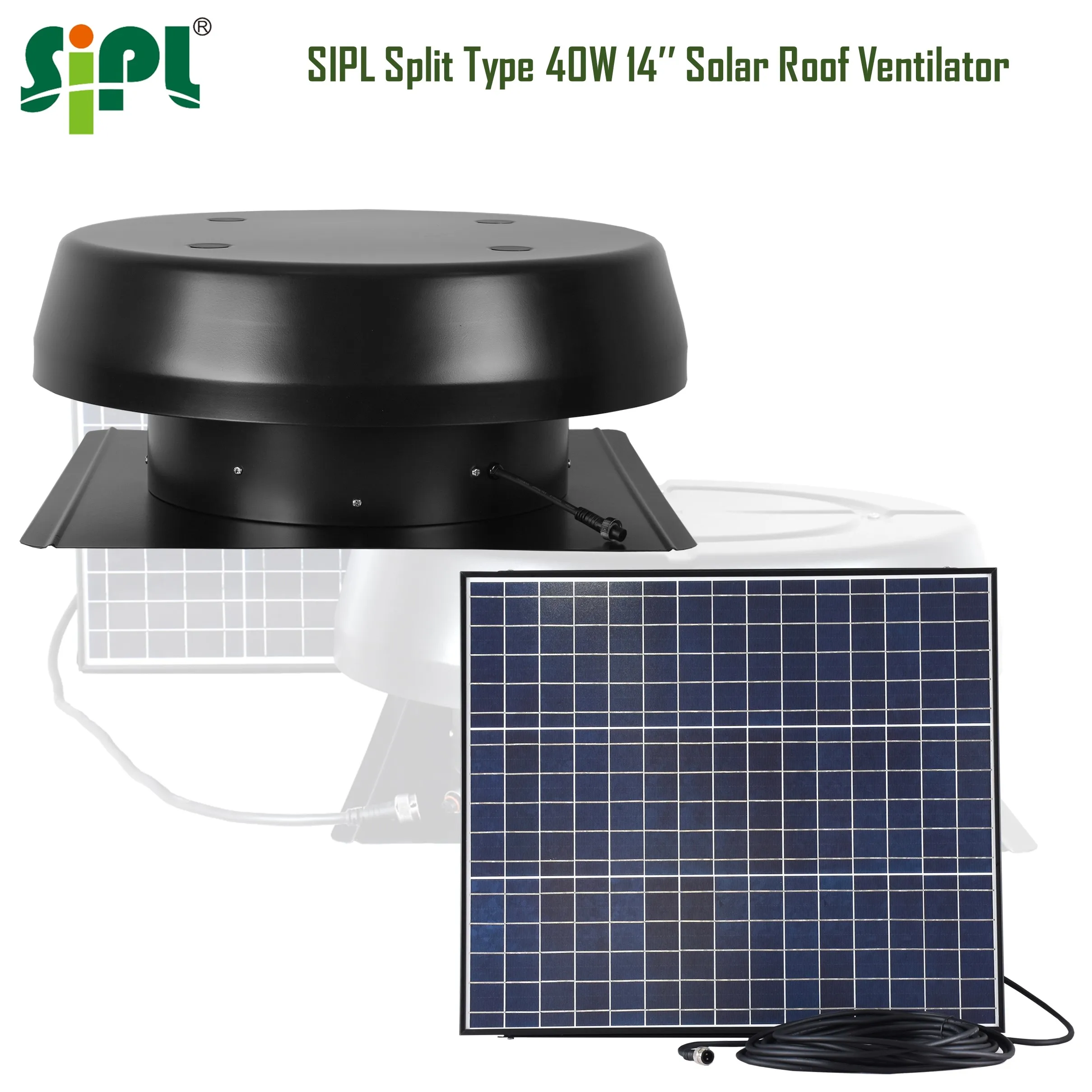

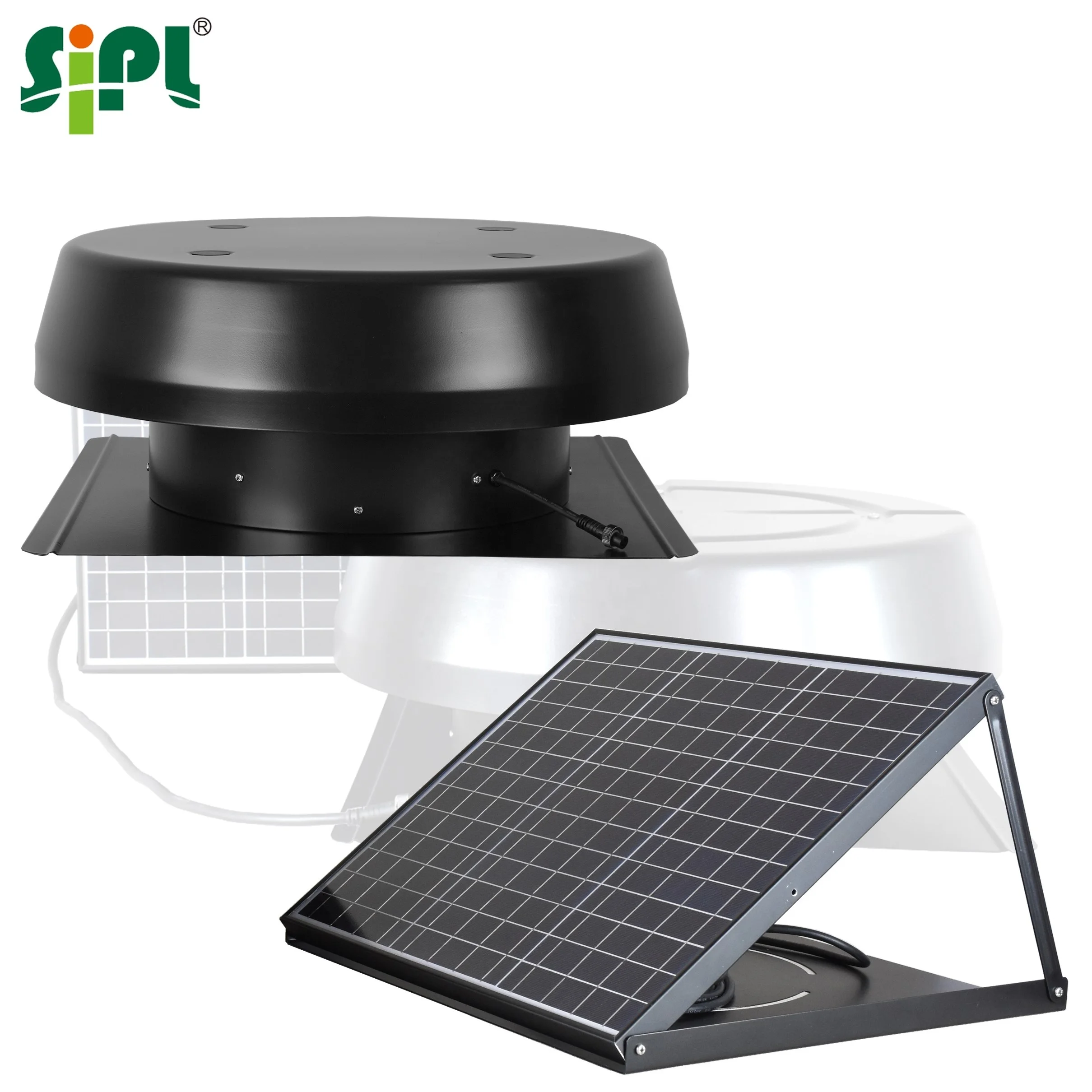

The solar attic fan (also solar dc air conditioner) here carries a detachable 40W solar panel, and be connected by 3m cable. It's specially designed for application locations where the sunlight is / would be blocked from surroundings. So it's in fact most suitable for anywhere use, and such kind of installation system would be also best adopted for those fierce windy arears!

Alternatively, if the installation location is clear and no sunlight blocking, it will be recommendable to apply its PV integrated version #SN2016010 so as to enjoy an easier installation.






Professional Product Designing:

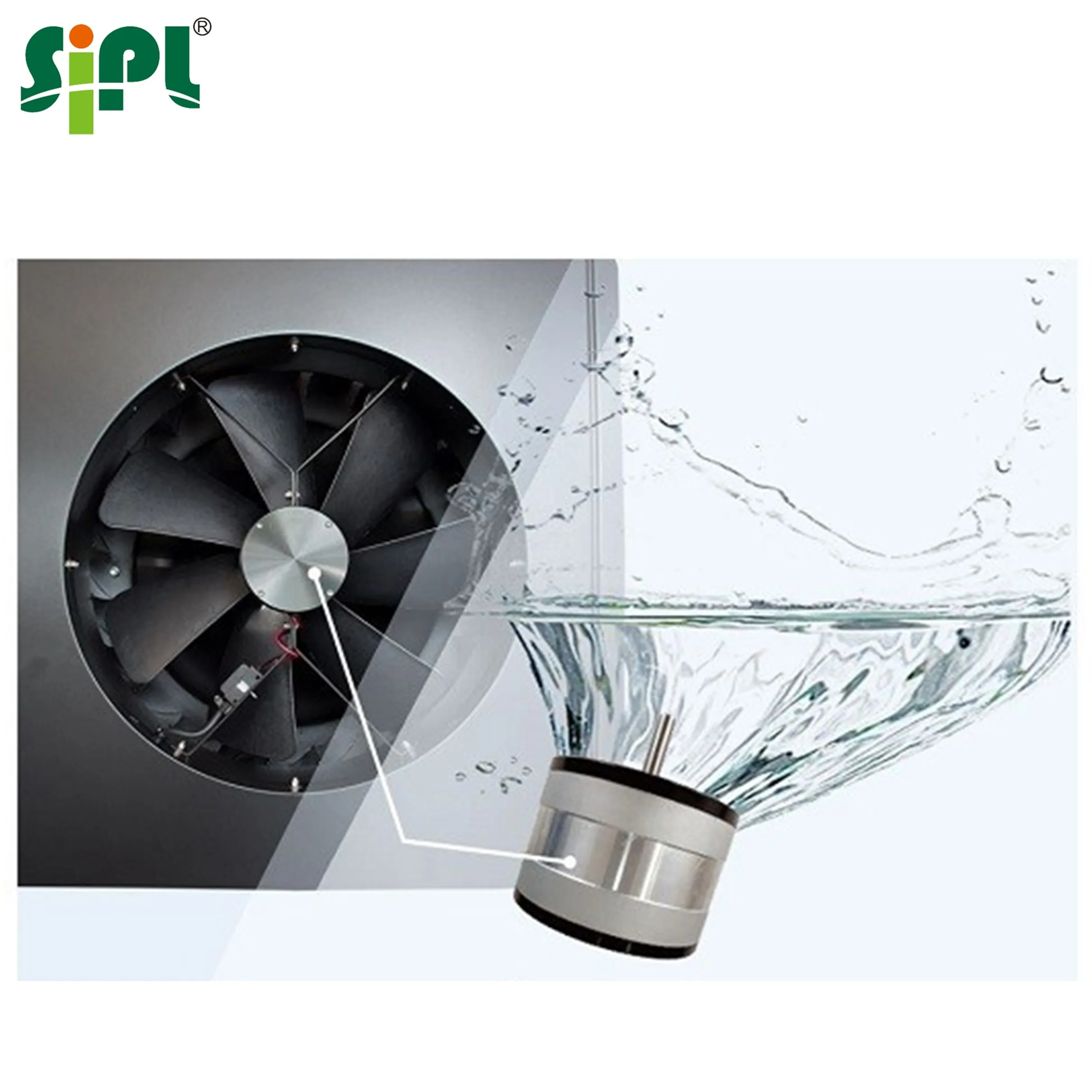

* Unique Brushless DC Motor:
Our solar attic fan will start and keep running once sunlight is available, own to it is equipped with a best motor. This engine is IP68 waterproof, to assure the fan be suitable to install anywhere:


High Efficiency + Unique Waterproof
* The high energy efficiency feature in our motor supports the fan start running once solar panel input reaches 9V in the morning, and it keeps running until solar panel output drops down to 9V in the afternoon!

* Since IP68 waterproof, our product is guaranteed to work well in a long run, even in those special environments like greenhouse / water tanks, etc., while other similar items can not do!



* Patented Ventilation Structure:

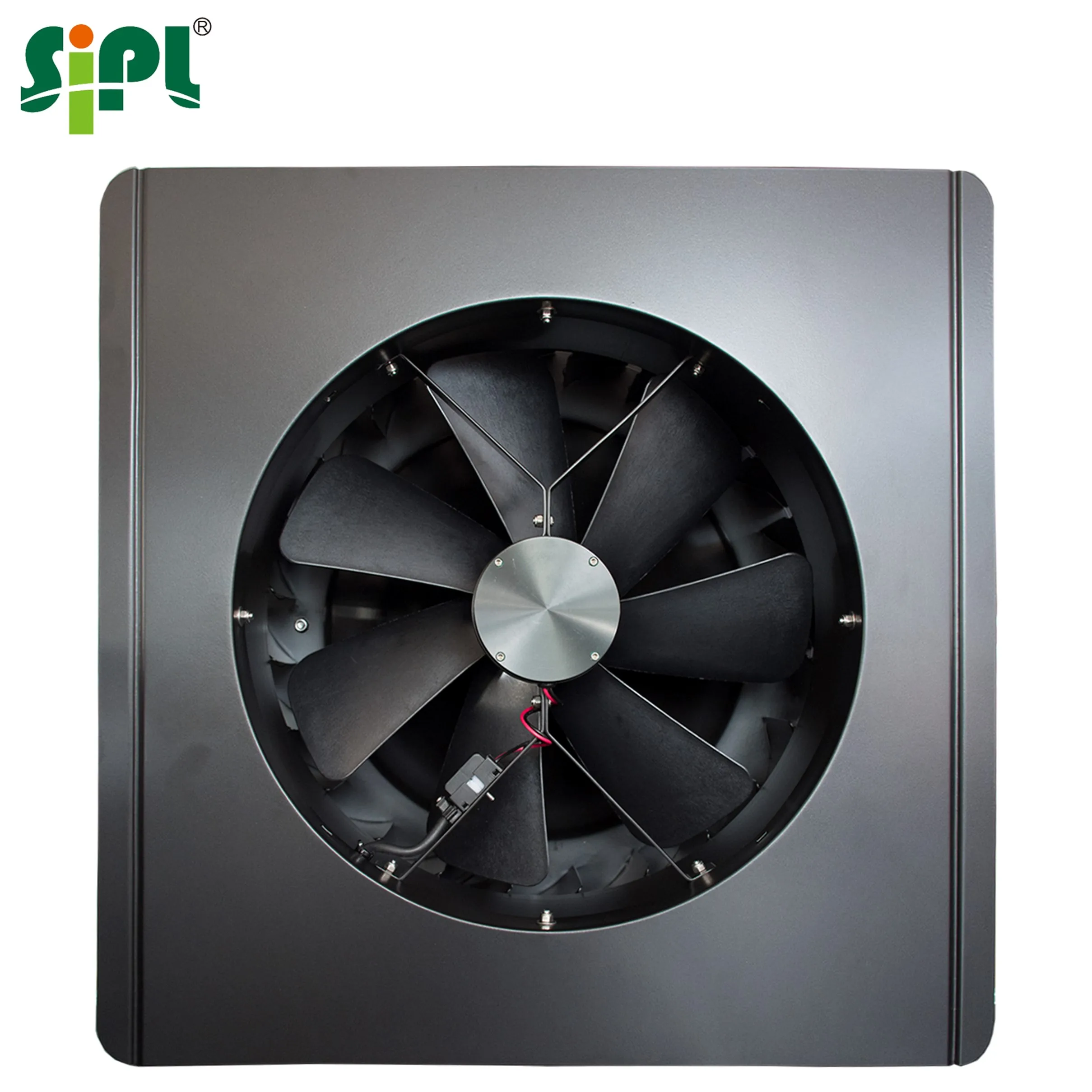

Our solar attic fan is an axial flow type roof ventilator, but it is made with a 360-degree swirl turbin air ventilation structure to guarantee no backward air flow from the exterior. This is essential & beneficial:


Wind Guide Baldes + Fan Blades
* The wind guide cone with 24pcs wind guide blade structure is hold a patent by us, to effectively support the interior hot air be extracted out and no any counterforce to reduce the fan efficiency!

* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance and in quieter operation!



Reliable Product Performance at Easy Installation:




Being a self-contained solar ventilation attic fan, our equipment will work friendly & reliably after you put it onto the building roof. Moreover, own to good product strucure and off-grid solar feature, our solar attic fans would effectively reduce the possible maintenance trouble for you in future.


Standardize Production with High Consistency:

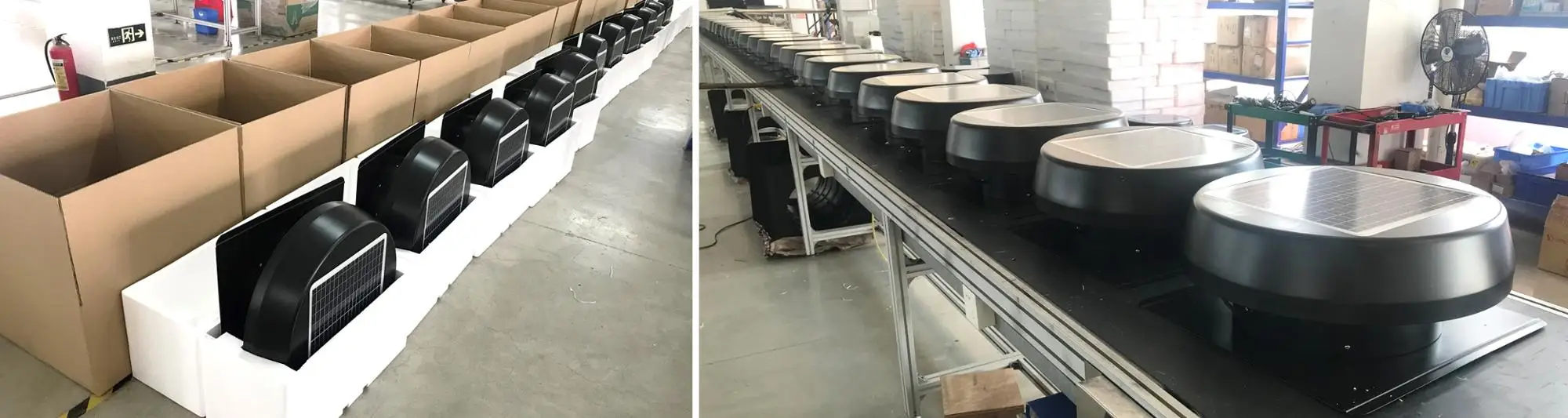

Our solar fan productions run on a well scheduled line, with each fan part be tested before assembly & the fully assembled unit be futher 100% tested before package. This standardize production guideline brings our products a high consistency.


Flexible Customization Possibilities Make the Fan More Fit:

* Different Fan Base, to make the solar fan installation easily fit to the roofing profile

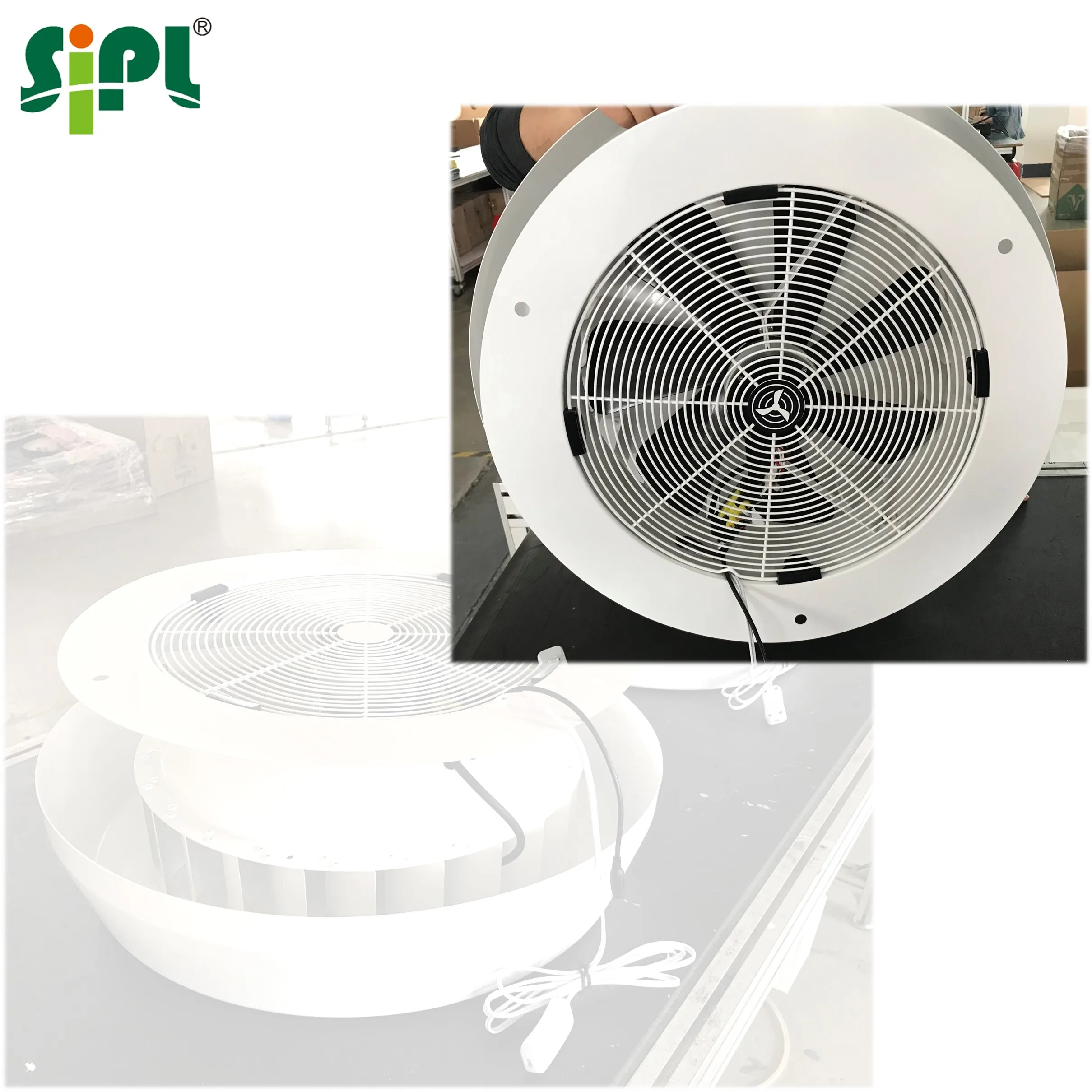

* Fan Guard, to protect fan blades or to prevent small animals entering into the house
* Thermostat or Cable Cord Switch or Remote Controller, to run/stop the solar fan
* AC/DC Power Adapter or Solar Battery Kit, to run the solar fan nonstop even at night




AC/DC Power Adapter
* to support the solar fan runs nonstop under grid electricity supply during sunless periods
* AC input is suitable 100~240V
* DC output is maximum 18V 1.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this AC/DC power adapter
* shall be plugged to a wall socket



Solar Battery Kit
* to support the solar fan runs nonstop under battery supply during sunless periods
* battery is charged by an independent solar panel
* battery output is maximum 12.8V 0.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this battery kit
* shall be put onto the building roof to face sunshine



Remote Controller
* to turn off/on the solar fan flexibly at any time
* can turn off the solar fan automatically after a set operation time
* an inbuilt Smart Controller will be added into the solar fan and code-match with this remote controller so as to realize the remote manual settings
* each time of remote setting is valid for 12 hours only



Practical Product Applications:





Other Size / Power Options For This Design:


SN2014004-30: 14''  30W/19.5V, PV detachable
SN2014004-50
: 14''  50W/22.5V, PV detachable
SN2014008: 14''  30W/19.5V, PV integrated
SN2016010: 14''  40W/21V, PV integrated
SN2018026: 14''  50W/22.5V, PV integrated



Warranty


Fan Host
designed lifespan > 20 years
warranty: 15 years
Solar Panel
designed lifespan > 25 years
warranty: 15 years
Fan Motor & Fan Blades
designed lifespan > 10 years
warranty: 5 years
other electronic components
designed lifespan > 10 years
warranty: 5 years
if AC/DC Power Adapter
designed lifespan > 10 years
warranty: 5 years
if Solar Battery Kit
designed lifespan > 8 years
warranty: 2 years


* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
