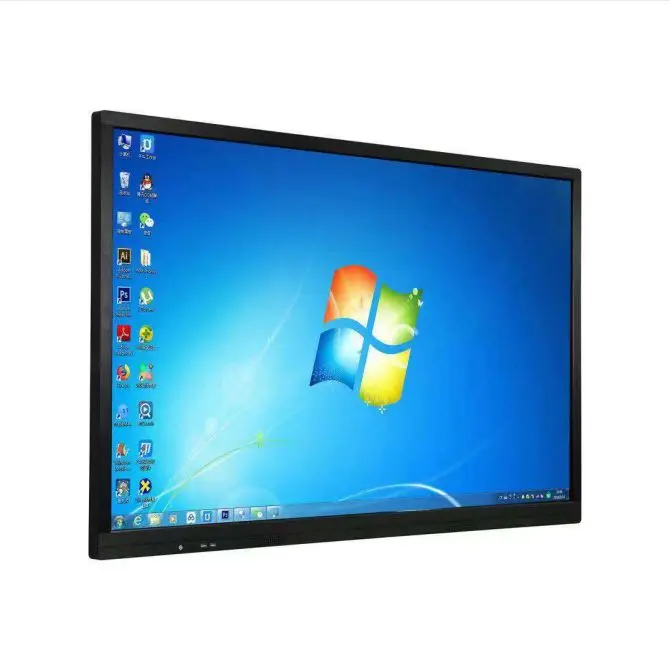

Digital Touch Screen Whiteboard Interactive Finger Writing Tablet Panel for School Teaching
- Category: Board >>>
- Supplier: Shenzhen Lepai Shangxian Technology Co. Ltd.
Share on (62220249847):
Product Overview
Description
Digital Touch Screen Whiteboard Interactive Finger Writing Tablet Panel for school teaching
Interactive whiteboard technology is reshaping the way we educate learners and collaborate in business.
In the classroom, interactive whiteboards are replacing projectors and overhead displays, allowing teachers to make notes on content and share that to students’ digital devices, conduct classes remotely and work with students in real time to solve problems. In the company conference room, they allow teams in far-flung locations to collaborate on content, with each team able to make notes on their board and have them instantly appear on the boards of other teams across the country or across the world.
| IR touch Interactive Kiosk Spec. | |||
| Type: | WB65PAMT | WB75PAMT | WB85PAMT |
| Size: | 65inches | 75inches | 85inches |
| Dimensions: | 1485.6*903*94.6mm | 1725*1042.6*109.6mm | 1961*1183.5*125.7mm |
| Packaging Size: | 1600*1025*215mm | 1870*1150*220mm | 2110*1315*240mm |
| Display Size: | 1428.48(H)x803.52(V) | 1650.24(H)x928.26(V) | 1876.2(H)x1057(V) |
| Power: | 220W | 250W | 350W |
| Writing Screen Medium: | 4mm Explosion-proof tempered glass (Anti-glare is optional) | ||
| System: | Windows&Androis Dual-System | ||
| Application: | Education,Board Meeting | ||
| Chip Solution: | MSD6A638JSMG | ||
| CPU/GPU: | Cortex A53*2 1.2GHz / Mail450MP4 600MHZ | ||

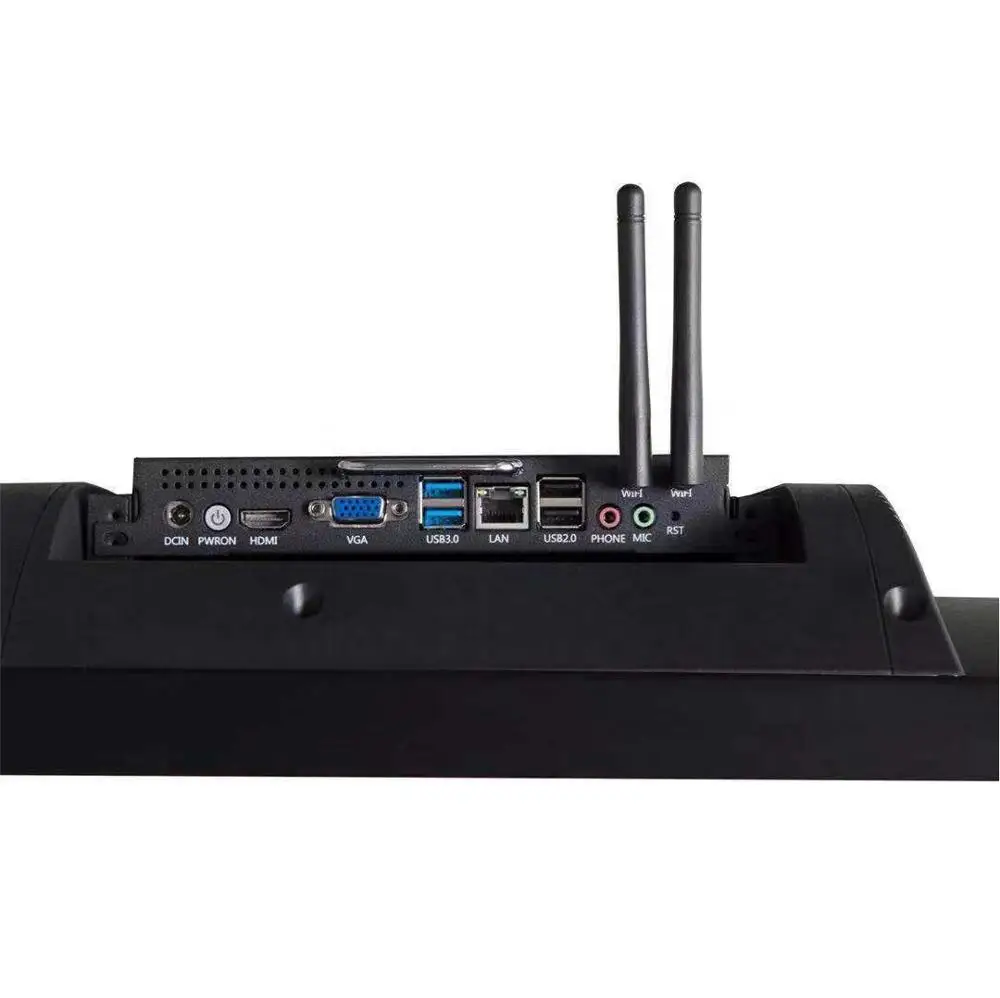

| Port: | 42mm Standard 80 pin OPS,10m/100m Wired LAN,USB,VGA,HDMI,AV,RF,YPbPr,MIC,SD-card,SPDIF,Earphone,RJ45,DP | ||
| ATV/DTV: | NTSC,PAL,SECAM / DTMB | ||
| Audio video input: | Support input 3840*2160P | ||
| Video: | MPEG-2/4,AVS,H.264,H.265,TS,Realmedia... | ||
| Audio: | MPEG1/2 layer Ⅰ/Ⅱ,AC-3(Need to customize).... | ||
| Cvbs: | 1.0Vp-p+/-5% | ||
| YPvPr: | 480i/480P/576i/576P/720P/1080i/1080P | ||
| HDMI in: | 480i/480P/576i/576P/720P/1080i/1080P/2160P | ||
| Brightness | 450 nits | ||
| Pixel Pitch: | 0.4298x0.4298mm | ||
| DDR3/Flash: | 1G/4G Build in | ||
| Display Colour: | 8 bit/1.07 Billion | ||

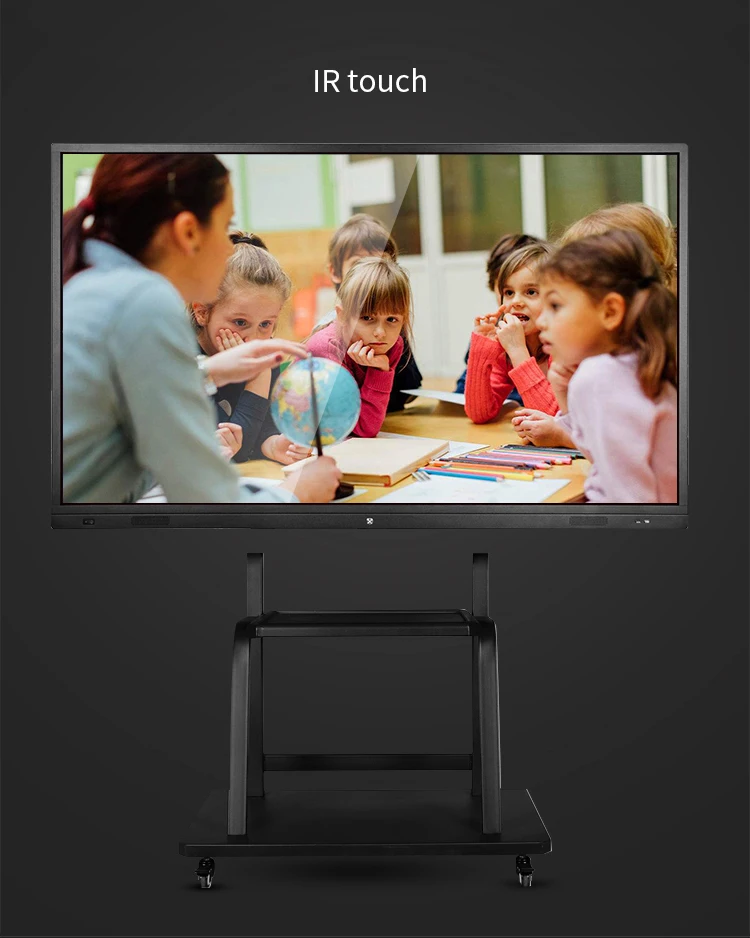

| Touch Solution: | IR Touch, 20 Points | ||
| Response Time: | 8ms | ||
| PositionaI Accuracy: | 3mm | ||
| Screen Life: | ≥50000h | ||
| Working Voltage: | 100V-240VAC,50/60Hz | ||
| Loudspeaker: | 8Ω/15W*2 | ||
| Wall Mount Bracket: | B75 Bracket | B85 Bracket | |
| OPS PC: | According to customer requirements ( InterCore i3 8100/i5 4430/i5 7500/i7 7700 ) | ||
| Packing List: | Machina*1,Remote Controller*1, Power Line*1,TouchPen*1,WifiBar*1,WallMountBracekt*1,OPS PC(opional) | ||
