IP44 Waterproof Aluminum Housing 36W 4ft Led Grow Tube Light Diy Plants Lamp
Product Description
| General | Name | LED grown light | |||
| Information | Model No. | BY-ZW02-18W | BY-ZW02-36W | BY-ZW02-45W | BY-ZW02-72W |
| Light source | SMD | ||||
| Structure | Detachable modular | ||||
| Chip | 2835 0.2w | ||||
| Warranty | 3 years | ||||
| Electrical Information | Power(W) | 18/36/45/72W | |||
| Voltage | AC100-277V 50-60Hz | ||||
| Surge protection | 2.5kv | ||||
| Driver efficiency | >90% | ||||
| Power factor | 0.95 | ||||
| Optical Information | Luminous flux(lm) | BY-ZW02-18W | BY-ZW02-36W | BY-ZW02-45W | BY-ZW02-72W |
| 1400 | 2800 | 3500 | 5700 | ||
| Luminous efficacy(lm/w) | 80 | 80 | 80 | 80 | |
| Ratio | R/B 6:1 R/B 4:1 R/B 3:1 3/1:1:1(IR UV GreenWhite optional) | ||||
| Color temperature | 280 - 800nm 600 - 640 nm 585 - 595 nm 515 - 525 nm 395 - 400 nm | ||||
| LED quantity(PCS) | 96 | 192 | 288 | 384 | |
| Beam angle | 120° | ||||
| Mechanical Information | Housing material | Aluminum+Optical PC | |||
| Lens material | PC | ||||
| Ambient temperature | -40℃~50℃ | ||||
| Working temperature | <60° | ||||
| Storage temperature | -40℃~50℃ | ||||
| IP Rating | IP44 | ||||
| Packaging Information | Product size(MM) | 600*36*33 | 1200*33*36 | 1500*33*36 | 2400*33*36 |
| Packaging size(MM) | 624*230*165/20pcs | 1224*230*165/20pcs | 1524*175*120/12pcs | 2424*175*120/12pcs | |
| N.W. about(KG) | 0.19 | 0.38 | 0.59 | 0.76 | |
| G.W. about(KG) | 4.6 | 8.9 | 12.3 | 17.9 | |

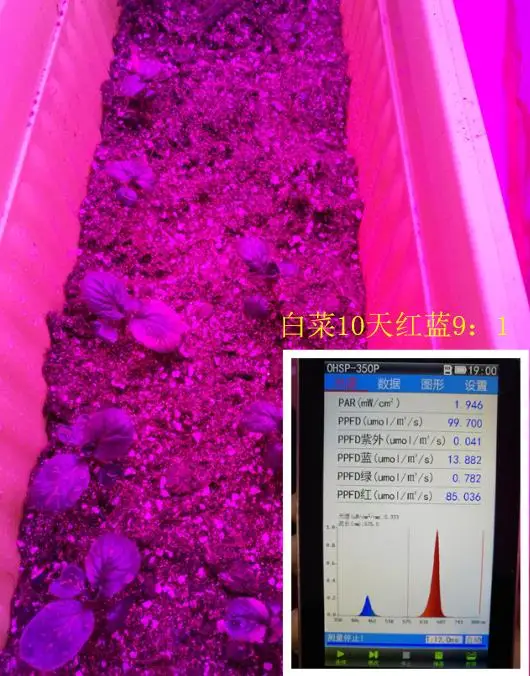

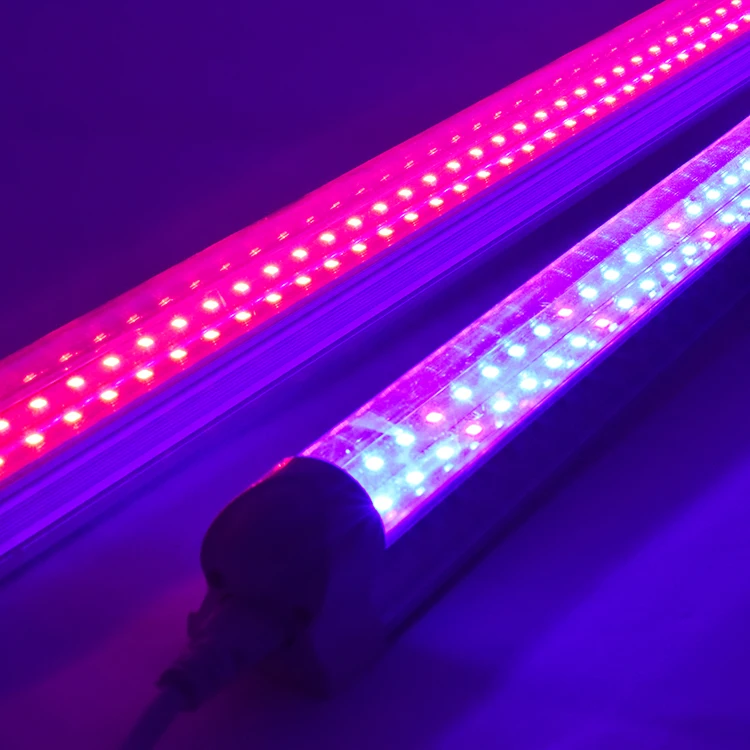

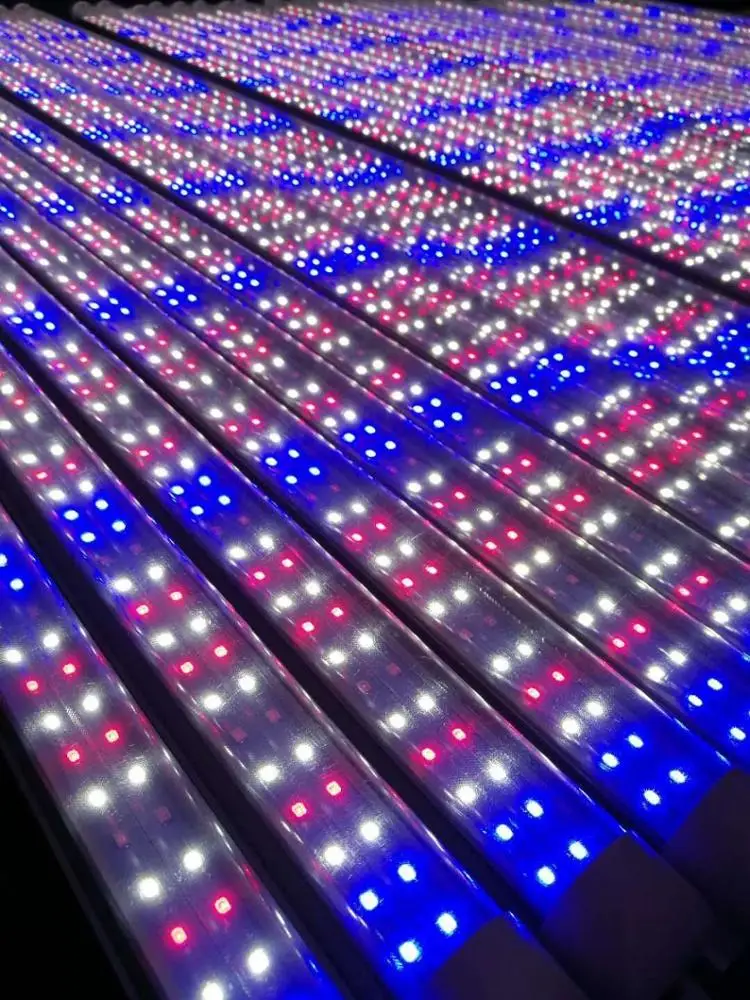

Light effect display:

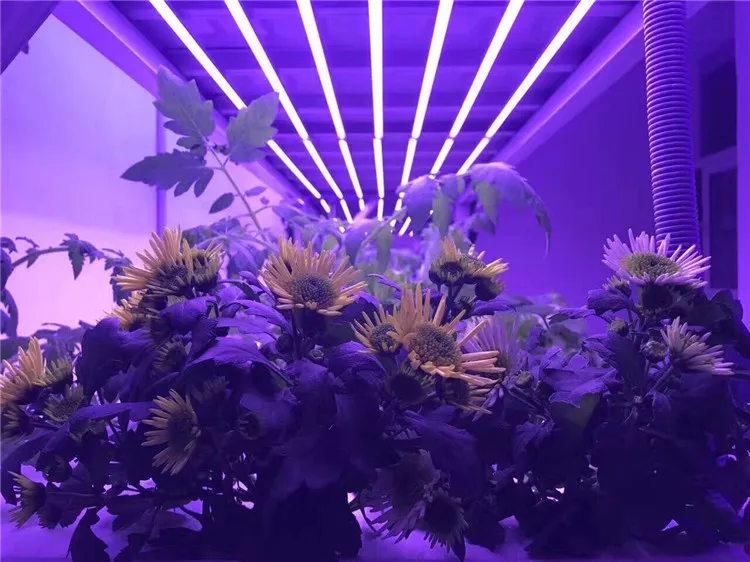

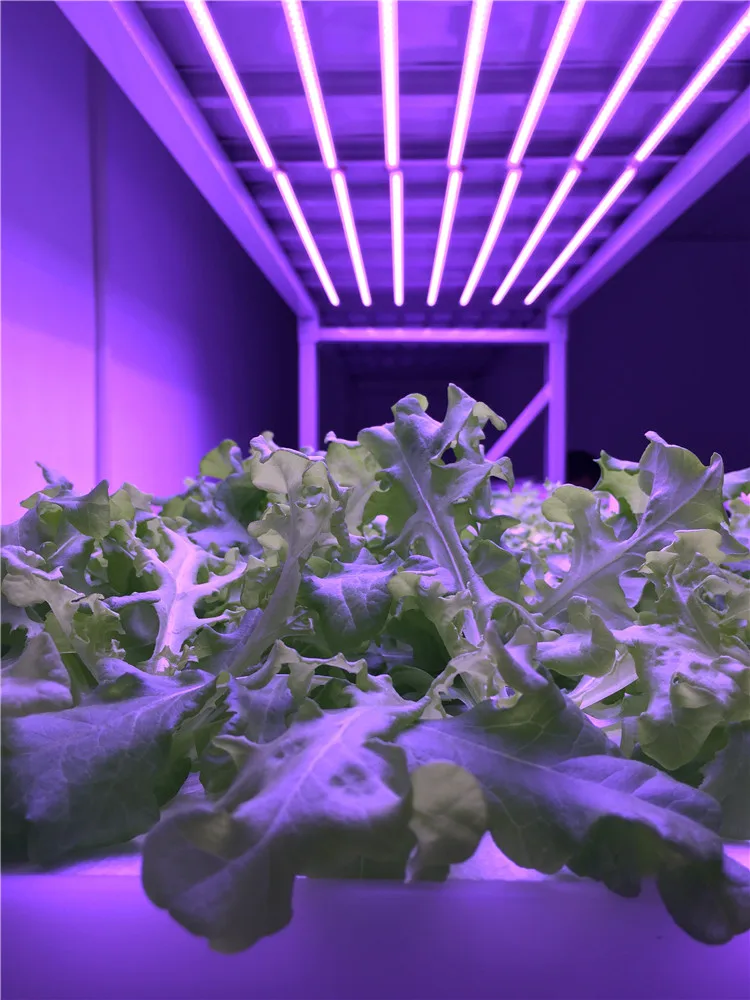

Application :
Parameter display:
